SHF25china robotics slewing bearings manufacturer 68x110x20.7mm

China SHF25china robotics slewing bearings manufacturer 68x110x20.7mm supplier
SHF25china robotics slewing bearings manufacturer 68x110x20.7mm supplier SHF25china robotics slewing bearings manufacturer 68x110x20.7mm supplier SHF25china robotics slewing bearings manufacturer 68x110x20.7mm supplier SHF25china robotics slewing bearings manufacturer 68x110x20.7mm supplier

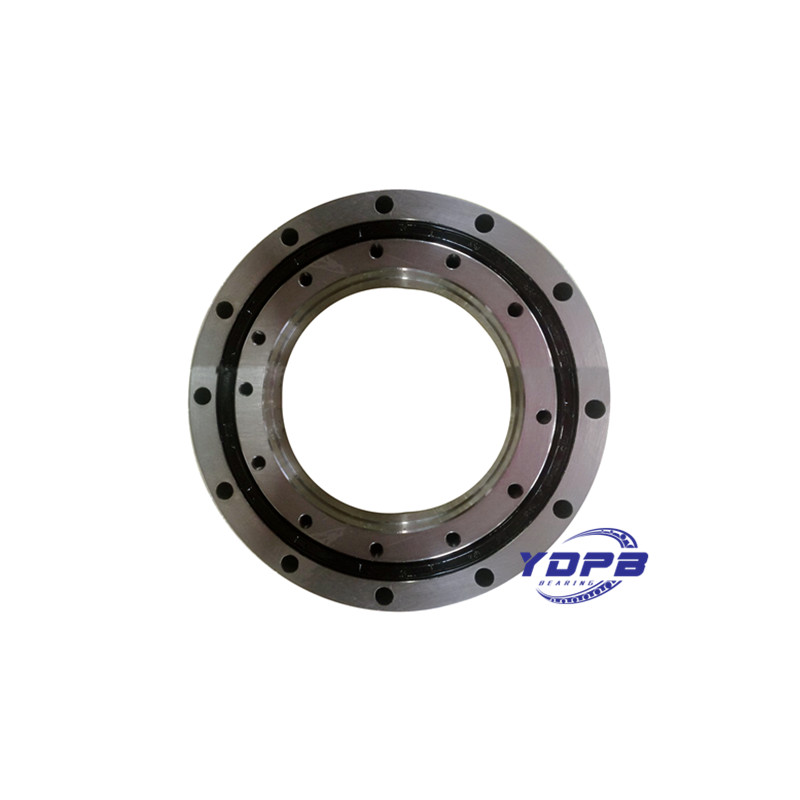

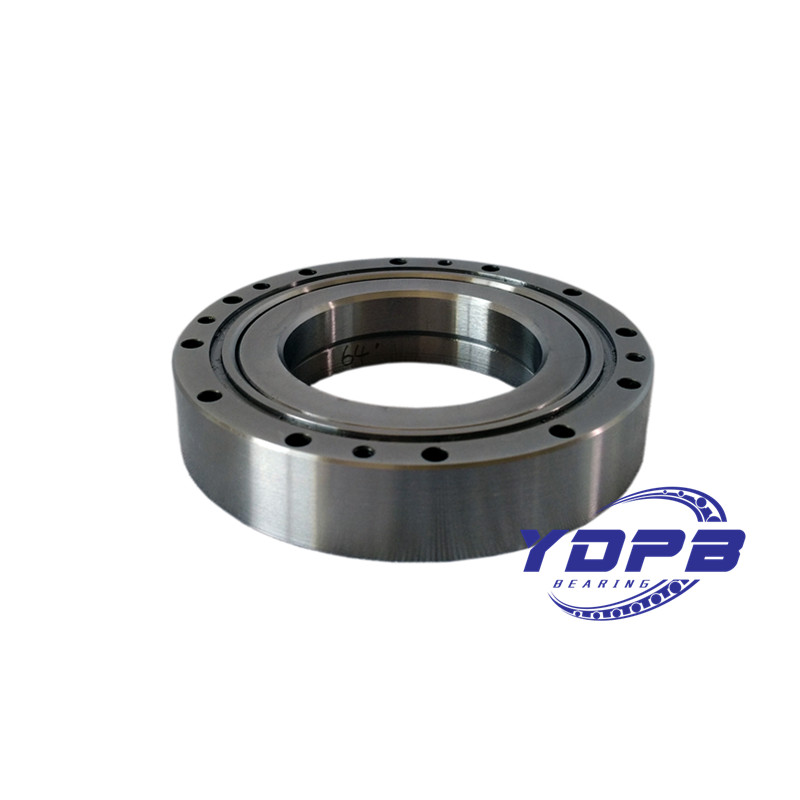

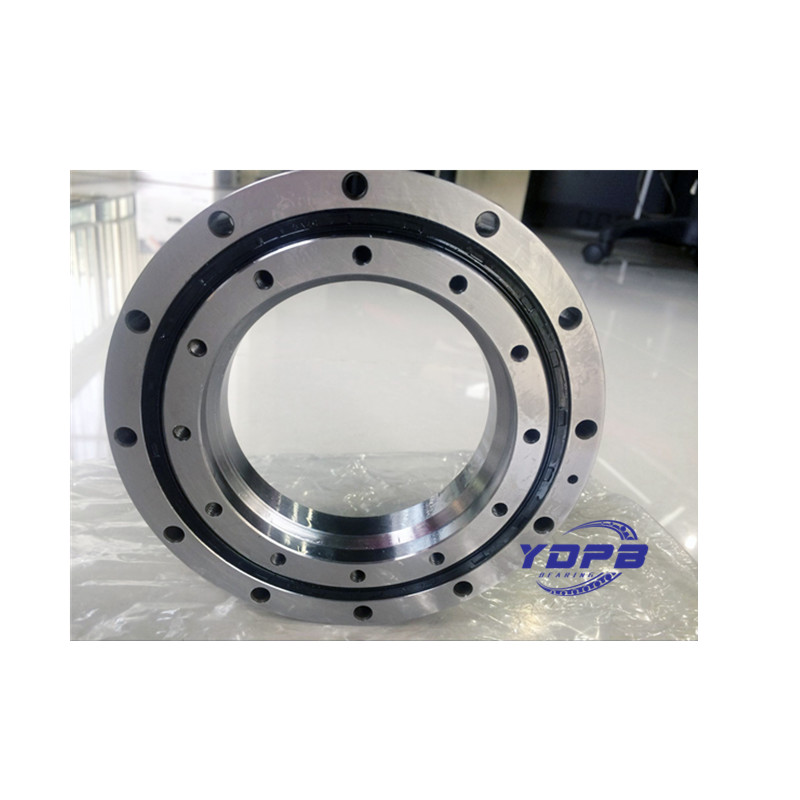

Large Image :  SHF25china robotics slewing bearings manufacturer 68x110x20.7mm

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: SHF25-6218A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: SHF25-6218A Material: GCr15
Application: Robots Harmonic Drive Use Name: Crossed Cylindrical Roller Bearing
Dimension: 68x110x20.7mm



Harmonic drive bearing SHF-25/SHG-25 Dimension-68x110x20.7mm



SHF(SHG) series(Outer ring integraty,inner ring integraty)

Outer ring and inner ring are all integraty structure,mounting will have no affect on performance ,it can abtain stable running accurancy and torque.suitable for every kinds of SHF(SHG) series harmonic drives.



SHF/SHG series models (Dimension- dx D x H mm):

SHF-14/SHG-14 Dimension-38x70x15.1mm

SHF-17/SHG-17 Dimension -47x80x17mm

SHF-20/SHG-20 Dimension-54x90x18.5mm

SHF-32/SHG-32 Dimension-88x142x24.4mm

SHF-40/SHG-40 Dimension-108x170x30mm

SHF-50/SHG-50 Dimension-135x214x36mm

Details

SHF25china robotics slewing bearings manufacturer 68x110x20.7mm

customized csf harmonic drive special bearings for robot

Lubrication

Bearing with high quality compound lithium-based grease in factory,so under normal using condition there is no need to add grease.but for bearing running ,in the inital stage ,the frictional torque will increase temporarily, frictional torque will be stable when grease uniformly adhere to raceway and roller.

If the bearing using condition change,general grease can not meet your requirements ,pls contact us.

Mounting Method

china harmonic drive reducer suppliers

Mounting caution

Pls clean up the parts e.g bearing seat ,axis etc,Which related to the bearing mounting. Check the burrs(make sure good fit tolerance between inner ring of bearing seat and outer ring of bearing, shaft neck and inner ring of bearing)

When tightening scew, Retaining bolt locking should be divided to 3~4 stages from incompletion locking to completion locking,according to the “ + crossing method” again and again.

Note

pls do not disassembly the bearing,for it is adjust by professional workers and to keep good preload and grease. If it runs abnormally after you receiving the bearing ,pls contact us.



Besides, bearing working temperature is -20℃~+80℃,if not ,pls contact us.


Many other precision bearings series available
