KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm

China KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm supplier
KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm supplier KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm supplier KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm supplier KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm supplier KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm supplier KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm supplier

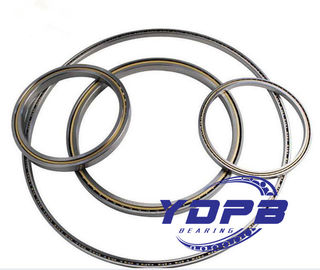

Large Image :  KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: KB035CPO

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: standard export packaging
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Material: GCR15 Precision: P6,P5,P4
Structure: Custom Made Available OEM: Available
Dimension: 88.9x104.775x7.938mm

KB035CPO Size 88.9x104.775x7.938mm Driving Motors thin section Bearing Kaydon standard open-type

Model number- KB035CPO
Thin section ball bearing
Inner ring(mm)-88.9
Outer ring(mm)-104.775
Width(in)- 7.938

Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6/P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section



Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.



Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing


Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life



Main parameters

Dimension Basic Load rating Weight Interchange
(inch/mm)  Basic Cap.N Kg
d D L1 L2 Cor Cr   NTN KAYDDON
2 2.625 2.231 2.393 4130 2000 0.073 KRB020 KB020CP0
50.8 66.675 56.7 60.8
2.5 3.125 2.731 2.893 5070 2310 0.091 KRB025 KB025CP0
63.5 79.375 69.4 73.5
3 3.625 3.231 3.393 5960 2580 0.109 KRB030 KB030CP0
76.2 92.075 82.1 86.2
3.5 4.125 3.731 3.893 6850 2800 0.125 KRB035 KB035CP0
88.9 104.775 94.8 98.9
4 4.625 4.432 4.393 7780 3070 0.14 KRB040 KB040CP0
101.6 117.475 107.5 111.6
4.2 4.875 4.481 4.643 8130 3160 0.147 KRB042 KB042CP0
107.95 123.825 113.8 117.9
4.5 5.125 4.731 4.893 8670 3290 0.16 KRB045 KB045CP0
114.3 130.175 120.2 124.3
4.75 5.375 4.981 5.143 9020 3380 0.163 KRB047 KB047CP0
120.65 136.525 126.6 130.6
5 5.625 5.231 5.393 9560 3510 0.172 KRB050 KB050CP0
127 142.875 132.9 137
5.5 6.125 5.731 5.893 10490 3730 0.186 KRB055 KB055CP0
139.7 155.575 145.6 149.7
6 6.625 6.231 6.393 11380 3960 0.205 KRB060 KB060CP0
152.4 168.275 158.3 162.4
6.5 7.125 6.731 6.893 12270 4130 0.216 KRB065 KB065CP0
165.1 180.975 171 175.1
7 7.625 7.231 7.393 13200 4360 0.232 KRB070 KB070CP0
177.8 193.675 183.7 187.8
7.5 8.125 7.731 7.893 14090 4530 0.25 KRB075 KB075CP0
190.5 206.375 196.4 200.5
8 8.625 8.231 8.393 14980 4670 0.262 KRB080 KB080CP0
203.2 219.075 209.1 213.2
9 9.625 9.231 9.393 16800 5110 0.3 KRB090 KB090CP0
228.6 244.475 234.5 238.6
10 10.625 10.231 10.393 18620 5470 0.331 KRB100 KB100CP0
254 269.875 259.9 264
11 11.625 11.231 11.393 20400 5820 0.36 KRB110 KB110CP0
279.4 295.275 285.3 289.4
12 12.625 12.231 12.393 22230 6180 0.39 KRB120 KB120CP0
304.8 320.675 310.7 314.8
14 14.625 14.231 14.393 25830 6800 0.476 KRB140 KB140CP0
355.6 371.475 361.5 365.6
16 16.625 16.231 16.393 29430 7420 0.544 KRB160 KB160CP0
406.4 422.275 412.3 416.4
18 18.625 18.231 18.393 33070 8050 0.612 KRB180 KB180CP0
457.2 473.075 463.1 467.2
20 20.625 20.231 20.393 36670 8620 0.68 KRB200 KB200CP0
508 523.875 513.9 518




Application

Aerospace and defense

Astronomy instrumentation

Fixturing and workholding equipment

Food processing equipment

Glassworking equipment

Index and rotary tables

Packaging equipment

Machine tools

Medical systems and medical devices

Optical scanning equipment

Tire making equipment



Related details

KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm

KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm

KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm

KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm

KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm



Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,

KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,

KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,

KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,


KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,

KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,

Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,



Transportation available
KB035CPO China Thin Section Bearings for Tube and pipe cutting machines 88.9x104.775x7.938mm
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
