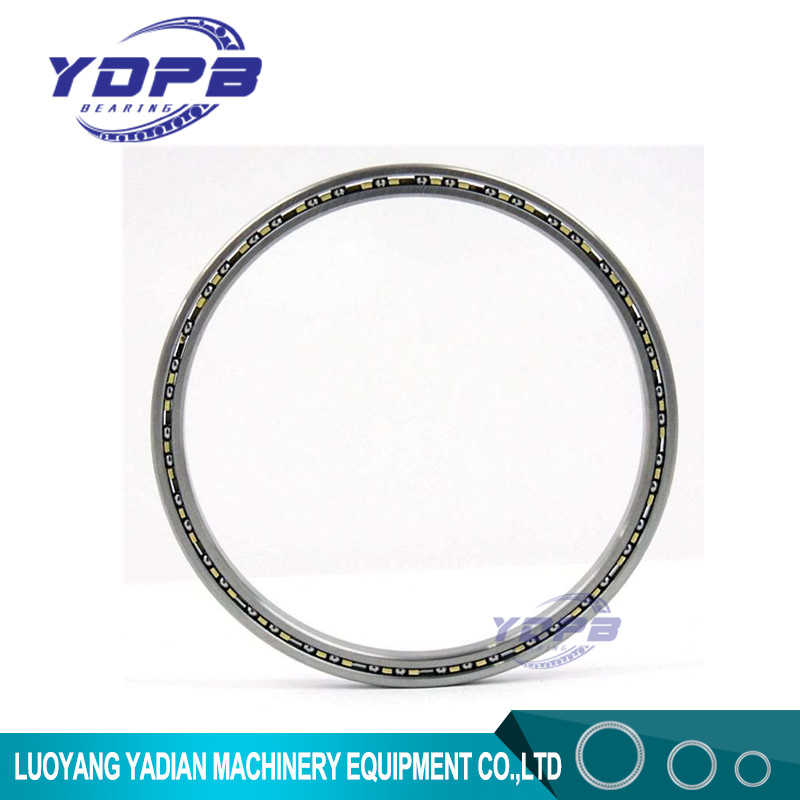

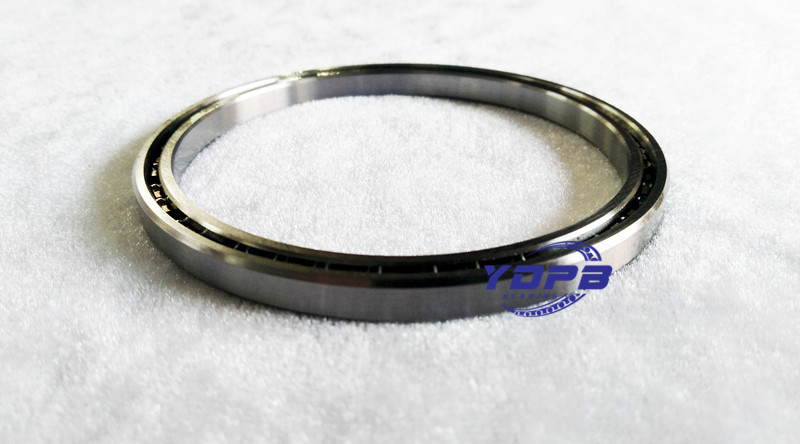

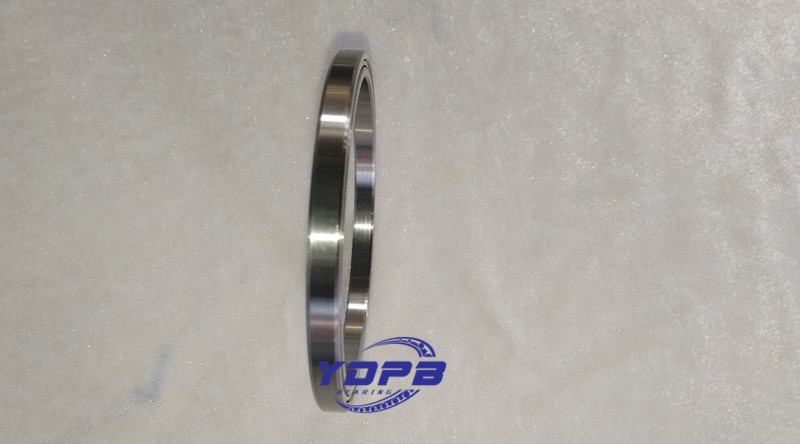

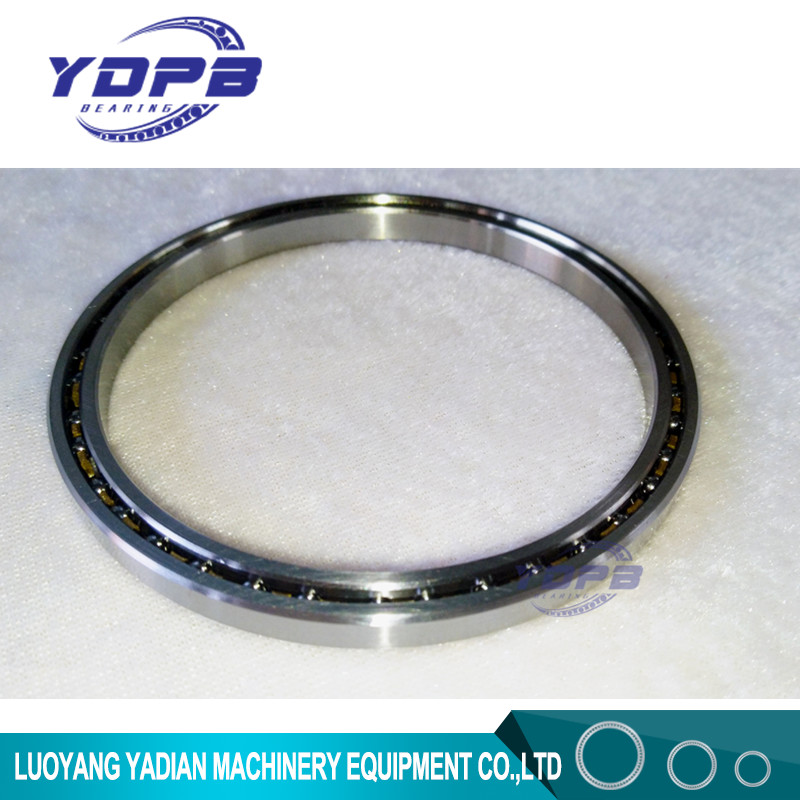

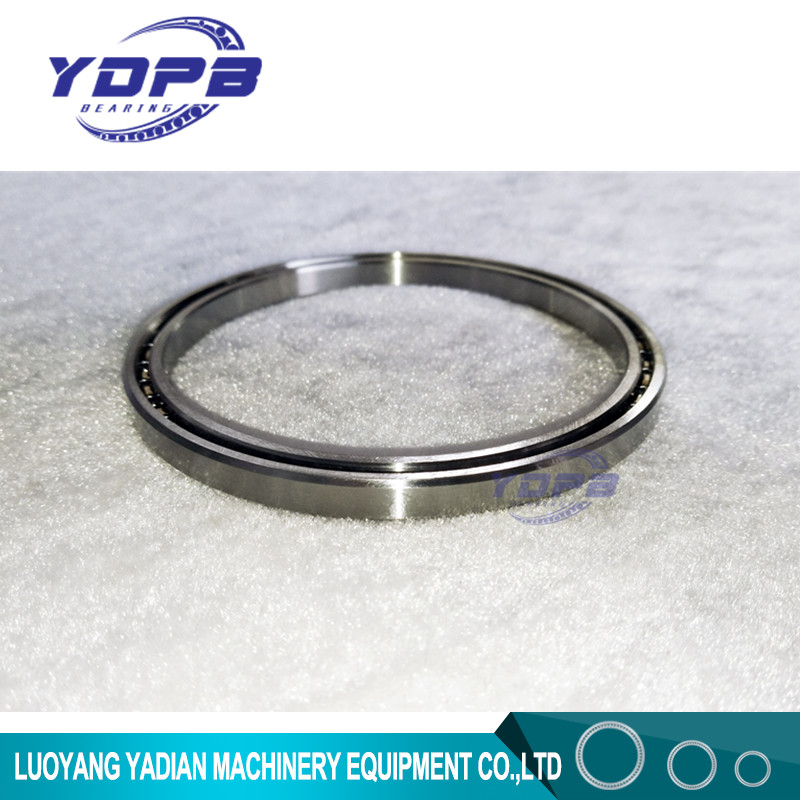

KC080CPO thin section bearings factory 203.2X222.25X9.525mm

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number KC080CPO
Minimum Order Quantity 1PCS
Price 1$
Packaging Details standard export packaging
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material GCR15 Precision P6,P5,P4
Structure Custom Made Available OEM Available
Dimension 203.2X222.25X9.525mm
Leave a Message
Product Description

KC080CPO Size 203.2X222.25X9.525mm Driving Motors thin section Bearing Kaydon standard open-type

Model number- KC080CPO
Thin section ball bearing
Inner ring(mm)-203.2
Outer ring(mm)-222.25
Width(in)- 9.525

Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6/P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section



Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.



Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing


Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life



Main parameters

Dimension Basic Load rating Weight Interchange
(inch/mm)  Basic Cap.N Kg
d D L1 L2 Cor Cr   NTN KAYDDON
4 4.75 4.277 4.473 9330 3910 0.204 KRC040 KC040CP0
101.6 120.65 108.6 113.6
4.25 5 4.527 4.723 9780 4090 0.213 KRC042 KC042CP0
107.95 127 115 120
4.5 5.25 4.777 4.973 10400 4220 0.225 KRC045 KC045CP0
114.3 133.35 121.3 126.3
4.75 5 5.027 5.223 10930 4360 0.235 KRC047 KC047CP0
120.65 139.7 127.7 132.7
5 5.75 5.277 5.473 11510 4490 0.263 KRC050 KC050CP0
127 146.05 134 139
5.5 6.25 5.777 5.973 12580 4800 0.268 KRC055 KC055CP0
139.7 158.75 146.7 151.7
6 6.75 6.277 6.473 13650 5070 0.295 KRC060 KC060CP0
152.4 171.45 159.4 164.4
6.5 7.25 6.777 6.973 14710 5330 0.312 KRC065 KC065CP0
165.1 184.15 172.1 177.1
7 7.75 7.277 7.473 15780 5560 0.34 KRC070 KC070CP0
177.8 196.85 184.4 189.8
7.5 8.25 7.777 7.973 16850 5820 0.36 KRC075 KC075CP0
190.5 209.55 197.5 202.5
8 8.75 8.277 8.473 17910 6050 0.387 KRC080 KC080CP0
203.2 222.25 210.2 215.2
9 9.75 9.277 9.473 20050 6530 0.45 KRC090 KC090CP0
228.6 247.65 235.6 240.6
10 10.75 10.277 10.473 22180 6980 0.481 KRC100 KC100CP0
254 273.05 261 266
11 11.75 11.277 11.473 24310 7420 0.526 KRC110 KC110CP0
279.4 298.45 286.4 291.4
12 12.75 12.277 12.473 26450 7870 0.567 KRC120 KC120CP0
304.8 323.85 311.8 316.8
14 14.75 14.277 14.473 30720 8670 0.689 KRC140 KC140CP0
355.6 374.65 362.6 367.6
16 16.75 16.277 16.473 35030 9470 0.785 KRC160 KC160CP0
406.4 425.45 413.4 418.4
18 18.75 18.277 18.473 39290 10220 0.88 KRC180 KC180CP0
457.2 476.25 464.2 469.2
20 20.75 20.277 20.473 43560 10980 0.98 KRC200 KC200CP0

Application

Aerospace and defense

Astronomy instrumentation

Fixturing and workholding equipment

Food processing equipment

Glassworking equipment

Index and rotary tables

Packaging equipment

Machine tools

Medical systems and medical devices

Optical scanning equipment

Tire making equipment



Related details

KC080CPO thin section bearings factory 203.2X222.25X9.525mm 0

KC080CPO thin section bearings factory 203.2X222.25X9.525mm 1

KC080CPO thin section bearings factory 203.2X222.25X9.525mm 2

KC080CPO thin section bearings factory 203.2X222.25X9.525mm 3

KC080CPO thin section bearings factory 203.2X222.25X9.525mm 4



Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,

KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,

KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,

KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,


KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,

KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,

Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,



Transportation available
KC080CPO thin section bearings factory 203.2X222.25X9.525mm 5
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
