KF050CPO Driving Motors thin section Bearing Kaydon standard open-type 127X165.1X19.05mm

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

KF050CPO Driving Motors thin section Bearing Kaydon standard open-type 127X165.1X19.05mm

China KF050CPO Driving Motors thin section Bearing  Kaydon standard open-type 127X165.1X19.05mm supplier
KF050CPO Driving Motors thin section Bearing  Kaydon standard open-type 127X165.1X19.05mm supplier KF050CPO Driving Motors thin section Bearing  Kaydon standard open-type 127X165.1X19.05mm supplier KF050CPO Driving Motors thin section Bearing  Kaydon standard open-type 127X165.1X19.05mm supplier KF050CPO Driving Motors thin section Bearing  Kaydon standard open-type 127X165.1X19.05mm supplier KF050CPO Driving Motors thin section Bearing  Kaydon standard open-type 127X165.1X19.05mm supplier

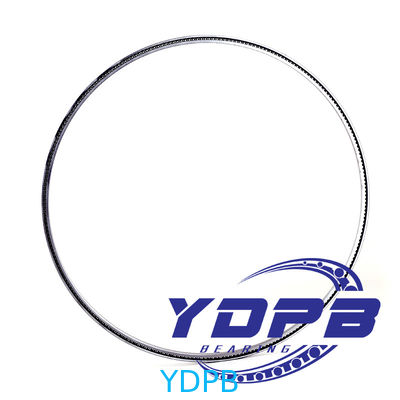

Large Image :  KF050CPO Driving Motors thin section Bearing Kaydon standard open-type 127X165.1X19.05mm

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: KF050CPO

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: standard export packaging
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Material: GCR15 Precision: P6,P5,P4
Structure: Custom Made Available OEM: Available
Dimension: 127X165.1X19.05mm

KF050CPO Size 127X165.1X19.05mm Driving Motors thin section Bearing Kaydon standard open-type

Model number- KF050CPO
Thin section ball bearing
Inner ring(mm)-127
Outer ring(mm)-165.1
Width(in)- 19.05

Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6/P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section



Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.



Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing


Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life



Main parameters

(inch/mm) Dimension Basic load rating Cap.N

weight

Kg

interchange
d D L1 L2 Cor Cr   NTN KAYDON
4 5 4.555 4.945 23830 12130 0.875 KRF040 KF040CP0
101.6 139.7 115.7 125.6
4.25 5.75 4.805 5.195 25070 12580 0.93 KRF042 KF042CP0
107.95 146.05 122 132
4.5 6 5.055 5.445 26360 12980 0.975 KRF045 KF045CP0
114.3 152.4 128.4 138.3
4.75 6.25 5.305 5.695 27600 13380 1.04 KRF047 KF047CP0
120.65 158.75 134.7 144.7
5 6.5 5.555 5.945 28850 13780 1.09 KRF050 KF050CP0
127 165.1 141.1 151
5.5 7 6.055 6.445 31340 14580 1.18 KRF055 KF055CP0
139.7 177.8 153.8 163.7
6 7.5 6.555 6.945 33870 15340 1.24 KRF060 KF060CP0
152.4 190.5 166.5 176.4
6.5 8 7.055 7.445 36360 16090 1.35 KRF065 KF065CP0
165.1 203.2 179.2 189.1
7 8.5 7.555 7.945 38890 16850 1.45 KRF070 KF070CP0
177.8 215.9 191.9 201.8
7.5 9 8.055 8.445 41380 17560 1.56 KRF075 KF075CP0
190.5 228.6 204.6 214.5
8 9.5 8.555 8.945 43920 18230 1.66 KRF080 KF080CP0
203.2 241.3 217.3 227.2
9 10.5 9.555 9.945 48900 19600 1.81 KRF090 KF090CP0
228.6 266.7 242.7 252.6
10 11.5 10.555 10.945 53920 20940 2.02 KRF100 KF100CP0
254 292.1 268.1 278
11 12.5 11.555 11.945 58940 22230 2.18 KRF110 KF110CP0
279.4 317.5 293.5 303.4
12 13.5 12.555 12.945 63960 23470 2.38 KRF120 KF120CP0
304.8 342.9 318.9 328.3
14 15.5 14.555 14.945 74010 25830 2.72 KRF140 KF140CP0
355.6 393.7 369.7 379.6
16 17.5 16.555 16.945 84010 28140 3.22 KRF160 KF160CP0
406.4 444.5 420.5 430.4
18 19.5 18.555 18.945 94060 30320 3.58 KRF180 KF180CP0
457.2 495.3 471.3 481.2
20 21.5 20.555 20.945 104100 32450 4.04 KRF200 KF200CP0
508 546.1 522.1 532

Application

Aerospace and defense

Astronomy instrumentation

Fixturing and workholding equipment

Food processing equipment

Glassworking equipment

Index and rotary tables

Packaging equipment

Machine tools

Medical systems and medical devices

Optical scanning equipment

Tire making equipment



Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,

KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,

KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,

KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,


KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,

KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,

Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,


Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
