KB070XP0 Kaydon standard 177.8x193.675X7.938mm china thin section bearings manufacturers

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number KB070XP0
Minimum Order Quantity 1PCS
Price 1$
Packaging Details standard export packaging
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material GCR15 Precision P6
Structure Custom Made Available OEM Available
Dimennsion 177.8x193.675X7.938mm
Leave a Message
Product Description

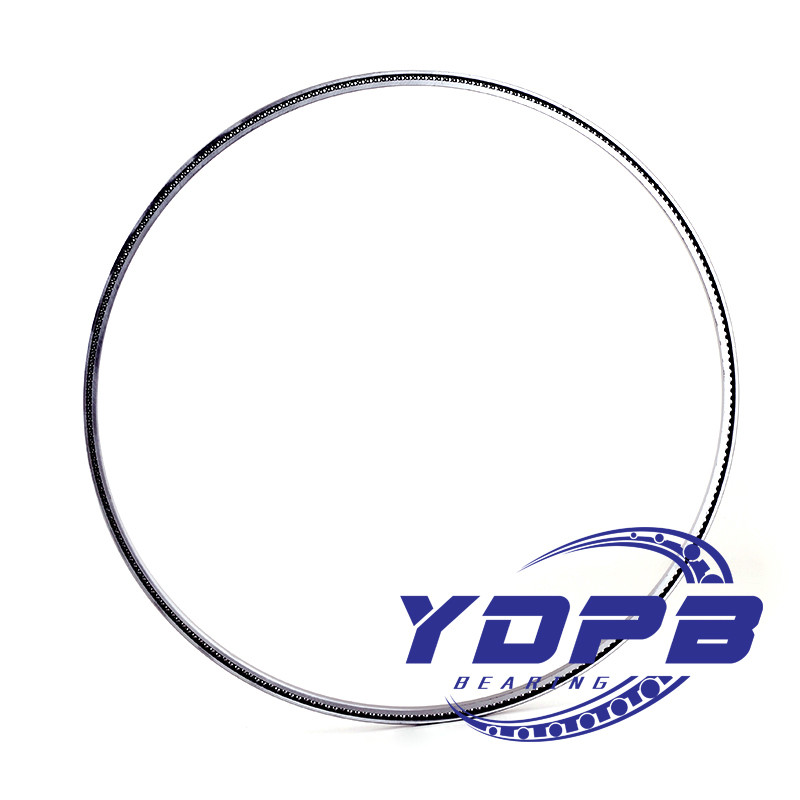

KB070XP0 Size 177.8x193.675X7.938mm Kaydon standard china thin section bearings manufacturers



Model number- KB070XP0

Thin section ball bearing
Inner ring(mm)-177.8

Outer ring(mm)-193.675

Width(in)- 7.938

Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section



Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.

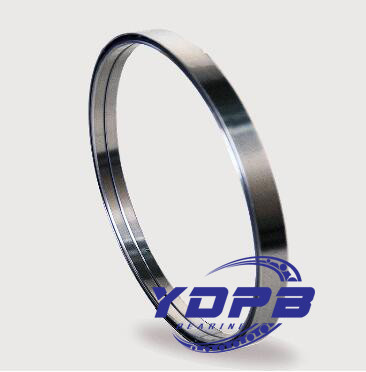

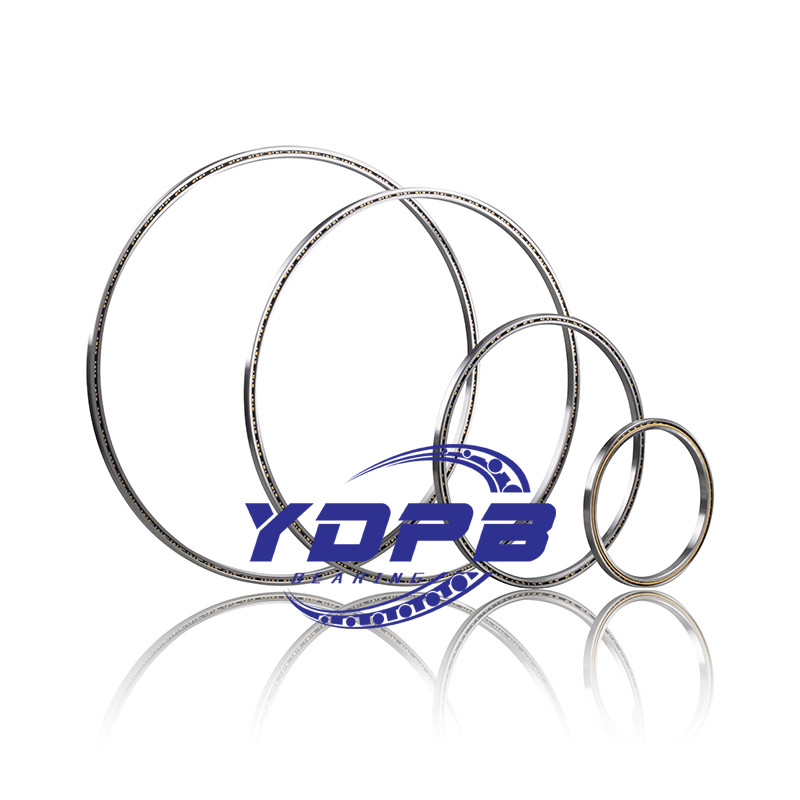

Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing

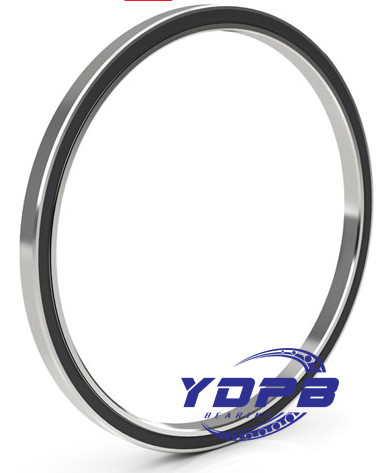

Sealed type deep groove ball bearing
Sealed four point contact ball bearing


Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life



Main parameters





(inch/mm)Dimension  Basic Cap.N Weight Interchange
d D L1 L2  Radial  Thrust Kg
Cor Cr Coa Ca   NTN KAYDON
1 1.375 1.142 1.236 1290 670 3250 1650 0.012 KXS010 KAA10XL0
25.4 34.925 29 31.4
1.5 1.875 1.642 1.736 1780 800 4450 2050 0.018 KXS015 KAA15XL0
38.1 47.625 41.7 44.1
1.75 2.125 1.89 1.985 2044 1418 5067 2222 0.045
44.45 53.975 48.006 50.149



(inch/mm)Dimension  Basic Cap.N Kg Interchange
d D L1 L2 Radial Thrust
Cor Cr Coa Ca   NTN KAYDON
2 2.5 2.816 2.314 1650 1420 7600 3510 0.048 KXA020 KA020XP0
50.8 63.5 55.5 58.8
2.5 3 2.686 2.814 690 1600 9290 4050 0.059 KXA025 KA025XP0
63.5 76.2 68.2 71.5
3 3.5 3.186 3.314 4400 1820 10980 4490 0.068 KXA030 KA030XP0
76.2 88.9 80.9 84.2
3.5 4 3.686 3.814 5070 2000 12670 4930 0.082 KXA035 KA035XP0
88.9 101.6 93.6 96.9
4 4.5 4.186 4.314 5730 2130 14310 5380 0.09 KXA040 KA040XP0
101.6 114.3 106.3 109.6
4.25 4.75 4.436 4.564 6090 2220 15160 5600 0.095 KXA042 KA042XP0
107.95 120.65 112.7 115.9
4.5 5 4.686 4.814 6400 2310 16000 5820 0.1 KXA045 KA045XP0
114.3 127 119 122.3
4.75 5.25 4.936 5.064 6760 2400 16850 6000 0.104 KXA047 KA047XP0
120.65 133.35 125.4 128.6
5 5.5 5.186 5.314 7070 2490 17690 6220 0.109 KXA050 KA050XP0
127 139.7 131.7 135



Dimension Basic Load rating Weight Interchange
(inch/mm)  Basic Cap.N Kg
d D L1 L2 Radial Thrust   NTN KAYDON
Cor Cr Coa Ca
2 2.625 2.231 2.393 4130 2000 10400 5020 0.073 KXB020 KB020XP0
50.8 66.675 56.7 60.8
2.5 3.125 2.731 2.893 5070 2310 12620 5730 0.091 KXB025 KB025XP0
63.5 79.375 69.4 73.5
3 3.625 3.231 3.393 5960 2580 14890 6400 0.109 KXB030 KB030XP0
76.2 92.075 82.1 86.2
3.5 4.125 3.731 3.893 6850 2800 17160 7070 0.125 KXB035 KB035XP0
88.9 104.775 94.8 98.9
4 4.625 4.432 4.393 7780 3070 19430 7650 0.14 KXB040 KB040XP0
101.6 117.475 107.5 111.6
4.2 4.875 4.481 4.643 8130 3160 20310 7910 0.147 KXB042 KB042XP0
107.95 123.825 113.8 117.9
4.5 5.125 4.731 4.893 8670 3290 21690 8220 0.16 KXB045 KB045XP0
114.3 130.175 120.2 124.3
4.75 5.375 4.981 5.143 9020 3380 22580 8450 0.163 KXB047 KB047XP0
120.65 136.525 126.6 130.6
5 5.625 5.231 5.393 9560 3510 23910 8800 0.172 KXB050 KB050XP0
127 142.875 132.9 137
5.5 6.125 5.731 5.893 10490 3730 26180 9340 0.186 KXB055 KB055XP0
139.7 155.575 145.6 149.7
6 6.625 6.231 6.393 11380 3960 28450 9870 0.205 KXB060 KB060XP0
152.4 168.275 158.3 162.4
6.5 7.125 6.731 6.893 12270 4130 30720 10400 0.216 KXB065 KB065XP0
165.1 180.975 171 175.1
7 7.625 7.231 7.393 13200 4360 32980 10890 0.232 KXB070 KB070XP0
177.8 193.675 183.7 187.8
7.5 8.125 7.731 7.893 14090 4530 35200 11380 0.25 KXB075 KB075XP0
190.5 206.375 196.4 200.5
8 8.625 8.231 8.393 14980 4670 37470 11870 0.262 KXB080 KB080XP0
203.2 219.075 209.1 213.2
9 9.625 9.231 9.393 16800 5110 42000 12800 0.3 KXB090 KB090XP0
228.6 244.475 234.5 238.6
10 10.625 10.231 10.393 18620 5470 46500 13690 0.331 KXB100 KB100XP0
254 269.875 259.9 264
11 11.625 11.231 11.393 20400 5820 51030 14580 0.36 KXB110 KB110XP0
279.4 295.275 285.3 289.4
12 12.625 12.231 12.393 22230 6180 55560 15420 0.39 KXB120 KB120XP0
304.8 320.675 310.7 314.8
14 14.625 14.231 14.393 25830 6800 64590 17070 0.476 KXB140 KB140XP0
355.6 371.475 361.5 365.6
16 16.625 16.231 16.393 29430 7420 73610 18630 0.544 KXB160 KB160XP0
406.4 422.275 412.3 416.4
18 18.625 18.231 18.393 33070 8050 82630 20090 0.612 KXB180 KB180XP0
457.2 473.075 463.1 467.2
20 20.625 20.231 20.393 36670 8620 91660 21560 0.68 KXB200 KB200XP0
508 523.875 513.9 518



Application:

Aerospace and defense

Astronomy instrumentation

Fixturing and workholding equipment

Food processing equipment

Glassworking equipment

Index and rotary tables

Packaging equipment

Machine tools

Medical systems and medical devices

Optical scanning equipment

Tire making equipment



Related details

KB070XP0 Kaydon standard 177.8x193.675X7.938mm   china thin section bearings manufacturers 0

KB070XP0 Kaydon standard 177.8x193.675X7.938mm   china thin section bearings manufacturers 1

KB070XP0 Kaydon standard 177.8x193.675X7.938mm   china thin section bearings manufacturers 2

KB070XP0 Kaydon standard 177.8x193.675X7.938mm   china thin section bearings manufacturers 3

KB070XP0 Kaydon standard 177.8x193.675X7.938mm   china thin section bearings manufacturers 4



Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,

KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,

KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,

KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,


KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,

KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,

Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,



Transportation available
KB070XP0 Kaydon standard 177.8x193.675X7.938mm   china thin section bearings manufacturers 5
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
