Home ProductsKaydon standard Open-Type Thin Section Ball Bearings

KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm china thin section bearings manufacturers

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm china thin section bearings manufacturers

China KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers supplier
KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers supplier KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers supplier KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers supplier KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers supplier

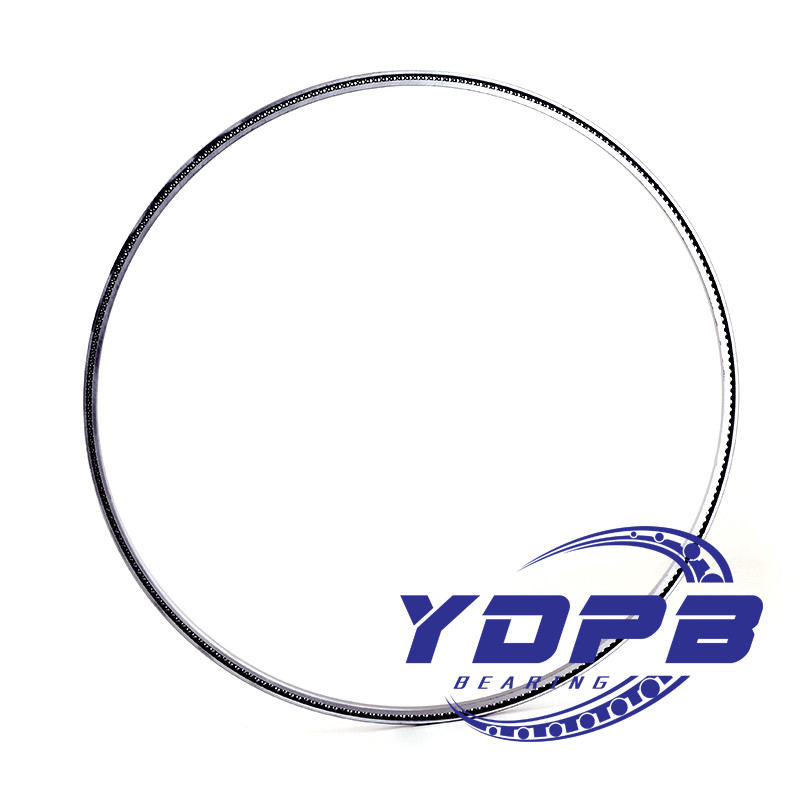

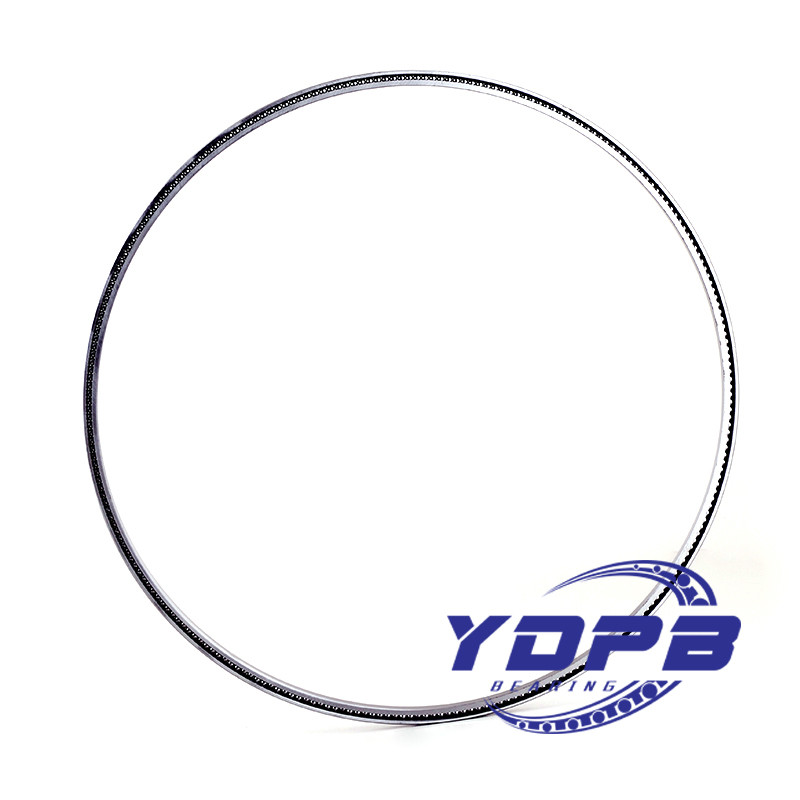

Large Image :  KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm china thin section bearings manufacturers

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: KC075XP0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: standard export packaging
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Material: GCR15 Precision: P6
Structure: Custom Made Available OEM: Available
Dimennsion: 190.5x209.55X9.525mm

KC075XP0 Size 190.5x209.55X9.525mm china thin section bearings manufacturers Packaging equipment bearing



Model number- KC075XP0

Thin section ball bearing
Inner ring(mm)-190.5

Outer ring(mm)-209.55

Width(in)- 9.525

Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section



Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.

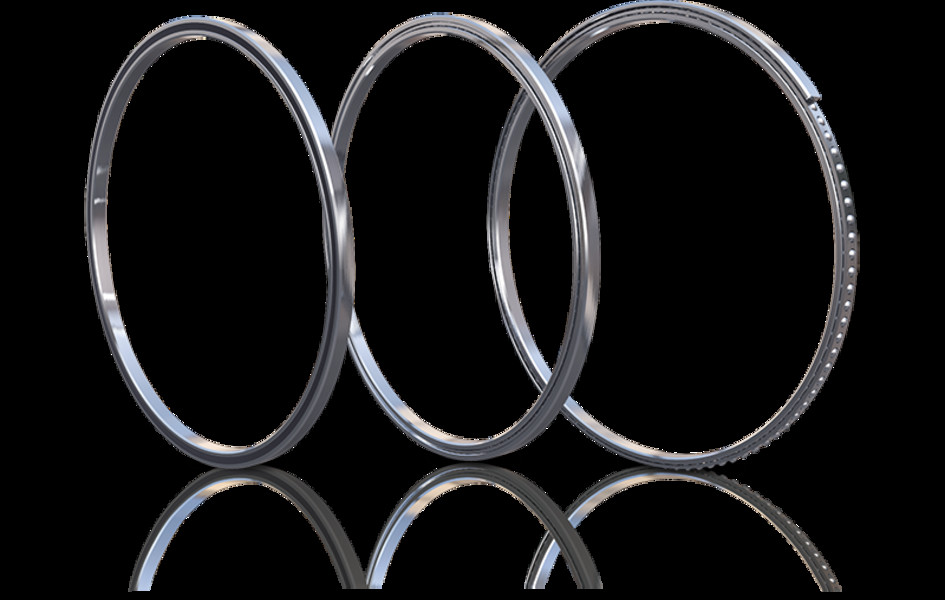

Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing


Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life



Main parameters



Dimension Basic load rating Weight Interchange
(inch/mm)  Basic Cap.N Kg
d D L1 L2 Radial Thrust   NTN KAYDON
Cor Cr Coa Ca
4 4.625 4.432 4.393 9340 3910 23380 9820 0.204 KXC040 KC040XP0
101.6 117.475 107.5 111.6
4.2 4.875 4.481 4.643 9870 4090 24710 10180 0.213 KXC042 KC042XP0
107.95 123.825 113.8 117.9
4.5 5.125 4.731 4.893 10400 4220 26050 10580 0.225 KXC045 KC045XP0
114.3 130.175 120.2 124.3
4.75 5.375 4.981 5.143 10940 4360 27380 10940 0.235 KXC047 KC047XP0
120.65 136.525 126.6 130.6
5 5.625 5.231 5.393 11510 4490 28720 11290 0.263 KXC050 KC050XP0
127 142.875 132.9 137
5.5 6.125 5.731 5.893 12580 4800 31380 11960 0.268 KXC055 KC055XP0
139.7 155.575 145.6 149.7
6 6.625 6.231 6.393 13650 5070 34050 12620 0.295 KXC060 KC060XP0
152.4 168.275 158.3 162.4
6.5 7.125 6.731 6.893 14710 5330 36760 13290 0.312 KXC065 KC065XP0
165.1 180.975 171 175.1
7 7.625 7.231 7.393 15780 5560 39430 13910 0.34 KXC070 KC070XP0
177.8 193.675 183.7 187.8
7.5 8.125 7.731 7.893 16850 5820 42090 14540 0.36 KXC075 KC075XP0
190.5 206.375 196.4 200.5
8 8.625 8.231 8.393 17910 6050 44760 15160 0.387 KXC080 KC080XP0
203.2 219.075 209.1 213.2
9 9.625 9.231 9.393 20050 6530 50100 16310 0.45 KXC090 KC090XP0
228.6 244.475 234.5 238.6
10 10.625 10.231 10.393 22180 6980 55430 17470 0.481 KXC100 KC100XP0
254 269.875 259.9 264
11 11.625 11.231 11.393 24310 7420 60810 18580 0.526 KXC110 KC110XP0
279.4 295.275 285.3 289.4
12 12.625 12.231 12.393 26450 7870 66140 19650 0.567 KXC120 KC120XP0
304.8 320.675 310.7 314.8
14 14.625 14.231 14.393 30720 8670 76810 21740 0.689 KXC140 KC140XP0
355.6 371.475 361.5 365.6
16 16.625 16.231 16.393 35030 9470 87520 23690 0.785 KXC160 KC160XP0
406.4 422.275 412.3 416.4
18 18.625 18.231 18.393 39290 10220 98190 25600 0.88 KXC180 KC180XP0
457.2 473.075 463.1 467.2
20 20.625 20.231 20.393 43560 10980 108900 27430 0.98 KXC200 KC200XP0
508 523.875 513.9 518



Application:

Aerospace and defense

Astronomy instrumentation

Fixturing and workholding equipment

Food processing equipment

Glassworking equipment

Index and rotary tables

Packaging equipment

Machine tools

Medical systems and medical devices

Optical scanning equipment

Tire making equipment



Related details

KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers

KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers

KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers

KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers

KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers



Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,

KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,

KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,

KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,


KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,

KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,

Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,



Transportation available
KC075XP0 Packaging equipment bearing 190.5x209.55X9.525mm  china thin section bearings manufacturers
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
