Home ProductsKaydon standard Open-Type Thin Section Ball Bearings

KD180XP0 Size 457.2X482.6X12.7mm china thin section bearings manufacturers Medical systems and medical devices bearing

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

KD180XP0 Size 457.2X482.6X12.7mm china thin section bearings manufacturers Medical systems and medical devices bearing

China KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing supplier
KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing supplier KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing supplier KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing supplier KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing supplier

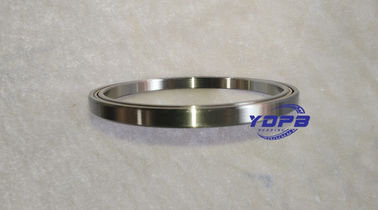

Large Image :  KD180XP0 Size 457.2X482.6X12.7mm china thin section bearings manufacturers Medical systems and medical devices bearing

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: KD180XP0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: standard export packaging
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Material: GCR15 Precision: P6,P5,P4
Structure: Custom Made Available OEM: Available
Dimennsion: 457.2X482.6X12.7mm

KD180XP0 Size 457.2X482.6X12.7mm china thin section bearings manufacturers Medical systems and medical devices bearing



Model number- KD180XP0

Thin section ball bearing
Inner ring(mm)-457.2

Outer ring(mm)-482.6

Width(in)- 12.7

Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6/P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section



Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.



Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing


Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life



Main parameters

Dimension Basic load rating Weight Interchange
(inch/mm)  Basic Cap.N Kg
d D L1 L2 Radial Thrust   NTN KAYDON
Cor Cr Coa Ca
4 5 4.37 4.63 13690 6270 34230 15650 0.366 KXD040 KD040XP0
101.6 127 111 117.6
4.25 5.25 4.62 4.88 14180 6400 35470 16000 0.386 KXD042 KD042XP0
107.95 133.35 117.3 124
4.5 5.5 4.87 5.13 15200 6710 38010 16760 0.405 KXD045 KD045XP0
114.3 139.7 123.7 130.3
4.75 5.75 5.12 5.38 15690 6850 39290 17160 0.426 KXD047 KD047XP0
120.65 146.05 130 136.7
5 6 5.37 5.63 16710 7160 41830 17870 0.454 KXD050 KD050XP0
127 152.4 136.4 143
5.5 6.5 5.87 6.13 18230 7560 45610 18940 0.485 KXD055 KD055XP0
139.7 165.1 149.1 155.7
6 7 6.37 6.63 19780 8000 49430 19960 0.526 KXD060 KD060XP0
152.4 177.8 161.8 168.4
6.5 7.5 6.87 7.13 21290 8400 53210 20980 0.566 KXD065 KD065XP0
165.1 190.5 174.5 181.1
7 8 7.37 7.63 22800 8800 57020 21960 0.606 KXD070 KD070XP0
177.8 203.2 187.2 193.8
7.5 8.5 7.87 8.13 24310 9160 60810 22940 0.65 KXD075 KD075XP0
190.5 215.9 199.9 206.5
8 9 8.37 8.63 25830 9560 64630 23870 0.694 KXD080 KD080XP0
203.2 228.6 212.6 219.2
9 10 9.37 9.63 28890 10310 72230 25740 0.78 KXD090 KD090XP0
228.6 254 238 244.6
10 11 10.37 10.63 31920 10980 79830 27520 0.853 KXD100 KD100XP0
254 279.4 263.4 270
11 12 11.37 11.63 34980 11690 87430 29200 0.934 KXD110 KD110XP0
279.4 304.8 288.8 295.4
12 13 12.37 12.63 38010 12360 95030 30890 1.02 KXD120 KD120XP0
304.8 330.2 314.2 320.8
14 15 14.37 14.63 44090 13650 110240 34090 1.24 KXD140 KD140XP0
355.6 381 365 371.6
16 17 16.37 16.63 50180 14890 125440 37160 1.41 KXD160 KD160XP0
406.4 431.8 415.8 422.4
18 19 18.37 18.63 56230 16050 140640 40140 1.58 KXD180 KD180XP0
457.2 482.6 466.6 473.2
20 21 20.37 20.63 62320 17200 155840 42980 1.75 KXD200 KD200XP0
508 533.4 517.4 524



Application:

Aerospace and defense

Astronomy instrumentation

Fixturing and workholding equipment

Food processing equipment

Glassworking equipment

Index and rotary tables

Packaging equipment

Machine tools

Medical systems and medical devices

Optical scanning equipment

Tire making equipment



Related details

KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing

KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing

KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing

KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing

KD180XP0 Size 457.2X482.6X12.7mm  china thin section bearings manufacturers Medical systems and medical devices bearing



Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,

KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,

KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,

KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,


KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,

KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,

Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
