KG040XP0 Thin Section ball Bearings for Robot-Arm 101.6X152.4X25.4mm china thin section ball bearings supplier

China KG040XP0 Thin Section ball Bearings for Robot-Arm 101.6X152.4X25.4mm china thin section ball bearings supplier supplier
KG040XP0 Thin Section ball Bearings for Robot-Arm 101.6X152.4X25.4mm china thin section ball bearings supplier supplier KG040XP0 Thin Section ball Bearings for Robot-Arm 101.6X152.4X25.4mm china thin section ball bearings supplier supplier KG040XP0 Thin Section ball Bearings for Robot-Arm 101.6X152.4X25.4mm china thin section ball bearings supplier supplier KG040XP0 Thin Section ball Bearings for Robot-Arm 101.6X152.4X25.4mm china thin section ball bearings supplier supplier KG040XP0 Thin Section ball Bearings for Robot-Arm 101.6X152.4X25.4mm china thin section ball bearings supplier supplier KG040XP0 Thin Section ball Bearings for Robot-Arm 101.6X152.4X25.4mm china thin section ball bearings supplier supplier

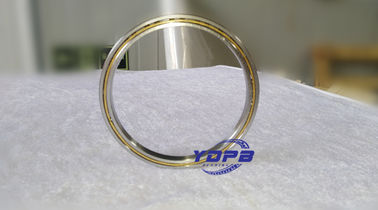

Large Image :  KG040XP0 Thin Section ball Bearings for Robot-Arm 101.6X152.4X25.4mm china thin section ball bearings supplier

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: KG040XP0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: standard export packaging
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Material: GCR15 Precision: P6,P5,P4
Structure: Custom Made Available OEM: Available
Dimennsion: 101.6X152.4X25.4mm

KG040XP0 Size 101.6X152.4X25.4mm china thin section ball bearings supplier



Model number- KG040XP0

Thin section ball bearing
Inner ring(mm)-101.6

Outer ring(mm)-152.4

Width(in)- 25.4

Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6/P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section



Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.



Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing


Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life



Main parameters

Dimension Basic Load rating Weight Interchange
(inch/mm)  Cap.N Kg
d D L1 L2 Radial Thruet   NTN KAYDON
Cor Cr Coa Ca
4 6 4.742 5.258 36490 200000 91210 50050 1.65 KXG040 KG040XP0
101.6 152.4 120.4 133.6
4.25 6.25 4.992 5.508 36490 20000 91210 50050 1.75 KXG042 KG042XP0
107.95 158.75 126.8 139.9
4.5 6.5 5.242 5.758 38940 20890 97300 52230 1.81 KXG045 KG045XP0
114.3 165.1 133.1 146.3
4.75 6.75 5.492 6.008 41340 21740 103390 54360 1.91 KXG047 KG047XP0
120.65 171.45 139.5 152.6
5 7 5.742 6.258 43780 22580 109440 56500 2.02 KXG050 KG050XP0
127 177.8 145.8 159
5.5 7.5 6.242 6.758 46230 23430 115530 58590 2.17 KXG055 KG055XP0
139.7 190.5 158.5 171.7
6 8 6.742 7.258 51070 25030 127710 62630 2.31 KXG060 KG060XP0
152.4 203.2 171.2 184.4
6.5 8.5 7.242 7.758 53520 25830 133800 64590 2.47 KXG065 KG065XP0
165.1 215.9 183.9 197.1
7 9 7.742 8.258 58360 27380 145930 68450 2.67 KXG070 KG070XP0
177.8 228.6 196.6 209.8
7.5 9.5 8.242 8.758 60810 28140 152020 70320 2.83 KXG075 KG075XP0
190.5 241.3 209.3 222.5
8 10 8.742 9.258 65650 29600 164200 74010 3 KXG080 KG080XP0
203.2 254 222 235.2
9 11 9.742 10.258 72990 31780 182420 79430 3.3 KXG090 KG090XP0
228.6 279.4 247.4 260.6
10 12 10.742 11.258 80230 33870 200650 84630 3.65 KXG100 KG100XP0
254 304.8 272.8 286
11 13 11.742 12.258 87570 35870 218920 89700 3.96 KXG110 KG110XP0
279.4 330.2 298.2 311.4
12 14 12.742 13.258 94860 37830 237140 94590 4.32 KXG120 KG120XP0
304.8 355.6 323.6 336.8
14 16 14.742 15.258 109440 41610 273630 104060 4.96 KXG140 KG140XP0
355.6 406.4 374.4 387.6
16 18 16.742 17.258 124060 45250 310130 113130 5.65 KXG160 KG160XP0
406.4 457.2 425.2 438.4
18 20 18.742 19.258 138640 48720 346620 121840 6.28 KXG180 KG180XP0
457.2 508 476 489.2
20 22 20.742 21.258 153220 52100 383070 130240 7.53 KXG200 KG200XP0
508 558.8 526.8 540



Aerospace and defense

Astronomy instrumentation

Fixturing and workholding equipment

Food processing equipment

Glassworking equipment

Index and rotary tables

Packaging equipment

Machine tools

Medical systems and medical devices

Optical scanning equipment

Tire making equipment



Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,

KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,

KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,

KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,


KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,

KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,

Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,


Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
