Ju120XP0 Preload Thin Section Bearing for Plasma Cutting Machine 12x12.75inch

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number Ju120XP0
Minimum Order Quantity 1PCS
Price 1$
Packaging Details standard export packaging
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material GCR15 Precision P6,P5,P4
Structure Custom Made Available OEM Available
Leave a Message
Product Description

JU050CP0 thin section bearings china Medical systems and medical devices use bearings



Model number- JU050CP0

Thin section ball bearing

Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6/P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section



Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.



Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing


Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life



Main parameters



 Type Dimension Basic load rating  Weight Interchange
(inch/mm)  Basic Cap.N Kg
d D L1 L2 Cor Cr   NTN KAYDON
YDJHA10CL0 1 1.375 1.108 1.274 1290 670 0.016   JHA10CL0
25.4 34.925 28.1 32.4
YDJHA15CL0 1.5 1.875 1.608 1.771 1780 800 0.024   JHA15CL0
38.1 47.625 40.8 45.1
YDJA020CP0 2 2.5 2.148 2.356 3020 1420 0.045   JA020CP0
50.8 63.5 54.6 59.8
YDJA025CP0 2.5 3 2.648 2.856 3690 1600 0.054   JA025CP0
63.5 76.2 62.7 72.5
YDJA030CP0 3 3.5 3.148 3.356 4400 1820 0.064   JA030CP0
76.2 88.9 80 85.2
YDJA035CP0 3.5 4 3.648 3.856 5070 2000 0.077   JA035CP0
88.9 101.6 92.7 98
YDJA040CP0 4 4.5 4.148 4.356 5730 2130 0.086   JA040CP0
101.6 114.3 105.4 110.6
YDJA042CP0 4.25 4.75 4.398 4.606 6090 2220 0.091   JA042CP0
107.95 120.65 111.7 117
YDJA045CP0 4.5 5 4.684 4.856 6400 2310 0.095   JA045CP0
114.3 127 118 123.3
YDJA047CP0 4.75 5.25 4.898 5.106 6760 2400 0.1   JA047CP0
120.65 133.35 124.4 129.7
YDJA050CP0 5 5.5 5.148 5.356 7070 2490 0.104   JA050CP0
127 139.7 130.8 136


Type Dimension Basic load rating Weight Interchange
(inch/mm) Dimension Basic Cap.N Kg
d D L1 L2 Cor Cr   NTN KAYDON
YDJB020CP0 2 2.625 2.136 2.362 4130 2000 0.068   JB020CP0
50.8 66.675 54.3 60
YDJB025CP0 2.5 3.125 2.636 2.862 5070 2310 0.086   JB025CP0
63.5 79.375 67 72.7
YDJB030CP0 3 3.625 3.136 3.362 5960 2580 0.1   JB030CP0
76.2 92.075 79.7 85.4
YDJB035CP0 3.5 4.125 3.636 3.862 6850 2800 0.122   JB035CP0
88.9 104.775 92.4 98.1
YDJB040CP0 4 4.625 4.136 4.362 7780 3070 0.136   JB040CP0
101.6 117.475 105 110.8
YDJB042CP0 4.2 4.875 4.386 4.662 8130 3160 0.141   JB042CP0
107.95 123.825 111.4 118.4
YDJB045CP0 4.5 5.125 4.636 4.862 8670 3290 0.154   JB045CP0
114.3 130.175 117.8 123.5
YDJB047CP0 4.75 5.375 4.886 5.162 9020 3380 0.159   JB047CP0
120.65 136.525 124.1 131.1
YDJB050CP0 5 5.625 5.136 5.362 9560 3510 0.168   JB050CP0
127 142.875 130.5 136.2
YDJB055CP0 5.5 6.125 5.636 5.862 10490 3730 0.181   JB055CP0
139.7 155.575 143.2 148.9
YDJB060CP0 6 6.625 6.136 6.362 11380 3960 0.2   JB060CP0
152.4 168.275 155.9 161.6
YDJB065CP0 6.5 7.125 6.638 6.862 12270 4130 0.213   JB065CP0
165.1 180.975 168.6 174.3







Type Dimension Basic load rating Weight Interchange
(inch/mm)  Basic Cap.N Kg
d D L1 L2 Cor Cr   NTN KAYDON
YDJG120CP0 12 14 12.554 13.602 94860 37830 4.218   JG120CP0
304.8 355.6 318.9 345.5
YDJG140CP0 14 16 14.554 15.602 109440 41610 4.899   JG140CP0
355.6 406.4 369.7 396.3
YDJG160CP0 16 18 16.554 17.602 124060 45250 5.579   JG160CP0
406.4 457.2 420.5 447.1
YDJG180CP0 18 20 18.554 19.602 138640 48720 6.214   JG180CP0
457.2 508 471.3 497.9
YDJG200CP0 20 22 20.554 21.602 153220 52100 7.167   JG200CP0
508 558.8 522.1 548.7


 Type Dimension Basic load rating Weight Interchange
(inch/mm)  Basic Cap.N Kg
d D L1 L2 Cor Cr   NTN KAYDON
YDJU040CP0 4 4.75 4.15 4.547 9340 3910 0.249 KRJ040LL JU040CP0
101.6 120.65 105.4 115.5
YDJU042CP0 4.25 5 4.4 4.797 9870 4090 0.263 KRJ042LL JU042CP0
107.95 127 111.76 121.8
YDJU045CP0 4.5 5.25 4.65 5.047 10400 4220 0.277 KRJ045LL JU045CP0
114.3 133.35 118.1 128.2
YDJU047CP0 4.75 5 4.9 5.295 10940 4360 0.295 KRJ047LL JU047CP0
120.65 139.7 124.5 134.5
YDJU050CP0 5 5.75 5.15 5.545 11510 4490 0.308 KRJ050LL JU050CP0
127 146.05 130.8 140.8
YDJU055CP0 5.5 6.25 5.56 6.042 12580 4800 0.336 KRJ055LL JU055CP0
139.7 158.75 143.5 153.5
YDJU060CP0 6 6.75 6.15 6.542 13650 5070 0.367 KRJ060LL JU060CP0
152.4 171.45 156.2 166.2
YDJU065CP0 6.5 7.25 6.65 7.037 14710 5330 0.395 KRJ065LL JU065CP0
165.1 184.15 168.9 178.7
YDJU070CP0 7 7.75 7.15 7.537 15780 5560 0.422 KRJ070LL JU070CP0
177.8 196.85 181.6 191.4
YDJU075CP0 7.5 8.25 7.65 8.037 16850 5820 0.449 KRJ075LL JU075CP0
190.5 209.55 194.3 204.1
YDJU080CP0 8 8.75 8.15 8.537 17910 6050 0.481 KRJ080LL JU080CP0
203.2 222.25 207 216.8
YDJU090CP0 9 9.75 9.15 9.535 20050 6530 0.535 KRJ090LL JU090CP0
228.6 247.65 232.4 242.2
YDJU100CP0 10 10.75 10.15 10.535 22180 6980 0.594 KRJ100LL JU100CP0
254 273.05 257.8 267.6
YDJU110CP0 11 11.75 11.15 11.535 24310 7420 0.649 KRJ110LL JU110CP0
279.4 298.45 283.2 293
YDJU120CP0 12 12.75 12.15 12.535 26450 7870 0.708 KRJ120LL JU120CP0
304.8 323.85 308.6 318.4



Application:

Aerospace and defense

Astronomy instrumentation

Fixturing and workholding equipment

Food processing equipment

Glassworking equipment

Index and rotary tables

Packaging equipment

Machine tools

Medical systems and medical devices

Optical scanning equipment

Tire making equipment



Related details

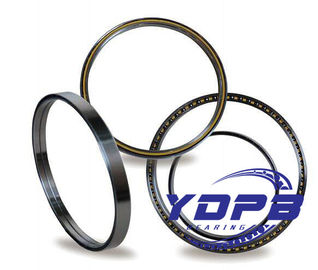

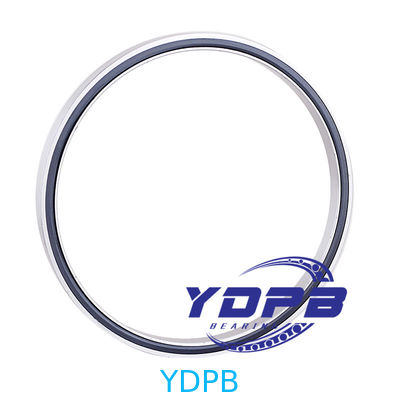

Ju120XP0  Preload Thin Section Bearing for Plasma Cutting Machine 12x12.75inch 0

Ju120XP0  Preload Thin Section Bearing for Plasma Cutting Machine 12x12.75inch 1

Ju120XP0  Preload Thin Section Bearing for Plasma Cutting Machine 12x12.75inch 2

Ju120XP0  Preload Thin Section Bearing for Plasma Cutting Machine 12x12.75inch 3



Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,

KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,

KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,

KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,


KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,

KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,

Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
