VLU200844 Slewing Ring Bearing 734x948x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number VLU200844
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model VLU200844 Material 50Mn Or According To You
Structure Four-point Contact Ball Dimension 734x948x56mm
Name Four-point Contact Ball Bearings
Leave a Message
Product Description

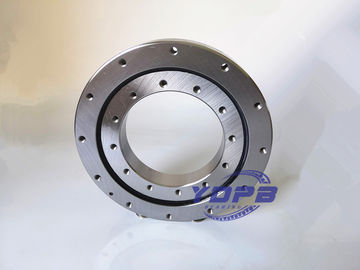

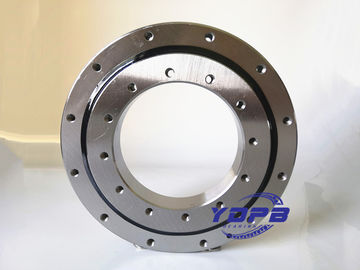

VLU200844 Slewing Ring Bearing 734x948x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang


Structure:four point contact ball bearing
Gear teeth: without
Seals type:double seals
Material: 50Mn/100Cr6/GCr15


Series Model NO.

VLU200414,VLU200544,VLU200644,VLU200744,VLU200844,VLU200944,VLU201094


Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

  • Manipulators
  • Jib cranes
  • Lift-assist devices
  • Work positioners

Larger sizes are well suited for:

  • Truck-mounted cranes
  • Aerial lifts
  • Hoists
  • Small wind turbines
  • Non-precision positioning tables

Structure and Parameters:

VLU200844 Slewing Ring Bearing 734x948x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang 0

VLU four point contact ball slewing rings with flange, untoothed

Model d (mm) D (mm) H(mm)
VLU200414 304 518 56
VLU200544 434 648 56
VLU200644 534 748 56
VLU200744 634 848 56
VLU200844 734 948 56
VLU200944 834 1048 56
VLU201094 984 1198 56



Equivalent Models

INA SKF KAYDON IMO Rothe Erde Rollix TGB
VLU200414 RKS.23 0411 RK6-16P1Z 90-20 0413/0-37012 230.20.0400.013 23-0411-01 SD.505.20.00.C
VLU200544 RKS.23 0541 RK6-22P1Z 90-20 0541/0-37022 230.20.0500.013 23-0541-01 SD.650.20.00.C
VLU200644 RKS.23 0641 RK6-25P1Z 90-20 0641/0-37032 230.20.0600.013 23-0641-01 SD.750.20.00.C
VLU200744 RKS.23 0741 RK6-29P1Z 90-20 0741/0-37042 230.20.0700.013 23-0741-01 SD.850.20.00.C
VLU200844 RKS.23 0841 RK6-33P1Z 90-20 0841/0-37052 230.20.0800.013 23-0841-01 SD.950.20.00.C
VLU200944 RKS.23 0941 RK6-37P1Z 90-20 0941/0-37062 230.20.0900.013 23-0941-01 SD.1050.20.00.C
VLU201094 RKS.23 1091 RK6-43P1Z 90-20 1091/0-37072 230.20.1000.013 23-1091-01 SD.1200.20.00.C





Drawings and other parameters ,pls contact us free, thanks


Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.



Many other precision bearings series available
