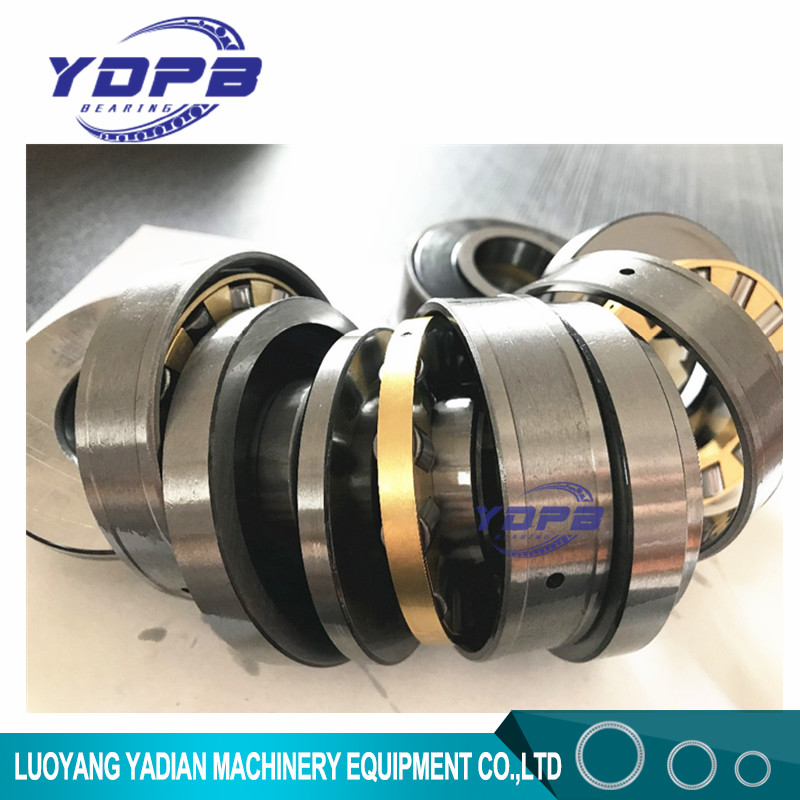

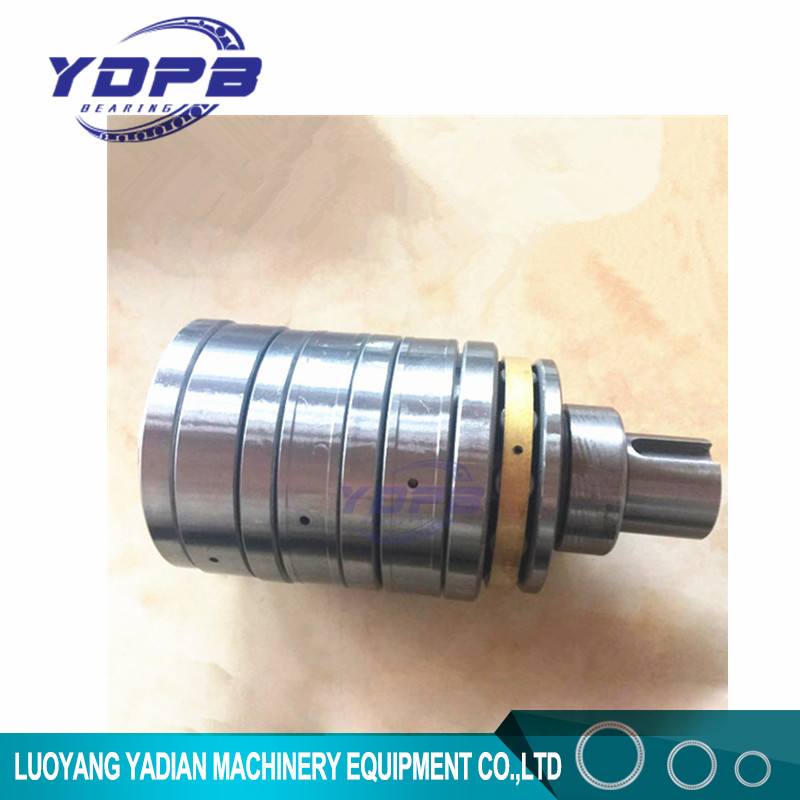

M6CT30127-T6AR30127 Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplier

China M6CT30127-T6AR30127  Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplier supplier
M6CT30127-T6AR30127  Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplier supplier M6CT30127-T6AR30127  Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplier supplier M6CT30127-T6AR30127  Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplier supplier M6CT30127-T6AR30127  Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplier supplier

Large Image :  M6CT30127-T6AR30127 Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplier

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: M6CT30127-T6AR30127

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: M6CT30127-T6AR30127 Material: Bearing Steel
Structure: Cylindrical Roller Thrust Bearing Dimension: 30x127x288mm
Application: Plastic Extruder Name: Thrus Roller Bearings

M6CT30127-T6AR30127 Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplier

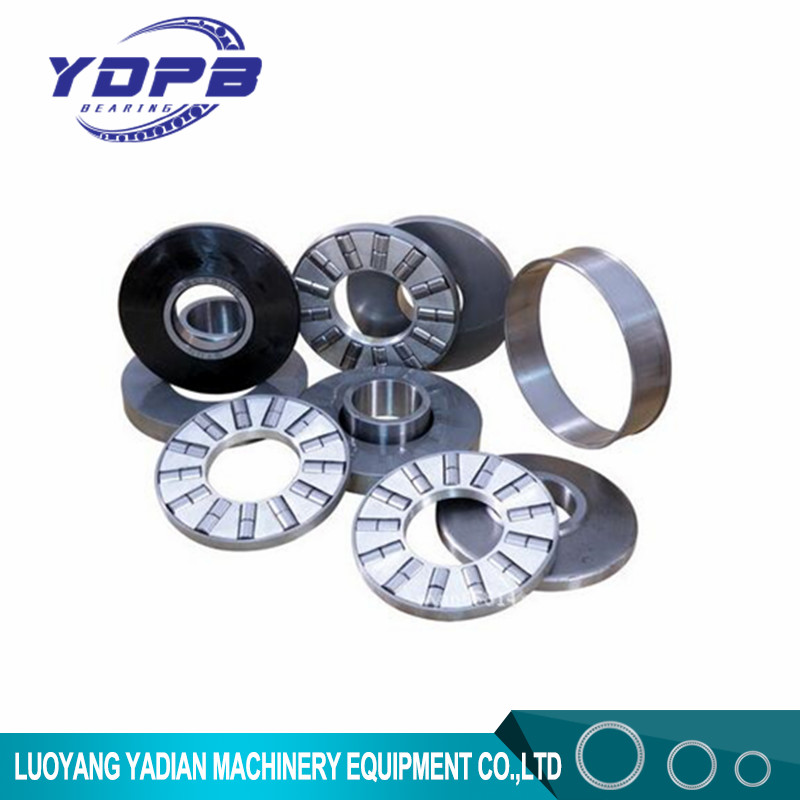

Basic type Multi-Stage Cylindrical Roller Thrust Bearings

M6CT30127-T6AR30127  Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplierM6CT30127-T6AR30127  Deep drilling oil rig Thrust Bearings 30x127x288mm China luoyang supplier



Dimension(mm) Rows Basic load rating(KN) weight(Kg) Model No.
d D H H2   Ca Coa   New old
4 20 32 32 3 14 33 0.053 M3CT420 T3AR420
4 20 54 54 5 26.7 58.3 0.086 M5CT420 T5AR420
4 20 65 65 6 30.8 70 0.106 M6CT420 T6AR420
4 24 62 60 6 48.8 84.5 0.16 M6CT424 T6AR424
4 24 62 60 6 48.8 84.5 0.16 M6CT424X1 T6AR424X1
5 27 52 51 4 35.2 83.6 0.155 M4CT527 T4AR527
5 27 52 51 4 35.2 83.6 0.142 M4CT527E T4AR527E
5 27 65 64 5 44 104.5 0.21 M5CT527 T5AR527
5 27 78 77 6 48.8 125.4 0.22 M6CT527 T6AR527
6 30 88 89 6 57.08 174.24 0.321 M6CT630 T6AR630
6 45 92 92 4 158 373 0.72 M4CT645E T4AR645E
10 37 78 79 4 73 220 0.486 M4CT1037 T4AR1037
10 37 98 99 5 91.3 275 0.487 M5CT1037E T5AR1037E
11 34 52.5 52.5 4 48 124 0.25 M4CT1134 T4AR1134
12 42 62.4 62.4 3 104 240 0.41 M3CT1242E T3AR1242E
12 42 83.5 82.5 4 94 285 0.62 M4CT1242 T4AR1242
12 42 104.6 103 5 112 356 0.75 M5CT1242E T5AR1242E
12 42 104.6 103.6 5 111.7 356 0.776 M5CT1242 T5AR1242
12 42 125.7 124.7 6 134 427.2 0.9 M6CT1242E T6AR1242E
18 58 100.5 101 4 154 582 1.426 M4CT1858 T4AR1858
18 58 107.5 107.5 5 270 896 1.61 M5CT1858X2 T5AR1858X2
18 58 126 126.5 5 193 728 1.787 M5CT1858 T5AR1858
18 60 100.5 101 4 175 647 1.62 M4CT1860 T4AR1860
18 72 172 172 6 562 1829 3.3 M6CT1872X2 T6AR1872X2
18 72 172 172.8 6 562 1829 3.51 M6CT1872 T6AR1872
18 80 200 200 7 600 2217 6.83 M7CT1880 T7AR1880
18 100 266 266 7 1028 4012 11.43 M7CT18100 T7AR18100
18 100 304 304 8 1175 4586 13.03 M8CT18100 T8AR18100
19 49 67 66.5 3 129 340 0.5 M3CT1949E T3AR1949E
19 49 88.5 88.5 4 230 535 0.74 M4CT1949E T4AR1949E
20 47 78 79 4 123 362 0.67 M4CT2047 T4AR2047
20 47 98 99 5 154 453 0.834 M5CT2047 T5AR2047
20 60 101 101 4 175 647 1.62 M4CT2060 T4AR2060
22 62 110 110 5 270 896 1.78 M5CT2262 T5AR2262
22 62 132 132 6 310 1160 2.1 M6CT2262 T6AR2262
22 64 101 102.5 4 175 610 1.7 M4CT2264 T4AR2264
22 64 101 102.5 4 175 610 1.527 M4CT2264E T4AR2264E
22 64 127 128.5 5 208 763 2.065 M5CT2264 T5AR2264
22 64 127 128.5 5 208 763 1.94 M5CT2264E T5AR2264E
22 64 153 154 6 240 918 2.234 M6CT2264E T6AR2264E
22 64 153 154.5 6 240 918 2.5 M6CT2264 T6AR2264
23 62 105 104.5 4 176 652 1.63 M4CT2362 T4AR2362
23 85 97 96.5 3 278 1236 3.118 M3CT2385 T3AR2385
23 85 129.5 129 4 371 1648 4.152 M4CT2385 T4AR2385
23 85 162 161.5 5 464 2060 5.143 M5CT2385 T5AR2385
23 90 209.75 209.75 6 732 2545 7.75 M6CT2390 T6AR2390
24 68 70 70 3 140.3 617.8 1.4 M3CT2468 T3AR2468
24 68 118 119 5 292 1132 2.32 M5CT2468 T5AR2468
25 52 124 124 6 150 480 1.36 M6CT2552 T6AR2552
25 52 165 165 8 212 750 1.68 M8CT2552 T8AR2552
25 77 134 134 5 350 1402 3.48 M5CT2577 T5AR2577
25 98 149.5 150 4 575 2033 8.3 M4CT2598 T4AR2598
25 105 234 234 6 932 3659 11.9 M6CT25105 T6AR25105
25 105 273 273 7 1100 4657 13.7 M7CT25105 T7AR25105
28 66 82 81.5 3 223 600 1.054 M3CT2866 T3AR2866
28 66 107.5 106.5 4 278 800 1.74 M4CT2866 T4AR2866
28 72 150 150 6 377 1384 3.2 M6CT2872 T6AR2872
28 76 135 132.5 5 341 1331 3.199 M5CT2876 T5AR2876
28 90 281 281 8 795 2883 8.82 M8CT2890 T8AR2890
29 90 98 98 3 292.3 1129 3.48 M3CT2990 T3AR2990
30 68 100 99.5 4 200 760 1.79 M4CT3068 T4AR3068
30 73 120 122 4 193 722 2.48 M4CT3073 T4AR3073
30 73 122 120 4 193 722 2.255 M4CT3073E T4AR3073E
30 73 151 153 5 226 950 3.103 M5CT3073 T5AR3073
30 73 151 153 5 226 950 2.88 M5CT3073E T5AR3073E
30 73 182 184 6 260 1140 3.72 M6CT3073 T6AR3073
30 75 112 103.5 4 264 836 2.29 M4CT3075YB T4AR3075YB
30 100 150.5 151 4 434 1897 6.58 M4CT30100 T4AR30100
30 127 288 286.5 6 996 4776 21.7 M6CT30127 T6AR30127
30 127 372 372 8 1294 6748 30.97 M8CT30127 T8AR30127
32 78 57.5 53 2 140 513 2.54 M2CT3278 T2AR3278
32 78 110.5 106 4 279 1026 2.58 M4CT3278 T4AR3278
32 78 137 132.5 5 340 1331 3.22 M5CT3278 T5AR3278
33 105 115 115.5 3 362 1533 5.42 M3CT33105 T3AR33105
33 105 150.5 151 4 453 2044 7.11 M4CT33105 T4AR33105
34 95 130 130 4 328 1520 5.166 M4CT3495 T4AR3495
34 95 163 163 5 507 1996 6.43 M5CT3495 T5AR3495
34 95 196 196 6 608 2395 7.28 M6CT3495 T6AR3495
34 95 262 262 8 760 3193 1.68 M8CT3495 T8AR3495
36 120 197 197 5 906 3500 11.19 M5CT36120 T5AR36120
38 150 213 214.5 4 970 4312 21.7 M4CT38150 T4AR38150
38 160 360 360 6 1410 7100 40.8 M6CT38160 T6AR38160
40 110 123 123 3 404 1812 6.264 M3CT40110 T3AR40110
40 110 164 164 4 723 2907 8.33 M4CT40110 T4AR40110
40 127 177 177 4 636 3185 13.3 M4CT40127 T4AR40127
89 190.5 107.95 107.95 2 1182 4427 14.4 M2CT88.9190.5 T2AR88.9190.5
145 385 233 227 2 3922 16765 147.7 M2CT145385 T2AR145385

Features and Benefits

1.Minimal Backing Support Requirements

2.Space Saving Design

3.Matched Precision Ground Rollers

4.Machined Brass Roller Riding Retainer

5.Precision Ground Inner and Plates

5.Precision Ground Inner and Outer Compression Sleeves



Tandem Thrust Bearing Application:
Rubber industry parallel twin-screw extruder,Deep drilling oil rig,Pipelay pulling machine,Screw press oil extraction machine



Mounting Tandem Bearings:

Tandem bearings are mounted with a loose F7 fit for the housing and f6 for the tandem bearing shaft. A loose fit is necessary to allow the axial shifting (deflection) of the washers, rings and sleeves. The seating surface of the adjacent structure (housing and shaft) should be designed to have a perpendicularity tolerance to DIN ISO 1101

and qualities IT4 to IT7(depending on the diameter range).

For the mating structure, care should also be taken to ensure that the contact diameter indicated on the delivery drawing is maintained. The contact diameter (support diameter) for the shaft shoulder may not be lower than the diameter indicated, and the contact diameter for the housing must not be exceeded.

Insufficient support will not only cause an unequal load distribution but also an increased washer deformation , which in turn will result in increased strain on the components. Since tandem bearings are thrust bearings that are not capable of supporting radial loads, it is advisable to provide sufficient radial support. One way to do this is to use needle roller bearings. This will allow potential shaft deflection and associated frictional losses to be reduced, especially in the case of continuous shafts where pinion and tandem bearing are on the same shaft and not separated by a gear coupling.
