M5CT2264EA-T5AR2264EA Screw press oil extraction machine Thrust Bearings22x64x162mm China supplier

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number M5CT2264EA-T5AR2264EA
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model M5CT2264EA-T5AR2264EA Material Bearing Steel
Structure Cylindrical Roller Thrust Bearing Dimension 22x64x162mm
Application Plastic Extruder Name Thrus Roller Bearings
Leave a Message
Product Description

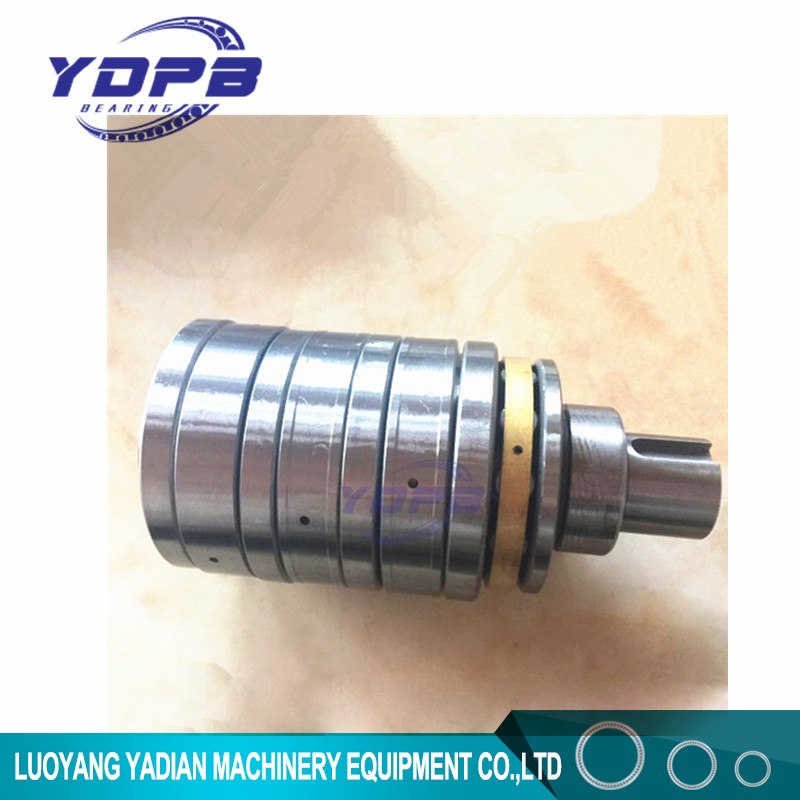

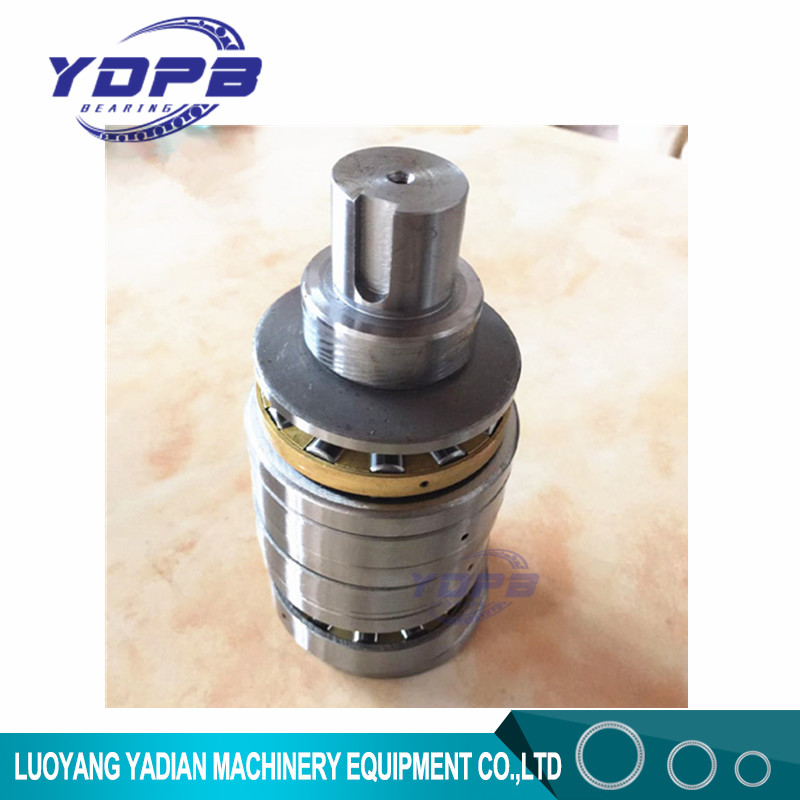

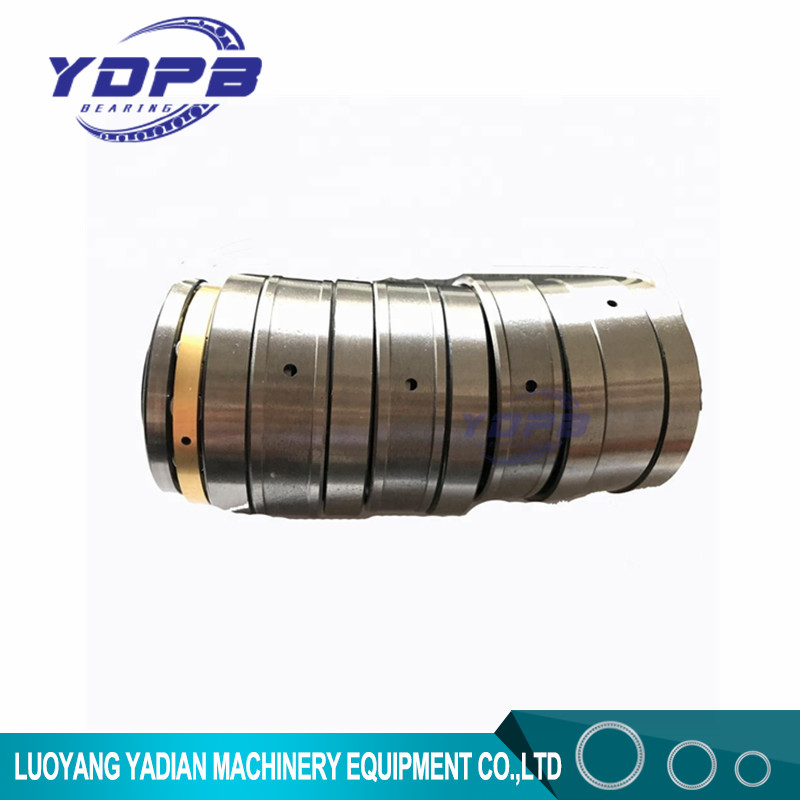

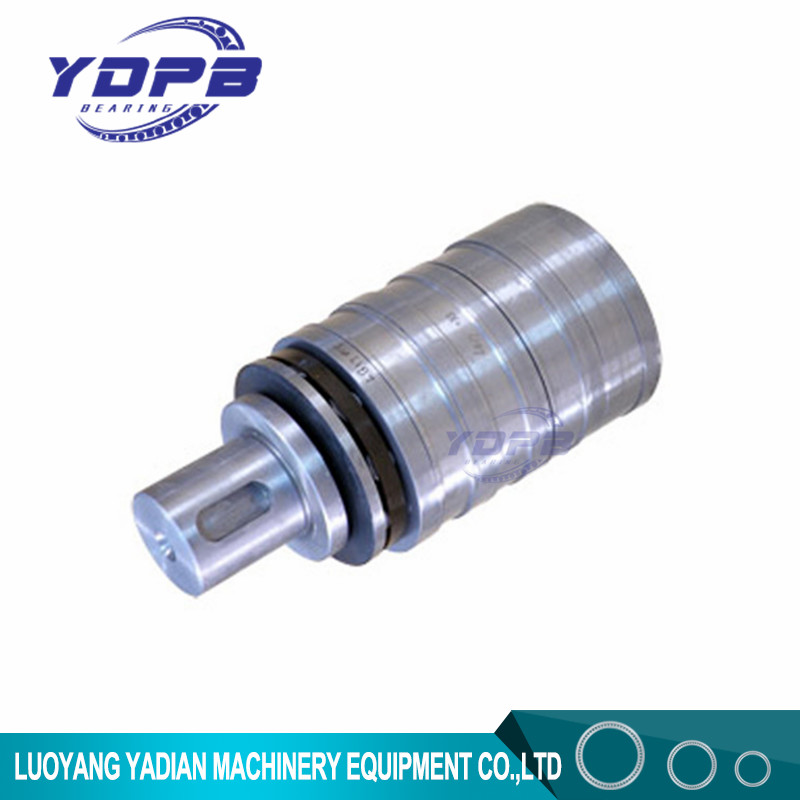

M5CT2264EA-T5AR2264EA Screw press oil extraction machine Thrust Bearings22x64x162mm China supplier



Basic type Multi-Stage Cylindrical Roller Thrust Bearings

M5CT2264EA-T5AR2264EA Screw press oil extraction machine Thrust Bearings22x64x162mm China supplier 0



Dimension(mm) rows Load rating(KN)

Weight

(Kg)

Model No.
d D H1 H0 H H2 d1 d2   Ca Coa   New Old
4 20 43.5 9 32 32 4 6 3 18 35 0.061 M3CT420A T3AR420A
4 20 43.5 9 32 32 4 6 3 18 35 0.053 M3CT420EA T3AR420EA
4 20 65.5 9 54 54 4 6 5 26.7 58.3 0.093 M5CT420A T5AR420A
4 20 77.5 10 65 65 4 7 6 30.8 70 0.115 M6CT420A T6AR420A
4 24 71.5 9 62 60 4 6 6 48.8 84.5 0.168 M6CT424X1A T6AR424X1A
10 37 102 19 78 79 10 10 4 73 220 0.55 M4CT1037A T4AR1037A
10 37 122 19 99 98 10 10 5 91.3 275 0.57 M5CT1037EA T5AR1037EA
12 42 133 26 104.6 103.6 12 12 5 112 356 0.9 M5CT1242EA T5AR1242EA
12 42 133 26 104.6 103.6 12 12 5 111.7 356 0.925 M5CT1242A T5AR1242A
12 42 154 26 125.7 124.7 12 12 6 134 427.2 1.07 M6CT1242EA T6AR1242EA
18 100 306 25 266 266 50 15 7 1050 4010 6.83 M7CT18100A T7AR18100A
22 62 144 30 110 110 22 22 5 270 896 2.2 M5CT2262A T5AR2262A
22 64 136 30 101 102.5 22 22 4 175 610 2.11 M4CT2264A T4AR2264A
22 64 162 30 127 128.5 22 22 5 208 763 2.55 M5CT2264A T5AR2264A
22 64 162 30 127 128.5 22 22 5 210 920 2.425 M5CT2264EA T5AR2264EA
22 64 224 65 153 154.5 22 16 6 240 918 3.52 M6CT2264A T6AR2264A
23 62 165 55 105 104.5 22 22 4 176 652 2.14 M4CT2362A T4AR2362A
24 68 118 31 70 70 20 22 3 140.3 617.8 1.75 M3CT2468A T3AR2468A
24 68 156 33 118 119 24 24 5 292 1132 2.92 M5CT2468A T 5AR2468A
24 68 188 104 70 70 20 28 3 140.3 617.8 2.38 M3CT2468A1a T3AR2468A1a
24 68 218 131 70 70 20 22 3 140.3 617.8 2.31 M3CT2468A1 T3AR2468A1
25 120 336 25 296 296 55 22 7 1450 5800 21.4 M7CT25120A T7AR25120A
28 66 138 22.5 107.5 106.5 17 38 4 278 800 2.37 M4CT2866A T4AR2866A
28 66 156 27.5 107.5 106.5 20 22 4 361 840 2.44 M4CT2866A+ T4AR2866A+
28 76 188 52 135 132.5 28 35 5 341 1331 4.732 M5CT2876A T5AR2876A
30 73 190 33 151 153 30 30 5 226 950 4.1 M5CT3073A T5AR3073A
30 73 190 33 151 153 30 30 5 251 1029 3.877 M5CT3073EA T5AR3073EA
30 145 381 26 335 335 65 28 6 1800 7500 34.8 M6CT30145 T6AR30145
30 150 381 26 335 335 68 28 6 1917 7400 39.4 M6CT30150A T6AR30150A
32 78 195 40 110.5 106.5 30 20 4 279 1026 3.83 M4CT3278A T4AR3278A
34 95 213 68 145 145 34 35 4 328 1520 6.15 M4CT3495A T4AR3495A

Features and Benefits
1.Minimal Backing Support Requirements

2.Space Saving Design

3.Matched Precision Ground Rollers

4.Machined Brass Roller Riding Retainer

5.Precision Ground Inner and Plates

5.Precision Ground Inner and Outer Compression Sleeves



Tandem Thrust Bearing Application:
Rubber industry parallel twin-screw extruder,Deep drilling oil rig,Pipelay pulling machine,Screw press oil extraction machine



Mounting Tandem Bearings:

Tandem bearings are mounted with a loose F7 fit for the housing and f6 for the tandem bearing shaft. A loose fit is necessary to allow the axial shifting (deflection) of the washers, rings and sleeves. The seating surface of the adjacent structure (housing and shaft) should be designed to have a perpendicularity tolerance to DIN ISO 1101

and qualities IT4 to IT7(depending on the diameter range).

For the mating structure, care should also be taken to ensure that the contact diameter indicated on the delivery drawing is maintained. The contact diameter (support diameter) for the shaft shoulder may not be lower than the diameter indicated, and the contact diameter for the housing must not be exceeded.

Insufficient support will not only cause an unequal load distribution but also an increased washer deformation , which in turn will result in increased strain on the components. Since tandem bearings are thrust bearings that are not capable of supporting radial loads, it is advisable to provide sufficient radial support. One way to do this is to use needle roller bearings. This will allow potential shaft deflection and associated frictional losses to be reduced, especially in the case of continuous shafts where pinion and tandem bearing are on the same shaft and not separated by a gear coupling.
