YDPB Flexible bearings F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 for Harmonic Drive Speed Reducer Thin Section Bearings

China YDPB Flexible bearings F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 for Harmonic Drive Speed Reducer Thin Section Bearings supplier
YDPB Flexible bearings F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 for Harmonic Drive Speed Reducer Thin Section Bearings supplier YDPB Flexible bearings F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 for Harmonic Drive Speed Reducer Thin Section Bearings supplier YDPB Flexible bearings F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 for Harmonic Drive Speed Reducer Thin Section Bearings supplier YDPB Flexible bearings F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 for Harmonic Drive Speed Reducer Thin Section Bearings supplier YDPB Flexible bearings F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 for Harmonic Drive Speed Reducer Thin Section Bearings supplier

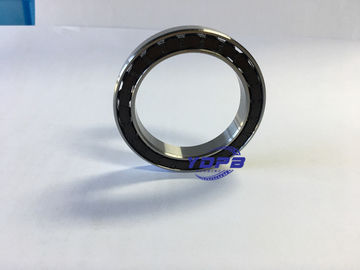

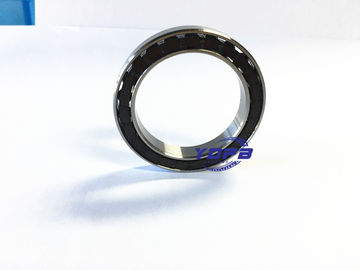

Large Image :  YDPB Flexible bearings F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 for Harmonic Drive Speed Reducer Thin Section Bearings

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: F14 F17 F20 F25 F32 M14 M17 M20 M25 M32

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 Structure: Deep Groove Ball Bearing
Application: Robots Harmonic Drive Use Name: Harmonic Drive Flexible Bearings Industrial Robots Use Bearing

Flexible bearings F14 F17 F20 F25 F32 M14 M17 M20 M25 M32 for Harmonic Drive Speed Reducer ,Thin Section Ball Bearings



Industrial robots bearings

Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.



Note: Some bearings we have use new structure( with cage and cover,convenient for you to install)



Other Dimension

Industrial Robots Use Flexible Bearings Regular models



With cage or with cage and cover



Model



Outer ring



Inner ring

D

Ball diameter

mm





Ball Qty

Z



Dynamic load rating

Cr



Static load

rating

Cor



Radial Deformation Max. mm



Input

rotate speed r/min

Output torque N.m



OD



WidthB



Id



Width C

E904KAT2 25 4 18.8 4 2.381 23 3.75 3.12 0.2 3000 2
3E905KAT2 32 5 24 5 3.175 23 4.74 3.75 0.2 3000 6
3E806KAT2 40 6 30 6 3.5 23 7.12 5.83 0.3 3000 16
1000907AKIT2 48.2 8 35.8 8 4.5 23 9.93 8.36 0.3 3000 30
3E907KAT2 50 8 37 8 4.763 23 12.63 12 0.3 3000 30
3E809KAT2 60 9 45 9 5.556 23 12.89 11.55 0.4 3000 50
1000809AKIT2 61.8 9.5 45.7 9 5.556 23 12.89 11.55 0.4 3000 50
10008810AKT2 63 9.7 48 9.2 5.556 23 12.89 11.55 0.4 3000 50
1000912AKT2 80 12 60 12 7.144 23 27.19 28.18 0.5 3000 120
F14 33.896 6.095 25.07 6.35 3.175 23 4.74 3.75 0.2 3000 8
F17 41.722 6.16 30.3 6.68 3.969 23 7.12 5.83 0.3 3000 16
F20 49.073 7.24 35.56 8.13 4.763 23 9.93 8.36 0.3 3000 30
F25 61.341 9.015 45.212 6.35 5.556 23 12.89 11.55 0.4 3000 50
F32 79.756 11.81 58.928 8.64 7.5 23 22.28 20.91 0.5 3000 120
M14 33.896 6.095 25.07 6.35 3.175 29 5.53 4.73 0.2 3000 12
M17 41.722 6.16 30.3 6.68 4 28 8.31 7.35 0.3 3000 24
M20 49.073 7.24 35.56 8.13 4 33 12.63 12 0.3 3000 45
M25 61.341 9.015 45.212 6.35 5.556 30 16.4 16.58 0.4 3000 75
M32 79.756 11.81 58.928 8.64 7 31 27.19 28.18 0.5 3000 180




Industrial Robots Use Flexible Bearings Regular models

With cage

Model

Boundary

Dimension(mm)

Deformation Rated speed Rated torque Rating Load KN
d D B max r/min Kgf.m Cr Cor
3E904KAT2 18.8 25 4 0.2 3000 0.2 2.05 1.46
3E905KAT2 24 32 5 0.2 3000 0.6 3.44 2.6
3E806KAT2 30 40 6 0.3 3000 1.6 5.15 4.07
3E907KAT2 37 50 8 0.3 3000 3 7.13 5.86
3E809KAT2 45 60 9 0.4 3000 7.5 14.76 13.18
3E911KAT2 57 75 12 0.5 3000 7.5 14.76 13.18
3E812KAT2 60 80 13 0.5 3000 12 15.51 14.44
3E814KAT2 70 95 15 0.6 3000 20 22.38 21.57
3E815KAT2 75 100 15 0.6 3000 25 26.4 25.67
3E818KAT2 90 120 18 1 3000 45 34.7 34.94
3E822KAT2 110 150 24 1 1500 80 43.55 45.63
3E824KAT2 120 160 24 1 1500 120 57.02 57.75
3E826KAT2 130 175 30 1 1500 170 81.59 86.1
3E830KAT2 150 200 30 1 1500 200 91.6 102.67
3E832KAT2 160 220 35 1.25 1500 220 115.66 127.59
3E836KAT2 180 240 35 1.5 1500 250 130.04 146.47
3E838KAT2 190 250 40 1.5 1500 350 139.96 160.42
3E842KAT2 210 280 45 1.5 1500 400 173.15 210.91
3E844KAT2 220 300 45 1.5 1500 500 181.72 231



Full balls

M14 Series Dimension dxDXH 25.07x33.896x6.095/6.35mm
M17 Series Dimension dxDXH 30.3x41.722x 6.16/6.68mm
M20 series Dimension dxDXH 35.56x49.073x7.24/8.13mm
M25 series Dimension dxDXH 45.212X61.341X9.015/6.35mm
M32 series Dimension dxDXH 58.928x79.756x11.81/8.64mm



Pls contact us for more dimensions~
