7038C/AC precision bearings manufacturers china precision bearings suppliers china

China 7038C/AC precision bearings manufacturers china precision bearings suppliers china supplier
7038C/AC precision bearings manufacturers china precision bearings suppliers china supplier 7038C/AC precision bearings manufacturers china precision bearings suppliers china supplier

Large Image :  7038C/AC precision bearings manufacturers china precision bearings suppliers china

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: 7038C/AC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: carton box for small qty, wooden case for larger quantity
Delivery Time: within 5days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 15000PCS/month
Contact Now
Detailed Product Description

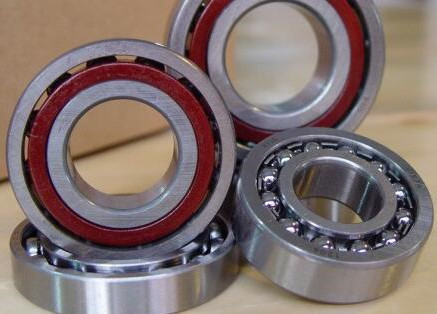

●Angular contact ball bearings 7038C/AC (190X290X46mm) CNC machine tool use spindle bearings



Structure- Angular Contact ball
Model number- 7038
Inner ring(mm)- 190
Outer ring(mm)- 290
Width(mm)- 46
Weight(Kg)- 10.8
Materials- Chrome steel/GCR15
Precision grade- P5,P4,P2
Lubrication type- Grease lubrication
Contact Angle- C=15°;AC=25°
Material(Ball)- Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row- Single rows
Material(Cage)- TYN-PA;TR-PF
Combination of mark- SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Preloaded mark- EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded

Similar Models

7000AC/C 7001AC/C 7002AC/C 7003AC/C 7004AC/C 7005AC/C 7006AC/C 7007AC/C 7008AC/C 7009AC/C 7010AC/C

7011AC/C 7012AC/C 7013AC/C 7014AC/C 7015AC/C 7016AC/C 7017AC/C 7018AC/C 7019AC/C 7020AC/C 7021AC/C 7022AC/C 7024AC/C 7026AC/C 7028AC/C 7030AC/C 7032AC/C 7034AC/C 7036AC/C 7038AC/C 7040AC/C 7044AC/C 7048AC/C 7052AC/C 7056AC/C 7060AC/C 7064AC/C 7068AC/C 7072AC/C 7076AC/C 7080AC/C 7084AC/C

adjustable bearing made in china
adjustable combined bearings china
adjustable combined bearings factory
adjustable combined bearings made in china
adjustable combined bearings manufacturers china
adjustable combined bearings suppliers china
adjustable combined bearings with axial support china
adjustable combined bearings with axial support factory
adjustable combined bearings with axial support manufacturers
adjustable combined bearings with axial support manufacturers china
adjustable combined bearings with axial support suppliers china



We also can produce

1.YRT rotary table bearing
2.ZKLDF high speed bearing
3.YRTS high speed bearing
4.YRTM bearing with measuring system
5.Crossed roller bearing,RU/RB/RE /CRB,/CRBC Series
6.Crossed roller bearing CBRH series,SX series
7.Taper roller bearing XR series
8.Harmonic reducer bearing; CSG /SHG series
9.Ball Screw Bearing ZARN ZARF series
10.High precision customized bearings

More information ,pls contact us free!
