YRTM200 customized yrtm rotary table bearings price 200X300X45mm yrts bearing factory

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number YRTM200
Minimum Order Quantity 1PCS
Price 1$~~440$/pc
Packaging Details plastic film+waterproof paper+thin foam+wooden case
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Gcr15 Dimension 200X300X45mm
Load Axial Radial Combined Load Model YRTM200
Application CNC Machine Tool Cage Brass Cage
Precision Level P4,P2
Leave a Message
Product Description

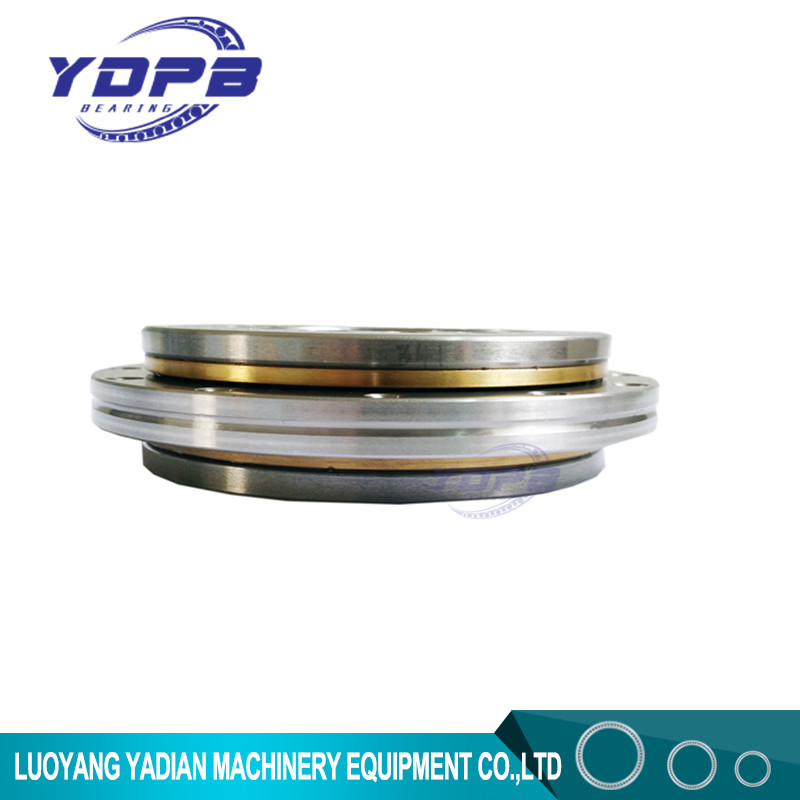

YRTM200 Axial/Radial Bearings with Integral Measuring System Size 200X300X45mm Rotary Table bearing YRT

Rotary Table Bearings Parameters
Model number- YRTM200
Inner ring(mm)- 200
Outer ring(mm)- 300
Width(mm)- 45
Weight(Kg)- 10.6
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring

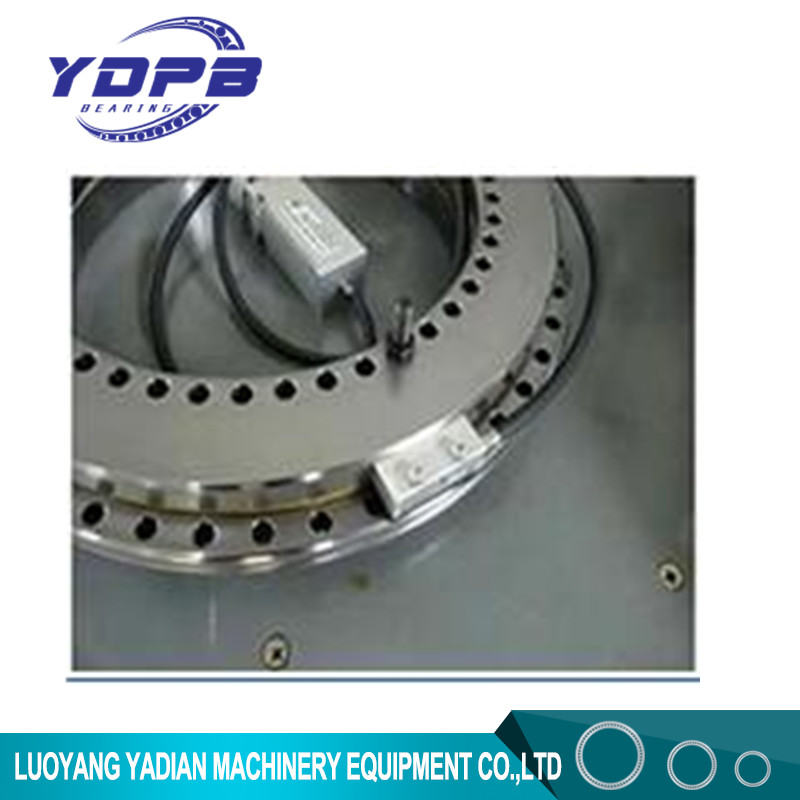

Axial/radial bearings with integral measuring system comprise: axial/radial bearing YRTM with a dimensional scale and a electronic measuring system. The electronic measuring system contains two measuring heads, a set of shims and an electronic evaluation system.
Bearings of series YRTM correspond in mechanical terms to axial/radial bearings YRT but are additionally fitted with a magnetic dimensional scale. The measuring system can measure angles to an accuracy of a few angular seconds by non-contact, magneto-resistive means.

Advantages of the angular measuring system.

1.operates by non-contact means and is therefore not subject to wear

2.carries out measurement irrespective of tilting and position

3.has an automatically self-adjusting electronic system

4.has a self-centring function

5.is unaffected by lubricants

6.is easy to fit and the measuring heads are easily adjusted

7.there is no need for alignment of the bearing and a separate measuring system

8.requires no additional parts
– the dimensional scale and measuring heads are integrated in the bearing and adjacent construction respectively
– the resulting space saved can be used for the machining area of the machine

9.does not give any problems relating to supply cables. The cables can be laid within the adjacent construction directly through the large bearing bore

10.ives savings on design envelope size and costs due to the compact, integrated design requiring fewer components.

More related bearings

YRTM150, YRTM180, YRTM200, YRTM260, YRTM325, YRTM395, YRTM460.

Parameters

Model boundary dimensions Inner ring/Outer ring(fixing hole)
d D H H1 HM C DM D1 J J1 d0/ds/TS/QTY dL/QTY
YRTM150 150 240 41 27 10 12 214 214 165 225 7 11 6.2 34 7 33
YRTM180 180 280 44 30 10 15 244.5 244 194 260 7 11 6.2 46 7 45
YRTM200 200 300 45 30 10 15 271.2 274 215 285 7 11 6.2 46 7 45
YRTM260 260 385 55 36.5 13.5 18 343.8 345 280 365 9.3 15 8.2 34 9.3 33
YRTM325 325 450 60 40 15 20 412.6 415 342 430 9.3 15 8.2 34 9.3 33
YRTM395 395 525 65 42.5 17.5 20 485.5 486 415 505 9.3 15 8.2 46 9.3 45
YRTM460 460 600 70 46 19 22 557.7 560 482 580 9.3 15 8.2 46 9.3 45

Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"
