ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing

China ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing supplier
ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing supplier ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing supplier ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing supplier ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing supplier ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing supplier

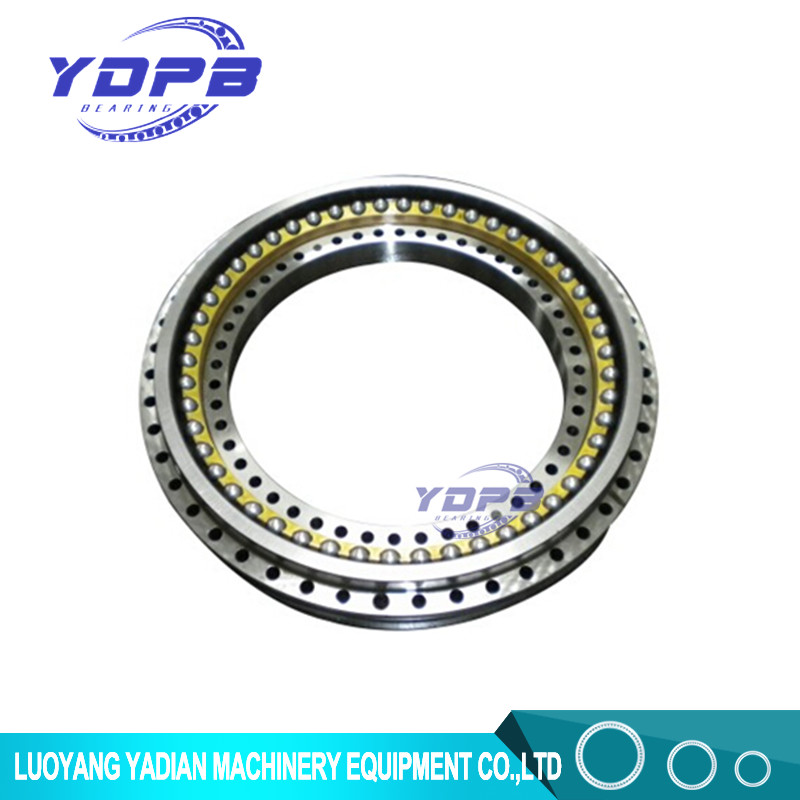

Large Image :  ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: ZKLDF460

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$~~440$/pc
Packaging Details: plastic film+waterproof paper+thin foam+wooden case
Delivery Time: within 5-8days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 800pcs/month
Contact Now
Detailed Product Description
Material: Gcr15SiMn Dimension: 460x600x70mm
Structure: Axial Angular Contact Ball Model: ZKLDF460
Application: Rotary Table Cage: Brass Cage
Precision Level: P4,P2

 Axial angular contact ball bearings ZKLDF460,Double direction,for screw mounting.sealing shields on both sides.
Model number- ZKLDF460
Inner ring(mm)- 460
Outer ring(mm)- 600
Width(mm)- 70
Weight(Kg)- 50
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring



Features:
ZKLDF series(four point ball contact),with low frictional ,high rotate accurancy and high limit speed etc. features, can bear higher axial,radial load and with higher tilting rigity.,Main application is the area which need combined load and high precision. E.g machine tool rotary table ,grinding head and other measuring equipment.



Series model No.
ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460, ZKLDF580

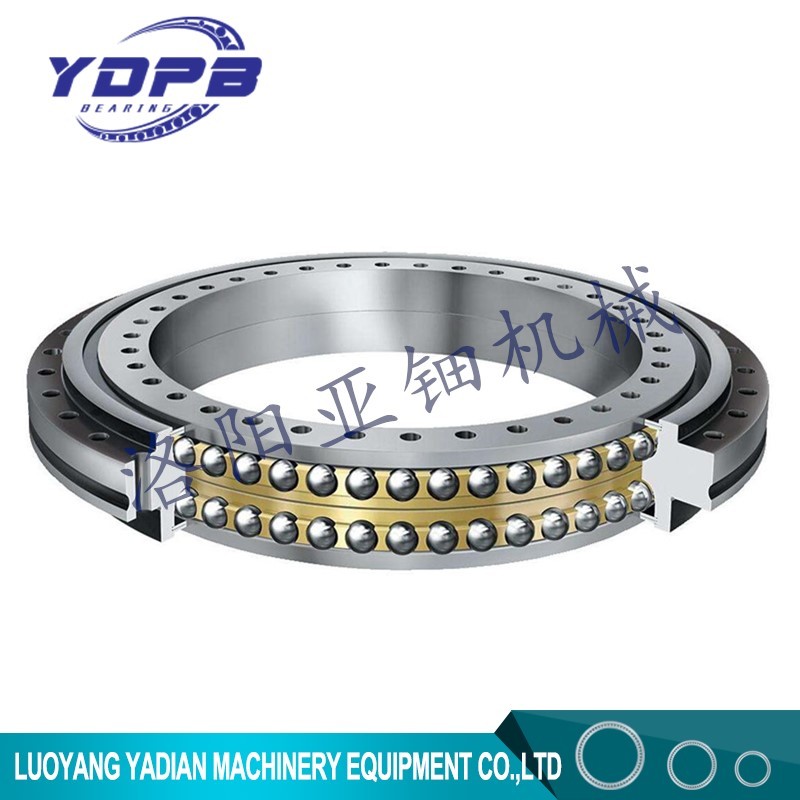

Structure:
ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing



Bearing type boundary dimensions fixing holes
d D H H1 D1 D2 J J1 inner ring outer ring
unit:mm d1 d2 a quantity d3 quantity
mm mm
ZKLDF100 100 185 38 25 160 136 112 170 5.6 10 5.4 16 5.6 15
ZKLDF120 120 210 40 26 184 159 135 195 7 11 6.2 22 7 21
ZKLDF150 150 240 40 26 214 188 165 225 7 11 6.2 34 7 33
ZKLDF200 200 300 45 30 274 243 215 285 7 11 6.2 46 7 45
ZKLDF260 260 385 55 36.5 345 313 280 365 9.3 15 8.2 34 9.3 33
ZKLDF325 325 450 60 40 415 380 342 430 9.3 15 8.2 34 9.3 33
ZKLDF395 395 525 65 42.5 486 450 415 505 9.3 15 8.2 46 9.3 45
ZKLDF460 460 600 70 46 560 520 482 580 9.3 15 8.2 46 9.3 45



Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight bearing type
axial
dynamic load static load
MA Ca Coa grease
G quantity Xt quantity Nm KN r/min Nm Kg
2 M5 3 18×20° 8.5 67 251 2800 1.6 4.5 ZKLDF100
2 M8 3 24×15° 14 72 315 2400 2 6 ZKLDF120
2 M8 3 36×10° 14 76 365 2000 3 7.5 ZKLDF150
2 M8 3 48×7.5° 14 112 550 1600 4.5 11 ZKLDF200
2 M12 3 36×10° 34 155 920 1200 7.5 22 ZKLDF260
2 M12 3 36×10° 34 165 1110 1000 11 28 ZKLDF325
2 M12 3 48×7.5° 34 214 1470 800 16 39 ZKLDF395
2 M12 3 48×7.5° 34 255 1860 700 21 50 ZKLDF460

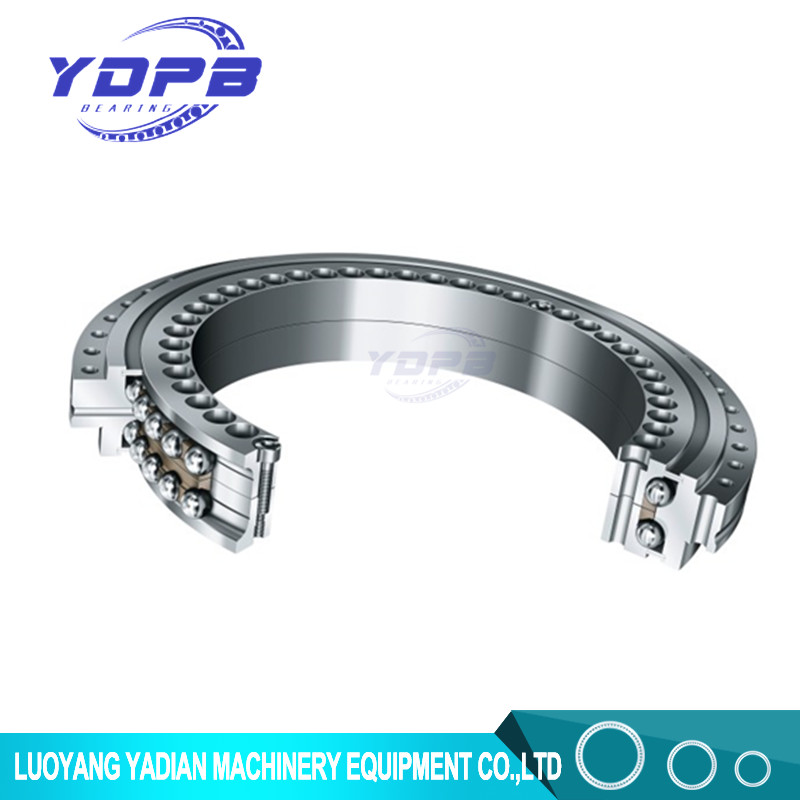

Related Pictures
ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearingZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing

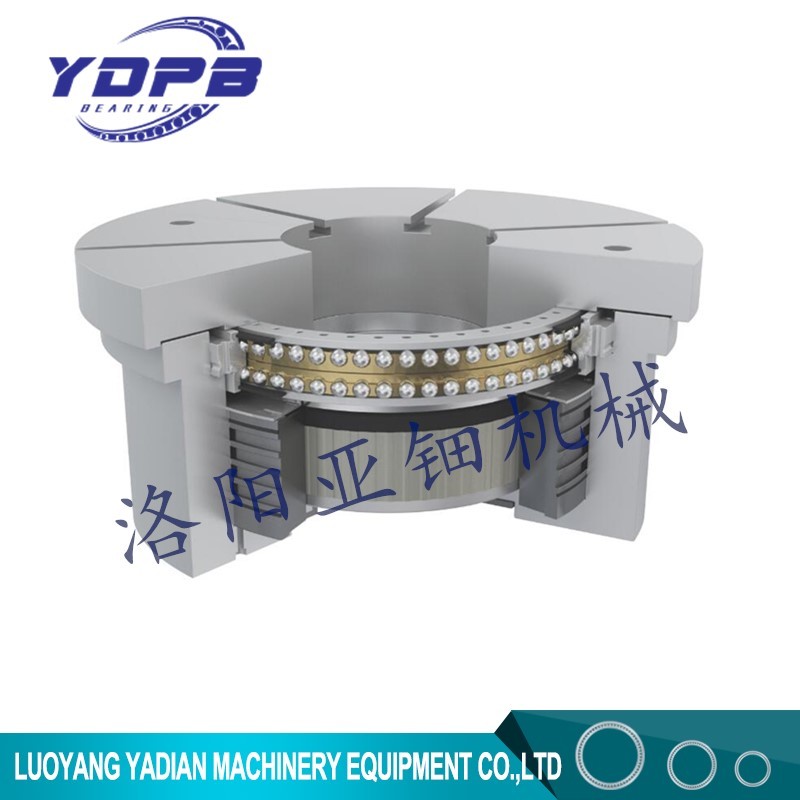

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"


Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.




Other rotary table bearings datas

ZKLDF460 Axial angular contact ball bearing 460x600x70mm Rotary Table Bearing Luoyang bearing



Model boundary dimensions Inner ring/Outer ring(fixing hole)
d D H H1 HM C DM D1 J J1 d0/ds/TS/QTY dL/QTY
YRTM150 150 240 41 27 10 12 214 214 165 225 7 11 6.2 34 7 33
YRTM180 180 280 44 30 10 15 244.5 244 194 260 7 11 6.2 46 7 45
YRTM200 200 300 45 30 10 15 271.2 274 215 285 7 11 6.2 46 7 45
YRTM260 260 385 55 36.5 13.5 18 343.8 345 280 365 9.3 15 8.2 34 9.3 33
YRTM325 325 450 60 40 15 20 412.6 415 342 430 9.3 15 8.2 34 9.3 33
YRTM395 395 525 65 42.5 17.5 20 485.5 486 415 505 9.3 15 8.2 46 9.3 45
YRTM460 460 600 70 46 19 22 557.7 560 482 580 9.3 15 8.2 46 9.3 45
