CRBH 25025 A UUCCO crbh series precision crossed roller slewing bearings 250x310x25mm

China CRBH 25025 A UUCCO  crbh series  precision crossed roller slewing bearings 250x310x25mm supplier
CRBH 25025 A UUCCO  crbh series  precision crossed roller slewing bearings 250x310x25mm supplier CRBH 25025 A UUCCO  crbh series  precision crossed roller slewing bearings 250x310x25mm supplier CRBH 25025 A UUCCO  crbh series  precision crossed roller slewing bearings 250x310x25mm supplier CRBH 25025 A UUCCO  crbh series  precision crossed roller slewing bearings 250x310x25mm supplier CRBH 25025 A UUCCO  crbh series  precision crossed roller slewing bearings 250x310x25mm supplier

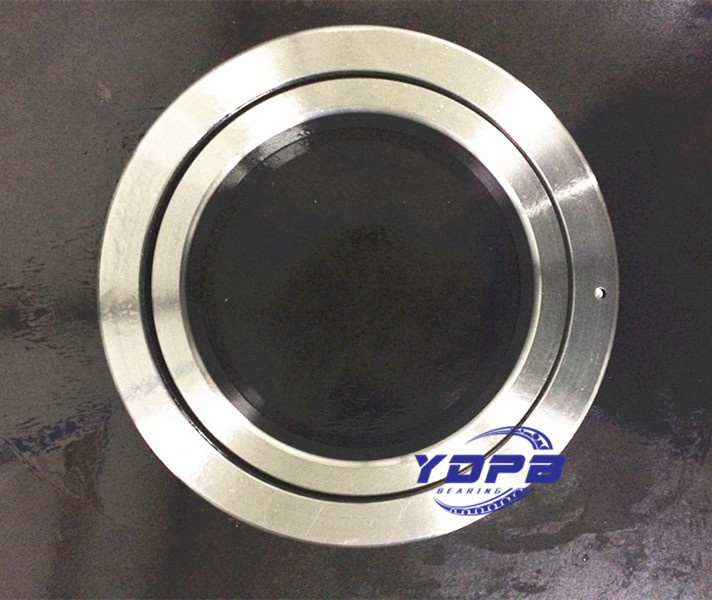

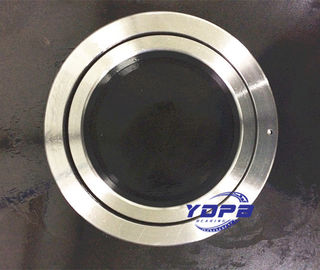

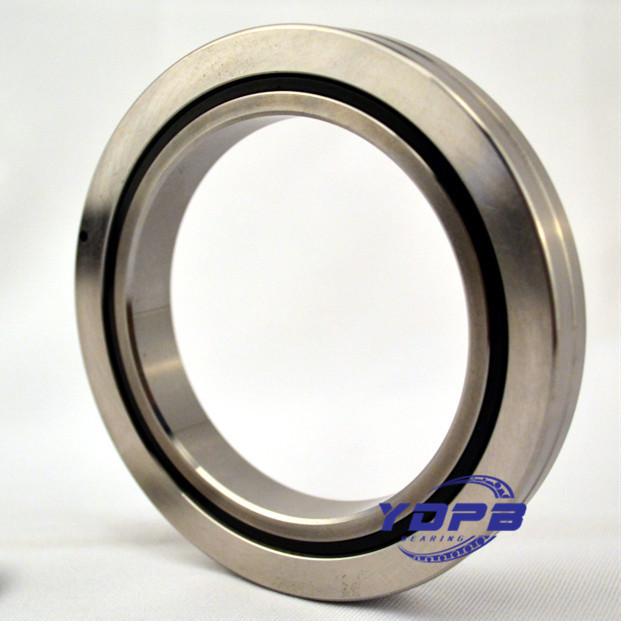

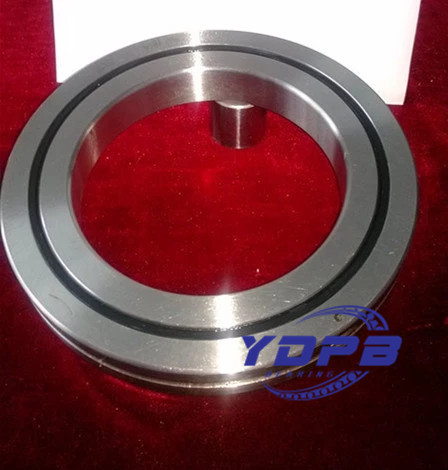

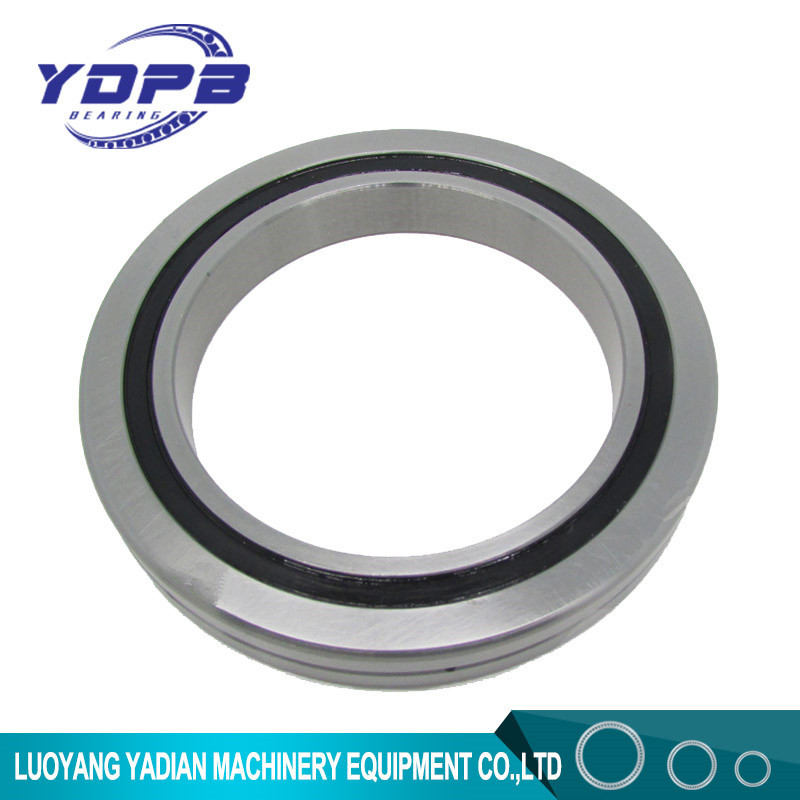

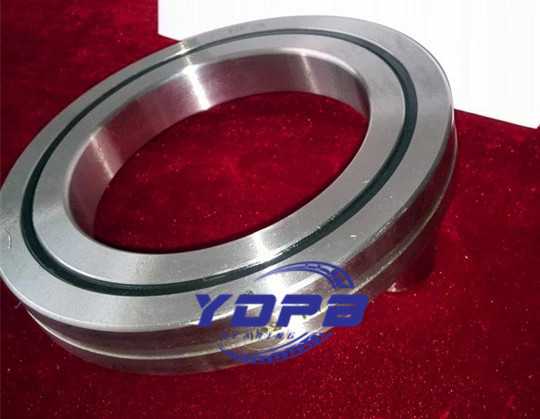

Large Image :  CRBH 25025 A UUCCO crbh series precision crossed roller slewing bearings 250x310x25mm

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: CRBH 25025 A UUCCO

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: CRBH 25025 A UUCCO Material: GCr15
Structure: Crossed Cylindrical Roller Bearings Dimension: 250x310x25mm
Application: Robots Arm/machine Tool Name: Cross-roller Bearing

CRBH 25025 A UUCCO Crossed Roller Bearings (250x310x25mm) Precision Robotic arm use

Crossed Roller Bearings Parameters
Model number- CRBH A 25025 UUCCO
Inner ring(mm)- 250
Outer ring(mm)- 310
Width(mm)- 25
Weight(Kg)- 4.97
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring

Series Model No.
CRBH5013A,CRBH6013A,CRBH7013A,CRBH8016A,CRBH9016A,CRBH10020A,CRBH11020A,CRBH12025A,CRBH13025A,CRBH14025A,CRBH15025A,CRBH20025A,CRBH25025A



CRBH series Crossed Roller Bearings Parameters



Structure

CRBH 25025 A UUCCO  crbh series  precision crossed roller slewing bearings 250x310x25mm

shaft diameter Identification number Main dimensious(mm) Mounting dimensions (mm) Basic static load rating Basic static load rating weight
Inner diameter outer diameter width r min da Da C KN Co KN Kg
d D B
50 CRBH 5013A CRBH 5013A UU 50 80 13 0.6 56 74 1.73 2.09 0.29
60 CRBH 6013A CRBH 6013A UU 60 90 13 0.6 66 84 1.88 2.43 0.33
70 CRBH 7013A CRBH 7013A UU 70 100 13 0.6 76 94 2.01 2.77 0.38
80 CRBH 8016A CRBH 8016A UU 80 120 16 0.6 88 112 3.21 4.34 0.74
90 CRBH 9016A CRBH 9016A UU 90 130 16 0.6 98 122 3.31 4.68 0.81
100 CRBH 10020A CRBH 10020A UU 100 150 20 0.6 110 140 5.09 7.22 1.45
110 CRBH 11020A CRBH 11020A UU 110 160 20 0.6 120 150 5.24 7.74 1.56
120 CRBH 12025A CRBH 12025A UU 120 180 25 1 132 168 7.34 10.8 2.62
130 CRBH 13025A CRBH 13025A UU 130 190 25 1 142 178 7.59 11.5 2.82
140 CRBH 14025A CRBH 14025A UU 140 200 25 1 152 188 8.19 13 2.96
150 CRBH 15025A CRBH 15025A UU 150 210 25 1 162 198 8.43 13.8 3.16
200 CRBH 20025A CRBH 20025A UU 200 260 25 1 212 248 9.23 16.9 4
250 CRBH 25025A CRBH 25025A UU 250 310 25 1.5 262 298 10.2 20.7 4.97



Drawings and other parameters ,pls contact us free, thanks



Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
