XV110 china cross roller bearing factory 110x180x23/22mm XV Sealed Bearing

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number XV110
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model XV110 Material GCr15
Structure Crossed Cylindrical Roller Bearings Dimension 110x180x23/22mm
Application Robots Arm/machine Tool Name Cross-roller Bearing
Leave a Message
Product Description

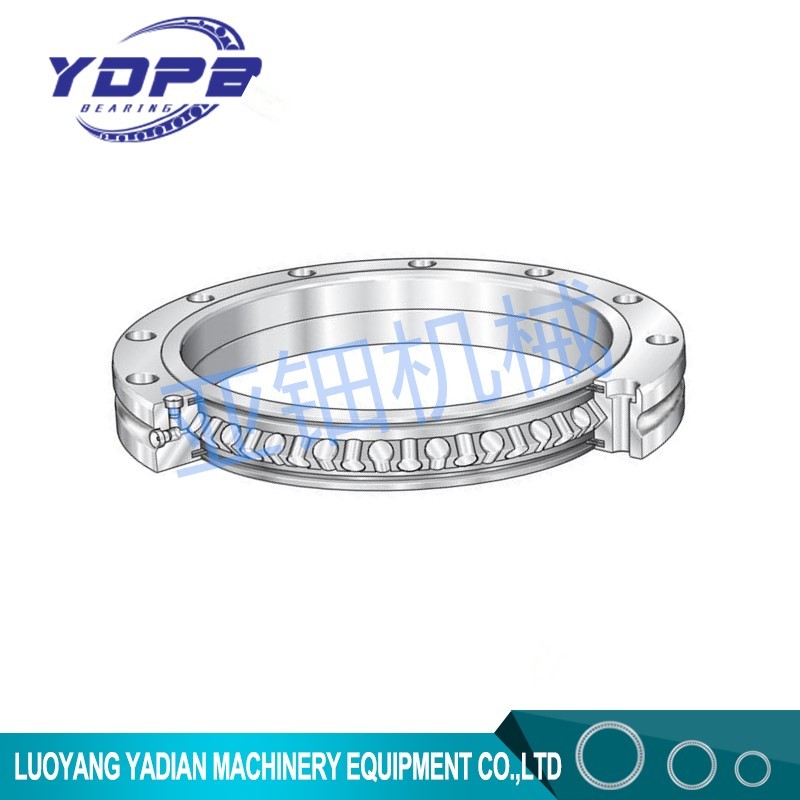

XV series INA standard Crossed Roller slewing ring Bearings, Split inner ring,Sealed on both sides,without gear teeth.
Model number- XV110
Inner ring(mm)- 110
Outer ring(mm)- 180
Width(mm)- 23/22
Weight(Kg)- 2.48
Materials- GCR15/GCR15SiMn
Precision grade- Standard
Lubrication type- Grease lubrication
Rotating part- Inner Ring Split
Series Model NO.
XV30,XV40,XV50,XV60,XV70,XV80,XV90,XV100,XV110.
Features
1. Are screw mounted by means of the outer ring to the adjacent construction,t
2. The inner ring is located by means of a locknut, can be adjusted very precisely to give a specific clearance or preload by means of the locknut.
3. Sealed on both sides,
4. two lubrication nipples radially and two lubrication nipples axially.
5. Working Temperature -25℃-- +80℃
Structure and Parameters:
XV110 china cross roller bearing factory 110x180x23/22mm XV Sealed Bearing 0


Model

Dimension
(mm)

Basic load rating
(KN)

Weight
kg

d D B C D1 n 1 d 1 D 1 1 T 1 rs Cr Cor
XV30 30 75 15 14 60 12 4.6 8 4.6 2X20° 7.4 10.4 0.37
XV40 40 85 15 14 70 12 4.6 8 4.6 2X20° 8.7 13.8 0.44
XV50 50 100 17 16 85 12 5.6 10 5.4 2X20° 13.1 21.5 0.67
XV60 60 110 17 16 95 16 5.6 10 5.4 2X20° 14.4 25.5 0.75
XV70 70 120 17 16 105 16 5.6 10 5.4 2X20° 15.1 28 0.84
XV80 80 135 19 18 120 16 6.6 11 6.4 2X20° 21.4 40.5 1.18
XV90 90 145 19 18 130 16 6.6 11 6.4 2X20° 22.3 44.5 1.29
XV100 100 170 23 22 150 16 9 15 8.5 2X20° 34.4 65 2.31
XV110 110 180 23 22 160 16 9 15 8.5 2X20° 36.2 72 2.48

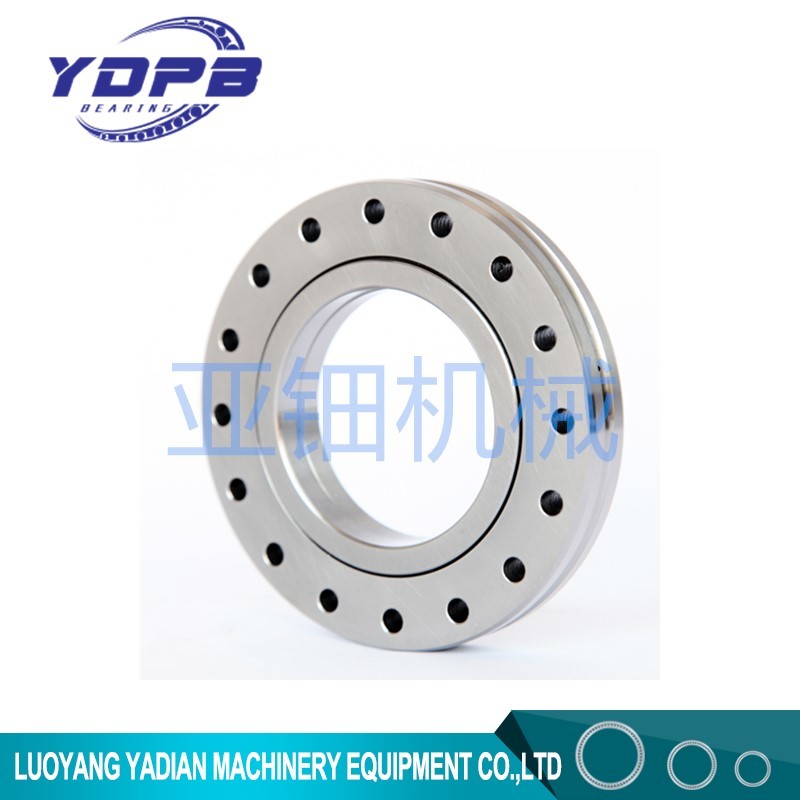

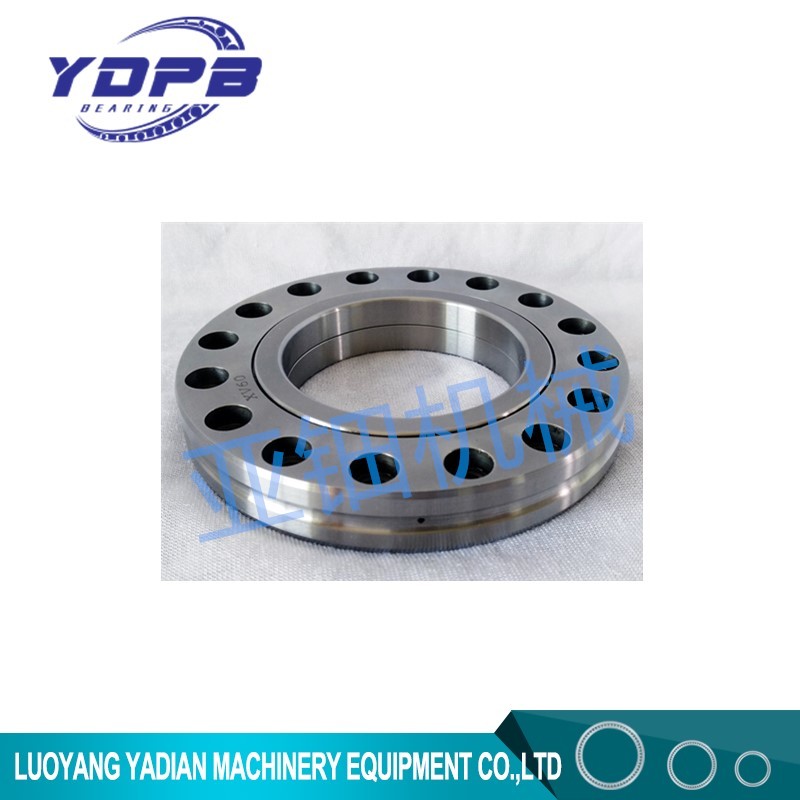

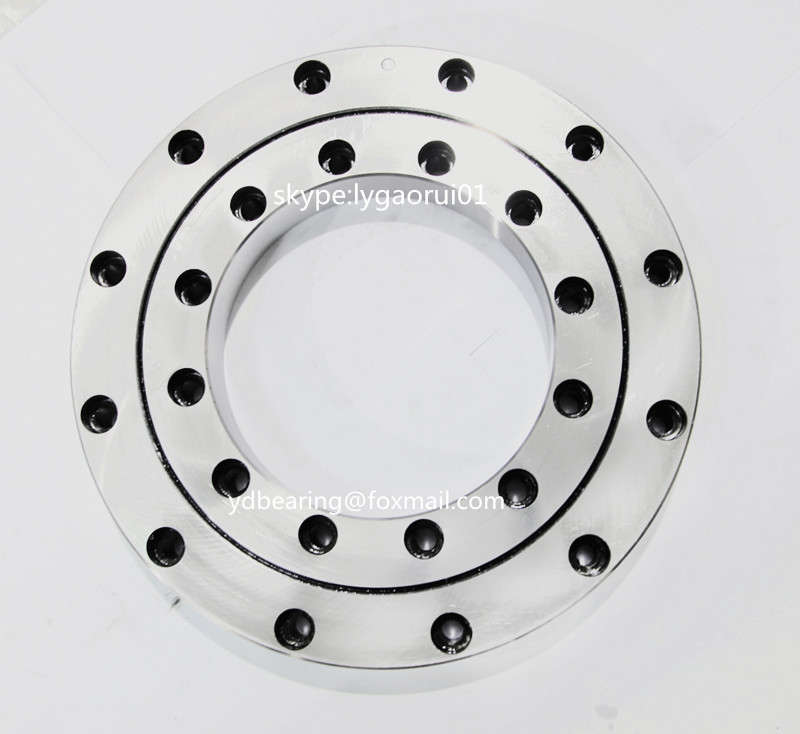

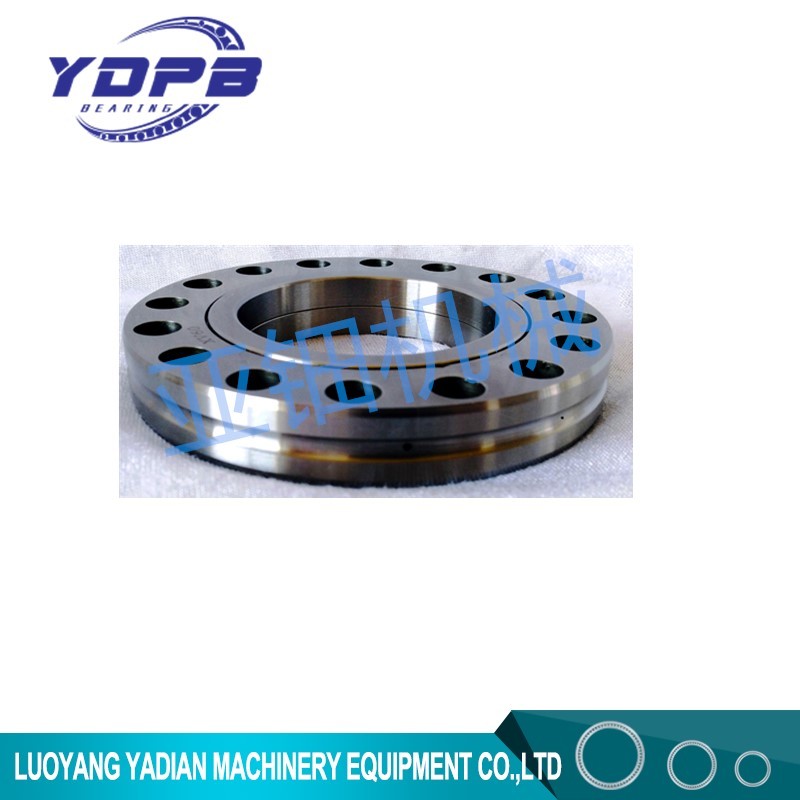

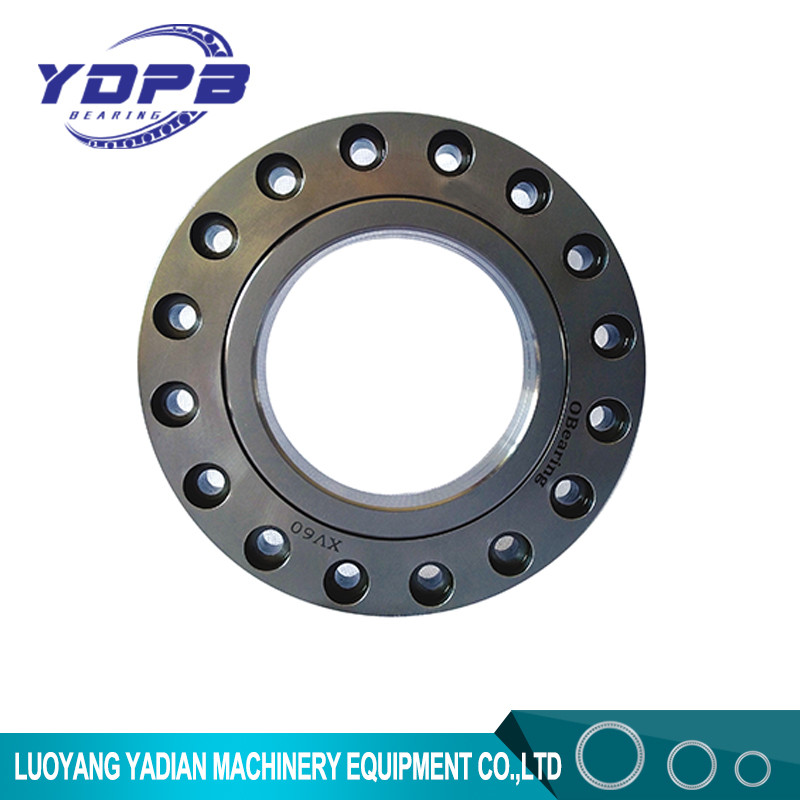

Related Photoes
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
Online shopping address: www.ydpbbearings.com
