Home ProductsSlewing rings without gear

MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing

China MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing supplier
MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing supplier MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing supplier MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing supplier MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing supplier MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing supplier

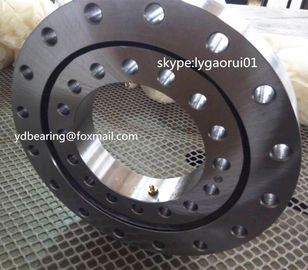

Large Image :  MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: MTO-170

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: MTO-170 Material: 50Mn Or According To You
Structure: Four-point Contact Ball Dimension: 170x310x46mm
Application: Manipulators Jib CranesLift-assist DevicesWork Positioners Name: Four-point Contact Ball Bearings

MTO-170Small Slewing Ring Bearings KAYDON  standard Manufacture China

Inner ring(in)- 170

Outer ring(in)- 310

Width(in)- 46

Structure:four point contact ball bearing

Gear teeth: without

Seals type:double seals

Material: 50Mn/100Cr6/GCr15

Series Model NO..

MTO-050,MTO-065,MTO-122,MTO-143,MTO-145,MTO-145X,MTO-170,MTO-210,MTO-265,MTO-265X

Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

  • Manipulators
  • Jib cranes
  • Lift-assist devices
  • Work positioners

Larger sizes are well suited for:

  • Truck-mounted cranes
  • Aerial lifts
  • Hoists
  • Small wind turbines
  • Non-precision positioning tables

Structure and Parameters:
MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing

Model Outline Dimension(mm) Moment rating Crm
Hi/Ho G (lbs) (ft-lbs)
MTO-050 50 110 20 18 2 830
MTO-065 65 135 22 20 4 1,330
MTO-122 122 226 34 29 13 5,020
MTO-143 143 249 34 29 15 8,950
MTO-145 145 300 50 44 37 26,000
MTO-145X 145 312 50 44 41 30,600
MTO-170 170 310 46 41 33 16,520
MTO-210 210 365 40 38 38 44,500
MTO-210X 210 373 50 44 48 52,100
MTO-265 265 420 50 44 54 62,000
MTO-265X 265 434 50 44 61 71,900

Related Photoes

MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing

MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing

MTO-170 china precision roller slewing rings manufacturer 170x310x4 Slewing Ring Bearing Automation Rotary Table Bearing


Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
