XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear

China XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear supplier
XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear supplier XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear supplier XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear supplier XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear supplier XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear supplier

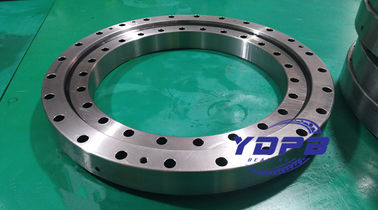

Large Image :  XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: XSU140944

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: XSU140944 Material: GCr15/GCr15SiMn
Structure: Single Row Crossed Cylindrical Roller Dimension: 874x1014x56mm
Application: CNC Machine Tool And Other Machinery Name: Cross Roller Slewing Ring Bearings

Crossed Roller Bearings Parameters

Model number- XSU140944

Inner ring(mm)-874

Outer ring(mm)- 1014

Width(mm)- 56

Weight(Kg)- 67

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner ring/Outer ring

Load direction- Multi-load

Structure- Integrated Inner/Outer Ring

Series Model NO..

XSU080168bearings,XSU080188bearings,XSU080218bearings,XSU080258bearings,XSU080318bearings,XSU080398bearings,
XSU140414bearings,XSU140544bearings,XSU140644bearings,XSU140744bearings,XSU140844bearings,XSU140944 bearings

Applications
Vertical machining center,vibratory grinding unit,tandem roller etc. high precision parts

Structure and Parameters:
XSU140944 bulk thin section bearing 874x1014x56mm buy single row crossed rollers slewing bearing without gear

Parameters for Single-row Crossed Roller Slewing Bearings

Series Model
Number
Main dimensions Fixing Hole(Outer ing) Fixing Hole(Inner ing) Basic load rating
(Axial)
Basic load rating
(Radial)
Weight
Kg
Inner ring
d(mm)
Outer ring
D(mm)
Roller pitch
circle
dp(mm)
Width
B(mm)
Pitch of holes
φLa
Number
na
Pitch of holes
φLi
Number
ni
Ca KN Coa KN Cr KN Cor KN
XSU XSU080168 130 205 168 25.4 240 12 145 12 66 240 42 96 3.3
XSU080188 150 225 188 25.4 275 16 165 16 71 275 46 110 3.7
XSU080218 180 255 218 25.4 315 20 195 20 77 315 49 127 4.3
XSU080258 220 295 258 25.4 375 24 235 24 84 375 54 151 5.1
XSU080318 280 355 318 25.4 465 28 295 28 93 465 59 185 6.3
XSU080398 360 435 398 25.4 590 36 375 36 106 590 68 236 7.8
XSU140414 344 484 414 56 460 24 368 24 229 520 146 250 28
XSU140544 474 614 544 56 590 32 498 32 270 680 170 330 38
XSU140644 574 714 644 56 690 36 598 36 290 800 185 395 44
XSU140744 674 814 744 56 790 40 698 40 315 930 200 455 52
XSU140844 774 914 844 56 890 40 798 40 340 1050 215 510 60
XSU140944 874 1014 944 56 990 44 898 44 360 1170 227 580 67
XSU141094 1024 1164 1094 56 1140 48 1048 48 390 1360 246 670 77




Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
