YRT-460 yrt slewing bearings manufacturers china 460X600X70mm

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number YRT-460
Minimum Order Quantity 1PCS
Price 260$~~440$/pc
Packaging Details plastic film+waterproof paper+thin foam+wooden case
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Gcr15 Dimension 460X600X70mm
Load Axial Radial Combined Load Model YRT-460
Application CNC Machine Tool Cage Brass Cage
Precision Level P4,P2
Leave a Message
Product Description

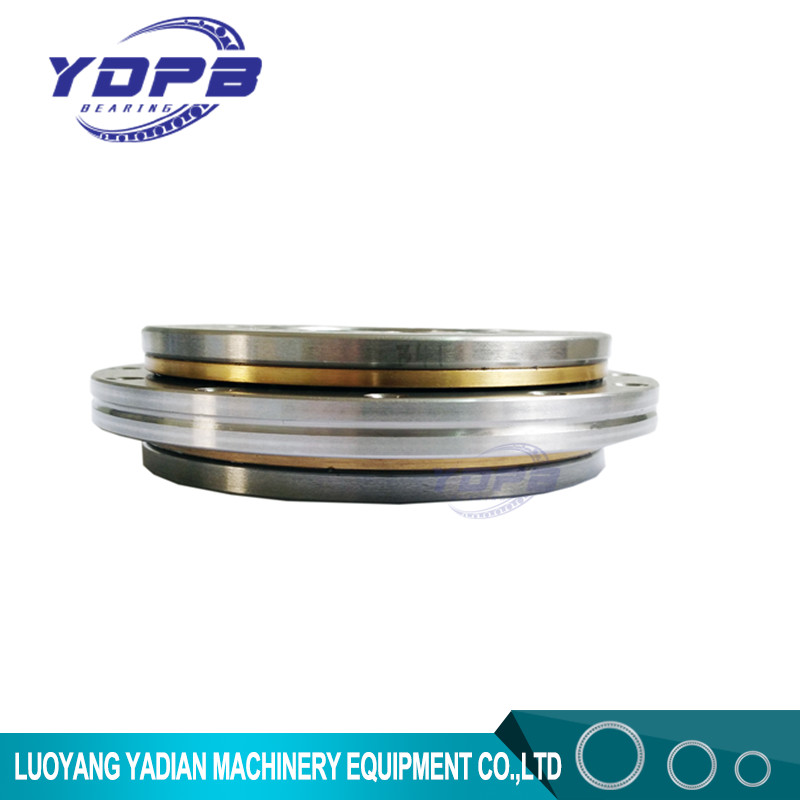

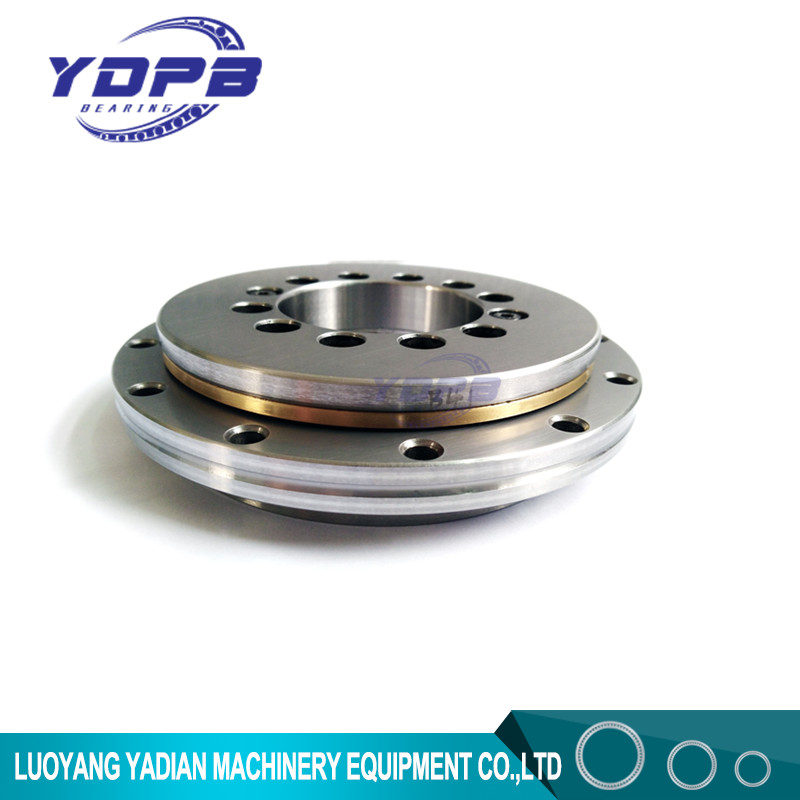

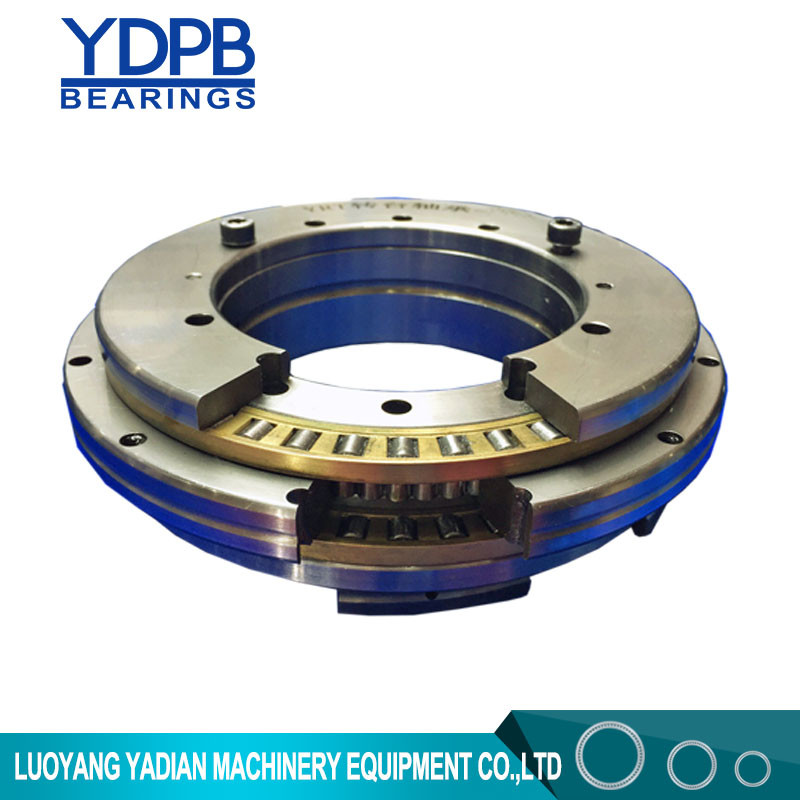

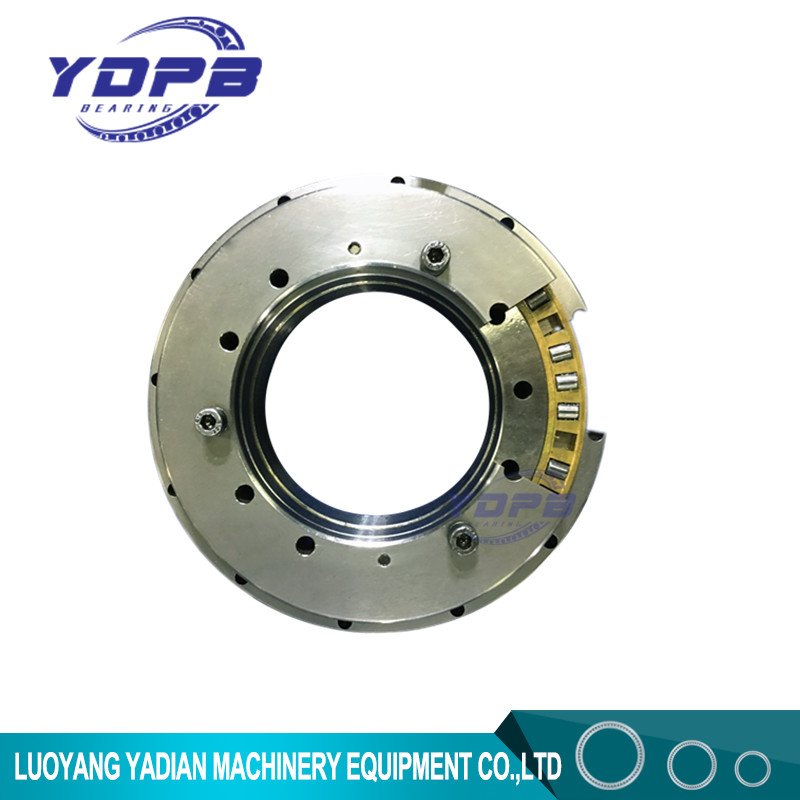

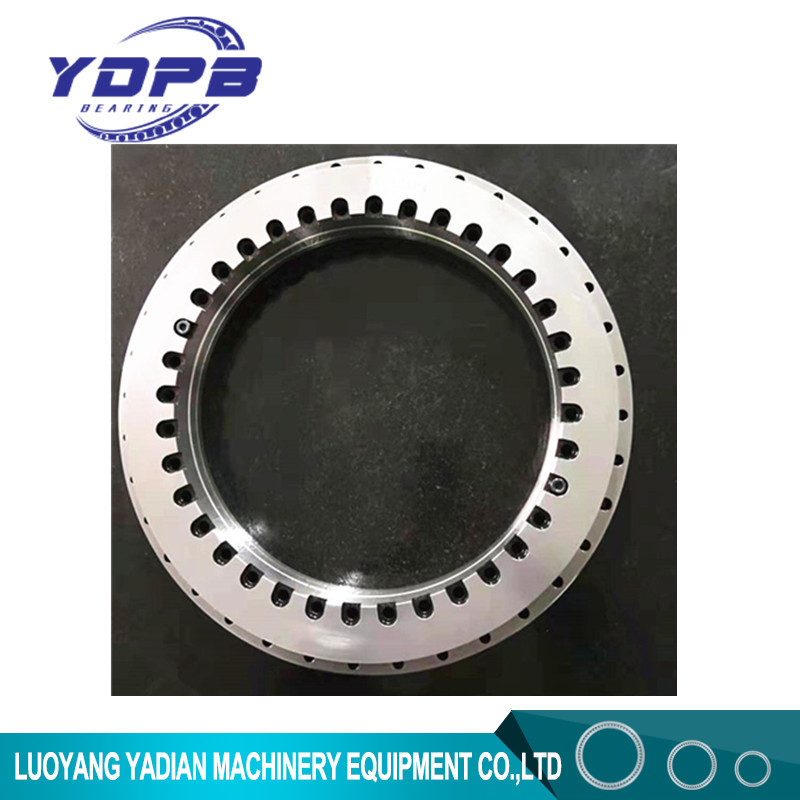

YRT-460 Rotary Table Bearing size 460X600X70mm Axial and Radial Load
Model number- YRT-460
Inner ring(mm)- 460
Outer ring(mm)- 600
Width(mm)- 70
Weight(Kg)-45
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring


Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.



Main parameters

Bearing
type
d
(mm)
D
(mm)
H
(mm)
Screw tightening
torque(Nm)
Axial dynamic
Load(KN)
Radial dynamic
Load(KN)
Weight
(KG)
YRT-50 50 126 30 8.5 38 28.5 1.6
YRT-80 80 146 35 8.5 56 42.5 2.4
YRT-100 100 185 38 8.5 76.5 47.5 4.1
YRT-120 120 210 40 14 102 52 5.3
YRT-150 150 240 40 14 112 56 6.2
YRT-180 180 280 43 14 118 69.5 7.7
YRT-200 200 300 45 14 120 81.5 9.7
YRT-260 260 385 55 34 160 93 18.3
YRT-325 325 450 60 34 300 120 25
YRT-395 395 525 65 34 355 186 33
YRT-460 460 600 70 34 490 200 45
YRT-580 580 750 90 68 490 228 89
YRT-650 650 870 122 116 1040 490 170
YRT-850 850 1095 124 284 1000 455 253
YRT-950 950 1200 132 284 1290 530 312
YRT-1030 1030 1300 145 284 1380 620 375

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"

Others
YRTS High speed rotary table bearings ,YRTM with angle measuring system bearings,ZKLDF SERIES ROTARY TABLE BEARING,Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing , Ceramic bearings.
