SX011814VSP sx series crossed cylindrical roller bearing manufacturers china 70x90x10mm

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

SX011814VSP sx series crossed cylindrical roller bearing manufacturers china 70x90x10mm

China SX011814VSP sx series crossed cylindrical roller bearing manufacturers china  70x90x10mm supplier
SX011814VSP sx series crossed cylindrical roller bearing manufacturers china  70x90x10mm supplier SX011814VSP sx series crossed cylindrical roller bearing manufacturers china  70x90x10mm supplier SX011814VSP sx series crossed cylindrical roller bearing manufacturers china  70x90x10mm supplier SX011814VSP sx series crossed cylindrical roller bearing manufacturers china  70x90x10mm supplier SX011814VSP sx series crossed cylindrical roller bearing manufacturers china  70x90x10mm supplier

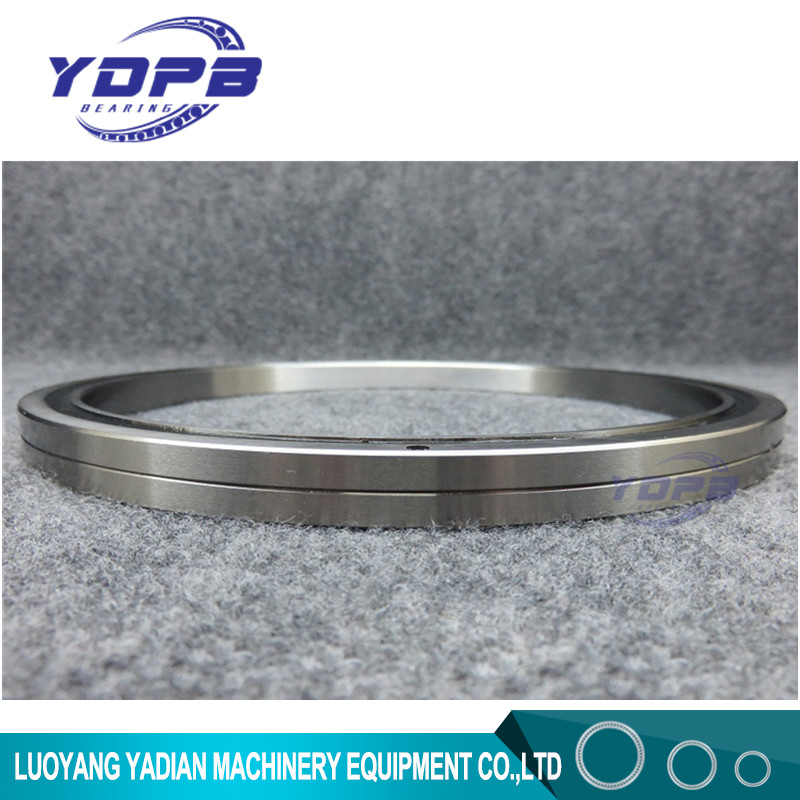

Large Image :  SX011814VSP sx series crossed cylindrical roller bearing manufacturers china 70x90x10mm

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: SX011814VSP

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: SX011814VSP Material: GCr15
Structure: Crossed Cylindrical Roller Bearings Dimension: 70x90x10mm
Application: Robots Arm/machine Tool Name: Cross-roller Bearing

SX011814 Crossed Roller Bearings (70x90x10mm) High precision Robotic arm use

Crossed Roller Bearings Parameters

Model number- SX011814

Inner ring(mm)- 70

Outer ring(mm)- 90

Width(mm)- 10

Weight(Kg)- 0.3

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner Ring Rotation

Load direction- Multi-load

Structure- Outer ring split



Same structure Different sizes models

SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500



Main parameters

SX011814VSP sx series crossed cylindrical roller bearing manufacturers china  70x90x10mm

Identification number Main dimensious shoulder height Basic load rating (axial) Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter width Greasing hole r de Di Ca Coa Cr Cor Kg
d D Dp B/B1 S KN KN KN KN
SX011814 70 90 80 10 1.2 0.6 79.5 80.5 18 60 12 30 0.3
SX011818 90 115 102 13 1.2 1 101.5 102.5 26 96 17 47 0.4
SX011820 100 125 112 13 1.2 1 111.5 112.5 28 106 18 52 0.5
SX011824 120 150 135 16 1.5 1 134.4 135.6 41 153 26 75 0.8
SX011828 140 175 157 18 1.5 1.1 156.3 157.7 64 237 41 116 1.1
SX011832 160 200 180 20 1.5 1.1 179.2 180.8 69 272 44 133 1.7
SX011836 180 225 202 22 2 1.1 201.2 202.8 98 381 63 187 2.3
SX011840 200 250 225 24 2 1.5 224.2 225.8 106 425 68 208 3.1
SX011848 240 300 270 28 2 2 269.2 270.8 149 612 95 300 5.3
SX011860 300 380 340 38 2.5 2.1 339.2 340.8 245 1027 156 504 12
SX011868 340 420 380 38 2.5 2.1 379.2 380.8 265 1148 167 563 13.5
SX011880 400 500 450 46 2.5 2.5 449 451 385 1699 244 833 24
SX0118/500 500 620 560 56 2.5 3 558.8 561.2 560 2538 355 1244

44





Drawings and other parameters ,pls contact us free, thanks


Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
