ZKLDF50 ZKLDF80 ZKLDF100 china rotary table bearing manufacturers china 100X185X38mm

China ZKLDF50  ZKLDF80  ZKLDF100 china  rotary table bearing manufacturers china 100X185X38mm supplier
ZKLDF50  ZKLDF80  ZKLDF100 china  rotary table bearing manufacturers china 100X185X38mm supplier ZKLDF50  ZKLDF80  ZKLDF100 china  rotary table bearing manufacturers china 100X185X38mm supplier ZKLDF50  ZKLDF80  ZKLDF100 china  rotary table bearing manufacturers china 100X185X38mm supplier ZKLDF50  ZKLDF80  ZKLDF100 china  rotary table bearing manufacturers china 100X185X38mm supplier ZKLDF50  ZKLDF80  ZKLDF100 china  rotary table bearing manufacturers china 100X185X38mm supplier

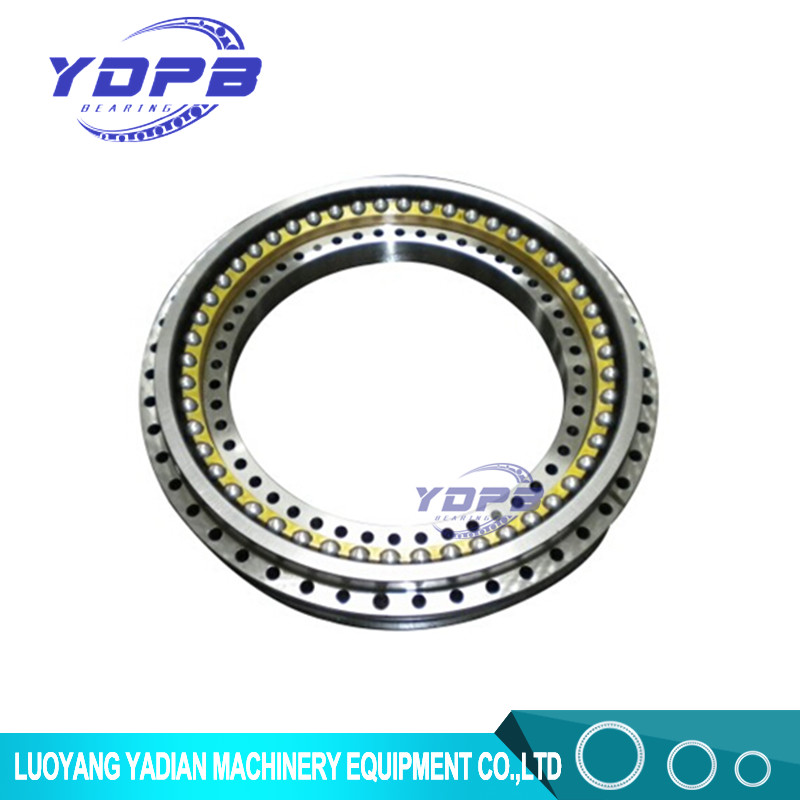

Large Image :  ZKLDF50 ZKLDF80 ZKLDF100 china rotary table bearing manufacturers china 100X185X38mm

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: ZKLDF100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$~~440$/pc
Packaging Details: plastic film+waterproof paper+thin foam+wooden case
Delivery Time: within 5-8days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 800pcs/month
Contact Now
Detailed Product Description
Material: Gcr15SiMn Dimension: 100X185X38mm
Structure: Axial Angular Contact Ball Model: ZKLDF100
Application: Rotary Table Cage: Brass Cage
Precision Level: P4,P2

ZKLDF100 Axial Angular Contact Ball Bearings 100X185X38mm Higher speed compare with YRT100 Rotary Table Bearings


Model number- ZKLDF100
Inner ring(mm)- 100
Outer ring(mm)- 185
Width(mm)- 25
Weight(Kg)- 4.5
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Features:
ZKLDF series(four point ball contact),with low frictional ,high rotate accurancy and high limit speed etc. features, can bear higher axial,radial load and with higher tilting rigity.,Main application is the area which need combined load and high precision. E.g machine tool rotary table ,grinding head and other measuring equipment.
Series model No.
ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460, ZKLDF580

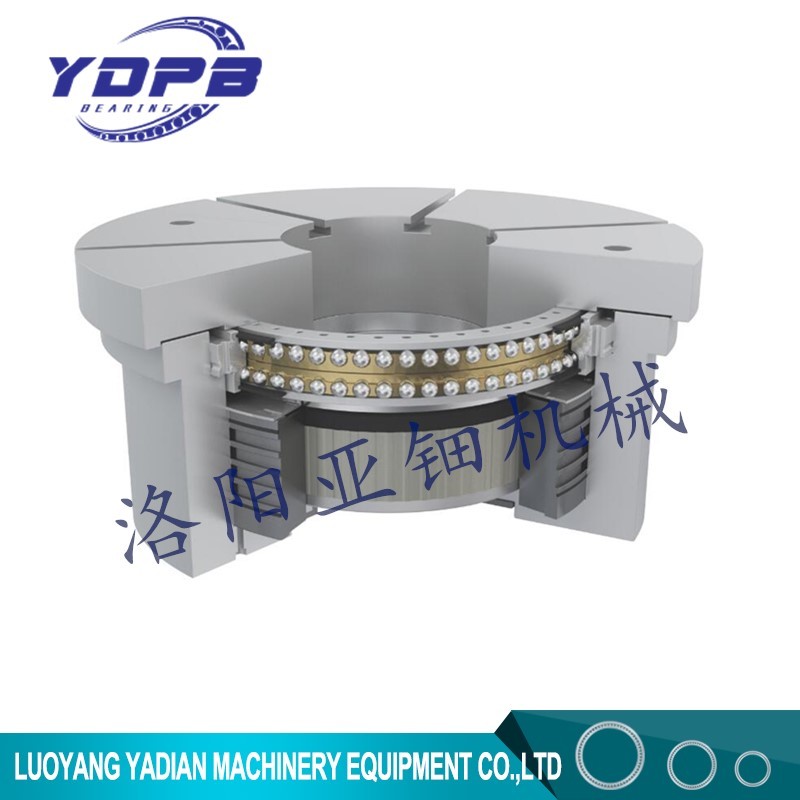

Structure:
ZKLDF50  ZKLDF80  ZKLDF100 china  rotary table bearing manufacturers china 100X185X38mm
ZKLDF series parameters

Series Model
Number
Main dimensions (mm) Basic load rating
(Axial)
Limiting
speed
(Grease)
Bearing
frictional torque
Weight

Model
Number
d D H H1 C D1 J J1 Ca KN Coa KN r/m (Nm) (Kg) ---------
ZKLDF ZKLDF100 100 185 38 25 160 136 112 170 71 265 2800 1.6 4.5 ZKLDF100
ZKLDF120 120 210 40 26 184 159 135 195 76 315 2400 2 6 ZKLDF120
ZKLDF150 150 240 40 26 214 188 165 225 81 380 2000 3 7.5 ZKLDF150
ZKLDF200 200 300 45 30 274 243 215 285 112 610 1600 4.5 11 ZKLDF200
ZKLDF260 260 385 55 36.5 345 313 280 365 162 920 1200 7.5 22 ZKLDF260
ZKLDF325 325 450 60 40 415 380 342 430 172 1110 1000 11 28 ZKLDF325
ZKLDF395 395 525 65 42.5 486 450 415 505 241 1580 800 16 39 ZKLDF395
ZKLDF460 460 600 70 46 560 520 482 580 255 1860 700 21 50 ZKLDF460

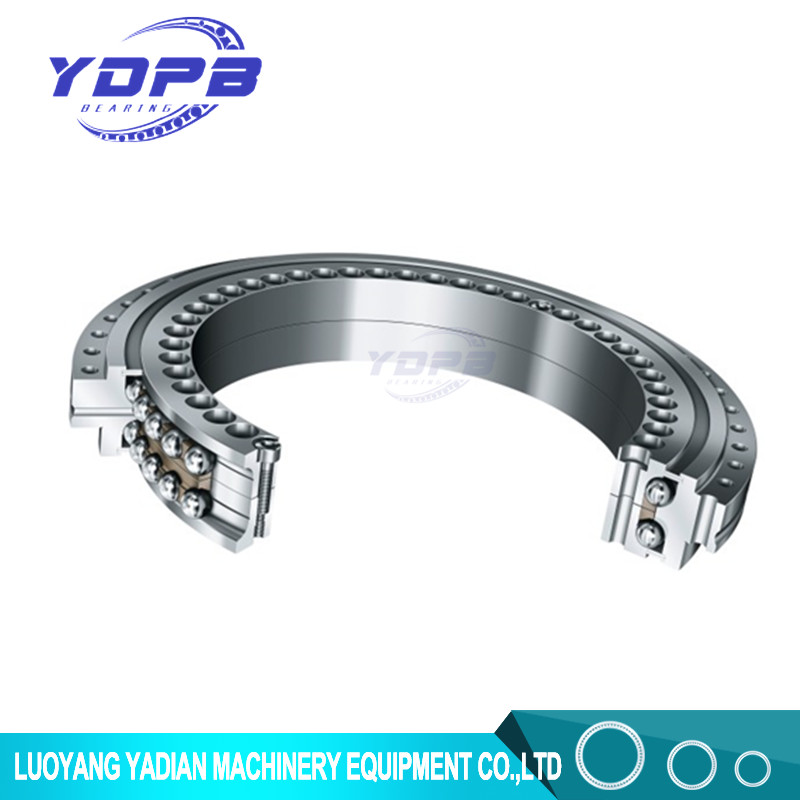

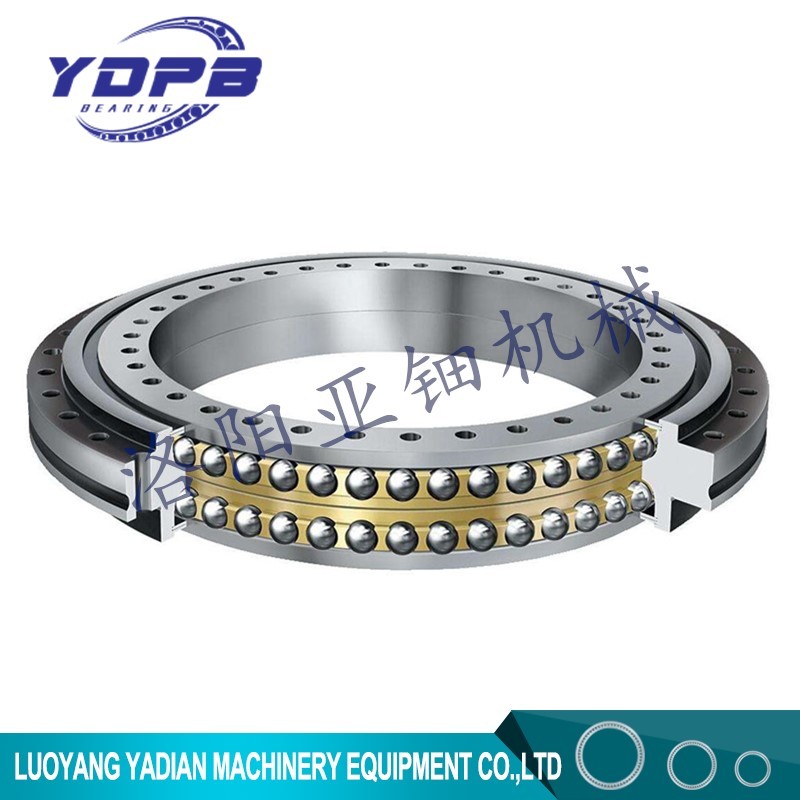

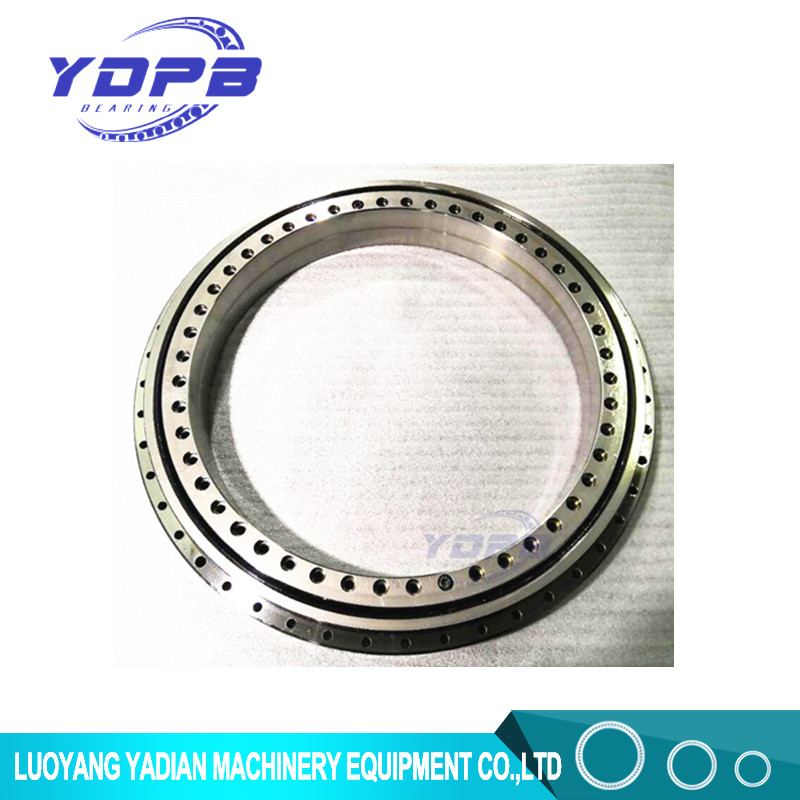

Related Pictures
ZKLDF50  ZKLDF80  ZKLDF100 china  rotary table bearing manufacturers china 100X185X38mmZKLDF50  ZKLDF80  ZKLDF100 china  rotary table bearing manufacturers china 100X185X38mm
Applications :
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc


Other Rotary table bearing list

YDPB  YRT150 bearing Robotic Surgery Devices Use 150x240x40mm  NC rotary table use  Luoyang manufacturer

Bearing

Model number

Boundary dimensions Basic load rating(KN)

Limiting

Speed

(Grease)

Bearing frictional torque

(Nm)

Weight

(kg)

Axial/

Radial

Runout

(μm)

Axial load Radial load
d D H H1 C D1 J J1 dynamic static dynamic static
unit: mm Ca Coa Cr Cor r/min
YRT50 50 126 30 20 10 105 63 116 38 158 28.5 49.5 440 2.5 1.6 2
YRT80 80 146 35 23.35 12 130 92 138 56 255 42.5 100 530 3 2.4 3
YRT100 100 185 38 25 12 160 112 170 76.5 415 47.5 120 430 3 4.0 3
YRT120 120 210 40 26 12 184 135 195 102 540 52 143 340 7 5.3 3
YRT150 150 240 40 26 12 214 165 225 112 630 56 170 320 10 6.2 3
YRT180 180 280 43 29 15 244 194 260 118 710 69.5 200 280 12 7.7 4
YRT200 200 300 45 30 15 274 215 285 120 765 81.5 220 260 14 9.7 4
YRT260 260 385 55 36.5 18 345 280 365 160 1060 93 290 200 20 18.3 6
YRT325 325 450 60 40 20 415 342 430 275 1930 120 345 170 40 25 6
YRT395 395 525 65 42.5 20 486 415 505 300 2280 186 655 140 55 33 6
YRT460 460 600 70 46 22 560 482 580 355 2800 200 765 120 70 45 6
YRT580 580 750 90 60 30 700 610 720 490 4250 228 965 80 140 89 10
YRT650 650 870 122 78 34 800 680 830 1040 8000 490 1800 65 200 170 10
YRT850 850 1095 124 80.5 37 1018 890 1055 1000 8650 455 1730 50 300 253 12
YRT950 950 1200 132 86 40 1130 990 1160 1290 11400 530 2040 40 600 312 12
YRT1030 1030 1300 145 92.5 40 1215 1075 1255 1380 12000 620 2650 39 800 375 15




More products production line
1.YRTS YRTM rotary table bearings

2.Crossed Roller Bearings
3.Crossed Tapered Roller Bearings
4.Thrust cylindrical Roller bearings
5.Deep Groove Ball Bearings
6.Angular contact ball bearings
7.Ceramic bearings
8.Harmonic Drive special bearings
9.Custom made bearings OEM,ODM available
