Home ProductsINA YRT/YRTM/YRTS/ZKLDF series Rotary Table Bearings

ZKLDF260 Axial angular contact ball bearings thrust ball bearing 260X385X55mm

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

ZKLDF260 Axial angular contact ball bearings thrust ball bearing 260X385X55mm

China ZKLDF260  Axial angular contact ball bearings thrust ball bearing 260X385X55mm supplier
ZKLDF260  Axial angular contact ball bearings thrust ball bearing 260X385X55mm supplier ZKLDF260  Axial angular contact ball bearings thrust ball bearing 260X385X55mm supplier ZKLDF260  Axial angular contact ball bearings thrust ball bearing 260X385X55mm supplier ZKLDF260  Axial angular contact ball bearings thrust ball bearing 260X385X55mm supplier ZKLDF260  Axial angular contact ball bearings thrust ball bearing 260X385X55mm supplier

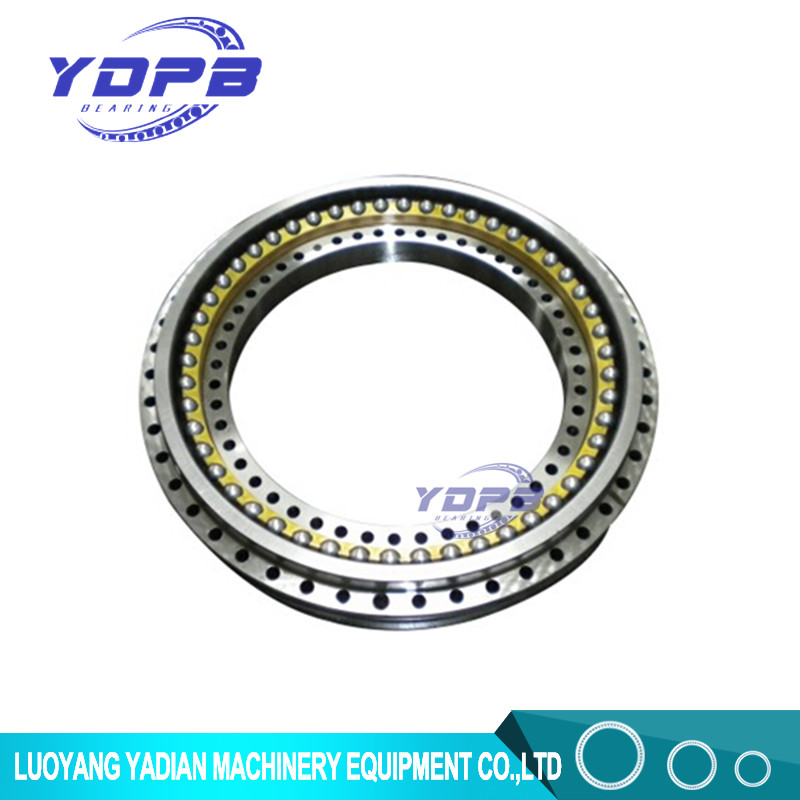

Large Image :  ZKLDF260 Axial angular contact ball bearings thrust ball bearing 260X385X55mm

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: ZKLDF260

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$~~440$/pc
Packaging Details: plastic film+waterproof paper+thin foam+wooden case
Delivery Time: within 5-8days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 800pcs/month
Contact Now
Detailed Product Description
Material: Gcr15SiMn Dimension: 260X385X55mm
Structure: Axial Angular Contact Ball Model: ZKLDF260
Application: Rotary Table Cage: Brass Cage
Precision Level: P4,P2


Axial angular contact ball bearings ZKLDF260,Double direction,for screw mounting.sealing shields on both sides.
Model number- ZKLDF260
Inner ring(mm)- 260
Outer ring(mm)- 385
Width(mm)- 55
Weight(Kg)- 22
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Features:
ZKLDF series(four point ball contact),with low frictional ,high rotate accurancy and high limit speed etc. features, can bear higher axial,radial load and with higher tilting rigity.,Main application is the area which need combined load and high precision. E.g machine tool rotary table ,grinding head and other measuring equipment.
Series model No.
ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460, ZKLDF580

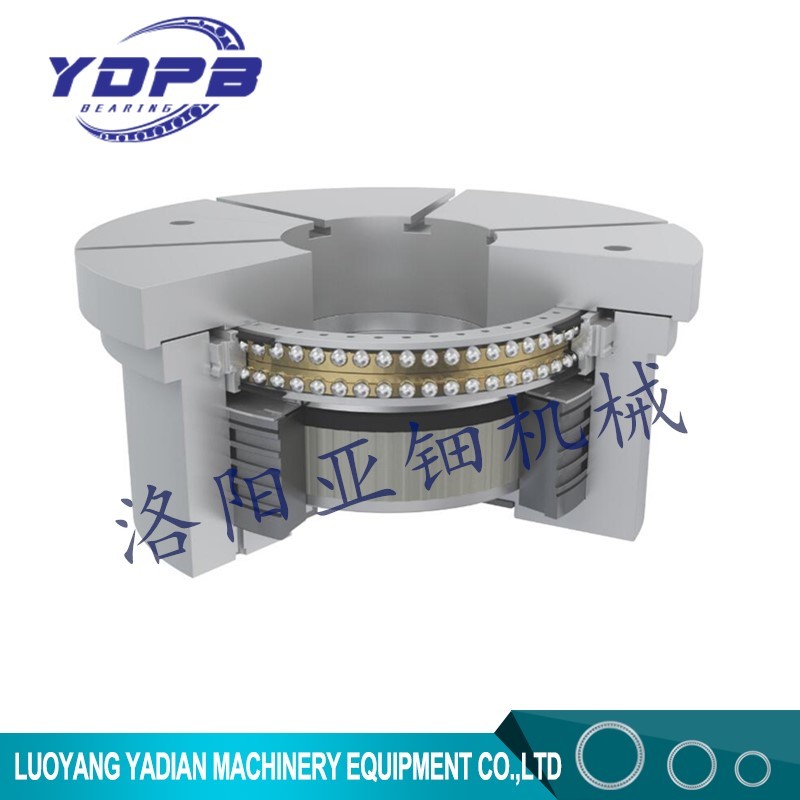

Structure:
ZKLDF260  Axial angular contact ball bearings thrust ball bearing 260X385X55mm
ZKLDF series parameters

SeriesModel
Number
Main dimensions (mm)Basic load rating
(Axial)
Limiting
speed
(Grease)
Bearing
frictional torque
Weight

Model
Number
dDHH1CD1JJ1Ca KNCoa KNr/m(Nm)(Kg)---------
ZKLDFZKLDF10010018538251601361121707126528001.64.5ZKLDF100
ZKLDF120120210402618415913519576315240026ZKLDF120
ZKLDF150150240402621418816522581380200037.5ZKLDF150
ZKLDF200200300453027424321528511261016004.511ZKLDF200
ZKLDF2602603855536.534531328036516292012007.522ZKLDF260
ZKLDF3253254506040415380342430172111010001128ZKLDF325
ZKLDF3953955256542.548645041550524115808001639ZKLDF395
ZKLDF460460600704656052048258025518607002150ZKLDF460

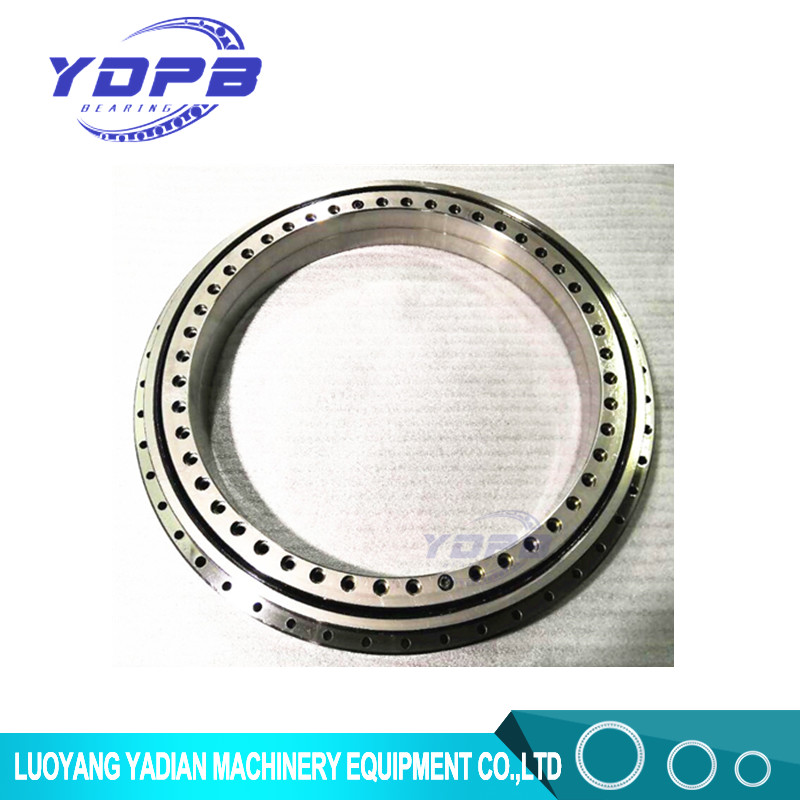

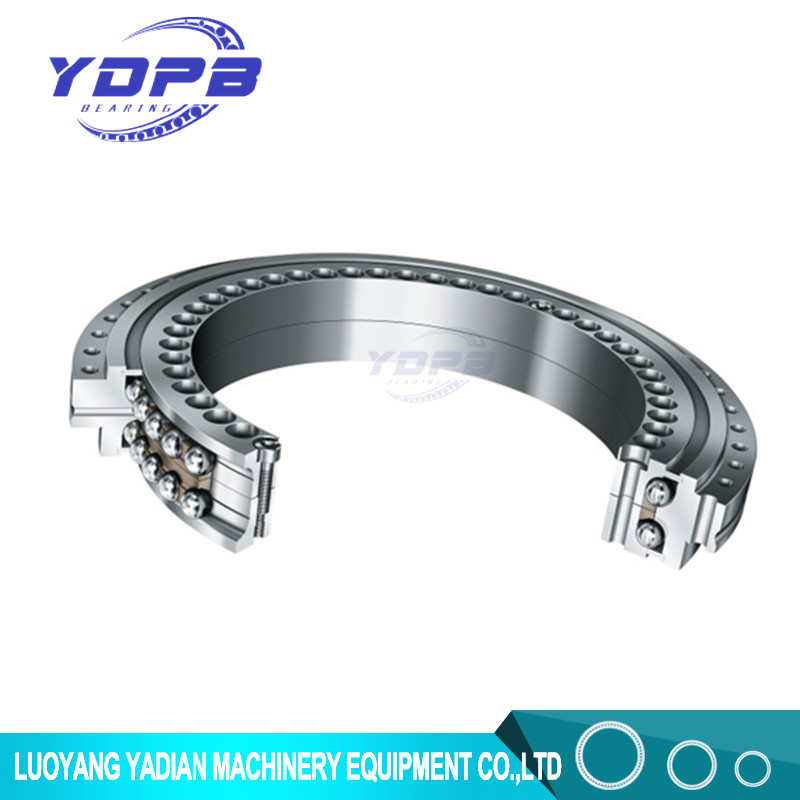

Related Pictures
ZKLDF260  Axial angular contact ball bearings thrust ball bearing 260X385X55mmZKLDF260  Axial angular contact ball bearings thrust ball bearing 260X385X55mm
Applications :
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
More products production line
1.YRT rotary table bearings

2.Crossed Roller Bearings
3.Crossed Tapered Roller Bearings
4.Thrust cylindrical Roller bearings
5.Deep Groove Ball Bearings
6.Angular contact ball bearings
7.Ceramic bearings
8.Harmonic Drive special bearings
9.Custom made bearings OEM,ODM available
