2796x3100x109mm slewing ring bearing 3006x3455x127mm cross roller bearing 3100x3565x138mm China supplier 3168x3560x110mm

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number 2796x3100x109mm
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model XI 302980N Material 50Mn Or According To You
Structure Cross Roller Bearing Dimension 2796x3100x109mm
Application Manipulators Name INA Cross Roller Bearing Slewing Rings
Leave a Message
Product Description

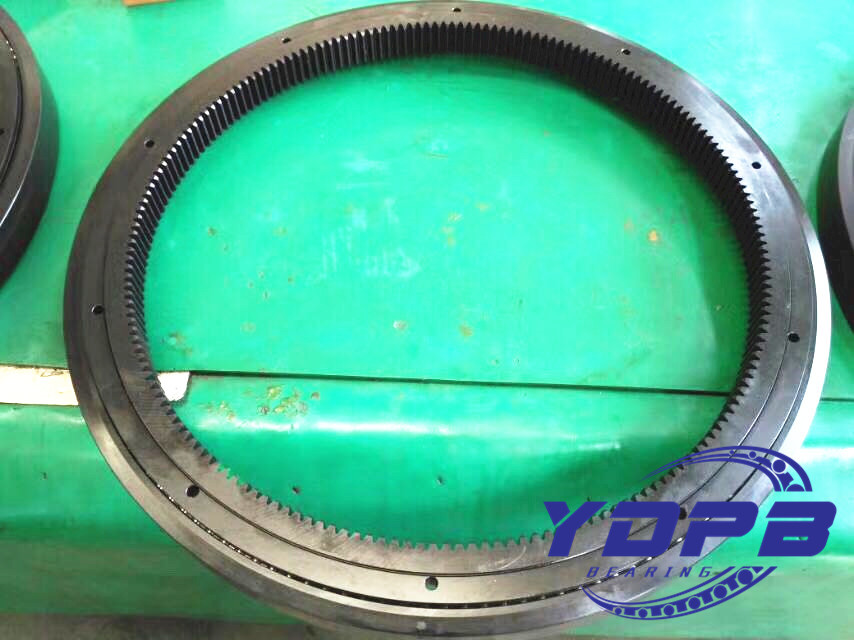

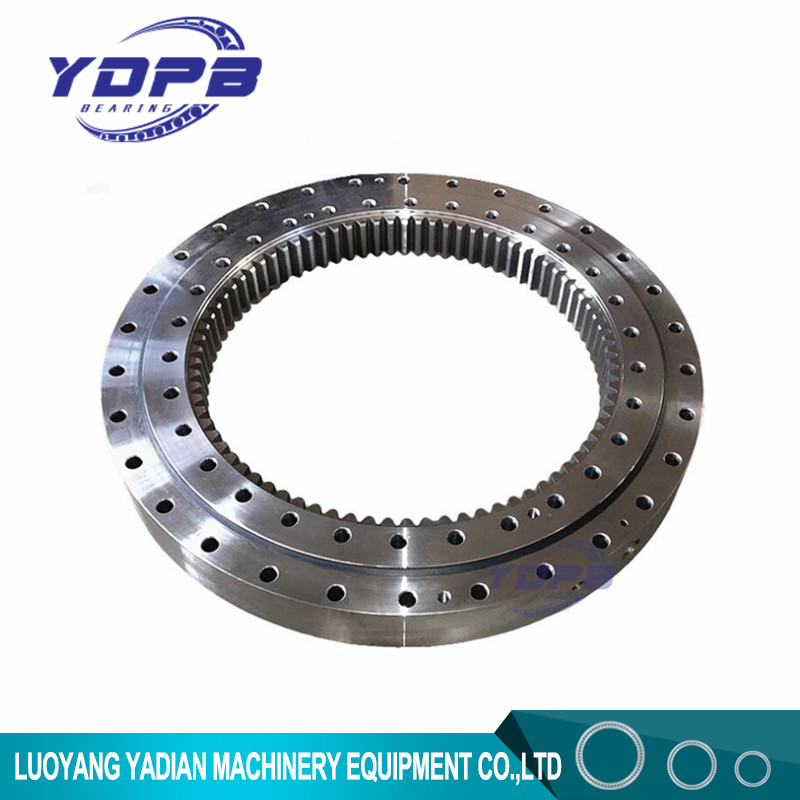

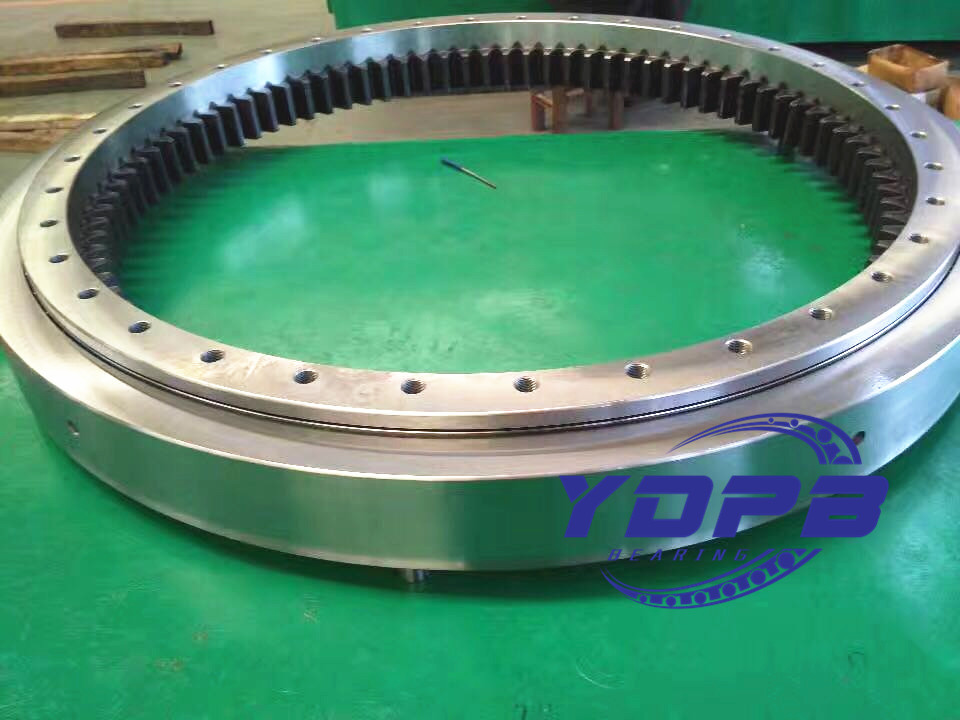

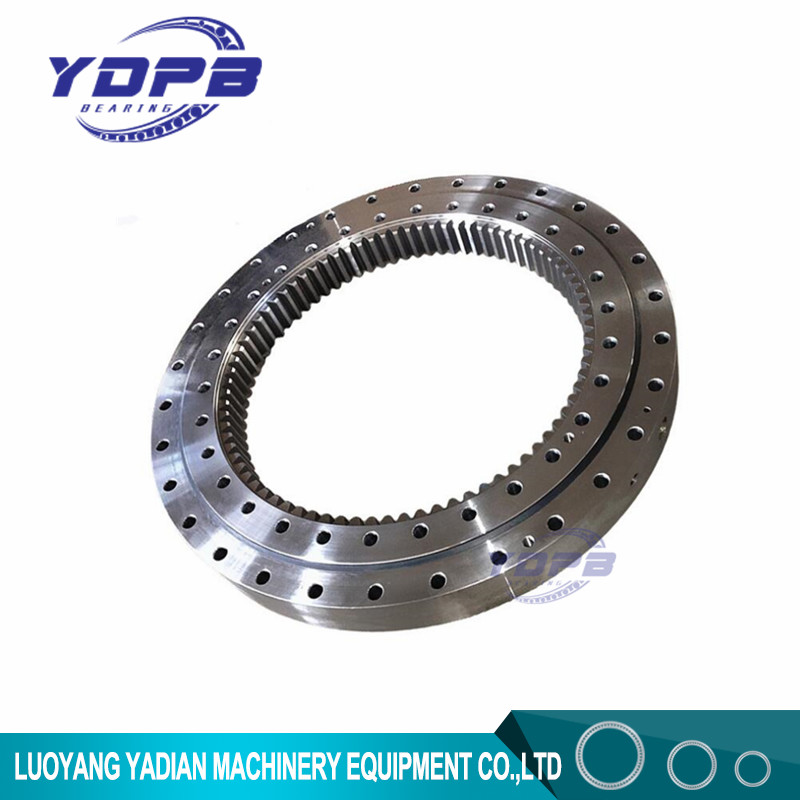

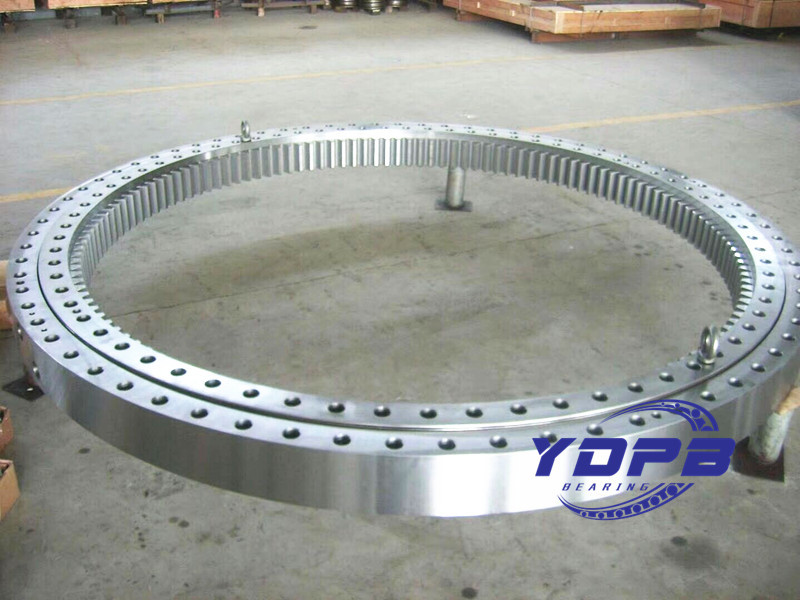

2796x3100x109mm slewing ring bearing 3006x3455x127mm cross roller bearing 3100x3565x138mm China supplier 3168x3560x110mm XI 302980N

  • Structure:Cross roller
  • Gear teeth: internal
  • Seals type:double seals
  • Material: 50Mn/ custom made
  • For light duty industrial manipulator or precision robotics.

Structure and Parameters:

2796x3100x109mm slewing ring bearing 3006x3455x127mm cross roller bearing 3100x3565x138mm China supplier 3168x3560x110mm 0

Model INA Outer dimension(mm) Mounting dimension(mm) Gear datas(mm)

Axial Static

load

rating (KN)

Weight

(KG)

    Da D di H La Li n1 n2 φ1 φ2 m z do x
XIU10/288 XI120288N 216 340   38 324 252 20 20 9 9 4 56 224   340 12
XIU10/420 XI 120420N 332 486   38 462 378 16 16 14 14 4 85 340   500 24
XIU15/489 XI 160489N 384 562   45 538 440 40 40 14 14 6 66 396   710 35
XIU15/575 XI 140575N 462 657   45 625 525 16 16 18 18 6 79 474   830 45
XIU20/635 XI 180635N 504 722   54 690 580 24 24 18 18 8 65 520   1040 65
XIU30/713 XI 300713N 560 817   80 785 640 52 52 18 18 10 58 580   1980 130
XIU20/720 XI 200720N 584 812   58 780 660 40 40 18 18 8 75 600   1420 80
XIU20/865 XI 180865N 736 952   54 920 810 20 20 18 18 8 94 752   1325 90
XIU15/897 XI 140897N 776 976   54 944 850 32 32 18 18 8 99 792   1270 75
XIU30/1128 XI 301128N 936 1258   86 1210 1045 36 36 26 26 12 80 960   2825 285
XIU20/1100 XI 201100N 950 1200   70 1160 1040 30 30 22 22 10 97 970   2000 150
XIU15/1087 XI 141087N 960 1166   65 1134 1040 40 40 18 18 10 98 980   1500 105
XIU25/1120 XI 241120N 960 1228   73 1188 1052 40 40 22 22 10 98 980   2400 195
XIU20/1150 XI 221150N 984 1255   74 1215 1085 40 40 22 22 12 84 1008   2425 200
XIU25/1220 XI 261220N 1060 1330   78 1290 1150 48 48 22 22 10 108 1080   2650 230
XIU30/1304 XI 301304N 1140 1416   86 1380 1228 76 76 20 20 10 116 1160   3240 280
XIU40/1385 XI 401385N 1176 1528   110 1480 1290 56 56 26 26 12 100 1200   3450 490
XIU30/1348 XI 301348N 1180 1465   86 1425 1270 60 60 22 22 10 120 1200   3340 300
XIU30/1500 XI 301500N 1308 1630   86 1582 1418 48 48 26 26 12 111 1332   3710 380
XIU35/1615 XI 341615N 1416 1753   95 1705 1525 64 64 26 26 12 120 1440   4300 470
XIU30/1700 XI 301700N 1498 1830   92 1782 1618 56 56 26 26 14 109 1526   4250 450
XIU35/1785 XI 341785N 1568 1923   95 1875 1695 72 72 26 26 14 114 1596   4800 550
XIU40/1865 XI 401865N 1616 2024   108 1970 1760 68 68 30 30 16 103 1648   5900 750
XIU40/1945 XI 401945N 1722 2088   110 2040 1850 48 48 26 26 14 125 1750   6200 740
XIU20/1905 XI 201905N 1740 2010   82 1970 1840 48 48 22 22 12 147 1764   3450 340
XIU40/2026 XI 402026N 1764 2184   122 2130 1921 72 72 30 30 18 100 1800   6500 900
XIU45/2180 XI 452180N 1920 2355   127 2295 2065 64 64 33 33 16 122 1952   7600 1090
XIU30/2280 XI 302280N 2072 2413   110 2365 2195 84 84 26 26 14 150 2100   5900 760
XIU35/2540 XI 342540N 2286 2700   118 2640 2440 64 64 33 33 18 129 2322   6750 1040
XIU45/2600 XI 452600N 2336 2775   127 2715 2485 76 76 33 33 16 148 2368   8850 1330
XIU25/2686 XI 262686N 2480 2800   114 2760 2615 108 108 22 22 20 126 2520   5800 740
XIU40/2875 XI 402875N 2628 3040   118 2980 2775 72 72 33 33 18 148 2664   9350 1250
XIU30/2980 XI 302980N 2796 3100   109 3060 2900 160 160 22 22 12 235 2820   7200 820
XIU45/3280 XI 453280N 3006 3455   127 3395 3165 96 96 33 33 18 169 3042   11550 1710
XIU50/3383 XI 503383N 3100 3565   138 3505 3260 116 116 33 33 20 157 3140   14400 1970
XIU35/3403 XI 343403N 3168 3560   110 3500 3305 80 80 33 33 16 200 3200   9100 1290
XIU50/3500 XI 503500N 3200 3690   138 3630 3370 124 124 33 33 20 162 3240   14100 2170
XIU50/3720 XI 503720N 3420 3910   138 3850 3590 132 132 33 33 20 173 3460   15000 2310
XIU50/3820 XI 503820N 3520 4010   138 3950 3690 136 136 33 33 20 178 3560   15400 2370
XIU60/4035 XI 604035N 3720 4234   160 4174 3896 144 144 33 33 20 188 3760   17600 3100

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
