VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang

China VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang supplier
VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang supplier VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang supplier VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang supplier VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang supplier

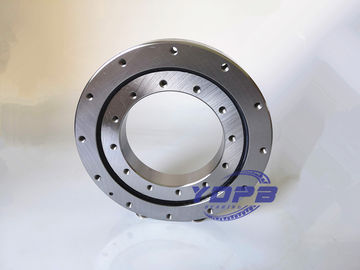

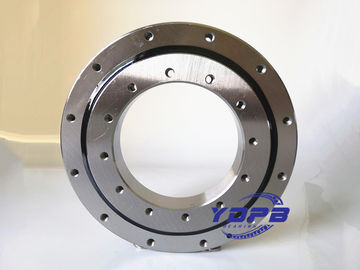

Large Image :  VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: VLU200744

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: VLU200744 Material: 50Mn Or According To You
Structure: Four-point Contact Ball Dimension: 634x848x56mm
Name: Four-point Contact Ball Bearings

VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang


Structure:four point contact ball bearing
Gear teeth: without
Seals type:double seals
Material: 50Mn/100Cr6/GCr15


Series Model NO.

VLU200414,VLU200544,VLU200644,VLU200744,VLU200844,VLU200944,VLU201094


Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

  • Manipulators
  • Jib cranes
  • Lift-assist devices
  • Work positioners

Larger sizes are well suited for:

  • Truck-mounted cranes
  • Aerial lifts
  • Hoists
  • Small wind turbines
  • Non-precision positioning tables

Structure and Parameters:

VLU200744 Slewing Ring Bearing 634x848x56mm Four point contact ball bearing with flange,untoothed China bearing luoyang

VLU four point contact ball slewing rings with flange, untoothed

Model d (mm) D (mm) H(mm)
VLU200414 304 518 56
VLU200544 434 648 56
VLU200644 534 748 56
VLU200744 634 848 56
VLU200844 734 948 56
VLU200944 834 1048 56
VLU201094 984 1198 56



Equivalent Models

INA SKF KAYDON IMO Rothe Erde Rollix TGB
VLU200414 RKS.23 0411 RK6-16P1Z 90-20 0413/0-37012 230.20.0400.013 23-0411-01 SD.505.20.00.C
VLU200544 RKS.23 0541 RK6-22P1Z 90-20 0541/0-37022 230.20.0500.013 23-0541-01 SD.650.20.00.C
VLU200644 RKS.23 0641 RK6-25P1Z 90-20 0641/0-37032 230.20.0600.013 23-0641-01 SD.750.20.00.C
VLU200744 RKS.23 0741 RK6-29P1Z 90-20 0741/0-37042 230.20.0700.013 23-0741-01 SD.850.20.00.C
VLU200844 RKS.23 0841 RK6-33P1Z 90-20 0841/0-37052 230.20.0800.013 23-0841-01 SD.950.20.00.C
VLU200944 RKS.23 0941 RK6-37P1Z 90-20 0941/0-37062 230.20.0900.013 23-0941-01 SD.1050.20.00.C
VLU201094 RKS.23 1091 RK6-43P1Z 90-20 1091/0-37072 230.20.1000.013 23-1091-01 SD.1200.20.00.C





Drawings and other parameters ,pls contact us free, thanks


Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.



Many other precision bearings series available


Online shopping Address: www.ydpbbearings.com
