VU130225 Slewing Ring Bearing 200x290x24mm Four point contact ball bearing Internal gear teeth xuzhou bearing luoyang

China VU130225 Slewing Ring Bearing 200x290x24mm Four point contact ball bearing Internal gear teeth xuzhou bearing luoyang supplier
VU130225 Slewing Ring Bearing 200x290x24mm Four point contact ball bearing Internal gear teeth xuzhou bearing luoyang supplier VU130225 Slewing Ring Bearing 200x290x24mm Four point contact ball bearing Internal gear teeth xuzhou bearing luoyang supplier VU130225 Slewing Ring Bearing 200x290x24mm Four point contact ball bearing Internal gear teeth xuzhou bearing luoyang supplier VU130225 Slewing Ring Bearing 200x290x24mm Four point contact ball bearing Internal gear teeth xuzhou bearing luoyang supplier

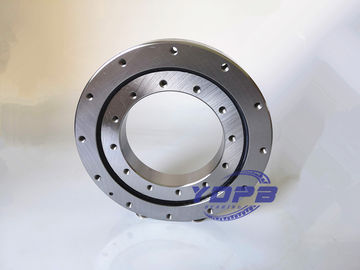

Large Image :  VU130225 Slewing Ring Bearing 200x290x24mm Four point contact ball bearing Internal gear teeth xuzhou bearing luoyang

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: VU130225

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: VU130225 Material: 50Mn Or According To You
Structure: Four-point Contact Ball Dimension: 200x290x24mm
Name: Four-point Contact Ball Bearings

VU130225 Slewing Ring Bearing 200x290x24mm Four point contact ball bearing Internal gear teeth xuzhou bearing luoyang


Structure:four point contact ball bearing
Gear teeth: without
Seals type:double seals
Material: 50Mn/100Cr6/GCr15


Series Model NO.

VU140179,VU200220,VU130225,VU200260,VU140325,VU250380,VU200405,VU250433


Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

  • Manipulators
  • Jib cranes
  • Lift-assist devices
  • Work positioners

Larger sizes are well suited for:

  • Truck-mounted cranes
  • Aerial lifts
  • Hoists
  • Small wind turbines
  • Non-precision positioning tables

Structure and Parameters:

VU130225 Slewing Ring Bearing 200x290x24mm Four point contact ball bearing Internal gear teeth xuzhou bearing luoyang

VU series Four point contact slewing bearing without gear teeth

Model d (mm) D (mm) H(mm)
VU140179 124,5 234 35
VU200220 138 302 46
VU130225 200 290 24
VU200260 191 329 46
VU140325 270 380 35
VU250380 275 485 55
VU200405 336 474 46
VU250433 344 522 55



Drawings and other parameters ,pls contact us free, thanks


Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.



Many other precision bearings series available


Online shopping Address: www.ydpbbearings.com
