Home ProductsSlewing rings internal gear

VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z

China VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z supplier
VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z supplier VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z supplier VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z supplier VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z supplier

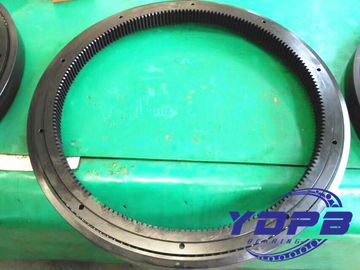

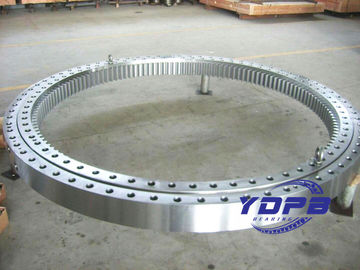

Large Image :  VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Certification: ISO
Model Number: VLI200744-N

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: VLI200744-N Material: 50Mn Or According To You
Structure: Four Point Contact Ball Dimension: 648x848x56mm
Application: Manipulators Name: INA Four Point Contact Ball Slewing Rings

VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z

  • Structure:Cross roller
  • Gear teeth: internal
  • Seals type:double seals
  • Material: 50Mn/ custom made
  • For light duty industrial manipulator or precision robotics.

Structure and Parameters:

VLI200744-N Four point contact ball bearing RKS.22 0741 slewing ring bearings 648x848x56mm luoyang bearing RK6-29N1Z

VLI Four point contact bearing (Internal gear teeth)

Models d (mm) D (mm) H (mm)
VLI200414-N 325 518 56
VLI200544-N 444 648 56
VLI200644-N 546 748 56
VLI200744-N 648 848 56
VLI200844-N 736 948 56
VLI200944-N 840 1048 56
VLI201094-N 984 1198 56


Equivalent Models

INA SKF KAYDON IMO
VLI200414-N RKS.22 0411 RK6-16N1Z 92-20 0413/1-37212
VLI200544-N RKS.22 0541 RK6-22N1Z 92-20 0541/1-37222
VLI200644-N RKS.22 0641 RK6-25N1Z 92-20 0641/1-37232
VLI200744-N RKS.22 0741 RK6-29N1Z 92-20 0741/1-37242
VLI200844-N RKS.22 0841 RK6-33N1Z 92-20 0841/1-37252
VLI200944-N RKS.22 0941 RK6-37N1Z 92-20 0941/1-37262
VLI201094-N RKS.22 1091 RK6-43N1Z 92-20 1091/1-37272
INA Rollix TGB Rothe Erde
VLI200414-N 22-0411-01 I.505.20.00.C 232.20.0400.013
VLI200544-N 22-0541-01 I.650.20.00.C 232.20.0500.013
VLI200644-N 22-0641-01 I.750.20.00.C 232.20.0600.013
VLI200744-N 22-0741-01 I.850.20.00.C 232.20.0700.013
VLI200844-N 22-0841-01 I.950.20.00.C 232.20.0800.013
VLI200944-N 22-0941-01 I.1050.20.00.C 232.20.0900.013
VLI201094-N 22-1091-01 I.1200.20.00.C 232.20.1000.013



Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available


Online shopping Address: www.ydpbbearings.com
