VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing IMO 10-25 0755/0-04040 China SD.855.25.00.B

Hi Alisa: It has been assembled, and is working smoothly. Thank you very much

—— Holly

So far the YRT580 bearing is ok ,For our other projects, in case we will need similar bearings, we will contact with you.

—— Mr.Adriana

Hello Alisa. The bearing has arrived, in perfect condition. Thank you very much for your help with this order

—— John

I must admit,you are the best salesperson i could imagine,so take my promise,we will order YRT bearings from you to have a try

—— Mr. Dmitry

our machine run with your Bearing and good condition

—— Ziaur

The flexible bearings work perfectly. Thank you very much for your help

—— Mike

I'm Online Chat Now

VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing IMO 10-25 0755/0-04040 China SD.855.25.00.B

China VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing  IMO 10-25 0755/0-04040  China SD.855.25.00.B supplier
VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing  IMO 10-25 0755/0-04040  China SD.855.25.00.B supplier VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing  IMO 10-25 0755/0-04040  China SD.855.25.00.B supplier VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing  IMO 10-25 0755/0-04040  China SD.855.25.00.B supplier VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing  IMO 10-25 0755/0-04040  China SD.855.25.00.B supplier VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing  IMO 10-25 0755/0-04040  China SD.855.25.00.B supplier

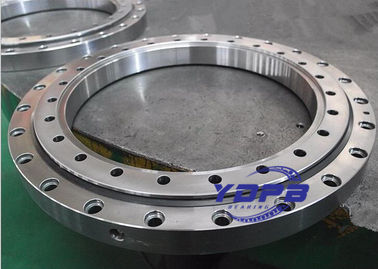

Large Image :  VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing IMO 10-25 0755/0-04040 China SD.855.25.00.B

Product Details:

Place of Origin: made in china
Brand Name: YDPB
Model Number: VSU250755

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1$
Packaging Details: bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model: VSU250755 Material: 50Mn Or According To You
Structure: Four-point Contact Ball Dimension: 655x855x63mm
Name: Four-point Contact Ball Bearings

VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing IMO 10-25 0755/0-04040 China SD.855.25.00.B


Structure:four point contact ball bearing
Gear teeth: without
Seals type:double seals
Material: 50Mn/100Cr6/GCr15


Series Model NO.

VSU250755,VSU250855,VSU250955,VSU251055


Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

  • Manipulators
  • Jib cranes
  • Lift-assist devices
  • Work positioners

Larger sizes are well suited for:

  • Truck-mounted cranes
  • Aerial lifts
  • Hoists
  • Small wind turbines
  • Non-precision positioning tables

Structure and Parameters:

VSU250755 Slewing Ring Bearing 655x855x63mm custom made bearing  IMO 10-25 0755/0-04040  China SD.855.25.00.B

INA VSU25 series Four point contact bearings (without gear teeth)

Model d(mm) D(mm) Width(mm)
VSU250755 655 855 63
VSU250855 755 955 63
VSU250955 855 1055 63
VSU251055 955 1155 63



Equivalent Models



INA IMO TGB Rothe Erde
VSU250755 10-25 0755/0-04040 SD.855.25.00.B
VSU250855 10-25 0855/0-03010 SD.955.25.00.B 060.25.0855.500.11.1503
VSU250955 10-25 0955/0-03020 SD.1055.25.00.B 060.25.0955.500.11.1503
VSU251055 10-25 1055/0-03030 SD.1155.25.00.B 060.25.1055.500.11.1503





Drawings and other parameters ,pls contact us free, thanks


Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.



Many other precision bearings series available


Online shopping Address: www.ydpbbearings.com
