Product Details:
Payment & Shipping Terms:
|
Material: | Gcr15 | Dimension: | 395X525X65mm |
---|---|---|---|
Load: | Axial Radial Combined Load | Model: | YRT-395 |
Application: | CNC Machine Tool | Cage: | Brass Cage |
Precision Level: | P4,P2 |

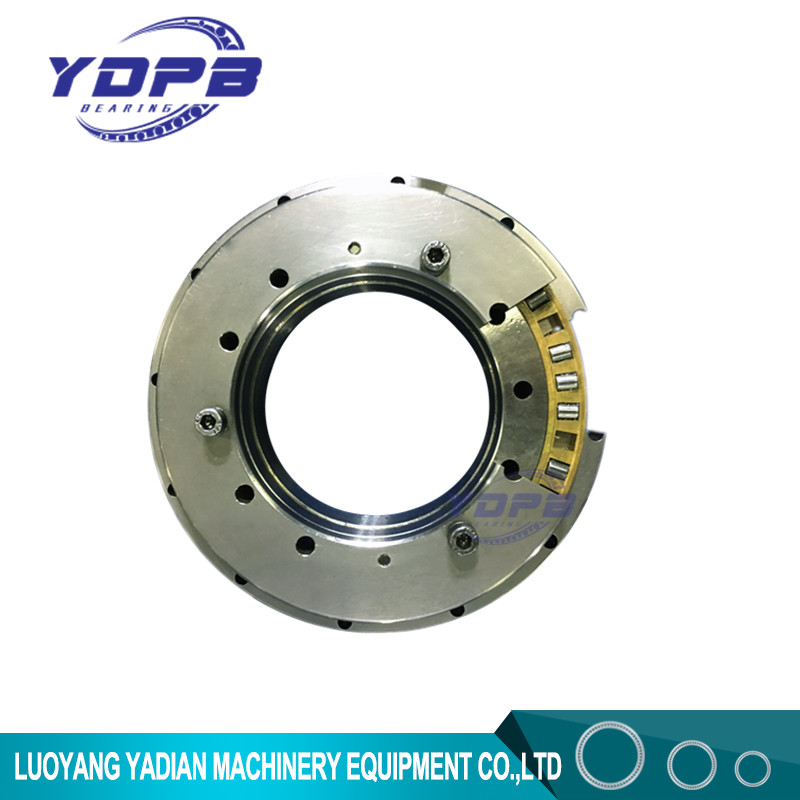

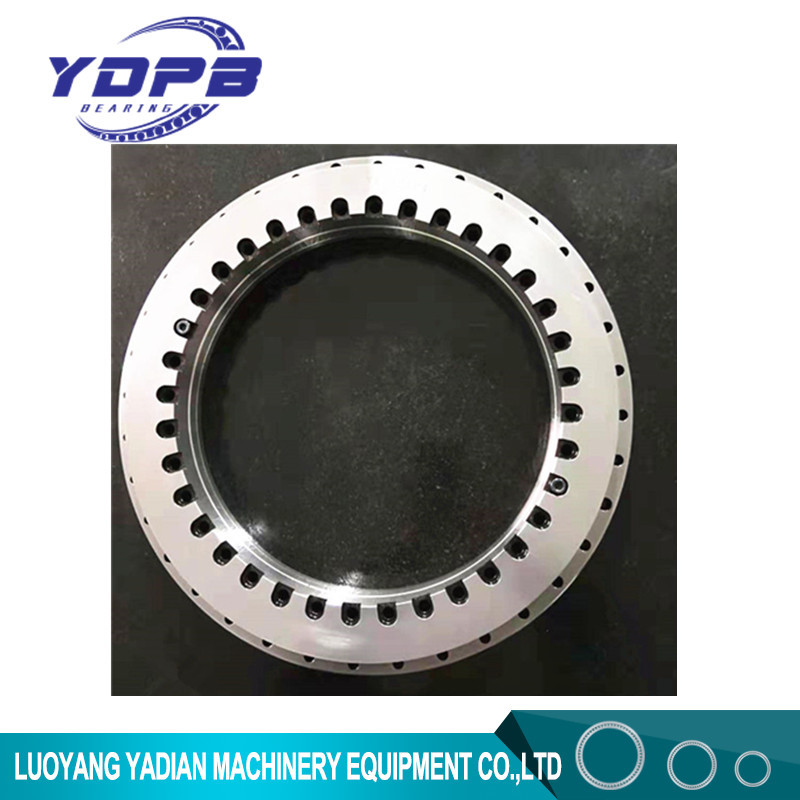

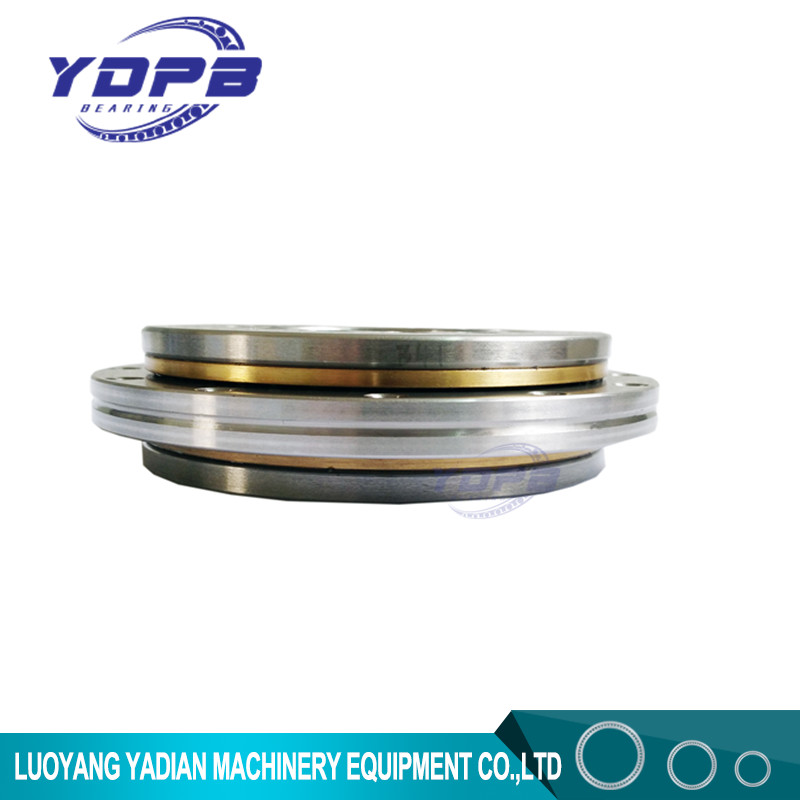

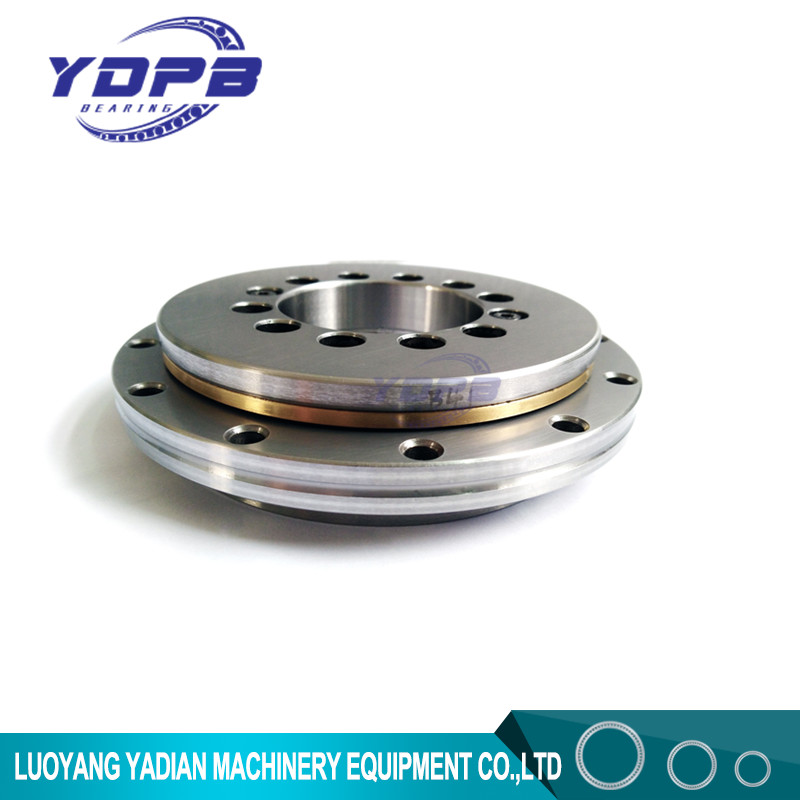

YRT-395 Precision Rotary Table Bearing for hydrostatic and airostatic size 395X525X65mm (Drawing is available if needed)
Model number- YRT-395
Inner ring(mm)- 395
Outer ring(mm)- 525
Width(mm)- 65
Weight(Kg)-33
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.
Main parameters
Bearing Model number |
Boundary dimensions | Basic load rating(KN) |
Limiting Speed (Grease) |
Bearing frictional torque (Nm) |
Weight (kg) |
Axial/Radial Runout (μm) |
||||||||||
Axial load | Radial load | |||||||||||||||
d | D | H | H1 | C | D1 | J | J1 | dynamic | static | dynamic | static | |||||
unit: mm | Ca | Coa | Cr | Cor | r/min | |||||||||||
YRT50 | 50 | 126 | 30 | 20 | 10 | 105 | 63 | 116 | 38 | 158 | 28.5 | 49.5 | 440 | 2.5 | 1.6 | 2 |
YRT80 | 80 | 146 | 35 | 23.35 | 12 | 130 | 92 | 138 | 56 | 255 | 42.5 | 100 | 530 | 3 | 2.4 | 3 |
YRT100 | 100 | 185 | 38 | 25 | 12 | 160 | 112 | 170 | 76.5 | 415 | 47.5 | 120 | 430 | 3 | 4.0 | 3 |
YRT120 | 120 | 210 | 40 | 26 | 12 | 184 | 135 | 195 | 102 | 540 | 52 | 143 | 340 | 7 | 5.3 | 3 |
YRT150 | 150 | 240 | 40 | 26 | 12 | 214 | 165 | 225 | 112 | 630 | 56 | 170 | 320 | 10 | 6.2 | 3 |
YRT180 | 180 | 280 | 43 | 29 | 15 | 244 | 194 | 260 | 118 | 710 | 69.5 | 200 | 280 | 12 | 7.7 | 4 |
YRT200 | 200 | 300 | 45 | 30 | 15 | 274 | 215 | 285 | 120 | 765 | 81.5 | 220 | 260 | 14 | 9.7 | 4 |
YRT260 | 260 | 385 | 55 | 36.5 | 18 | 345 | 280 | 365 | 160 | 1060 | 93 | 290 | 200 | 20 | 18.3 | 6 |
YRT325 | 325 | 450 | 60 | 40 | 20 | 415 | 342 | 430 | 275 | 1930 | 120 | 345 | 170 | 40 | 25 | 6 |
YRT395 | 395 | 525 | 65 | 42.5 | 20 | 486 | 415 | 505 | 300 | 2280 | 186 | 655 | 140 | 55 | 33 | 6 |
YRT460 | 460 | 600 | 70 | 46 | 22 | 560 | 482 | 580 | 355 | 2800 | 200 | 765 | 120 | 70 | 45 | 6 |
YRT580 | 580 | 750 | 90 | 60 | 30 | 700 | 610 | 720 | 490 | 4250 | 228 | 965 | 80 | 140 | 89 | 10 |
YRT650 | 650 | 870 | 122 | 78 | 34 | 800 | 680 | 830 | 1040 | 8000 | 490 | 1800 | 65 | 200 | 170 | 10 |
YRT850 | 850 | 1095 | 124 | 80.5 | 37 | 1018 | 890 | 1055 | 1000 | 8650 | 455 | 1730 | 50 | 300 | 253 | 12 |
YRT950 | 950 | 1200 | 132 | 86 | 40 | 1130 | 990 | 1160 | 1290 | 11400 | 530 | 2040 | 40 | 600 | 312 | 12 |
YRT1030 | 1030 | 1300 | 145 | 92.5 | 40 | 1215 | 1075 | 1255 | 1380 | 12000 | 620 | 2650 | 39 | 800 | 375 | 15 |
Related pictures
Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc
