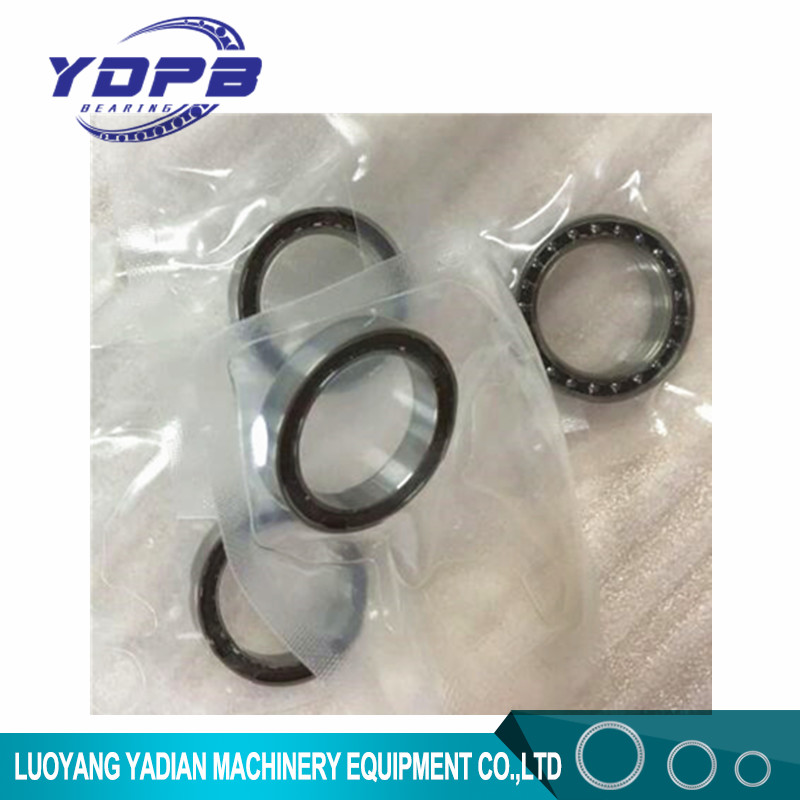

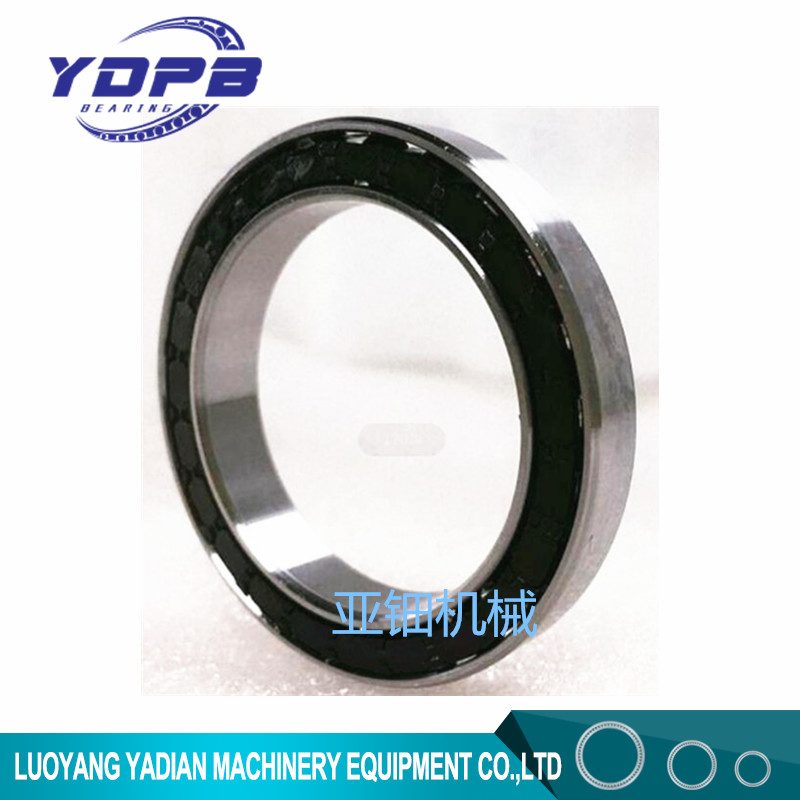

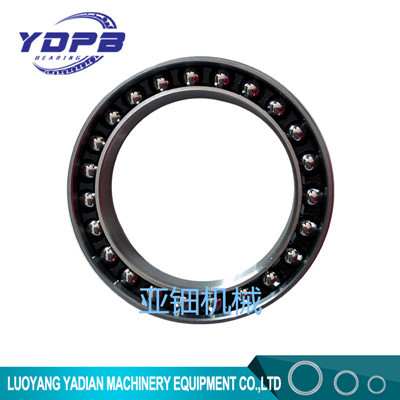

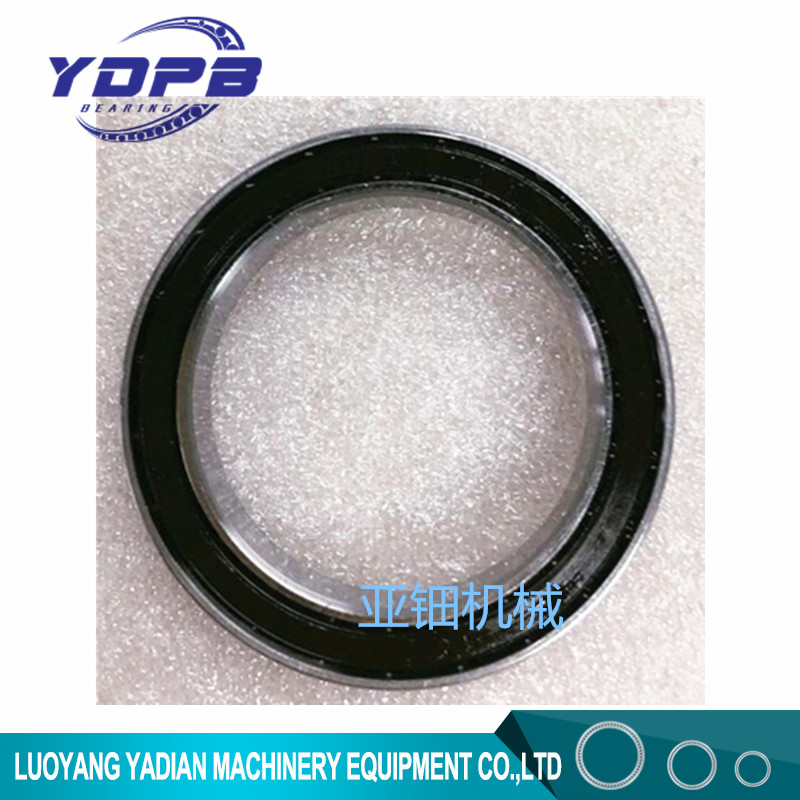

3E809KAT2 China supplier Flexible ball bearing harmonic drive reducer use 45x60x9mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | 3E809KAT2 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | 3E809KAT2 | Structure | Ball Bearing |
---|---|---|---|
Dimension | 45x60x9mm | Application | Robots Harmonic Drive Use |
Name | Harmonic Drive Flexible Bearings Industrial Robots Use Bearing |
Flexible Bearings
Industrial robots bearings
Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing. .
Other Dimension
Industrial Robots Use Flexible Bearings Regular models (Dimension- dx D x H mm):
14 Series Dimension dxDXH 25.07x33.896x6.095/6.35mm
17 Series Dimension dxDXH 30.3x41.722x 6.16/6.68mm
20 series Dimension dxDXH 35.56x49.073x7.24/8.13mm
32 series Dimension dxDXH 58.928x79.756x11.81/8.64mm
3E904KAT2 Dimension dx D x H 18.8x25x4mm
3E905KAT2 Dimension dx D x H 24x32x5mm
3E806KAT2 Dimension dx D x H 30x40x6mm
3E907KAT2 Dimension dx D x H 37x50x8mm
3E809KAT2 Dimension dx D x H 45x60x9mm
3E911KAT2 Dimension dx D x H 57x75x12mm
3E812KAT2 Dimension dx D x H 60x80x13mm
3E814KAT2 Dimension dx D x H 70x95x15mm
3E815KAT2 Dimension dx D x H 75x100x15mm
3E818KAT2 Dimension dx D x H 90x120x18mm
3E822KAT2 Dimension dx D x H 110x150x24mm
3E824KAT2 Dimension dx D x H 120x160x24mm
3E826KAT2 Dimension dx D x H 130x175x30mm
3E830KAT2 Dimension dx D x H 150x200x30mm
3E832KAT2 Dimension dx D x H 160x220x35mm
3E836KAT2Dimension dx D x H 180x240x35mm
3E838KAT2Dimension dx D x H 190x250x40mm
3E842KAT2Dimension dx D x H 210x280x45mm
3E844KAT2Dimension dx D x H 220x300x45mm
Details
Packaging:Bearing+plastic bags+thin plastic foam+Carton box+wooden case
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
