3E818KAT2 flexible bearing ball bearing 61.8X45.7X15mm robotics slewing bearings factory

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number 3E818KAT2
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 3E818KAT2 Structure Ball Bearing
Dimension 61.8*45.7*15 Application Robots Harmonic Drive Use
Name Flexible Robots Bearings
Leave a Message
Product Description

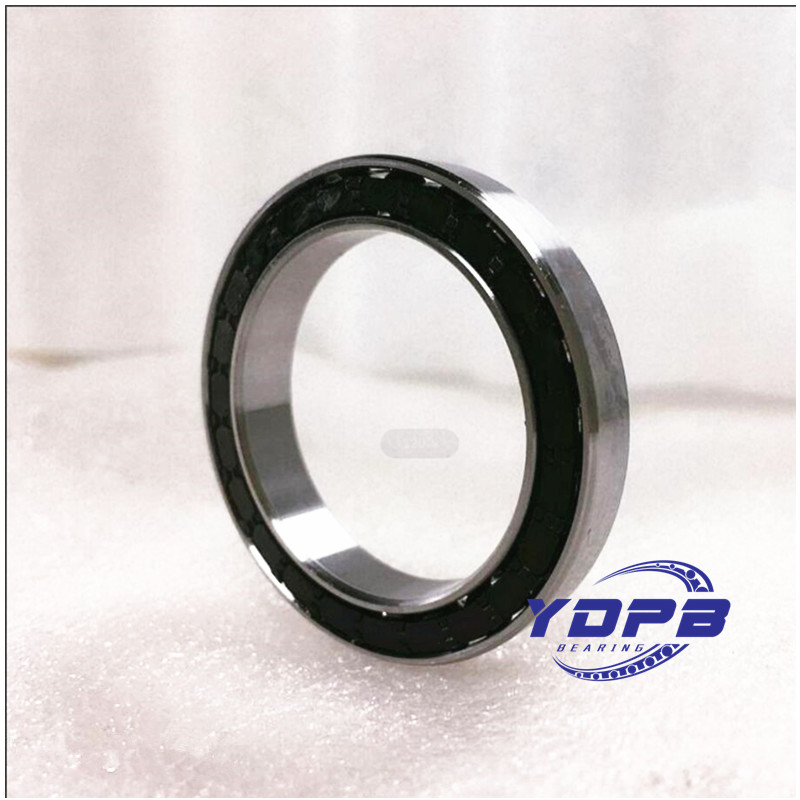

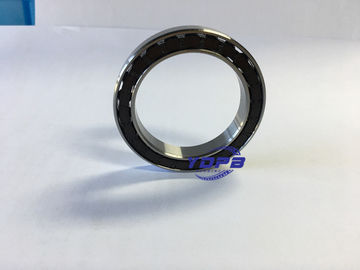

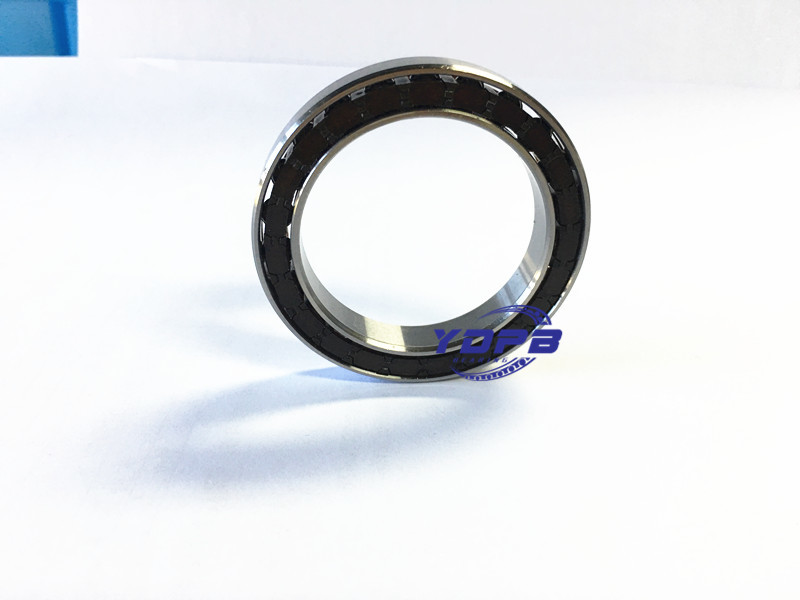

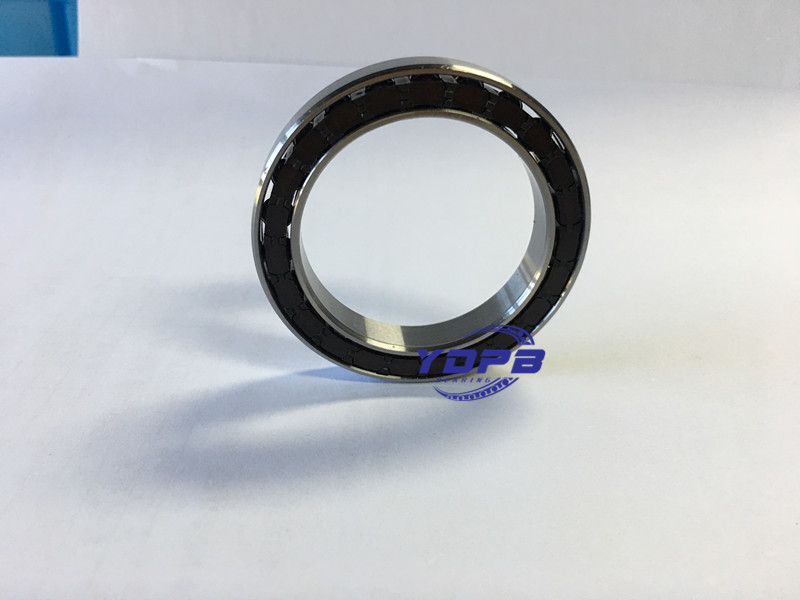

3E818KAT2 flexible bearing ball bearing 61.8X45.7X15mm robotics slewing bearings factory



Industrial robots bearings

Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.

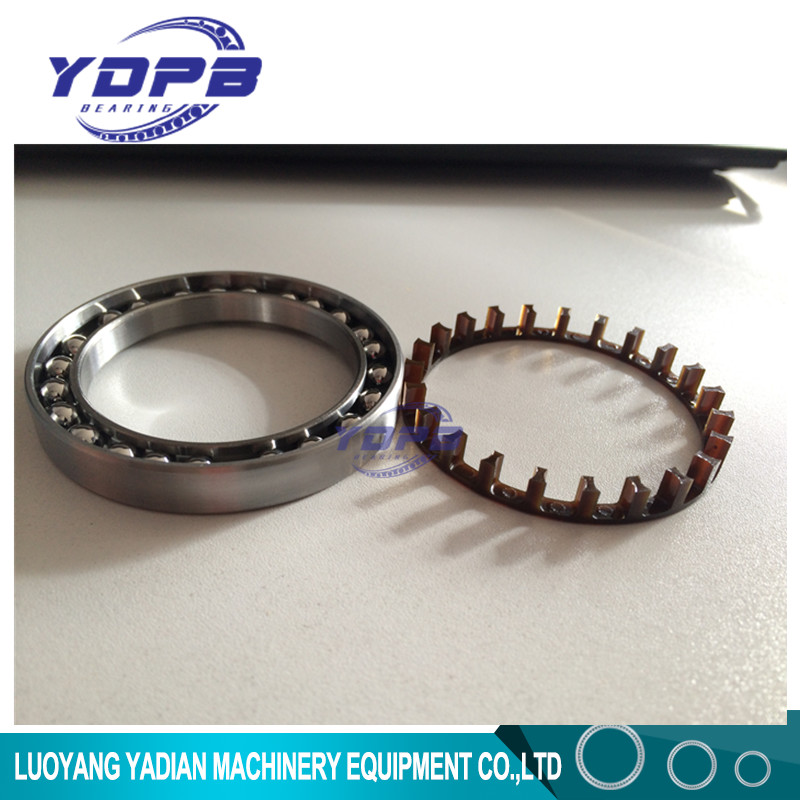

Note: Some bearings we have use new structure( with cage and cover,convenient for you to install)



Other Dimension

Industrial Robots Use Flexible Bearings Regular models

With cage

Model

Boundary

Dimension(mm)

Deformation Rated speed Rated torque Rating Load KN
d D B max r/min Kgf.m Cr Cor
3E904KAT2 18.8 25 4 0.2 3000 0.2 2.05 1.46
3E905KAT2 24 32 5 0.2 3000 0.6 3.44 2.6
3E806KAT2 30 40 6 0.3 3000 1.6 5.15 4.07
3E907KAT2 37 50 8 0.3 3000 3 7.13 5.86
3E809KAT2 45 60 9 0.4 3000 7.5 14.76 13.18
3E911KAT2 57 75 12 0.5 3000 7.5 14.76 13.18
3E812KAT2 60 80 13 0.5 3000 12 15.51 14.44
3E814KAT2 70 95 15 0.6 3000 20 22.38 21.57
3E815KAT2 75 100 15 0.6 3000 25 26.4 25.67
3E818KAT2 90 120 18 1 3000 45 34.7 34.94
3E822KAT2 110 150 24 1 1500 80 43.55 45.63
3E824KAT2 120 160 24 1 1500 120 57.02 57.75
3E826KAT2 130 175 30 1 1500 170 81.59 86.1
3E830KAT2 150 200 30 1 1500 200 91.6 102.67
3E832KAT2 160 220 35 1.25 1500 220 115.66 127.59
3E836KAT2 180 240 35 1.5 1500 250 130.04 146.47
3E838KAT2 190 250 40 1.5 1500 350 139.96 160.42
3E842KAT2 210 280 45 1.5 1500 400 173.15 210.91
3E844KAT2 220 300 45 1.5 1500 500 181.72 231



Full balls

M14 Series Dimension dxDXH 25.07x33.896x6.095/6.35mm
M17 Series Dimension dxDXH 30.3x41.722x 6.16/6.68mm
M20 series Dimension dxDXH 35.56x49.073x7.24/8.13mm
M25 series Dimension dxDXH 45.212X61.341X9.015/6.35mm
M32 series Dimension dxDXH 58.928x79.756x11.81/8.64mm



Pls contact us for more dimensions~



Packaging:Bearing+plastic bags+thin plastic foam+Carton box+wooden case



Payment Terms:

Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available

1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
