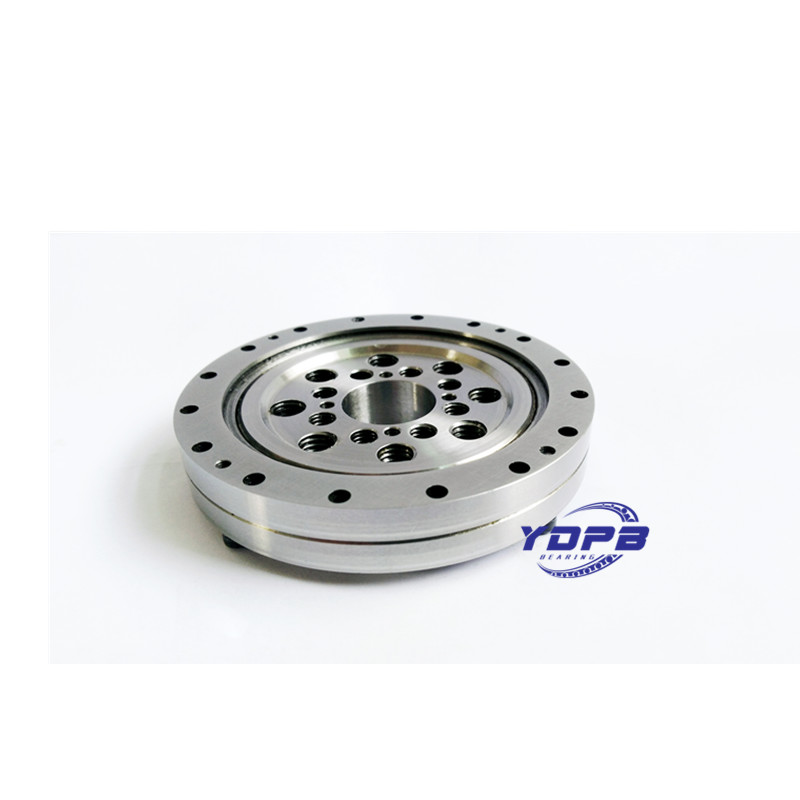

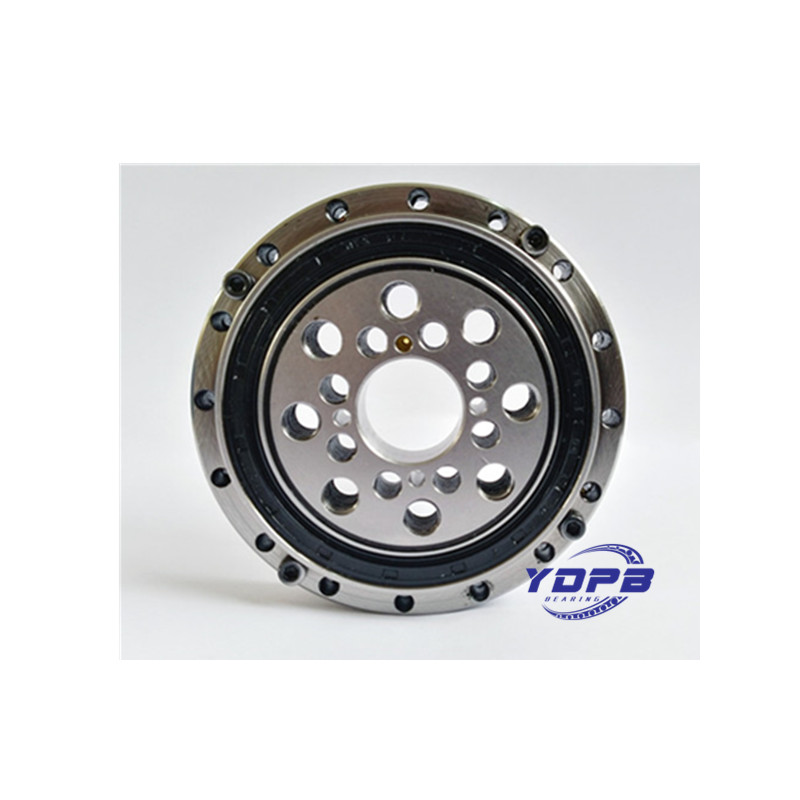

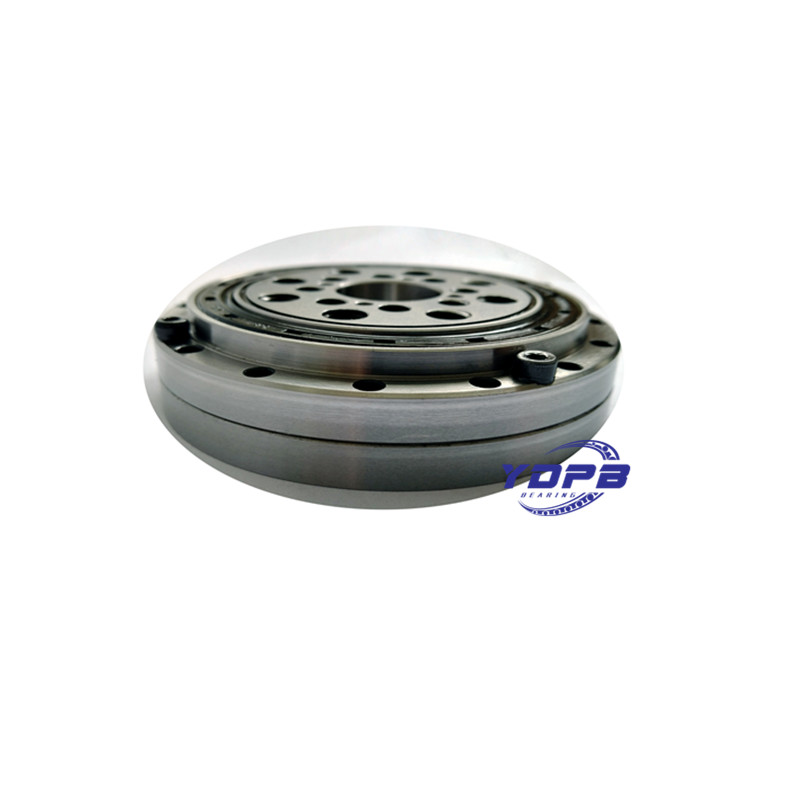

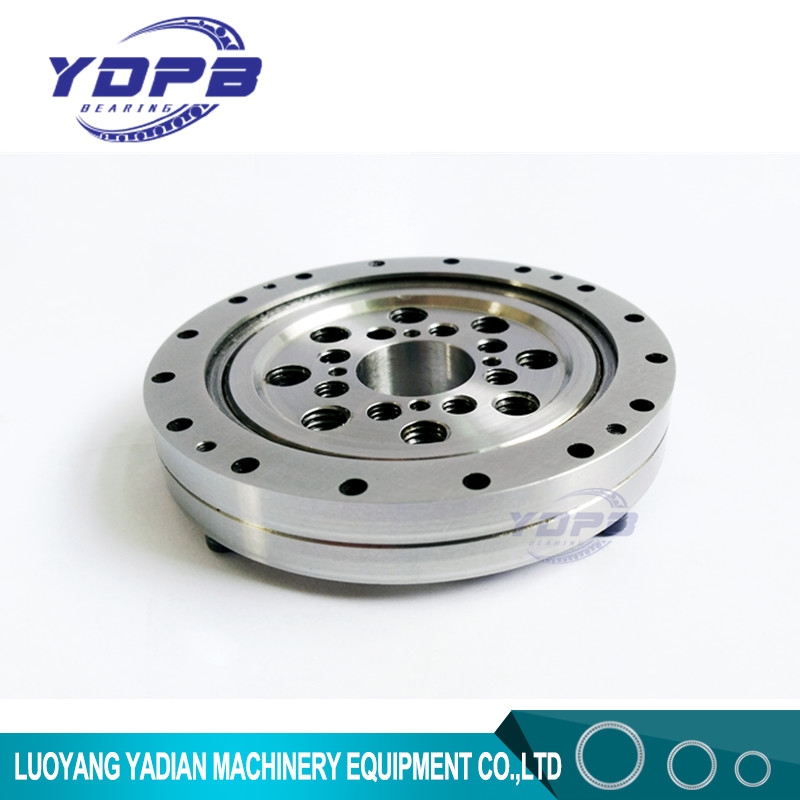

CSF25-6218 china harmonic reducer bearing supplier 20x85x18.5mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | CSF25-6218 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | CSF25-6218 | Material | GCr15 |
---|---|---|---|
Application | Robots Harmonic Drive Use | Name | Crossed Cylindrical Roller Bearing |
Dimension | 20x85x18.5mm |
Harmonic drive bearings
Industrial robots bearings
CSF-25/CSG-25 dimension-20x85x18.5mm
Harmonic drive bearing series
CSF(CSG) Series(Outer ring split,inner ring integraty)
Outer ring split,inner ring integraty structure ,there is no need of flange and bearing seat.suitable for every kind of CSF(CSG) series harmonic drives.
CSF/CSG series model (Dimension dxDXH)mm
CSF-14/CSG-14 dimension-9x55x16.5mm
CSF-17/CSG-17 dimension-10x62x16.5mm
CSF-20/CSG-20 dimension-14x70x16.5mm
CSF-25/CSG-25 dimension-20x85x18.5mm
CSF-32/CSG-32 dimension-26x112x22.5mm
CSF-40/CSG-40 dimension-24x126x24mm
CSF-50/CSG-50 dimension-32x157x31mm
CSF-65/CSG-65 dimension-44x210x39mm
Details
Lubrication
Bearing with high quality compound lithium-based grease in factory,so under normal using condition there is no need to add grease.but for bearing running ,in the inital stage ,the frictional torque will increase temporarily, frictional torque will be stable when grease uniformly adhere to raceway and roller.
If the bearing using condition change,general grease can not meet your requirements ,pls contact us.
Mounting Method
Mounting caution
Pls clean up the parts e.g bearing seat ,axis etc,Which related to the bearing mounting. Check the burrs(make sure good fit tolerance between inner ring of bearing seat and outer ring of bearing, shaft neck and inner ring of bearing)
When tightening scew, Retaining bolt locking should be divided to 3~4 stages from incompletion locking to completion locking,according to the “ + crossing method” again and again.
Note
pls do not disassembly the bearing,for it is adjust by professional workers and to keep good preload and grease. If it runs abnormally after you receiving the bearing ,pls contact us.
Besides, bearing working temperature is -20℃~+80℃,if not ,pls contact us.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
