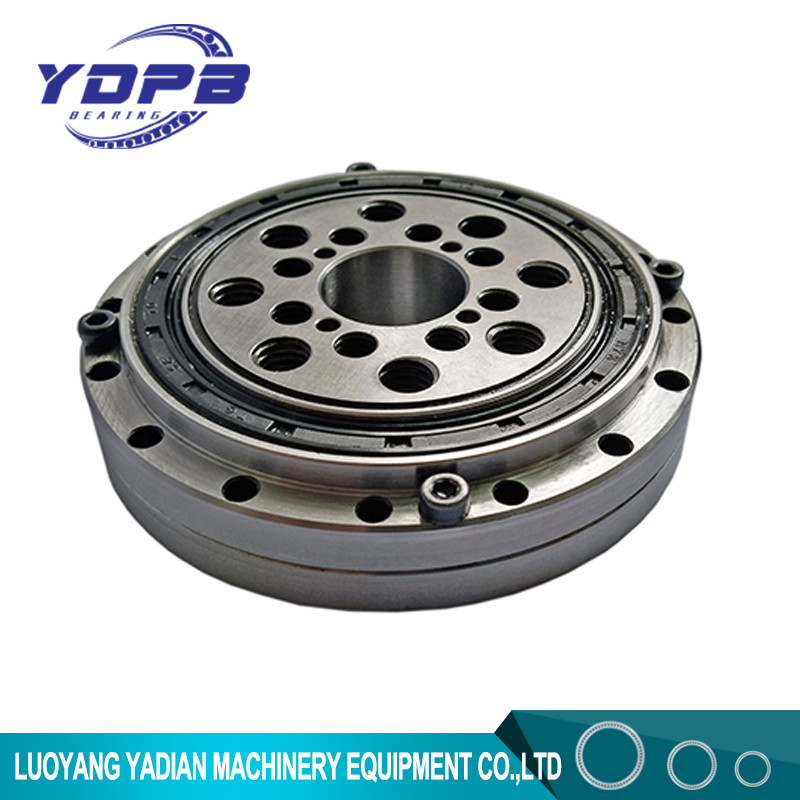

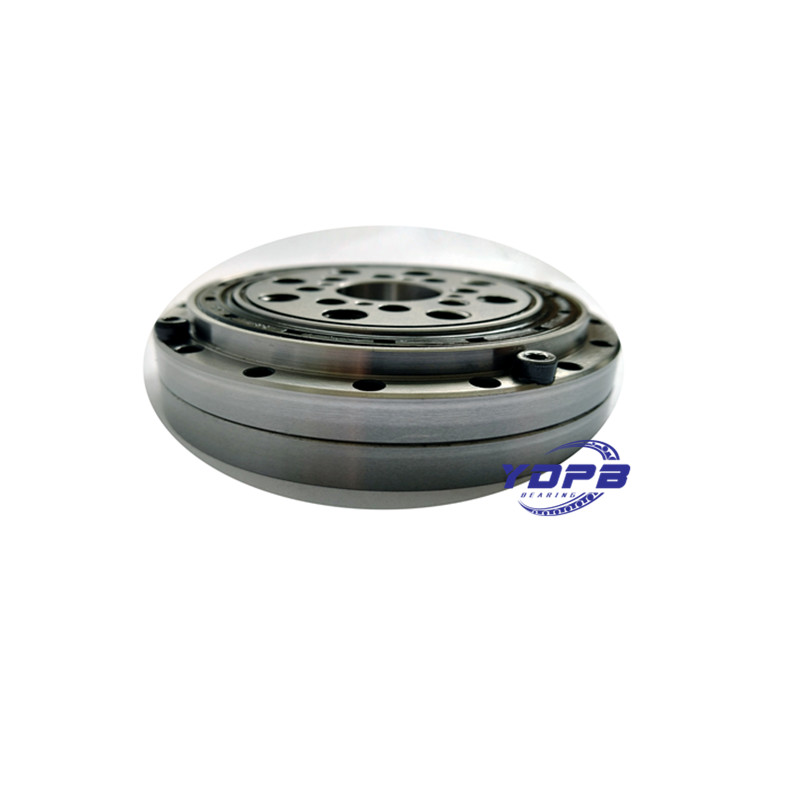

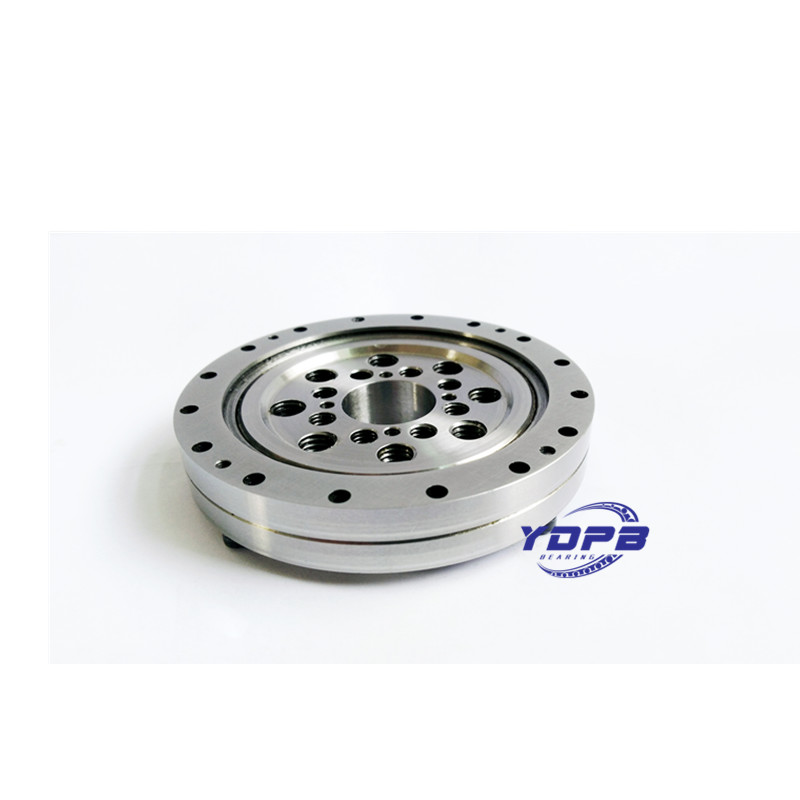

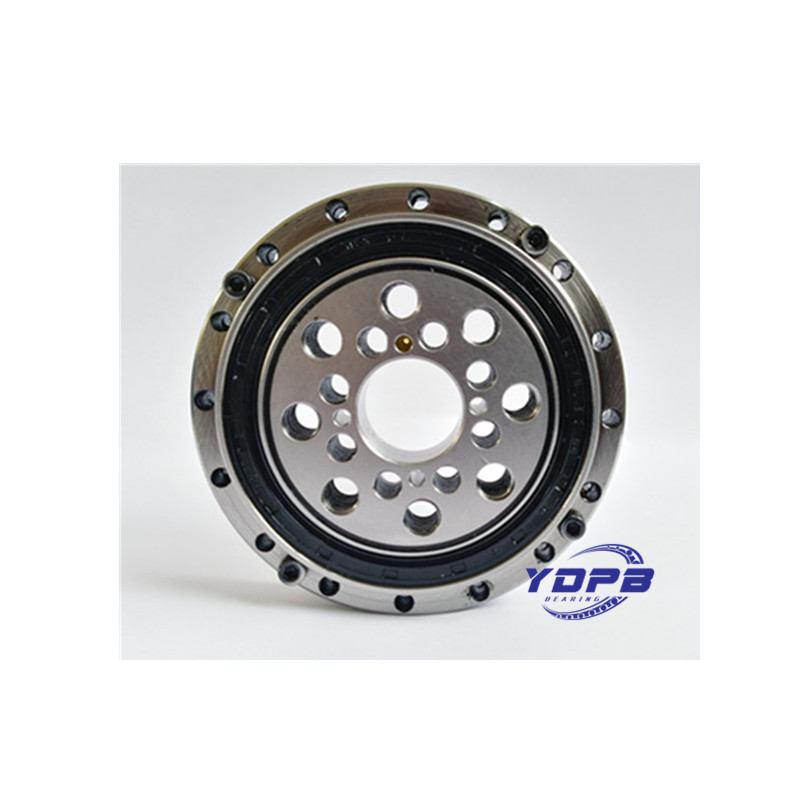

harmonic drive bearings china CSF65-16039
|Place of Origin||Luoyang，China|
|Minimum Order Quantity||1PCS|
|Packaging Details||bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases|
|Payment Terms||T/T, Western Union, MoneyGram|
|Application||Robots Harmonic Drive Use||Name||Crossed Cylindrical Roller Bearing|
Harmonic drive bearings
Industrial robots bearings
SHF-20/SHG-20 Dimension-54x90x18.5mm Bearings
Harmonic drive bearing is cross roller structure.According to its application area there are two types one is our ring split and inner ring integraty another one is outer ring and inner ring all integraty.Rolling body are cylindrical rollers which arranged orthogonality,this structure can make one bearing can bear the load from every direction e.g. radial,axial and tilting torque etc. Bearing with high rigidity,rotation accurancy and load carrying capacity. This series bearing has compact appearance,with mounting hole,customer can mount directly,suitable for every kinds of harmonic drives.
Harmonic drive bearing series
SHF(SHG) series(Outer ring integraty,inner ring integraty)
Outer ring and inner ring are all integraty structure,mounting will have no affect on performance ,it can abtain stable running accurancy and torque.suitable for every kinds of SHF(SHG) series harmonic drives.
SHF/SHG series models (Dimension- dx D x H mm):
SHF-17/SHG-17 Dimension -47x80x17mm
Bearing with high quality compound lithium-based grease in factory,so under normal using condition there is no need to add grease.but for bearing running ,in the inital stage ,the frictional torque will increase temporarily, frictional torque will be stable when grease uniformly adhere to raceway and roller.
If the bearing using condition change,general grease can not meet your requirements ,pls contact us.
Pls clean up the parts e.g bearing seat ,axis etc,Which related to the bearing mounting. Check the burrs(make sure good fit tolerance between inner ring of bearing seat and outer ring of bearing, shaft neck and inner ring of bearing)
When tightening scew, Retaining bolt locking should be divided to 3~4 stages from incompletion locking to completion locking,according to the “ + crossing method” again and again.
pls do not disassembly the bearing,for it is adjust by professional workers and to keep good preload and grease. If it runs abnormally after you receiving the bearing ,pls contact us.
Besides, bearing working temperature is -20℃~+80℃,if not ,pls contact us.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
16.Custom made bearings
