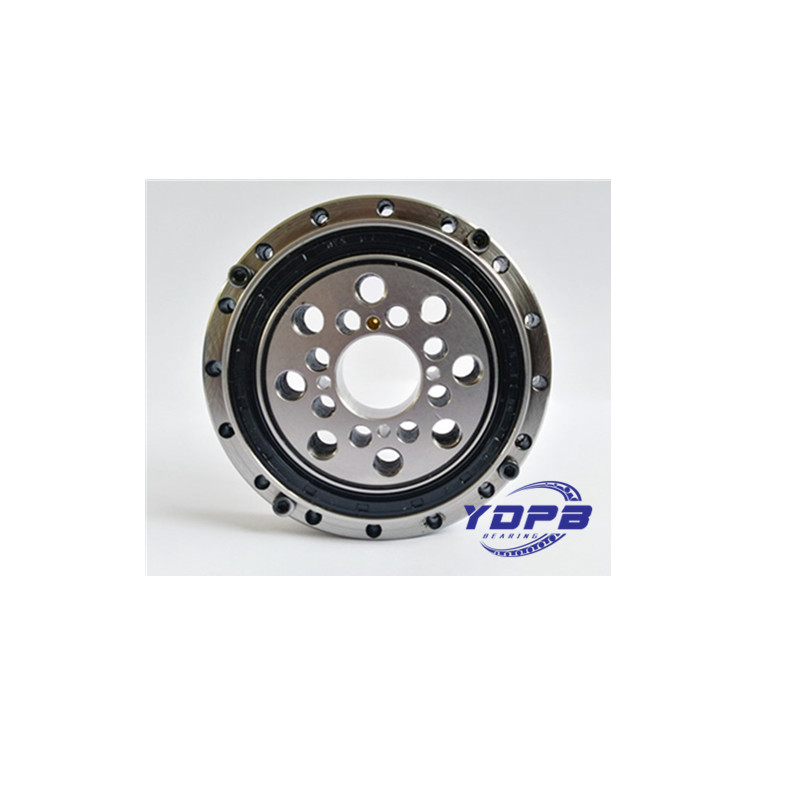

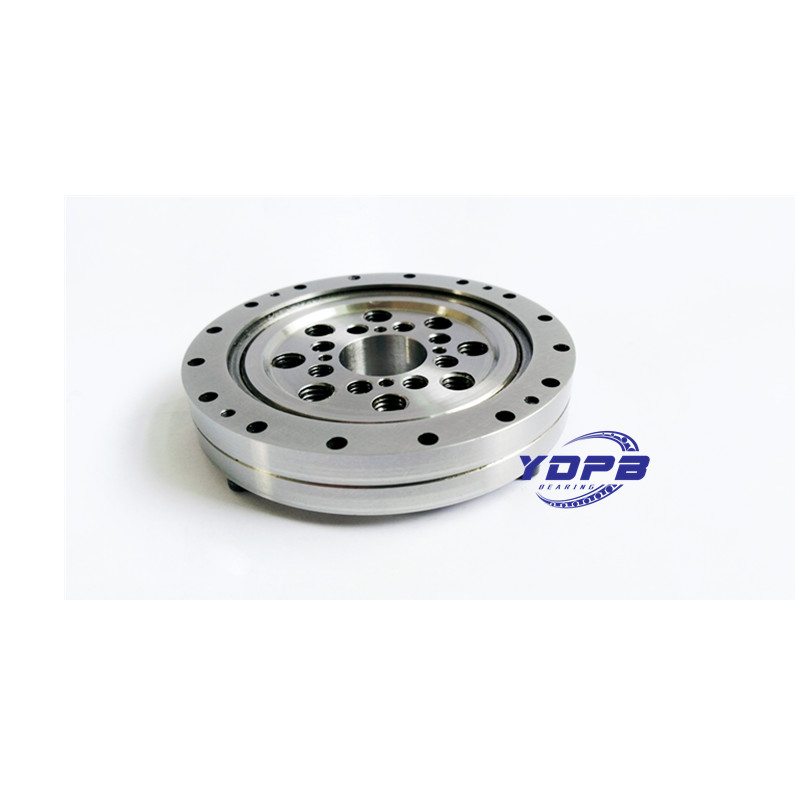

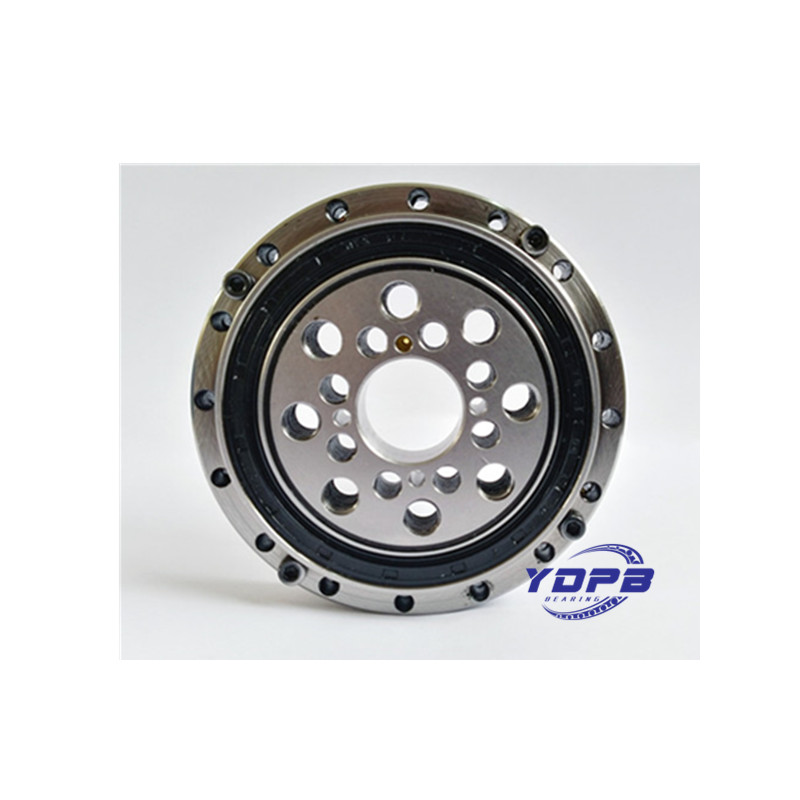

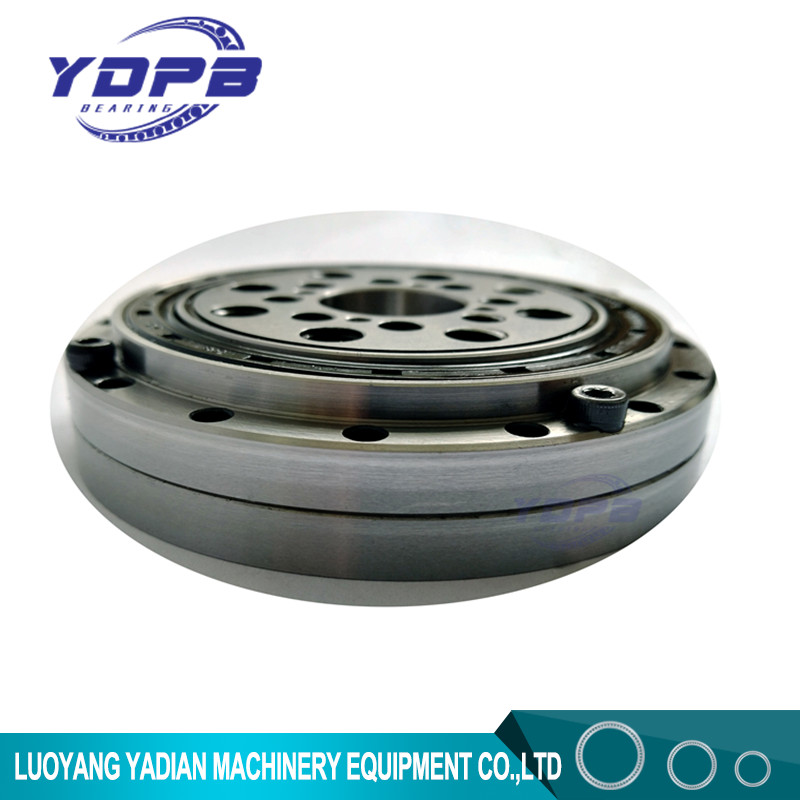

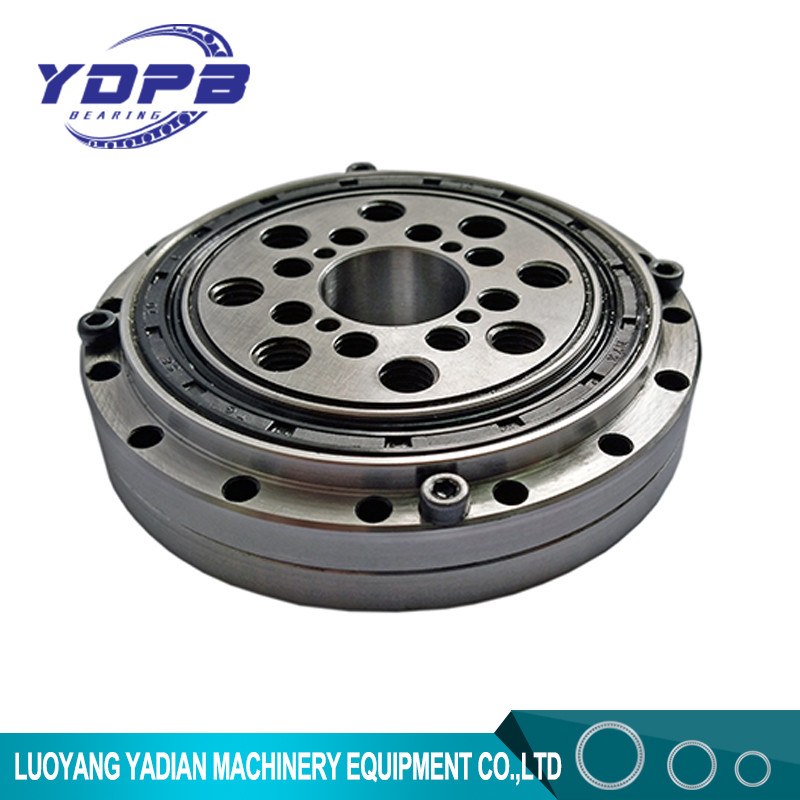

CSF32-8022 low price harmonic reducer bearing 26x112x22.5mm​

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number CSF32-8022
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model CSF32-8022 Material GCr15
Application Robots Harmonic Drive Use Name Crossed Cylindrical Roller Bearing
Leave a Message
Product Description

Harmonic drive bearings

Industrial robots bearings

CSF-32/CSG-32 dimension-26x112x22.5mm



Harmonic drive bearing series

CSF(CSG) Series(Outer ring split,inner ring integraty)

Outer ring split,inner ring integraty structure ,there is no need of flange and bearing seat.suitable for every kind of CSF(CSG) series harmonic drives.



CSF/CSG series model (Dimension dxDXH)mm

CSF-14/CSG-14 dimension-9x55x16.5mm

CSF-17/CSG-17 dimension-10x62x16.5mm

CSF-20/CSG-20 dimension-14x70x16.5mm

CSF-25/CSG-25 dimension-20x85x18.5mm

CSF-32/CSG-32 dimension-26x112x22.5mm

CSF-40/CSG-40 dimension-24x126x24mm

CSF-50/CSG-50 dimension-32x157x31mm

CSF-65/CSG-65 dimension-44x210x39mm



Details

CSF32-8022  low price harmonic reducer bearing 26x112x22.5mm​ 0

customized csf harmonic drive special bearings for robot

Lubrication

Bearing with high quality compound lithium-based grease in factory,so under normal using condition there is no need to add grease.but for bearing running ,in the inital stage ,the frictional torque will increase temporarily, frictional torque will be stable when grease uniformly adhere to raceway and roller.

If the bearing using condition change,general grease can not meet your requirements ,pls contact us.

Mounting Method

china harmonic drive reducer suppliers

Mounting caution

Pls clean up the parts e.g bearing seat ,axis etc,Which related to the bearing mounting. Check the burrs(make sure good fit tolerance between inner ring of bearing seat and outer ring of bearing, shaft neck and inner ring of bearing)

When tightening scew, Retaining bolt locking should be divided to 3~4 stages from incompletion locking to completion locking,according to the “ + crossing method” again and again.

Note

pls do not disassembly the bearing,for it is adjust by professional workers and to keep good preload and grease. If it runs abnormally after you receiving the bearing ,pls contact us.



Besides, bearing working temperature is -20℃~+80℃,if not ,pls contact us.


Many other precision bearings series available
