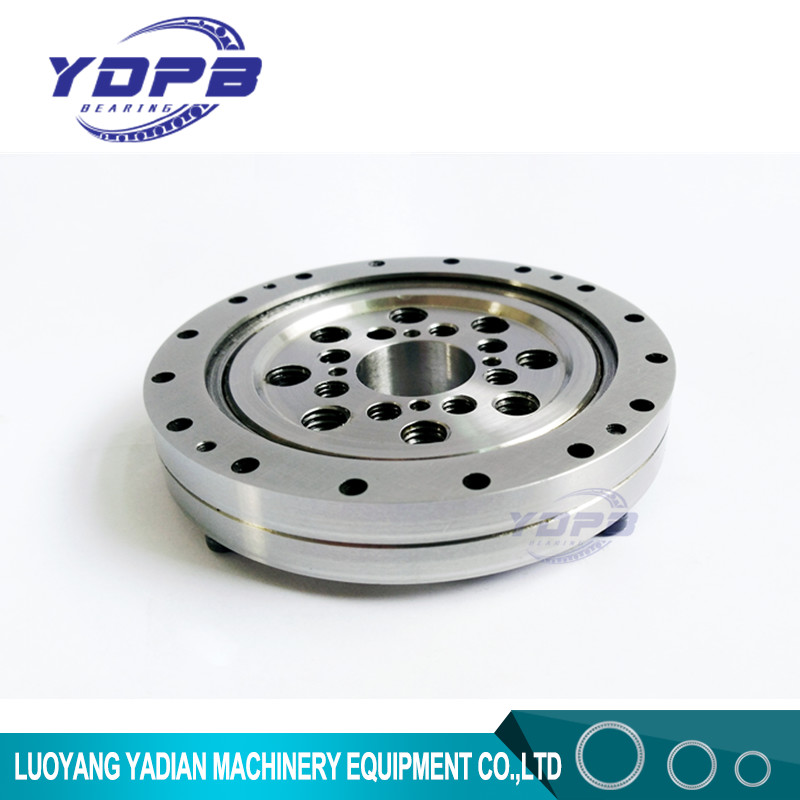

CSF45 robotics slewing bearings made in china 25x147x27mm robot crossed roller bearing
|Place of Origin||Luoyang，China|
|Minimum Order Quantity||1PCS|
|Packaging Details||bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases|
|Payment Terms||T/T, Western Union, MoneyGram|
|Application||Robots Harmonic Drive Use||Name||Crossed Cylindrical Roller Bearing|
Harmonic drive bearings
Industrial robots bearings
CSF-45/CSG-45 dimension- 25x147x27mm
Harmonic drive bearing series
CSF(CSG) Series(Outer ring split,inner ring integraty)
Outer ring split,inner ring integraty structure ,there is no need of flange and bearing seat.suitable for every kind of CSF(CSG) series harmonic drives.
CSF/CSG series model (Dimension dxDXH)mm
Bearing with high quality compound lithium-based grease in factory,so under normal using condition there is no need to add grease.but for bearing running ,in the inital stage ,the frictional torque will increase temporarily, frictional torque will be stable when grease uniformly adhere to raceway and roller.
If the bearing using condition change,general grease can not meet your requirements ,pls contact us.
Pls clean up the parts e.g bearing seat ,axis etc,Which related to the bearing mounting. Check the burrs(make sure good fit tolerance between inner ring of bearing seat and outer ring of bearing, shaft neck and inner ring of bearing)
When tightening scew, Retaining bolt locking should be divided to 3~4 stages from incompletion locking to completion locking,according to the “ + crossing method” again and again.
pls do not disassembly the bearing,for it is adjust by professional workers and to keep good preload and grease. If it runs abnormally after you receiving the bearing ,pls contact us.
Besides, bearing working temperature is -20℃~+80℃,if not ,pls contact us.
Many other precision bearings series available
