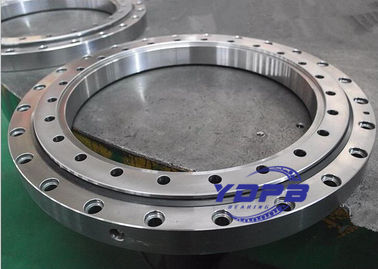

VSU250955 Slewing Ring Bearing 855x1055x63mm custom made bearing 10-25 0955/0-03020 China slewing rings

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number VSU250955
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model VSU250955 Material 50Mn Or According To You
Structure Four-point Contact Ball Dimension 855x1055x63mm
Name Four-point Contact Ball Bearings
Leave a Message
Product Description

VSU250955 Slewing Ring Bearing855x1055x63mm custom made bearing 10-25 0955/0-03020 China 060.25.0955.500.11.1503 rings


Structure:four point contact ball bearing
Gear teeth: without
Seals type:double seals
Material: 50Mn/100Cr6/GCr15


Series Model NO.

VSU250755,VSU250855,VSU250955,VSU251055


Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

  • Manipulators
  • Jib cranes
  • Lift-assist devices
  • Work positioners

Larger sizes are well suited for:

  • Truck-mounted cranes
  • Aerial lifts
  • Hoists
  • Small wind turbines
  • Non-precision positioning tables

Structure and Parameters:

VSU250955 Slewing Ring Bearing 855x1055x63mm custom made bearing 10-25 0955/0-03020 China slewing rings 0

INA VSU25 series Four point contact bearings (without gear teeth)

Model d(mm) D(mm) Width(mm)
VSU250755 655 855 63
VSU250855 755 955 63
VSU250955 855 1055 63
VSU251055 955 1155 63



Equivalent Models



INA IMO TGB Rothe Erde
VSU250755 10-25 0755/0-04040 SD.855.25.00.B
VSU250855 10-25 0855/0-03010 SD.955.25.00.B 060.25.0855.500.11.1503
VSU250955 10-25 0955/0-03020 SD.1055.25.00.B 060.25.0955.500.11.1503
VSU251055 10-25 1055/0-03030 SD.1155.25.00.B 060.25.1055.500.11.1503





Drawings and other parameters ,pls contact us free, thanks


Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.



Many other precision bearings series available


Online shopping Address: www.ydpbbearings.com
