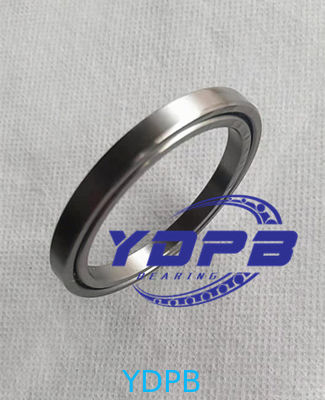

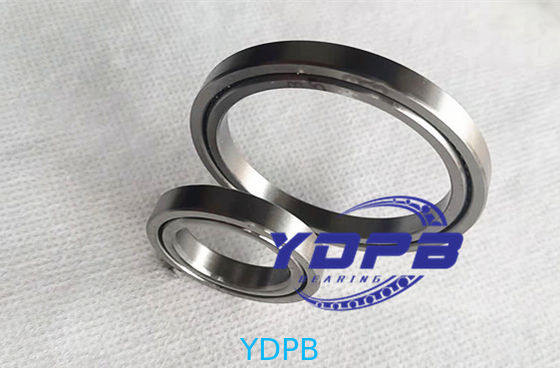

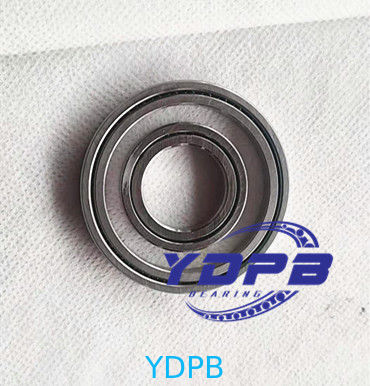

CRBT1055A thin crossed roller bearing15x26x5mm for humanoid robots /compact hand robots,compact camera

  • CRBT1055A thin crossed roller bearing15x26x5mm for humanoid robots /compact hand robots,compact camera
  • CRBT1055A thin crossed roller bearing15x26x5mm for humanoid robots /compact hand robots,compact camera
  • CRBT1055A thin crossed roller bearing15x26x5mm for humanoid robots /compact hand robots,compact camera
  • CRBT1055A thin crossed roller bearing15x26x5mm for humanoid robots /compact hand robots,compact camera
Place of Origin China
Brand Name YDPB
Model Number CRBT155A
Minimum Order Quantity 1PC
Price 1$
Packaging Details small cartons
Delivery Time 5-8 wokring days
Payment Terms T/T, D/P, D/A, Western Union, MoneyGram,
Supply Ability 10000PCS/MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Bearing Steel Size 15x26x5mm
Usage Humanoid Robots, Compact Camera, Copmact Hand Robots Rolling Body Cylindrical Steel Rollers
You can tick the products you need and communicate with us in the message board.
Inner diameters 15
outer diameters 26
Height 5
Leave a Message
Inner diameters 15
Product Description

CRBT Super Slim Type Crossed Roller Bearings

Super Slim & Slim Type Crossed Roller Bearing are extremely compact bearings having cylindrical rollers disposed perpendicularly between inner and outer rings.

A single bearing can take complicated loads such as radial, axial and moment loads.By using cylindrical rollers whose elastic displacementdue to load is smaller than steel balls, this type of crossed roller bearing can make the device compact and highlyrigid comparing to ball bearings or taper roller bearings and the combination of two ball bearings.

These bearings are widely used in the rotating parts of industrial robots, optical apparatus,collaborative robots, humanoid robots, radar communications and medical equipments, etc., which contribute compactness and lightness.



Features

YDPB Crossed Roller Bearings are compact bearings with their rollers alternately crossed at right angles to each other between inner and outer rings. They can take loads from any directions at the same time such as radial, thrust and moment loads. The rollers make line-contact with raceway surfaces, and, therefore, elastic deformation due to bearing loads is very small.These bearings are widely used in the rotating parts of industrial robots, machine tools, medical equipment, etc., which require compactness, high rigidity and high rotational accuracy.In addition, bearings made of stainless steel or those with inner and outer rings provided with mounting holes are also available on request,dimension custom made also available.



Parameters

CRBT1055A thin crossed roller bearing15x26x5mm for humanoid robots /compact hand robots,compact camera 0

Shaft diameter Bearings Model Boundary Dimensions (mm) Shoulder dimensions Basic load rating
Inner diameter Outer diameter Roller pitch circle diameter Width Greasing hole r min (radial)
C C0 Weight
d D dp B/B1 a ds Dh kN kN kg
10 CRBT105A 10 21 14.7 5 1 0.15 12.5 17 1.12 0.809 0.01
15 CRBT155A 15 26 19.7 5 1 0.15 17.5 22 1.32 1.10 0.012
20 CRBT205A 20 31 24.7 5 1 0.15 22.5 27 1.49 1.40 0.015
30 CRBT305A 30 41 34.7 5 1 0.15 32.5 37 1.89 2.14 0.021
40 CRBT405A 40 51 44.7 5 1 0.15 42.5 47 2.14 2.74 0.027
50 CRBT505A 50 61 54.7 5 1 0.15 52.5 57 2.43 3.49 0.032
60 CRBT605A 60 71 64.7 5 1 0.15 62.5 67 2.63 4.09 0.038
70 CRBT705A 70 81 74.7 5 1 0.15 72.5 77 2.81 4.68 0.044
80 CRBT805A 80 91 84.7 5 1 0.15 82.5 87 3.05 5.43 0.050
90 CRBT905A 90 101 94.7 5 1 0.15 92.5 97 3.19 6.03 0.056
100 CRBT1005A 100 111 104.7 5 1 0.15 102.5 107 3.37 6.63 0.061



Typical Application Fields

Industrial Automation Robot Joint RV reducer bearings for collaborative robots (such as UR series), supporting continuous rotation ±360°.

Rotary Workbench: CNC machine tool fourth-axis accuracy ≤1 arc second.

Medical and Optical Equipment CT Scanner Frame: Supports low-vibration operation (vibration value <0.mm/s) at high-speed rotation (≥3rpm). Semiconductor Lithography Machine: Wafer alignment platform, temperature rise control <1℃/h

Aerospace Radar Antenna Base: Withstands extreme temperatures from -40℃ to 120℃, withstanding impact loads ≥5G
