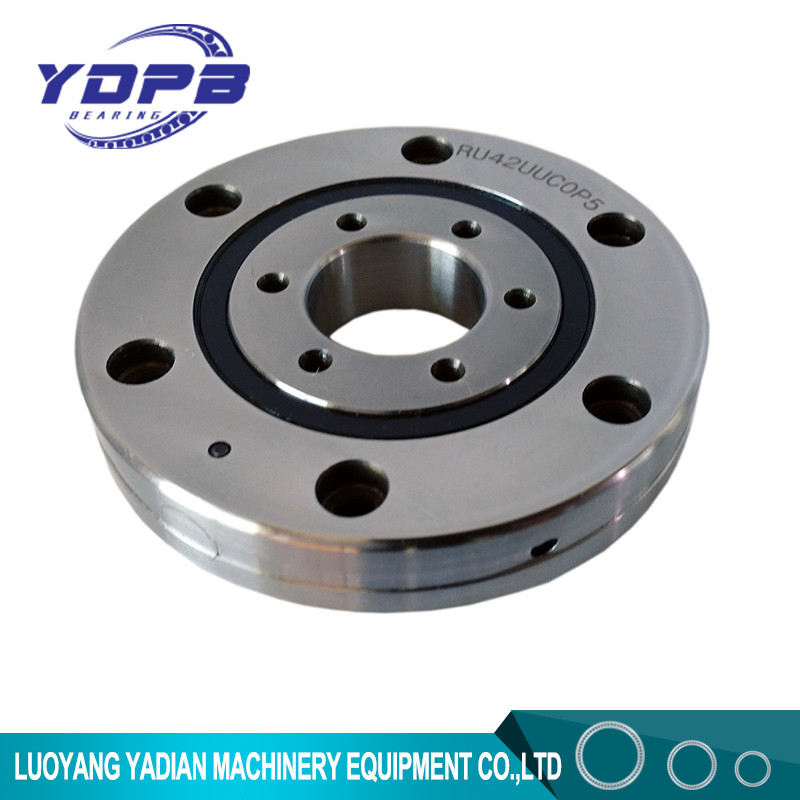

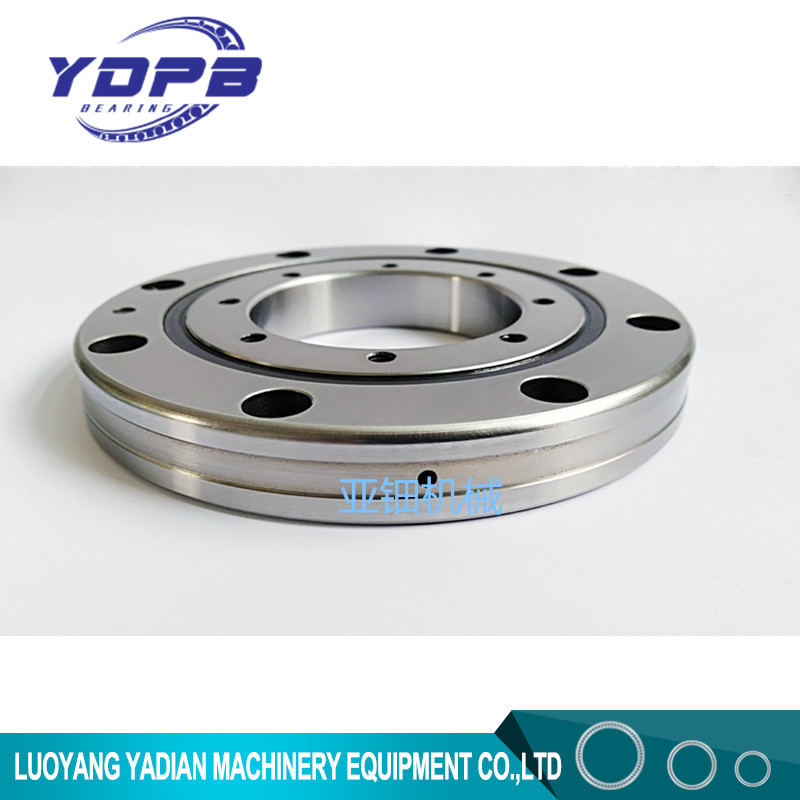

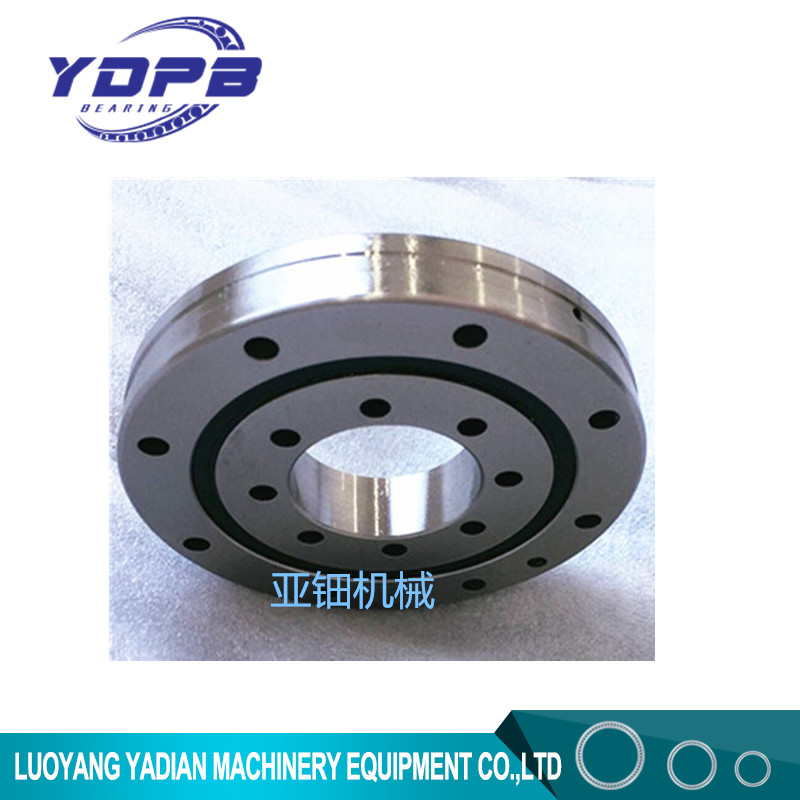

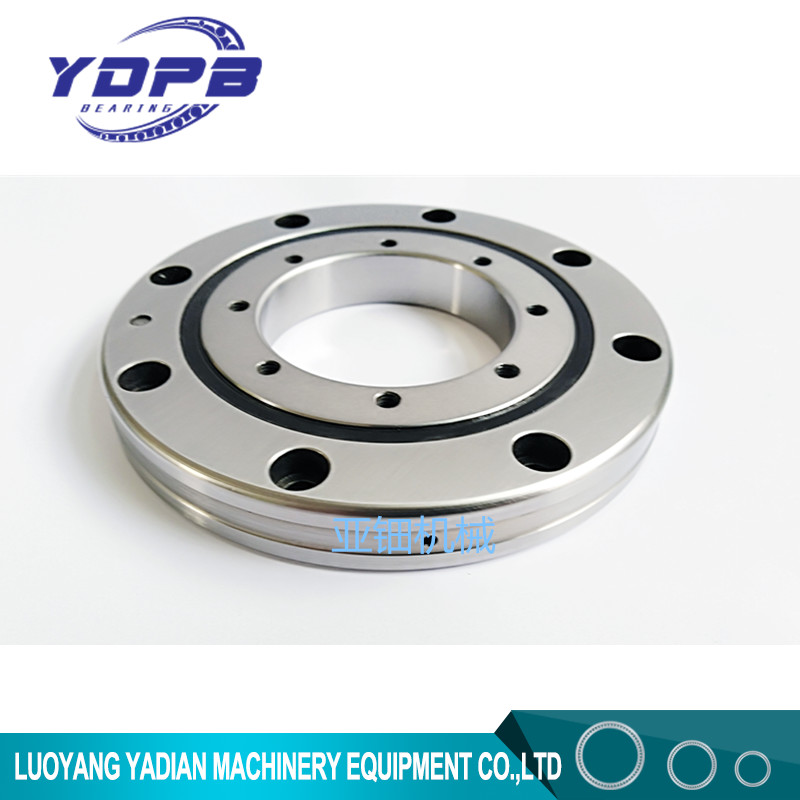

RU445G UUCC0P4 ru series crossed roller bearing factory 350X540X45mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | RU445G UUCC0 P4 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | RU445G UUCC0 P4 | Material | GCr15SiMn |
---|---|---|---|
Structure | Crossed Cylindrical Roller Bearings | Dimension | 350X540X45mm |
Application | Robots Arm | Name | Cross-roller Slewing Ring Bearing |
Crossed Roller Bearings Parameters
Model number- RU445G UUCC0 P4
Inner ring(mm)- 350
Outer ring(mm)- 540
Width(mm)- 45
Weight(Kg)- 35.4
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
precision level- P4,P2
Seals- can be double side (UU)
Clearance- CC0 or C0
Other models:
RU42,RU66,RU85,RU124(G)(X),RU148(G)(X),RU178(G)(X),RU228(G)(X),
RU297(G)(X),RU445(G)(X)
shaft diameter | Identification number | Main dimensious | shoulder height | Basic load rating (radial) | weight | |||||||
Inner diameter | outer diameter | Roller pitch circle diameter | width |
Greasing hole∮ | Chamfer R(min) |
ds | Dh | C | Co | Kg | ||
d | D | DP | B/B1 | KN | KN | |||||||
35 | RU66 | 35 | 95 | 66 | 15 | 3.1 | 0.6 | 59 | 74 | 17.5 | 22.3 | 0.62 |
55 | RU85 | 55 | 120 | 85 | 15 | 3.1 | 0.6 | 79 | 93 | 20.3 | 29.5 | 1 |
80 | RU124(G) | 80 | 165 | 124 | 22 | 3.1 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
RU124X | ||||||||||||
90 | RU148(G) | 90 | 210 | 147.5 | 25 | 3.1 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
RU148X | ||||||||||||
115 | RU178(G) | 115 | 240 | 178 | 28 | 3.1 | 1.5 | 161 | 195 | 80.3 | 135 | 6.8 |
RU178X | ||||||||||||
160 | RU228(G) | 160 | 295 | 227.5 | 35 | 6 | 2 | 208 | 246 | 104 | 172 | 11.4 |
RU228X | ||||||||||||
210 | RU297(G) | 210 | 380 | 297.3 | 40 | 6 | 2.5 | 272 | 320 | 156 | 281 | 21.3 |
RU297X | ||||||||||||
350 | RU445(G) | 350 | 540 | 445.4 | 45 | 6 | 2.5 | 417 | 473 | 222 | 473 | 35.4 |
RU445X |
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Features of RU series robotics bearings
1.Can bear comprehensive load e.g radial ,axial and overturn load .
2.Thin section bearings save installation space
3.High rotary positioning precision
4.Application area:robot arm,revolute joints,chassis etc parts.
More inforamtion ,pls contact us any time ,we will try our best to serive you.
