CRBE 08022 A WW C8 P5 china crossed tapered roller bearings suppliers

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number CRBE 08022 A WW C8 P5
Minimum Order Quantity 1PCS
Price 1$

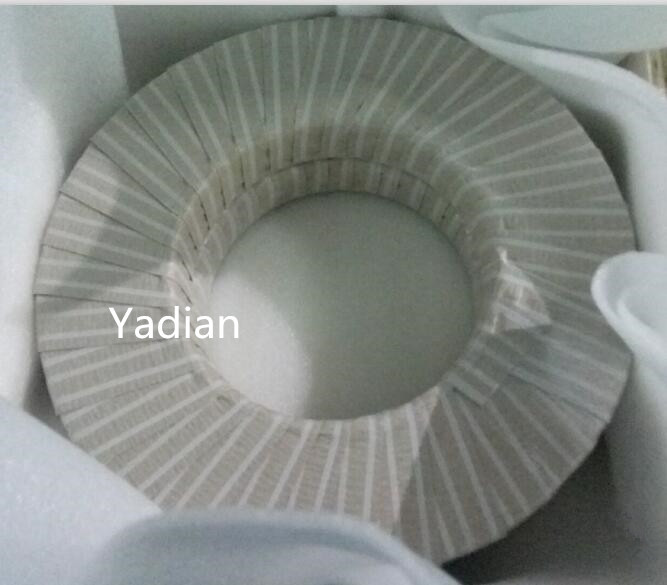

Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Model CRBE 08022 A WW C8 P5 Material GCr15
Structure Crossed Cylindrical Roller Bearings Dimension 80x165x22mm
Application Robots Arm Name Cross-roller Slewing Ring Bearing
Leave a Message
Product Description

CRBE 08022 A WW C8 P5 Bearings  is a kind of  bearing without split for inner ring and outer ring, with flanged hole ,without gear teeth,Sealed on both sides or not. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. Rolling and Plain bearings,accessories CRBE series, without gear teeth,Sealed on both sides. If you're looking Crossed roller bearings CRBE 08022 A WW C8 P5 Bearings  to replace your THK,FAG,Timken, SKF, NSK,NTN,Koyo,Mcgill ,Nachi bearing, we make a drop-in replacement for it.

Crossed Roller slewing ring Bearings Parameters

Model number-CRBE 08022 A WW C8 P5
Inner ring(mm)- 80
Outer ring(mm)- 165
Width(mm)- 22
Weight(Kg)- 2.6
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
precision level- P4,P2
Seals- can be double side (UU)
Clearance- CC0 or C0



CRBE Serise Bearings Structure

CRBE 08022 A WW C8 P5 china crossed tapered roller bearings suppliers 0


Other models:

CRBE 02012 A, CRBE 03515 A, CRBE 05515 A, CRBE 08022 A,CRBE 08022 B,CRBE 08022 C,CRBE 09025 A,CRBE 09025 B,CRBE 09025 C,CRBE 11528 A,CRBE 11528 B,CRBE 11528 C, CRBE 16035 A,CRBE 16035 B,CRBE 16035 C,CRBE 21040 A, CRBE 21040 B, CRBE 21040 C



Drawings and other parameters ,pls contact us free, thanks



Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

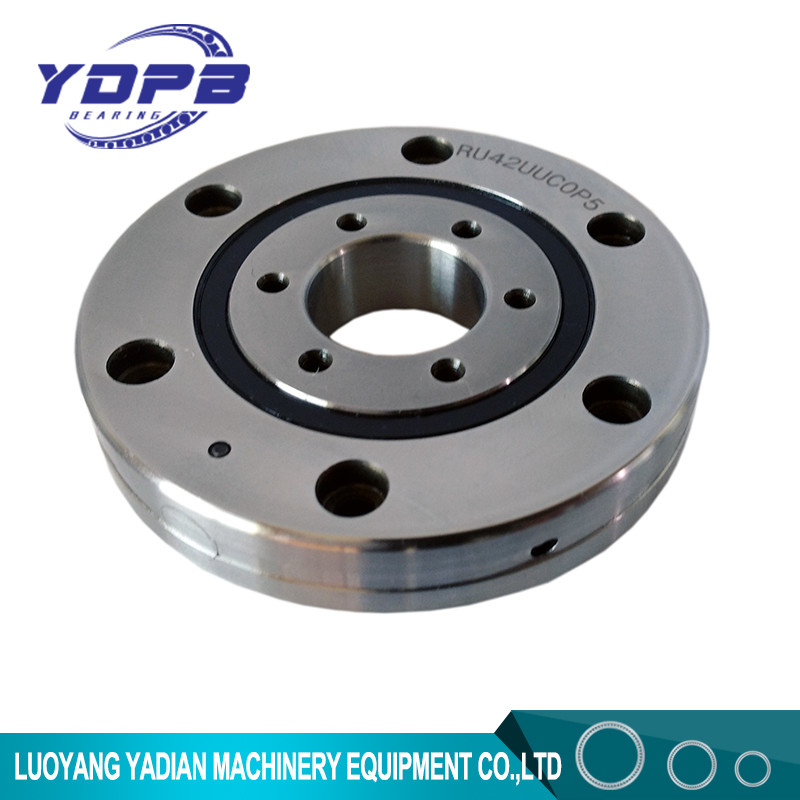

Features of RU series robotics bearings
1.Can bear comprehensive load e.g radial ,axial and overturn load .
2.Thin section bearings save installation space
3.High rotary positioning precision
4.Application area:robot arm,revolute joints,chassis etc parts.
More inforamtion ,pls contact us any time ,we will try our best to serive you.
Pictures related

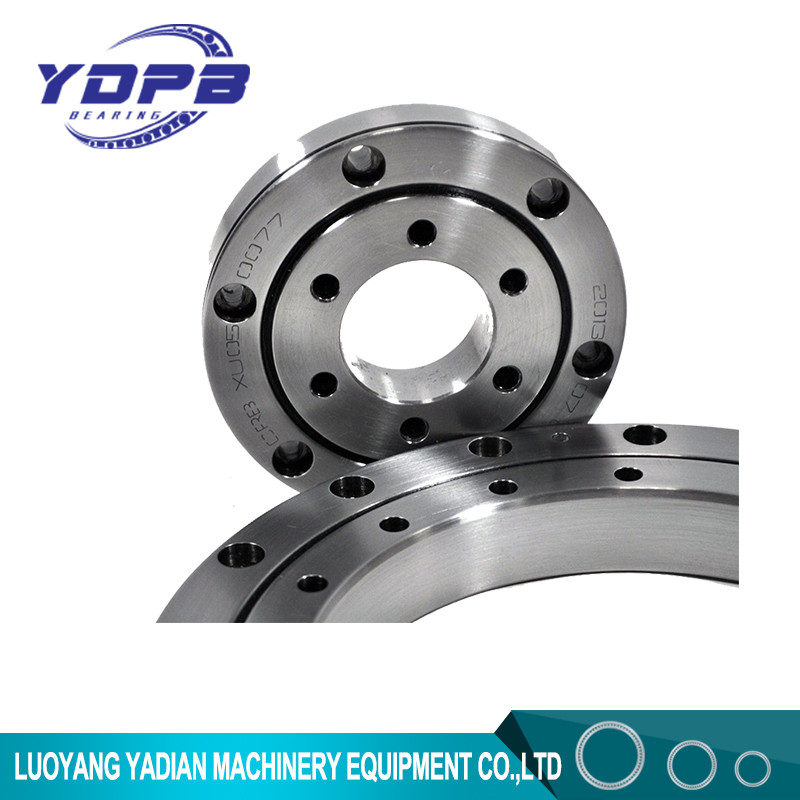

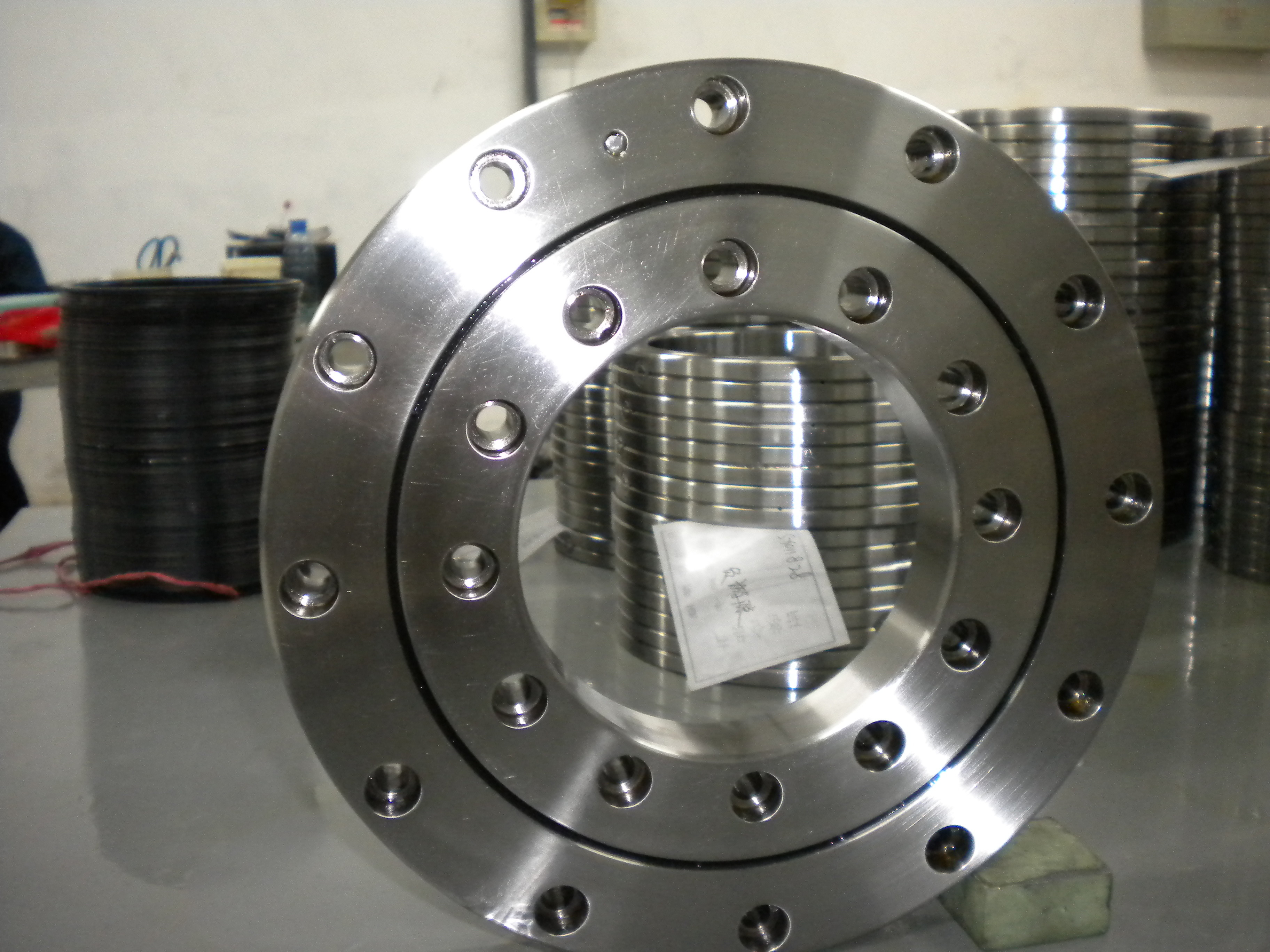

CRBE 08022 A WW C8 P5 china crossed tapered roller bearings suppliers 1

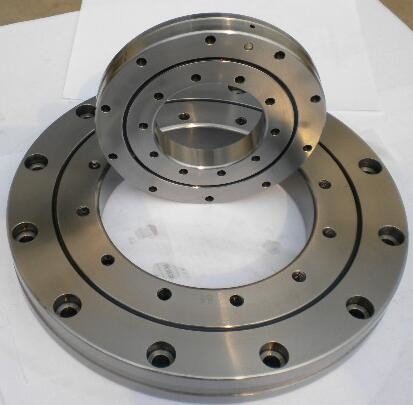

CRBE 08022 A WW C8 P5 china crossed tapered roller bearings suppliers 2
More related products we have in stock
YRTS High speed rotary table bearings ,YRTM with angle measuring system bearings,ZKLDF SERIES ROTARY TABLE BEARING,Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing , Ceramic bearings.
