F14 Flexible Bearings 25.07x33.896x6.095/6.35mm Industrial robots Use

  • F14 Flexible Bearings 25.07x33.896x6.095/6.35mm Industrial robots Use
  • F14 Flexible Bearings 25.07x33.896x6.095/6.35mm Industrial robots Use
  • F14 Flexible Bearings 25.07x33.896x6.095/6.35mm Industrial robots Use
  • F14 Flexible Bearings 25.07x33.896x6.095/6.35mm Industrial robots Use
  • F14 Flexible Bearings 25.07x33.896x6.095/6.35mm Industrial robots Use
Place of Origin Luoyang，China
Brand Name YDPB
Certification ISO
Model Number 25.07x33.896x6.095/6.35mm
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 25.07x33.896x6.095/6.35mm Material GCr15
Structure Ball Bearing Dimension 25.07x33.896x6.095/6.35mm
Application Robots Harmonic Drive Use Name Harmonic Drive Flexible Bearings Industrial Robots Use Bearing
Leave a Message
Product Description

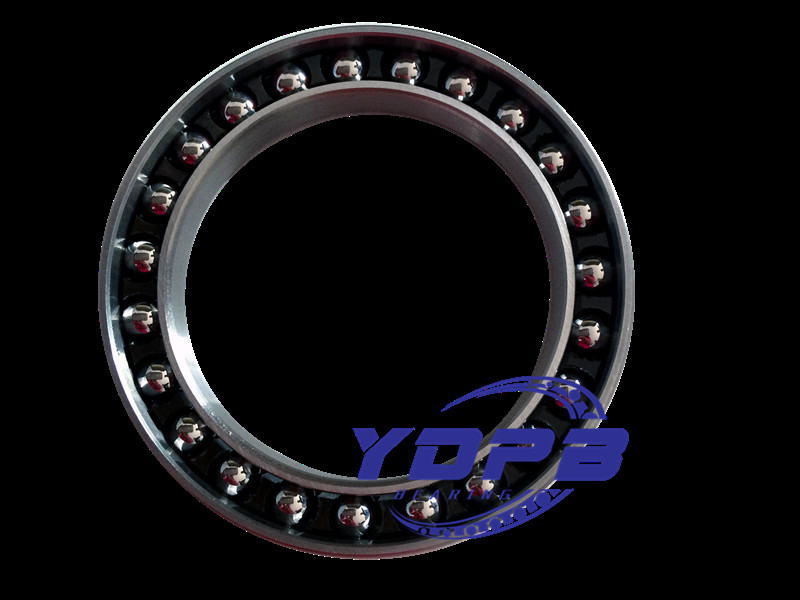

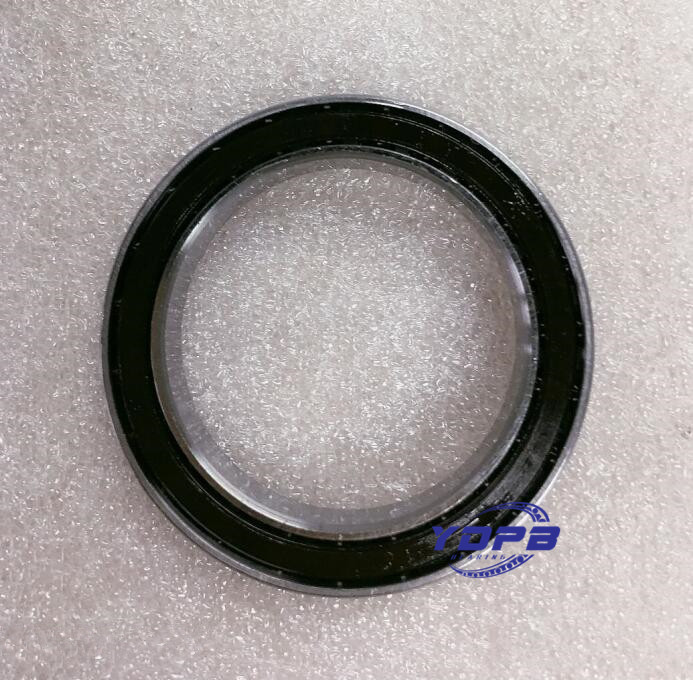

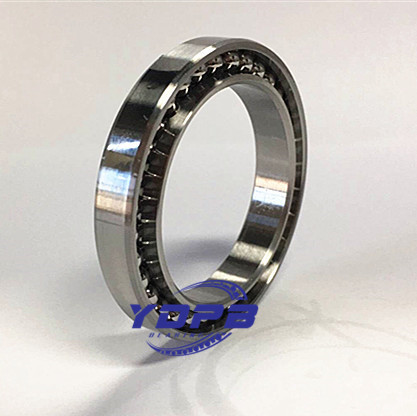

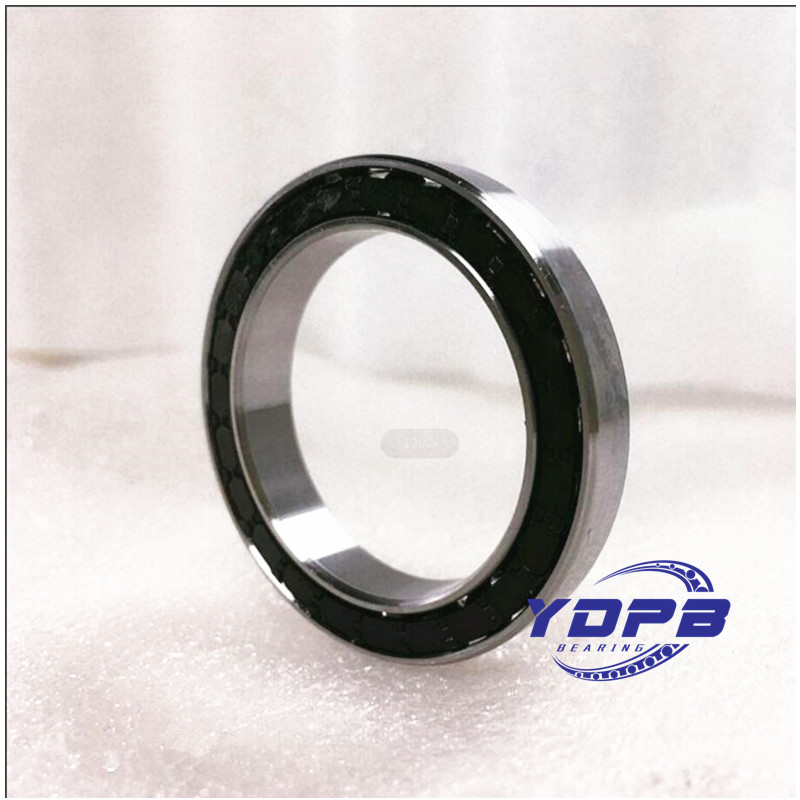

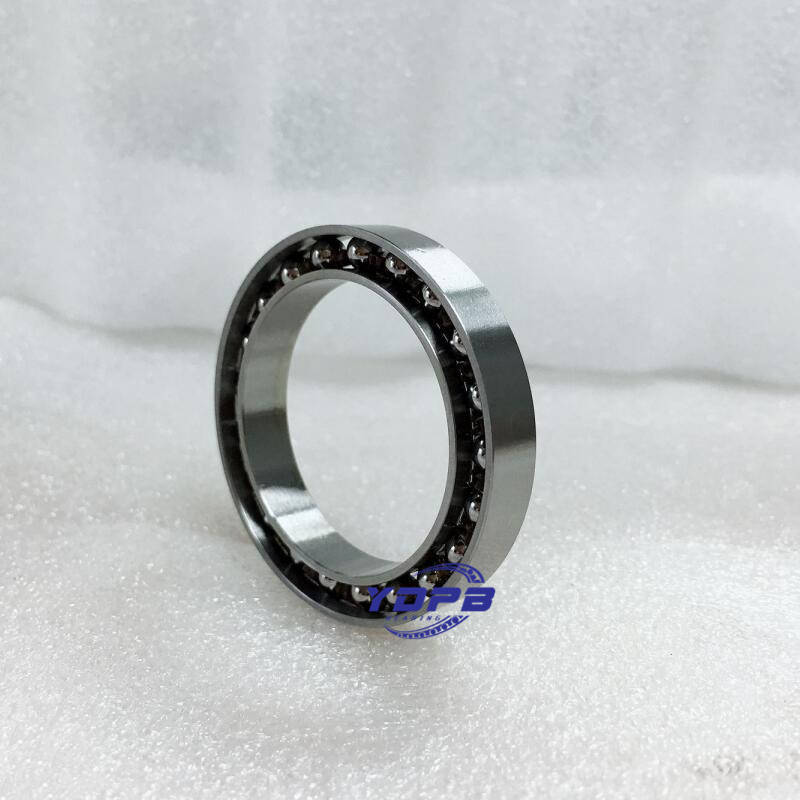

Flexible Bearings 14 series 25.07x33.896x6.095/6.35mm Industrial robots Use



Industrial robots bearings

Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.



Note: Some bearings we have use new structure( with cage and cover,convenient for you to install)



Other Dimension

Industrial Robots Use Flexible Bearings Regular models

With cage



Model



Outer ring



Inner ring

D

Ball diameter

mm





Ball Qty

Z



Dynamic load rating

Cr



Static load

rating

Cor



Radial Deformation Max. mm



Input

rotate speed r/min

 Output torque N.m



OD



Width B



Id



Width C
E904KAT2 25 4 18.8 4 2.381 23 3.75 3.12 0.2 3000 2
3E905KAT2 32 5 24 5 3.175 23 4.74 3.75 0.2 3000 6
3E806KAT2 40 6 30 6 3.5 23 7.12 5.83 0.3 3000 16
1000907AKIT2 48.2 8 35.8 8 4.5 23 9.93 8.36 0.3 3000 30
3E907KAT2 50 8 37 8 4.763 23 12.63 12 0.3 3000 30
3E809KAT2 60 9 45 9 5.556 23 12.89 11.55 0.4 3000 50
1000809AKIT2 61.8 9.5 45.7 9 5.556 23 12.89 11.55 0.4 3000 50
10008810AKT2 63 9.7 48 9.2 5.556 23 12.89 11.55 0.4 3000 50
1000912AKT2 80 12 60 12 7.144 23 27.19 28.18 0.5 3000 120
F14 33.896 6.095 25.07 6.35 3.175 23 4.74 3.75 0.2 3000 8
F17 41.722 6.16 30.3 6.68 3.969 23 7.12 5.83 0.3 3000 16
F20 49.073 7.24 35.56 8.13 4.763 23 9.93 8.36 0.3 3000 30
F25 61.341 9.015 45.212 6.35 5.556 23 12.89 11.55 0.4 3000 50
F32 79.756 11.81 58.928 8.64 7.5 23 22.28 20.91 0.5 3000 120
M14 33.896 6.095 25.07 6.35 3.175 29 5.53 4.73 0.2 3000 12
M17 41.722 6.16 30.3 6.68 4 28 8.31 7.35 0.3 3000 24
M20 49.073 7.24 35.56 8.13 4 33 12.63 12 0.3 3000 45
M25 61.341 9.015 45.212 6.35 5.556 30 16.4 16.58 0.4 3000 75
M32 79.756 11.81 58.928 8.64 7 31 27.19 28.18 0.5 3000 180


Full balls

M14 Series Dimension dxDXH 25.07x33.896x6.095/6.35mm
M17 Series Dimension dxDXH 30.3x41.722x 6.16/6.68mm
M20 series Dimension dxDXH 35.56x49.073x7.24/8.13mm
M25 series Dimension dxDXH 45.212X61.341X9.015/6.35mm
M32 series Dimension dxDXH 58.928x79.756x11.81/8.64mm



Pls contact us for more dimensions~



Packaging:Bearing+plastic bags+thin plastic foam+Carton box+wooden case



Payment Terms:

Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
