XSU140544 xsu series crossed roller bearings for sale 474x614x56mm

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number XSU140544
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model XSU140544 Material GCr15SiMn
Structure Crossed Cylindrical Roller Bearings Dimension 474x614x56mm
Application Robots Arm/machine Tool Name Cross-roller Slewing Ring Bearing
Leave a Message
Product Description

XSU series crossed roller slewing rings is a kind of bearing with integrated inner- and outer ring. With single row rollers arranged crosswise ,separated with spacer, with higher load ,It is being used in cases where high rotational accuracy of both the inner- and outer rings is required.

Crossed Roller Slewing Ring Bearings Parameters

Model number- XSU140544

Inner ring(mm)- 474

Outer ring(mm)- 614

Width(mm)- 56

Weight(Kg)- 38

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner ring/Outer ring

Load direction- Multi-load

Structure- Integrated Inner/Outer Ring

Series Model No.

XSU080168bearings,XSU080188bearings,XSU080218bearings,XSU080258bearings,XSU080318bearings,XSU080398bearings,
XSU140414bearings,XSU140544bearings,XSU140644bearings,XSU140744bearings,XSU140844bearings,XSU140944 bearings

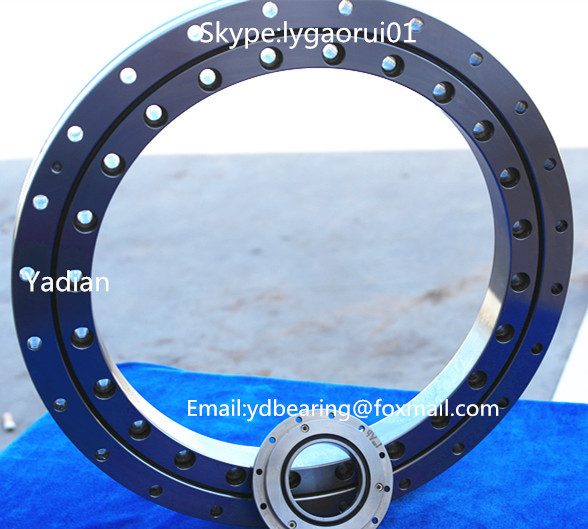

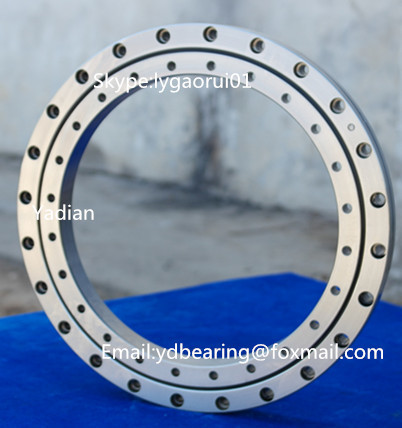

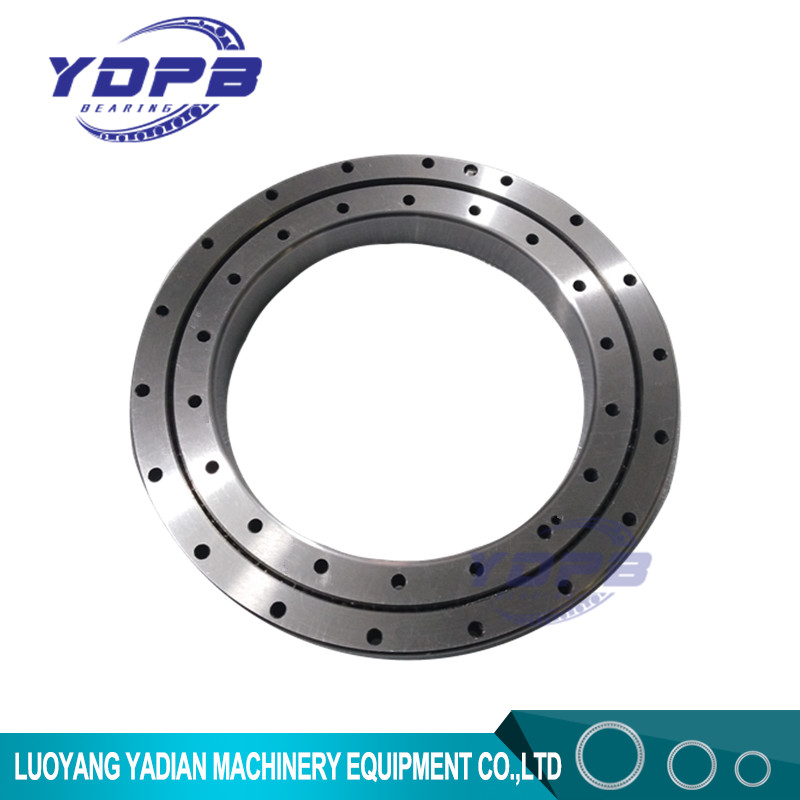

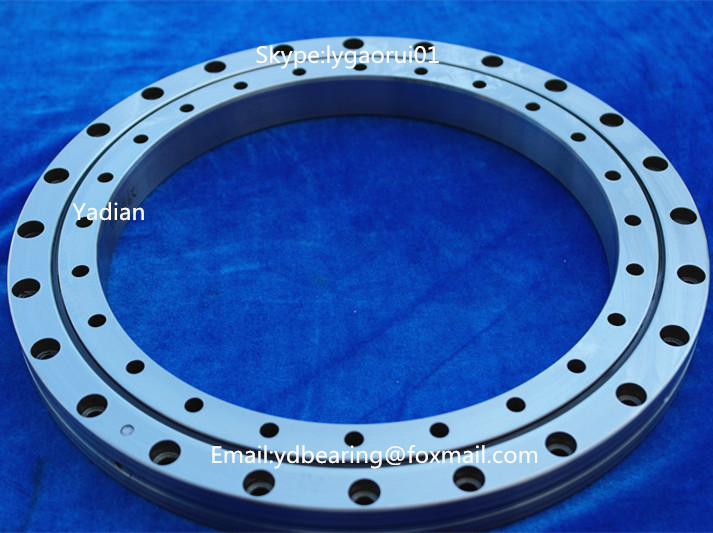

Cross roller slewing rings related pictures

XSU140544 xsu series crossed roller bearings for sale 474x614x56mm 0

Series Model
Number
Main dimensions Fixing Hole(Outer ing) Fixing Hole(Inner ing) Basic load rating
(Axial)
Basic load rating
(Radial)
Weight
Kg
Inner ring
d(mm)
Outer ring
D(mm)
Roller pitch
circle
dp(mm)
Width
B(mm)
Pitch of holes
φLa
Number
na
Pitch of holes
φLi
Number
ni
Ca KN Coa KN Cr KN Cor KN
XSU XSU080168 130 205 168 25.4 240 12 145 12 66 240 42 96 3.3
XSU080188 150 225 188 25.4 275 16 165 16 71 275 46 110 3.7
XSU080218 180 255 218 25.4 315 20 195 20 77 315 49 127 4.3
XSU080258 220 295 258 25.4 375 24 235 24 84 375 54 151 5.1
XSU080318 280 355 318 25.4 465 28 295 28 93 465 59 185 6.3
XSU080398 360 435 398 25.4 590 36 375 36 106 590 68 236 7.8
XSU140414 344 484 414 56 460 24 368 24 229 520 146 250 28
XSU140544 474 614 544 56 590 32 498 32 270 680 170 330 38
XSU140644 574 714 644 56 690 36 598 36 290 800 185 395 44
XSU140744 674 814 744 56 790 40 698 40 315 930 200 455 52
XSU140844 774 914 844 56 890 40 798 40 340 1050 215 510 60
XSU140944 874 1014 944 56 990 44 898 44 360 1170 227 580 67
XSU141094 1024 1164 1094 56 1140 48 1048 48 390 1360 246 670 77



Payment Terms:

Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.



We specialized in kinds of precision slewing rings,turntable bearings with 50mm-300mm four point contact ball bearings,inner geared, outer geared,light series,kaydon type,ina type,imo type etc.

VLA200414N VLA200544N VLA200644N VLA200744N VLA200844N VLA200944N VLA201094N VLI200414N VLI200544N VLI200644N VLI200744N VLI200844N VLI200944N VLI201094N VLU200414N VLU200544N VLU200644N VLU200744N VLU200844N VLU200944N VLU201094N
VSA200414N VSA200544N VSA200644N VSA200744N VSA200844N VSA200944N VSA201094N
VSI200414N VSI200544N VSI200644N VSI200744N VSI200844N VSI200944N VSI201094N VSI250755N VSI250855N VSI250955N VSI251055N
VSU200414N VSU200544N VSU200644N VSU200744N VSU200844N VSU200944N VSU201094N VSU250755N VSU250855N VSU250955N VSU251055N
VSA250755N VSA250855N VSA250955N VSA251055N
VA140188 V VA160235 N VA160302 N VA250309 N
VI160288N VI140326V VI160420N
VU140179 VU200220 VU130225 VU200260 VU140325 VU250380
VU200405 VU250433 VU300574 VU360680
XV30 XV40 XV50 XV60 XV70 XV80 XV90 XV100 XV110

CROSSED CYLINDRICAL ROLLER BEARINGS, CROSSED ROLLER SLEWING RINGS,

XSA140414N XSA140544N XSA140644N XSA140744N XSA140844N XSA140944N XSA141094N
XSI140414N XSI140544N XSI140644N XSI140744N XSI140844N XSI140944N XSI141094N
XSU140414N XSU140544N XSU140644N XSU140744N XSU140844N XSU140944N XSU141094N
XU050077 XU060094 XU060111 XU080120 XU080149 XU120179
XU120222 XU160260 XU080264 XU160405 XU080430 XU300515
Small size slewing rings, kaydon type, turntable, 30-220mm
MTO-050/T MTO-065/T MTO-065/T MTO-122/T MTO-143/T MTO-145/T MTO170/T MTO210/T/X MTO-265/T/X MTO-324T/X
MTE-145/T/X MTE210/T/X MTE265/T/X MTE324/T/X MTE415/T/X MTE470/T MTE540/T MTE-590/T MTE-705/T MTE-730/T MTE-870/T

Main Application:
NC Machine Tools
Metal Cutting Machine Tools
Moulds and Dies,Cutters,Tools
Machinery & Materials for Processing Plastics
Machinery & Materials for Rubber Industry
Machinery Parts and Components
Packaging Machinery & Materials
Printing Machinery & Materials
Pharmaceutic Equipments
Machinery for the Food and Beverage Industries
Automatic Machinery and Equipment
Textile Machinery & Materials
Hydraulic and Pneumatic Components
Metal Forming Machine Tools
Metal Products
Welding and Cutting Machinery
Apparatus and Machinery for Chemical Industry
Woodworking Machinery & Materials
Testing Equipment
Piping Systems (Pipes, Valves, Fittings)
Steel Pipe & Tube Making Machines
Bolt, Screw & Nut Making Machines

Many other precision bearings series available

1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
