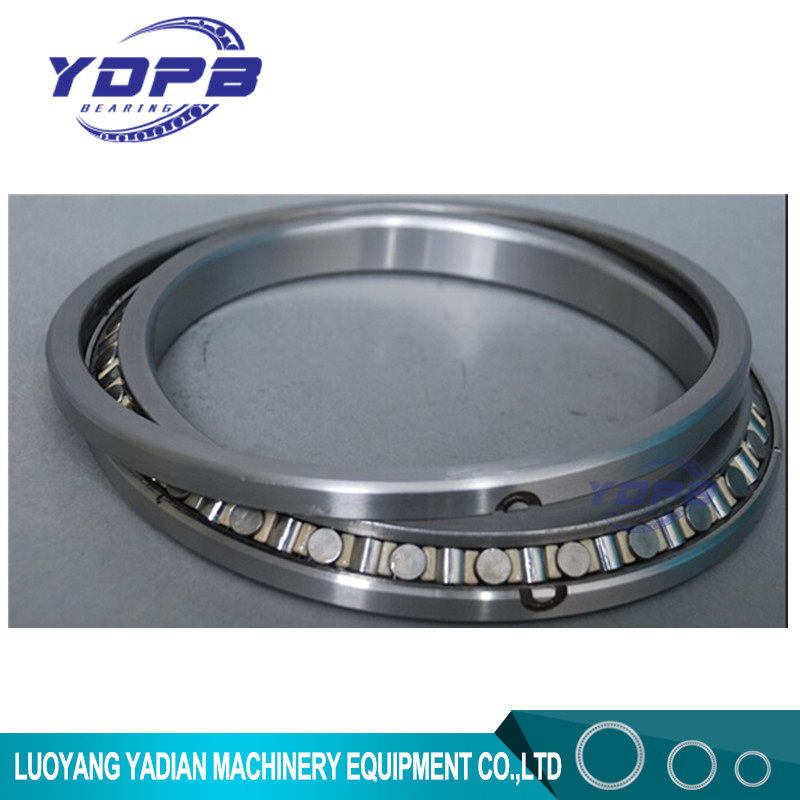

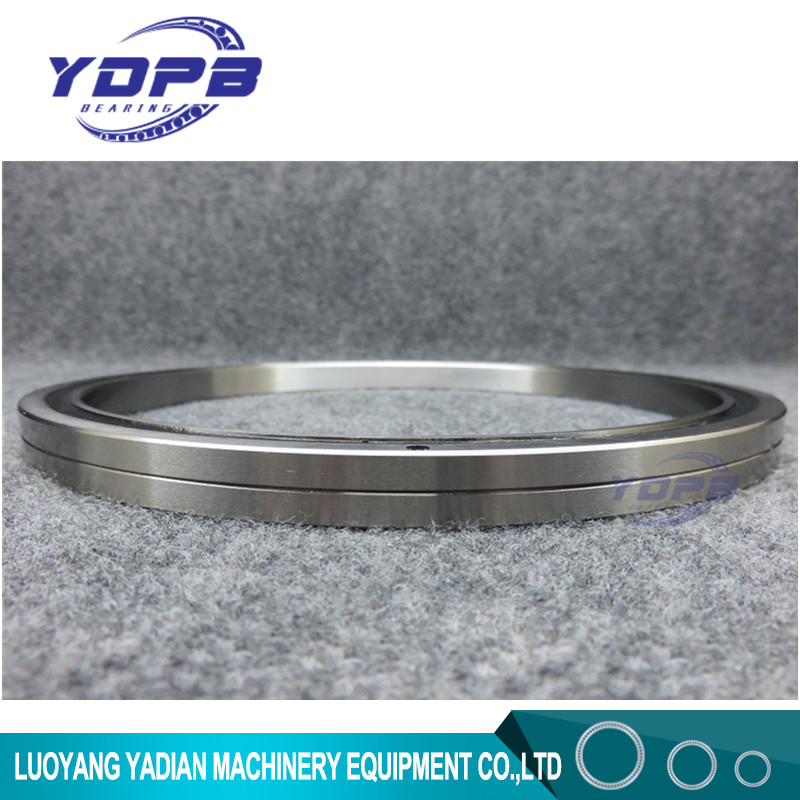

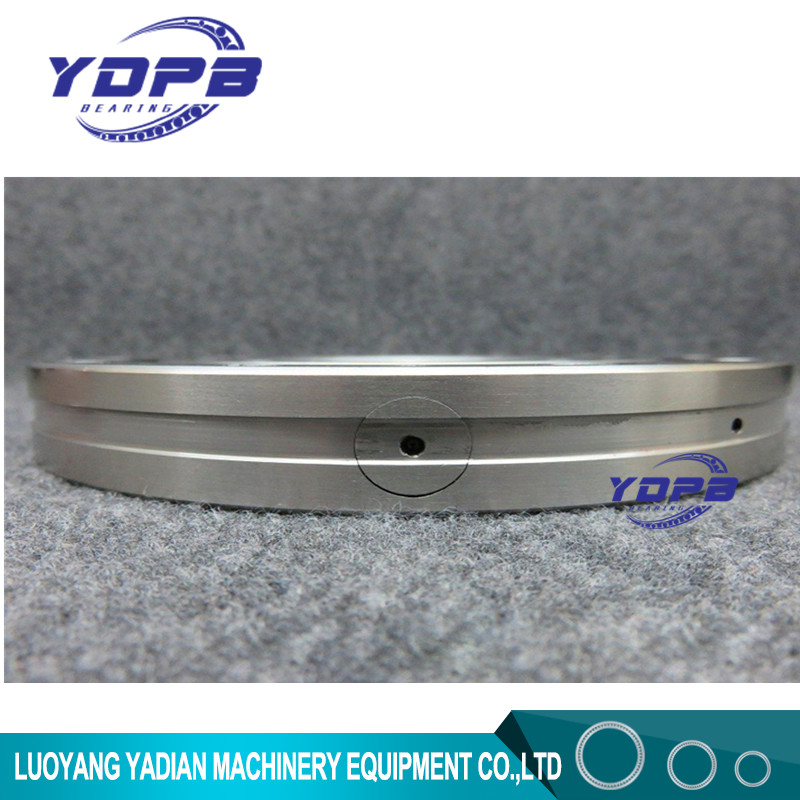

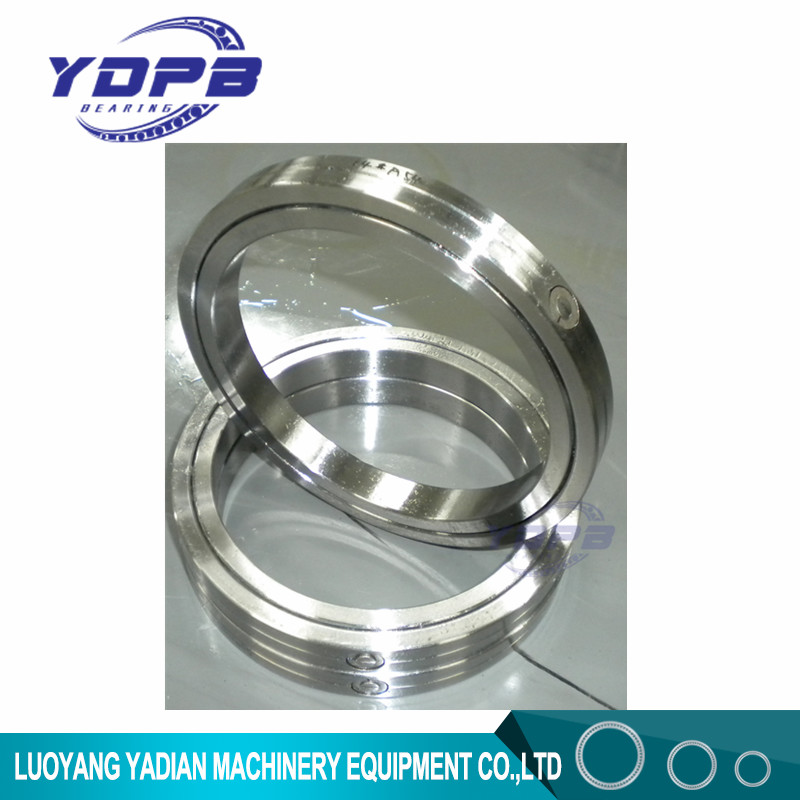

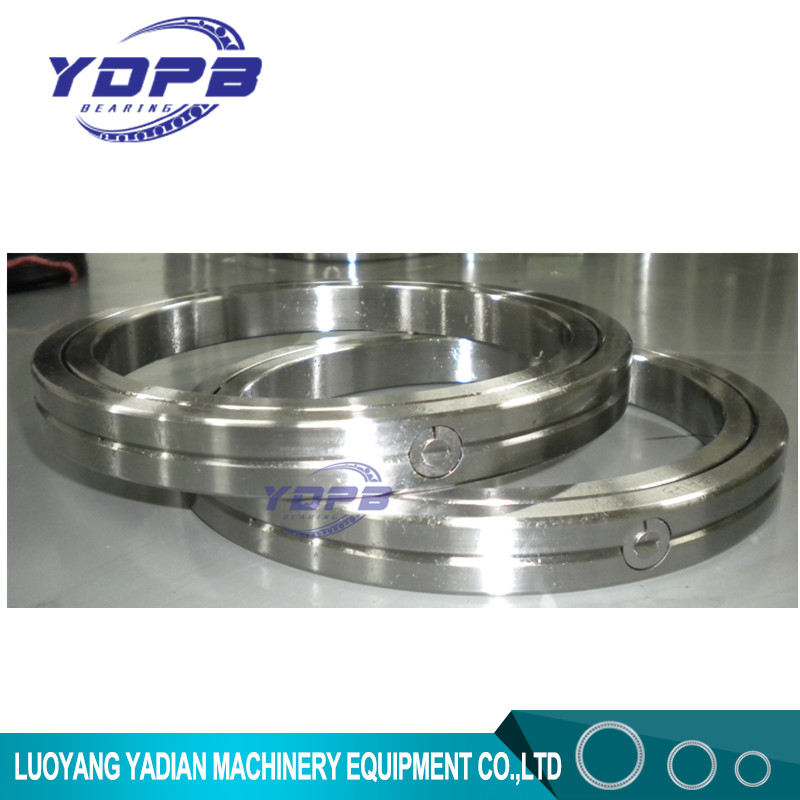

SX011824 robot crossed roller bearing 120x150x16mm precision cross roller bearing factory

  • SX011824 robot crossed roller bearing 120x150x16mm precision cross roller bearing factory
  • SX011824 robot crossed roller bearing 120x150x16mm precision cross roller bearing factory
  • SX011824 robot crossed roller bearing 120x150x16mm precision cross roller bearing factory
  • SX011824 robot crossed roller bearing 120x150x16mm precision cross roller bearing factory
  • SX011824 robot crossed roller bearing 120x150x16mm precision cross roller bearing factory
Place of Origin Luoyang，China
Brand Name YDPB
Certification ISO
Model Number SX011824
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model SX011824 Material GCr15
Structure Crossed Cylindrical Roller Bearings Dimension 120x150x16mm
Application Robots Arm/machine Tool Name Cross-roller Bearing
Leave a Message
Product Description

SX011824 Crossed Roller Bearings 120x150x16mm High precision Robotic arm use

Crossed Roller Bearings Parameters

Model number- SX011824

Inner ring(mm)- 120

Outer ring(mm)- 150

Width(mm)- 16

Weight(Kg)- 0.8

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner Ring Rotation

Load direction- Multi-load

Structure- Outer ring split



Same structure Different sizes models

SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500



Main parameters

SX011824 robot crossed roller bearing 120x150x16mm precision cross roller bearing factory 0

Identification number Main dimensious shoulder height Basic load rating (axial) Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter width Greasing hole r de Di Ca Coa Cr Cor Kg
d D Dp B/B1 S KN KN KN KN
SX011814 70 90 80 10 1.2 0.6 79.5 80.5 18 60 12 30 0.3
SX011818 90 115 102 13 1.2 1 101.5 102.5 26 96 17 47 0.4
SX011820 100 125 112 13 1.2 1 111.5 112.5 28 106 18 52 0.5
SX011824 120 150 135 16 1.5 1 134.4 135.6 41 153 26 75 0.8
SX011828 140 175 157 18 1.5 1.1 156.3 157.7 64 237 41 116 1.1
SX011832 160 200 180 20 1.5 1.1 179.2 180.8 69 272 44 133 1.7
SX011836 180 225 202 22 2 1.1 201.2 202.8 98 381 63 187 2.3
SX011840 200 250 225 24 2 1.5 224.2 225.8 106 425 68 208 3.1
SX011848 240 300 270 28 2 2 269.2 270.8 149 612 95 300 5.3
SX011860 300 380 340 38 2.5 2.1 339.2 340.8 245 1027 156 504 12
SX011868 340 420 380 38 2.5 2.1 379.2 380.8 265 1148 167 563 13.5
SX011880 400 500 450 46 2.5 2.5 449 451 385 1699 244 833 24
SX0118/500 500 620 560 56 2.5 3 558.8 561.2 560 2538 355 1244

44





Drawings and other parameters ,pls contact us free, thanks
