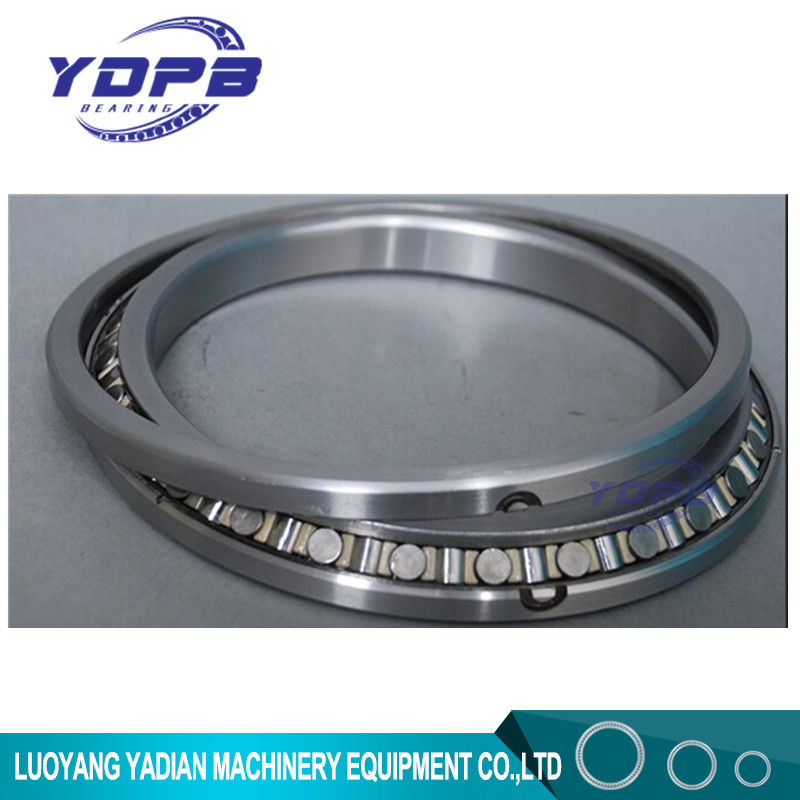

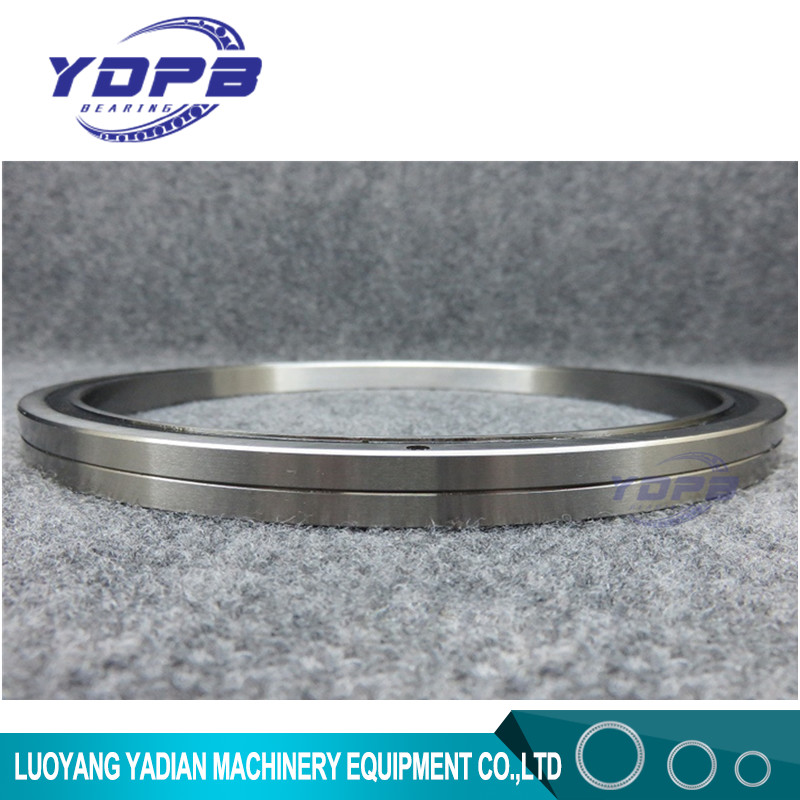

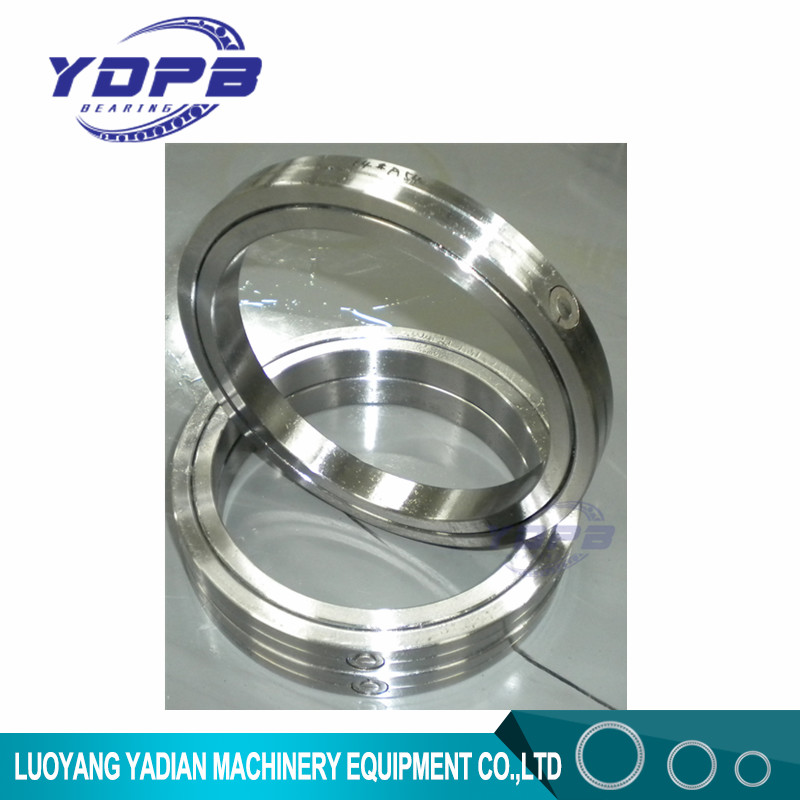

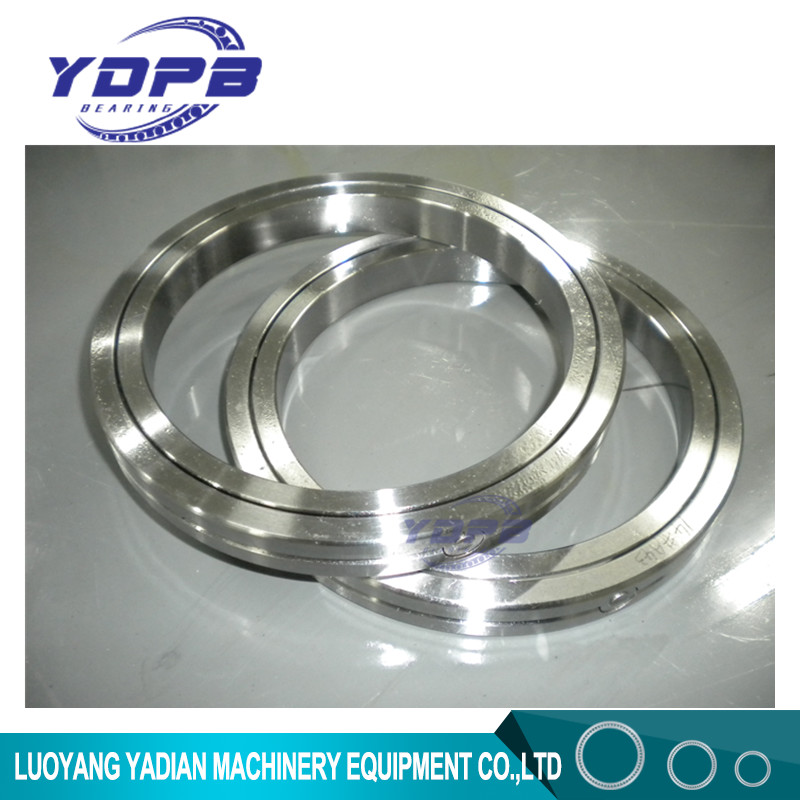

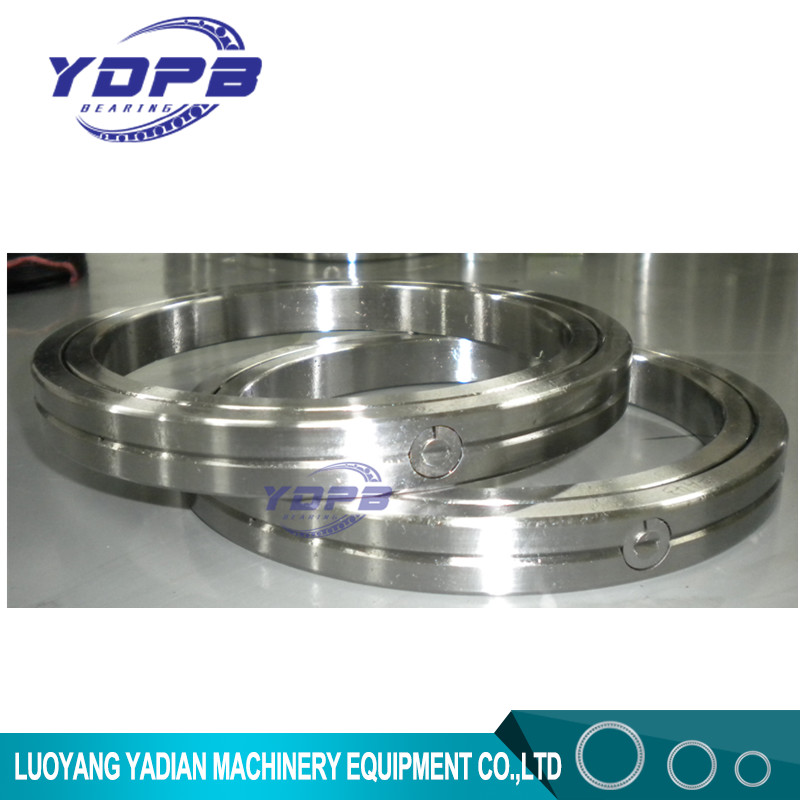

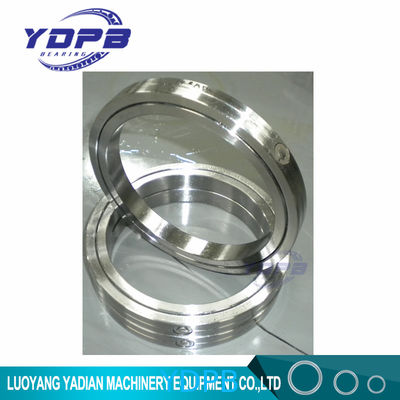

SX011880 thin section cross roller bearing made in china 400x500x46mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | SX011880 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | SX011880 | Material | GCr15 |
---|---|---|---|
Structure | Crossed Cylindrical Roller Bearings | Dimension | 400x500x46mm |
Application | Robots Arm/machine Tool | Name | Cross-roller Bearing |
SX011880 Crossed Roller Bearings 400x500x46mm High precision Robotic arm use
Crossed Roller Bearings Parameters
Model number- SX011880
Inner ring(mm)- 400
Outer ring(mm)- 500
Width(mm)- 46
Weight(Kg)-24
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner Ring Rotation
Load direction- Multi-load
Structure- Outer ring split
Main parameters
Identification number | Main dimensious | shoulder height | Basic load rating (axial) | Basic load rating (radial) | weight | ||||||||
Inner diameter | outer diameter | Roller pitch circle diameter | width | Greasing hole | r | de | Di | Ca | Coa | Cr | Cor | Kg | |
d | D | Dp | B/B1 | S | KN | KN | KN | KN | |||||
SX011814 | 70 | 90 | 80 | 10 | 1.2 | 0.6 | 79.5 | 80.5 | 18 | 60 | 12 | 30 | 0.3 |
SX011818 | 90 | 115 | 102 | 13 | 1.2 | 1 | 101.5 | 102.5 | 26 | 96 | 17 | 47 | 0.4 |
SX011820 | 100 | 125 | 112 | 13 | 1.2 | 1 | 111.5 | 112.5 | 28 | 106 | 18 | 52 | 0.5 |
SX011824 | 120 | 150 | 135 | 16 | 1.5 | 1 | 134.4 | 135.6 | 41 | 153 | 26 | 75 | 0.8 |
SX011828 | 140 | 175 | 157 | 18 | 1.5 | 1.1 | 156.3 | 157.7 | 64 | 237 | 41 | 116 | 1.1 |
SX011832 | 160 | 200 | 180 | 20 | 1.5 | 1.1 | 179.2 | 180.8 | 69 | 272 | 44 | 133 | 1.7 |
SX011836 | 180 | 225 | 202 | 22 | 2 | 1.1 | 201.2 | 202.8 | 98 | 381 | 63 | 187 | 2.3 |
SX011840 | 200 | 250 | 225 | 24 | 2 | 1.5 | 224.2 | 225.8 | 106 | 425 | 68 | 208 | 3.1 |
SX011848 | 240 | 300 | 270 | 28 | 2 | 2 | 269.2 | 270.8 | 149 | 612 | 95 | 300 | 5.3 |
SX011860 | 300 | 380 | 340 | 38 | 2.5 | 2.1 | 339.2 | 340.8 | 245 | 1027 | 156 | 504 | 12 |
SX011868 | 340 | 420 | 380 | 38 | 2.5 | 2.1 | 379.2 | 380.8 | 265 | 1148 | 167 | 563 | 13.5 |
SX011880 | 400 | 500 | 450 | 46 | 2.5 | 2.5 | 449 | 451 | 385 | 1699 | 244 | 833 | 24 |
SX0118/500 | 500 | 620 | 560 | 56 | 2.5 | 3 | 558.8 | 561.2 | 560 | 2538 | 355 | 1244 |
44
|
SX series crossed roller bearings (separatable outer-ring ,Type for inner ring rotation)
Crossed roller bearings SX are bearings for high precision applications, whose dimensions conform to ISO dimension series 18 to DIN 616. They comprise outer rings, inner rings, rolling elements and plastic spacers. The outer ring is split and is held together by three retaining rings.
Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, low clearance or preload. Preloaded bearings have the suffix VSP
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
