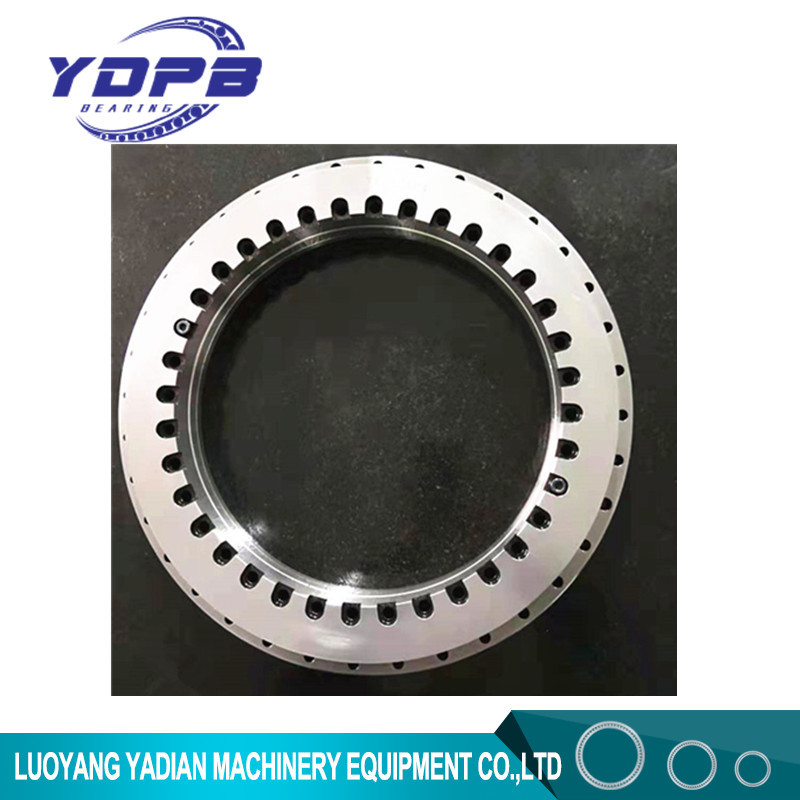

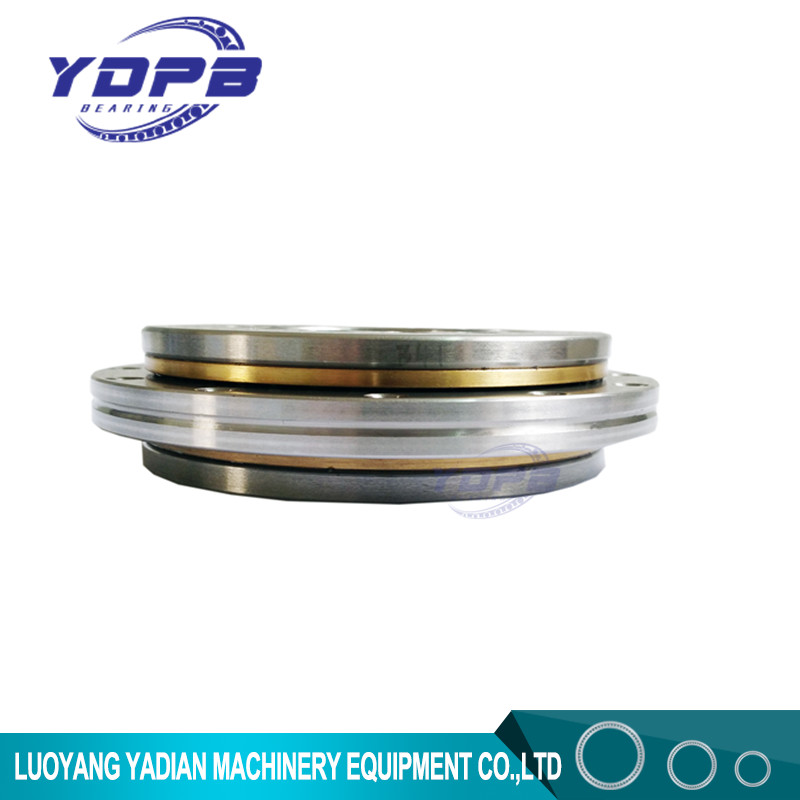

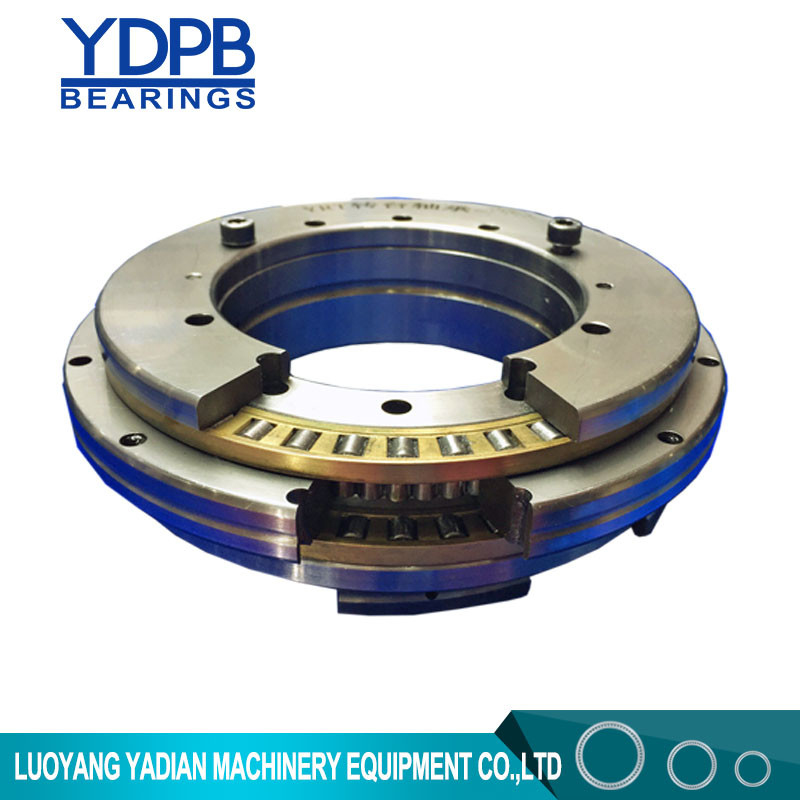

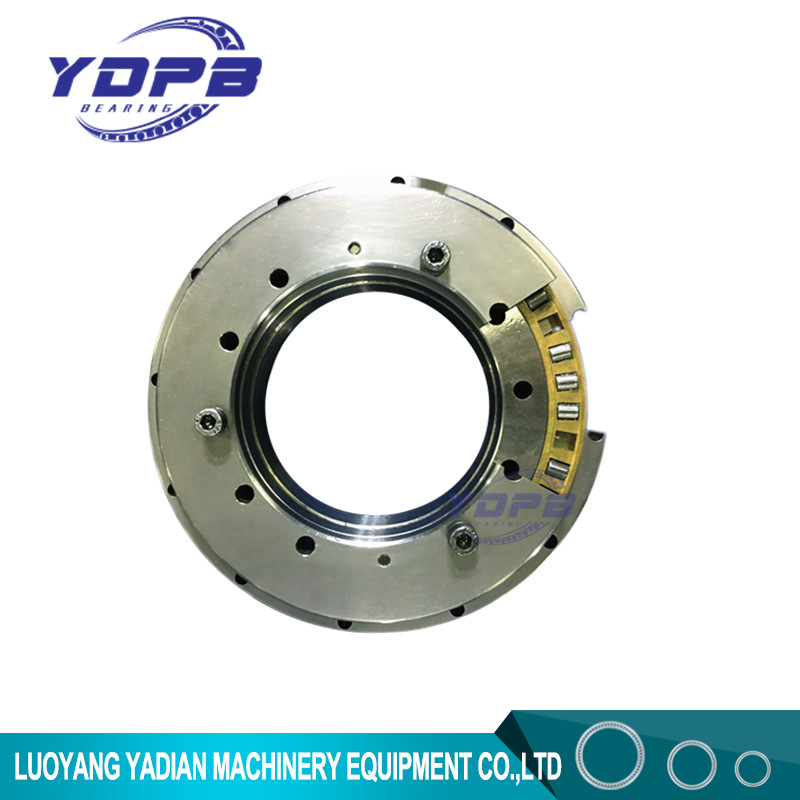

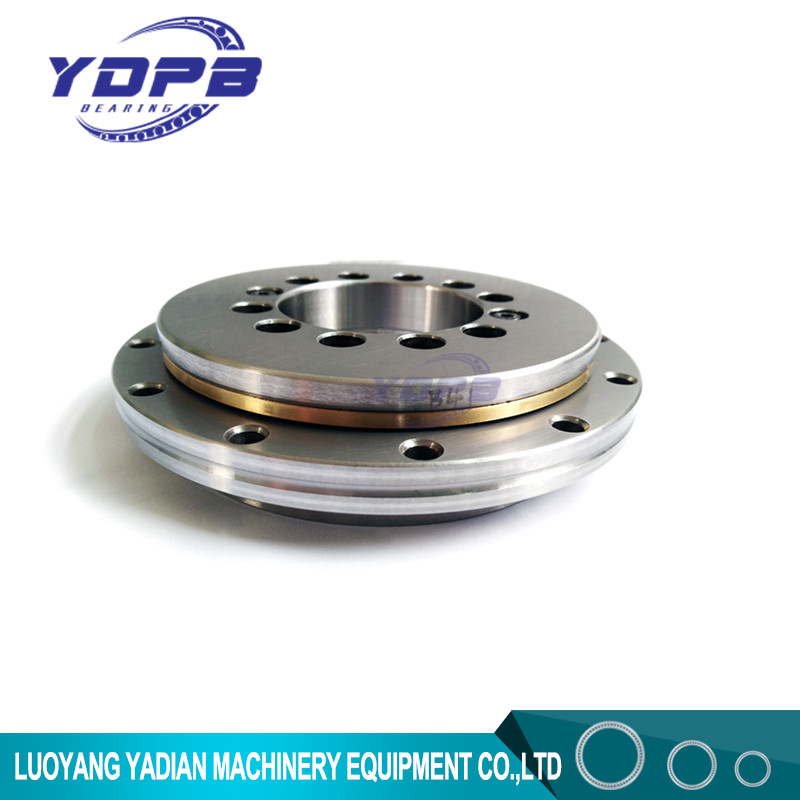

YRTM180 in stock yrtm rotary table bearings manufacturers 180X280X43mm
|Place of Origin||Luoyang，China|
|Minimum Order Quantity||1PCS|
|Packaging Details||plastic film+waterproof paper+thin foam+wooden case|
|Delivery Time||within 5-8days|
|Payment Terms||Western Union, T/T, MoneyGram|
|Load||Axial Radial Combined Load||Model||YRTM180|
|Application||CNC Machine Tool||Cage||Brass Cage|
YRTM180 Axial/Radial Bearings with Integral Measuring System Size 180x280X43mm
Rotary Table Bearings Parameters
Model number- YRTM180
Inner ring(mm)- 180
Outer ring(mm)- 280
Fixing Hole(Outer ing)
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Axial/radial bearings with integral measuring system comprise: axial/radial bearing YRTM with a dimensional scale and a electronic measuring system. The electronic measuring system contains two measuring heads, a set of shims and an electronic evaluation system.
Bearings of series YRTM correspond in mechanical terms to axial/radial bearings YRT but are additionally fitted with a magnetic dimensional scale. The measuring system can measure angles to an accuracy of a few angular seconds by non-contact, magneto-resistive means.
Advantages of the angular measuring system.
1.operates by non-contact means and is therefore not subject to wear
2.carries out measurement irrespective of tilting and position
3.has an automatically self-adjusting electronic system
4.has a self-centring function
5.is unaffected by lubricants
6.is easy to fit and the measuring heads are easily adjusted
7.there is no need for alignment of the bearing and a separate measuring system
8.requires no additional parts
– the dimensional scale and measuring heads are integrated in the bearing and adjacent construction respectively
– the resulting space saved can be used for the machining area of the machine
9.does not give any problems relating to supply cables. The cables can be laid within the adjacent construction directly through the large bearing bore
10.ives savings on design envelope size and costs due to the compact, integrated design requiring fewer components.
More related bearings
YRTM150, YRTM180, YRTM200, YRTM260, YRTM325, YRTM395, YRTM460.
|Model||boundary dimensions||Inner ring/Outer ring(fixing hole)|
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"
