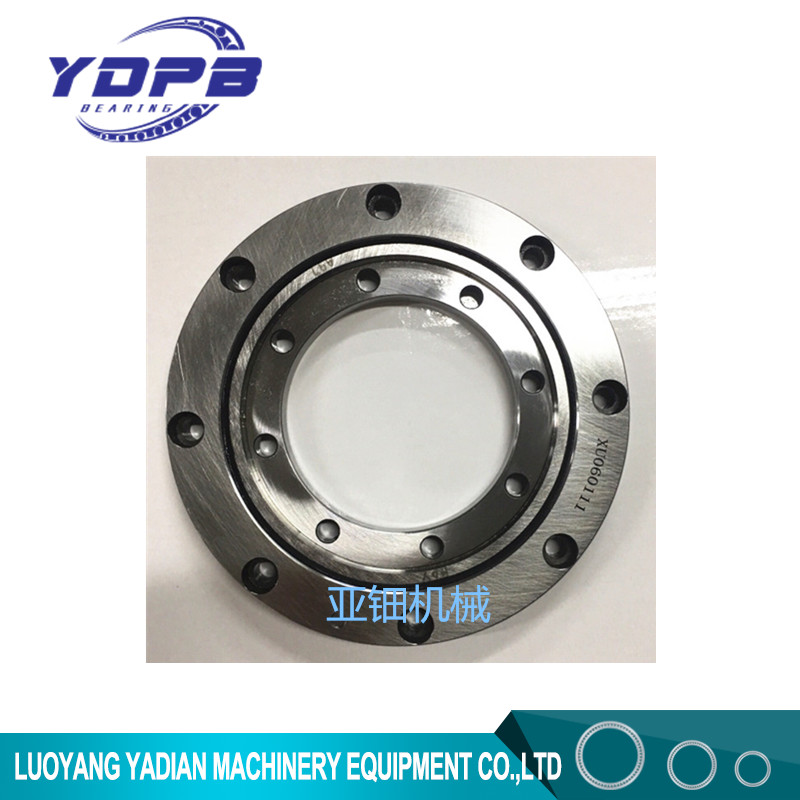

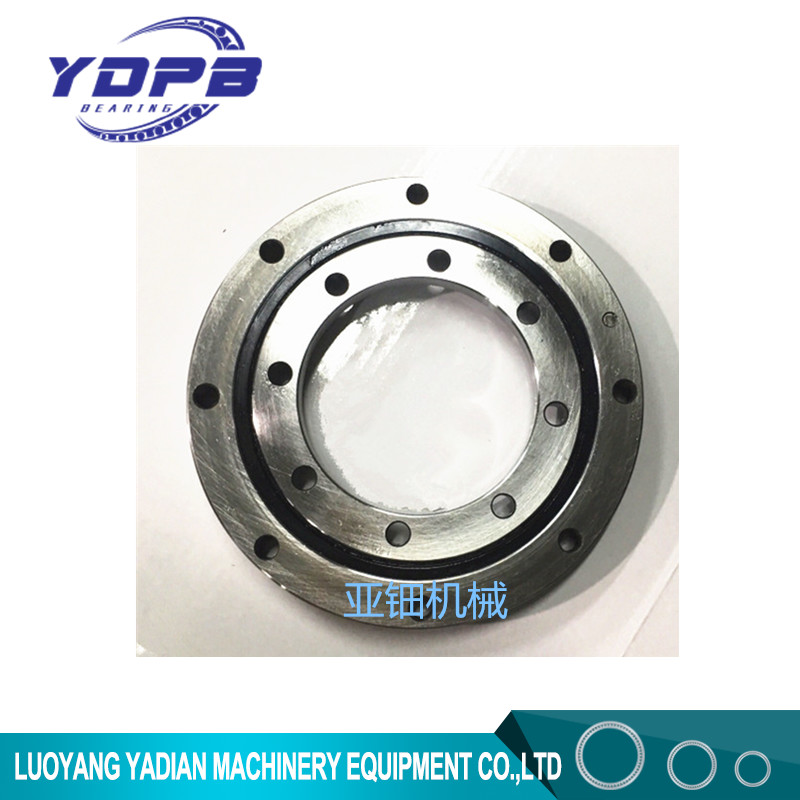

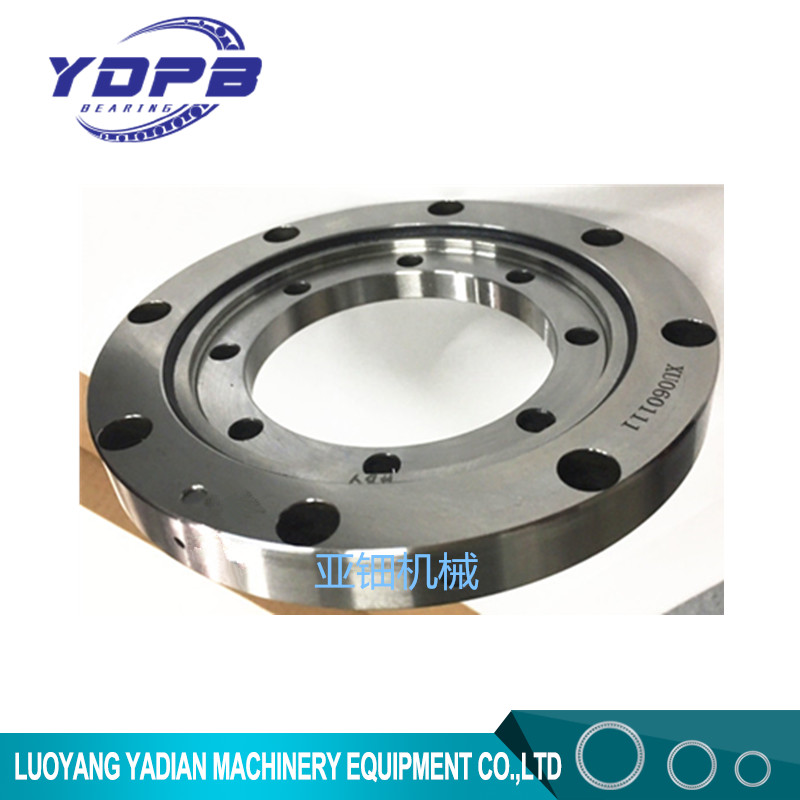

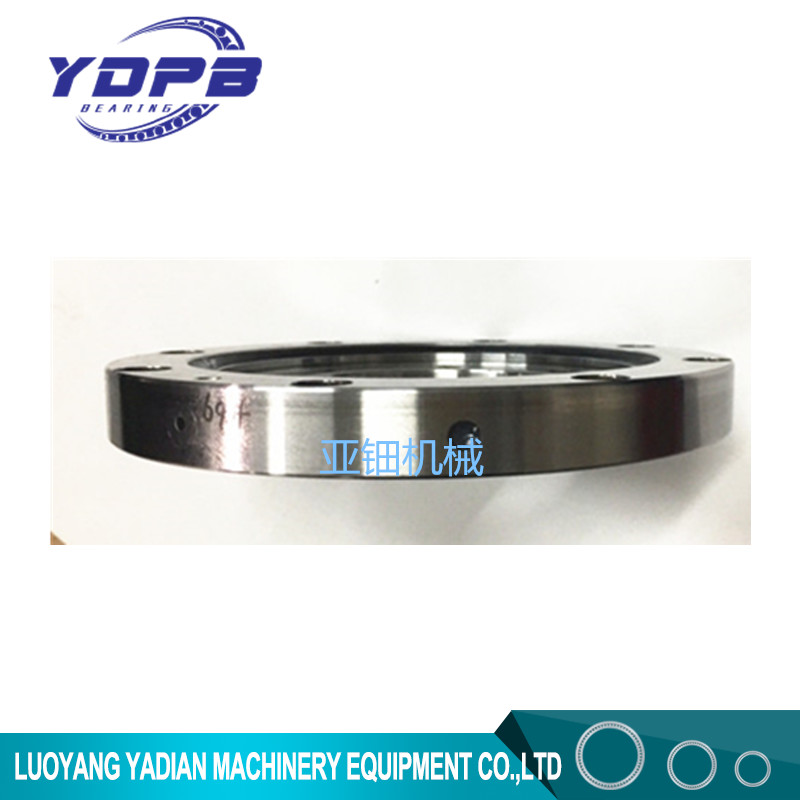

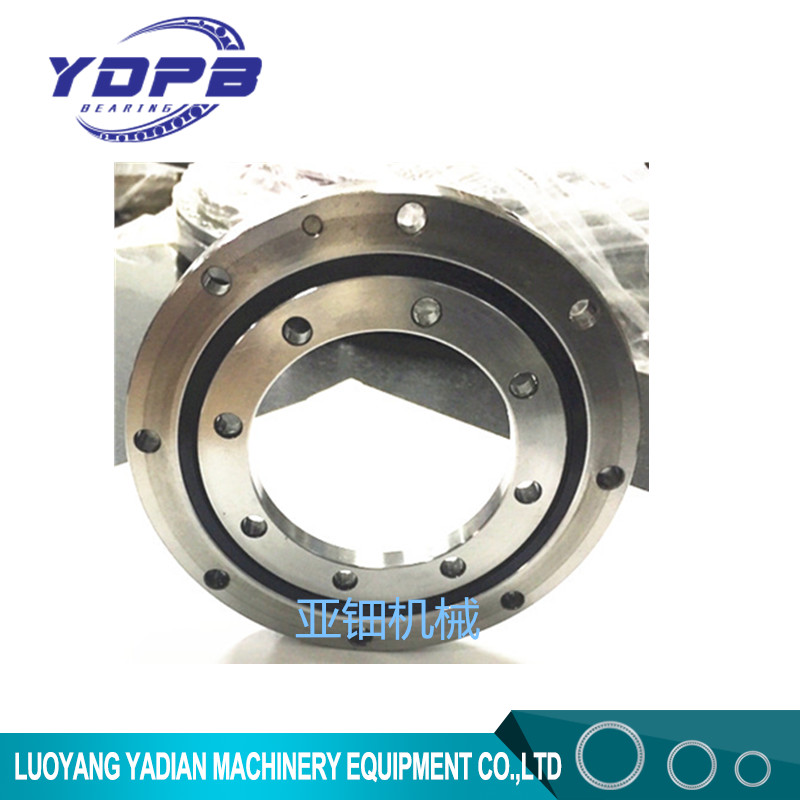

XU160405 china bearing with crossed roller supplier 336x474x46mm

Place of Origin Luoyang,China
Brand Name YDPB
Model Number XU160405
Minimum Order Quantity 1
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Model XU160405 Material GCr15/GCr15SiMn
Structure Single Row Crossed Cylindrical Roller Dimension 336x474x46mm
Application Vertical Machining Center Name Cross Roller Slewing Ring Bearings
Leave a Message
Product Description

Crossed Roller Bearings Parameters

Model number- XU160405

Inner ring(mm)- 336

Outer ring(mm)- 474

Width(mm)- 46

Weight(Kg)- 25

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner ring/Outer ring

Load direction- Multi-load

Structure- Integrated Inner/Outer Ring

Series Model NO..
XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264,XU160405,XU080430,XU300515.

Related moldes.

XSU080168bearings,XSU080188bearings,XSU080218bearings,XSU080258bearings,XSU080318bearings,XSU080398bearings,
Applications
Vertical machining center,vibratory grinding unit,tandem roller etc. high precision parts

Structure and Parameters:
XU160405 china bearing with crossed roller supplier 336x474x46mm 0

Series Model
Number
Main dimensions Fixing Hole(Outer ing) Fixing Hole(Inner ing) Basic load rating
(Axial)
Basic load rating
(Radial)
Weight
Kg
Inner ring
d(mm)
Outer ring
D(mm)
Roller pitch
circle
dp(mm)
Width
B(mm)
Pitch of holes
φLa
Number
na
Pitch of holes
φLi
Number
ni
Ca KN Coa KN Cr KN Cor KN
XU XU050077 40 112 77 22 97 6-φ6.6 56 6-M8 22.4 29 14.3 14.2 1.4
XU060094 57 140 94 26 120 6-φ9 70 6-M8 32.5 37.5 20.7 18.4 2.4
XU060111 76.2 145.79 111 15.87 133.1 8-φ6.9 88.9 8-φ6.9 36 44.5 22.8 21.5 1.2
XU080120 69 170 120 30 148 6-φ9 90 6-M8 56 53 35.5 26 4
XU080149 101.6 196.85 149.6 22.22 177.8 16-φ6.9 115.8 16-φ6.9 63 66 40 32.5 3.6
XU120179 124.5 234 179 35 214 12-φ11 144.5 12-φ11 118 179 75 88 7
XU120222 140 300 222 36 270 12-M16 170 12-φ18 133 275 85 131 12
XU160260 191 329 260 46 305 20-φ14 215 20-φ14 212 350 135 173 16
XU080264 215.9 311 264 25.4 295.3 12-φ8.7 231.8 12-φ8.7 85 117 54 57 6.9
XU160405 336 474 405 46 450 30-φ14 360 30-φ14 270 550 172 270 25
XU080430 380 480 430 26 462 20-φ9 398 20-M10 110 280 70 138 12
XU300515 384 646 515 86 598 18-φ26 432 18-φ26 720 1370 455 670 115



Drawings and other parameters ,pls contact us free, thanks


Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.



Many other precision bearings series available
