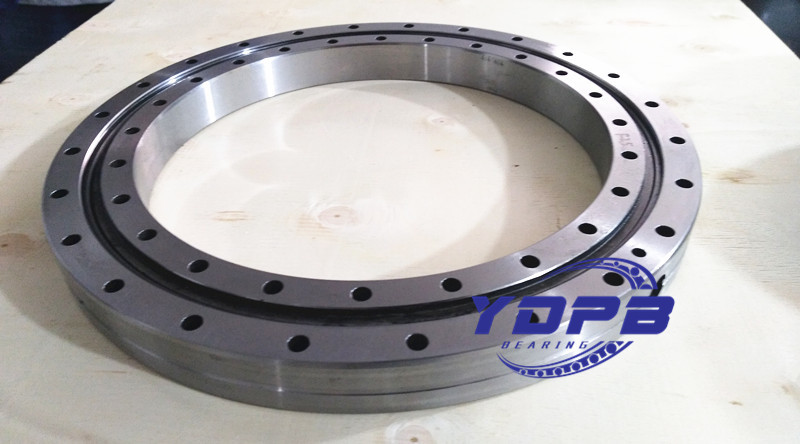

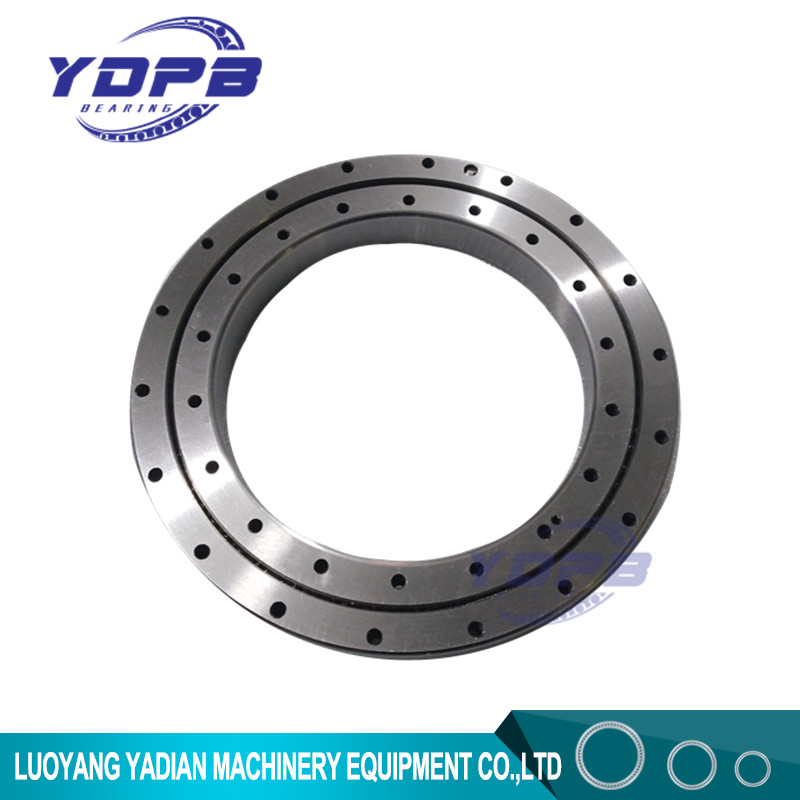

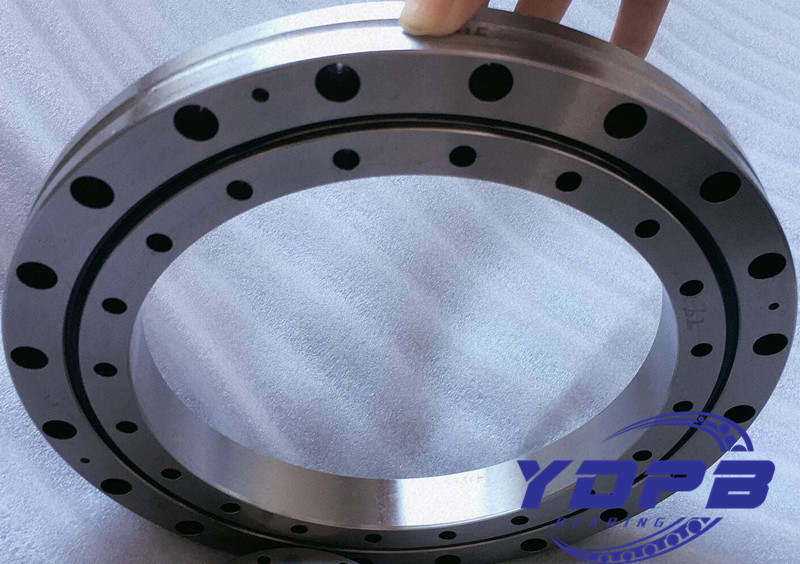

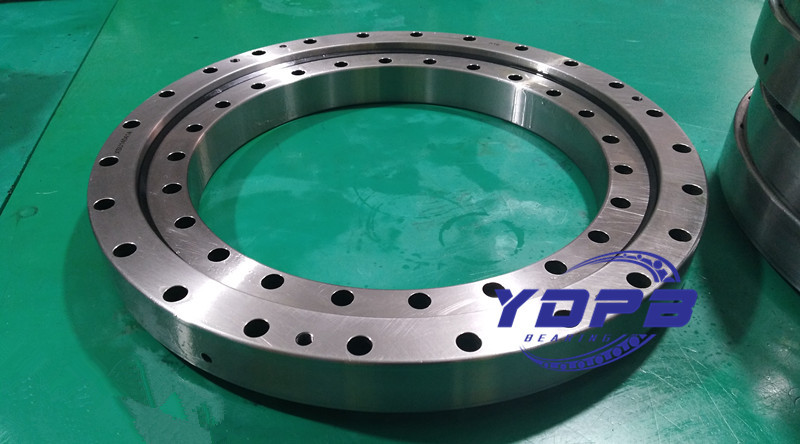

XSU080258 robot crossed roller bearing factory220x295x25.4mm medicale quipment use
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | XSU080258 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | XSU080258 | Material | GCr15/GCr15SiMn |
---|---|---|---|
Structure | Single Row Crossed Cylindrical Roller | Dimension | 220x295x25.4mm |
Application | CNC Machine Tool And Other Machinery | Name | Cross Roller Slewing Ring Bearings |
Crossed Roller Bearings Parameters
Model number- XSU080258
Inner ring(mm)-220
Outer ring(mm)- 295
Width(mm)- 25.4
Weight(Kg)- 5.1
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Series Model NO..
XSU080168bearings,XSU080188bearings,XSU080218bearings,XSU080258bearings,XSU080318bearings,XSU080398bearings,
XSU140414bearings,XSU140544bearings,XSU140644bearings,XSU140744bearings,XSU140844bearings,XSU140944 bearings
Applications
Vertical machining center,vibratory grinding unit,tandem roller etc. high precision parts
Structure and Parameters:
Parameters for Single-row Crossed Roller Slewing Bearings
Series | Model Number |
Main dimensions | Fixing Hole(Outer ing) | Fixing Hole(Inner ing) | Basic load rating (Axial) |
Basic load rating (Radial) |
Weight Kg |
|||||||
Inner ring d(mm) |
Outer ring D(mm) |
Roller pitch circle dp(mm) |
Width B(mm) |
Pitch of holes φLa |
Number na |
Pitch of holes φLi |
Number ni |
Ca KN | Coa KN | Cr KN | Cor KN | |||
XSU | XSU080168 | 130 | 205 | 168 | 25.4 | 240 | 12 | 145 | 12 | 66 | 240 | 42 | 96 | 3.3 |
XSU080188 | 150 | 225 | 188 | 25.4 | 275 | 16 | 165 | 16 | 71 | 275 | 46 | 110 | 3.7 | |
XSU080218 | 180 | 255 | 218 | 25.4 | 315 | 20 | 195 | 20 | 77 | 315 | 49 | 127 | 4.3 | |
XSU080258 | 220 | 295 | 258 | 25.4 | 375 | 24 | 235 | 24 | 84 | 375 | 54 | 151 | 5.1 | |
XSU080318 | 280 | 355 | 318 | 25.4 | 465 | 28 | 295 | 28 | 93 | 465 | 59 | 185 | 6.3 | |
XSU080398 | 360 | 435 | 398 | 25.4 | 590 | 36 | 375 | 36 | 106 | 590 | 68 | 236 | 7.8 | |
XSU140414 | 344 | 484 | 414 | 56 | 460 | 24 | 368 | 24 | 229 | 520 | 146 | 250 | 28 | |
XSU140544 | 474 | 614 | 544 | 56 | 590 | 32 | 498 | 32 | 270 | 680 | 170 | 330 | 38 | |
XSU140644 | 574 | 714 | 644 | 56 | 690 | 36 | 598 | 36 | 290 | 800 | 185 | 395 | 44 | |
XSU140744 | 674 | 814 | 744 | 56 | 790 | 40 | 698 | 40 | 315 | 930 | 200 | 455 | 52 | |
XSU140844 | 774 | 914 | 844 | 56 | 890 | 40 | 798 | 40 | 340 | 1050 | 215 | 510 | 60 | |
XSU140944 | 874 | 1014 | 944 | 56 | 990 | 44 | 898 | 44 | 360 | 1170 | 227 | 580 | 67 | |
XSU141094 | 1024 | 1164 | 1094 | 56 | 1140 | 48 | 1048 | 48 | 390 | 1360 | 246 | 670 | 77 |
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
Online shopping Address: www.ydpbbearings.com
