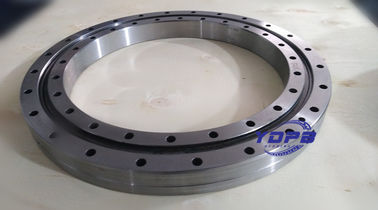

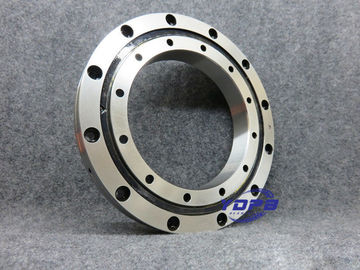

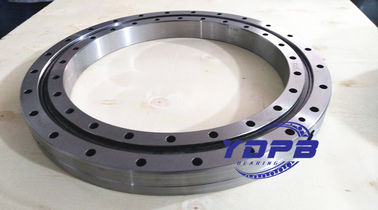

XSU080318 cross roller slewing bearings made 280x355x25.4mm slewing ring bearings made in China

  • XSU080318 cross roller slewing bearings made 280x355x25.4mm slewing ring bearings made in China
  • XSU080318 cross roller slewing bearings made 280x355x25.4mm slewing ring bearings made in China
  • XSU080318 cross roller slewing bearings made 280x355x25.4mm slewing ring bearings made in China
  • XSU080318 cross roller slewing bearings made 280x355x25.4mm slewing ring bearings made in China
  • XSU080318 cross roller slewing bearings made 280x355x25.4mm slewing ring bearings made in China
Place of Origin Luoyang，China
Brand Name YDPB
Certification ISO
Model Number XSU080318
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model XSU080318 Material GCr15/GCr15SiMn
Structure Single Row Crossed Cylindrical Roller Dimension 280x355x25.4mm
Application CNC Machine Tool And Other Machinery Name Cross Roller Slewing Ring Bearings
Leave a Message
Product Description

Crossed Roller Bearings Parameters

Model number- XSU080318

Inner ring(mm)-280

Outer ring(mm)- 355

Width(mm)- 25.4

Weight(Kg)- 6.3

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner ring/Outer ring

Load direction- Multi-load

Structure- Integrated Inner/Outer Ring

Series Model NO..

XSU080168bearings,XSU080188bearings,XSU080218bearings,XSU080258bearings,XSU080318bearings,XSU080398bearings,
XSU140414bearings,XSU140544bearings,XSU140644bearings,XSU140744bearings,XSU140844bearings,XSU140944 bearings

Applications
Vertical machining center,vibratory grinding unit,tandem roller etc. high precision parts

Structure and Parameters:
XSU080318 cross roller slewing bearings made 280x355x25.4mm slewing ring bearings made in China 0

Series Model
Number		 Main dimensions Fixing Hole(Outer ing) Fixing Hole(Inner ing) Basic load rating
(Axial)		 Basic load rating
(Radial)		 Weight
Kg
Inner ring
d(mm)		 Outer ring
D(mm)		 Roller pitch
circle
dp(mm)		 Width
B(mm)		 Pitch of holes
φLa		 Number
na		 Pitch of holes
φLi		 Number
ni		 Ca KN Coa KN Cr KN Cor KN
XSU XSU080168 130 205 168 25.4 240 12 145 12 66 240 42 96 3.3
XSU080188 150 225 188 25.4 275 16 165 16 71 275 46 110 3.7
XSU080218 180 255 218 25.4 315 20 195 20 77 315 49 127 4.3
XSU080258 220 295 258 25.4 375 24 235 24 84 375 54 151 5.1
XSU080318 280 355 318 25.4 465 28 295 28 93 465 59 185 6.3
XSU080398 360 435 398 25.4 590 36 375 36 106 590 68 236 7.8
XSU140414 344 484 414 56 460 24 368 24 229 520 146 250 28
XSU140544 474 614 544 56 590 32 498 32 270 680 170 330 38
XSU140644 574 714 644 56 690 36 598 36 290 800 185 395 44
XSU140744 674 814 744 56 790 40 698 40 315 930 200 455 52
XSU140844 774 914 844 56 890 40 798 40 340 1050 215 510 60
XSU140944 874 1014 944 56 990 44 898 44 360 1170 227 580 67
XSU141094 1024 1164 1094 56 1140 48 1048 48 390 1360 246 670 77



Drawings and other parameters ,pls contact us free, thanks


Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
