YDRT325 CNC rotary Axis Tilting Rotary Tables Bearings Size325x450x60mm Brass cage

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number YRT325
Minimum Order Quantity 1PCS
Price 1$~~440$/pc
Packaging Details plastic film+thin foam+carton
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Gcr15SiMn Dimension 325x450x60mm
Load Axial Radial Combined Load Model YRT325
Application CNC Machine Tool Cage Brass Cage
Precision Level P4,P2
Leave a Message
Product Description

YDPB YRT325 CNC rotary Axis Tilting Rotary Tables Bearings Size325x450x60mm Aircraft Rotation Table Use Bearing
Model number- YRT325
Inner ring(mm)- 325
Outer ring(mm)- 450
Width(mm)- 60
Weight(Kg)-25
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring


Main Models
YRT50 Bearings,YRT80 bearings,YRT100 bearings,YRT120 bearings,YRT150 bearings,YRT200 bearings,YRT260 bearings,YRT325 bearings,YRT395 bearings,YRT460 bearings,YRT580 bearings,YRT650 bearings,YRT850 bearings,YRT950 bearings,YRT1030 bearings,YRT1200 bearings.



Main parameters

Bearing

Model number

Boundary dimensions Basic load rating(KN)

Limiting

Speed

(Grease)

Bearing frictional torque

(Nm)

Weight

(kg)

Axial/Radial

Runout

(μm)

Axial load Radial load
d D H H1 C D1 J J1 dynamic static dynamic static
unit: mm Ca Coa Cr Cor r/min
YRT50 50 126 30 20 10 105 63 116 38 158 28.5 49.5 440 2.5 1.6 2
YRT80 80 146 35 23.35 12 130 92 138 56 255 42.5 100 530 3 2.4 3
YRT100 100 185 38 25 12 160 112 170 76.5 415 47.5 120 430 3 4.0 3
YRT120 120 210 40 26 12 184 135 195 102 540 52 143 340 7 5.3 3
YRT150 150 240 40 26 12 214 165 225 112 630 56 170 320 10 6.2 3
YRT180 180 280 43 29 15 244 194 260 118 710 69.5 200 280 12 7.7 4
YRT200 200 300 45 30 15 274 215 285 120 765 81.5 220 260 14 9.7 4
YRT260 260 385 55 36.5 18 345 280 365 160 1060 93 290 200 20 18.3 6
YRT325 325 450 60 40 20 415 342 430 275 1930 120 345 170 40 25 6
YRT395 395 525 65 42.5 20 486 415 505 300 2280 186 655 140 55 33 6
YRT460 460 600 70 46 22 560 482 580 355 2800 200 765 120 70 45 6
YRT580 580 750 90 60 30 700 610 720 490 4250 228 965 80 140 89 10
YRT650 650 870 122 78 34 800 680 830 1040 8000 490 1800 65 200 170 10
YRT850 850 1095 124 80.5 37 1018 890 1055 1000 8650 455 1730 50 300 253 12
YRT950 950 1200 132 86 40 1130 990 1160 1290 11400 530 2040 40 600 312 12
YRT1030 1030 1300 145 92.5 40 1215 1075 1255 1380 12000 620 2650 39 800 375 15

Related pictures

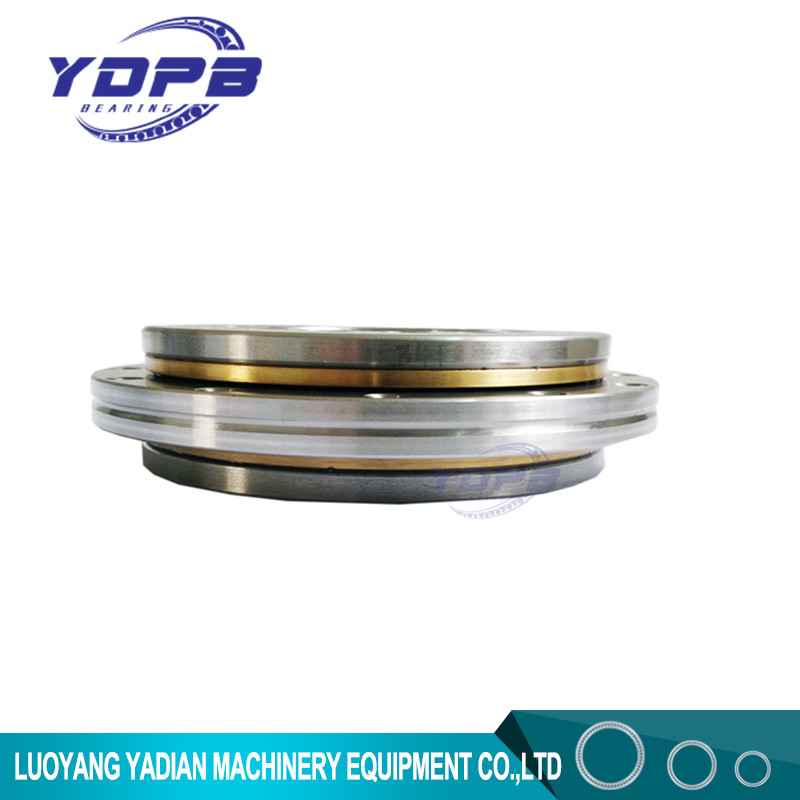

YDRT325 CNC rotary Axis Tilting Rotary Tables Bearings Size325x450x60mm Brass cage 0

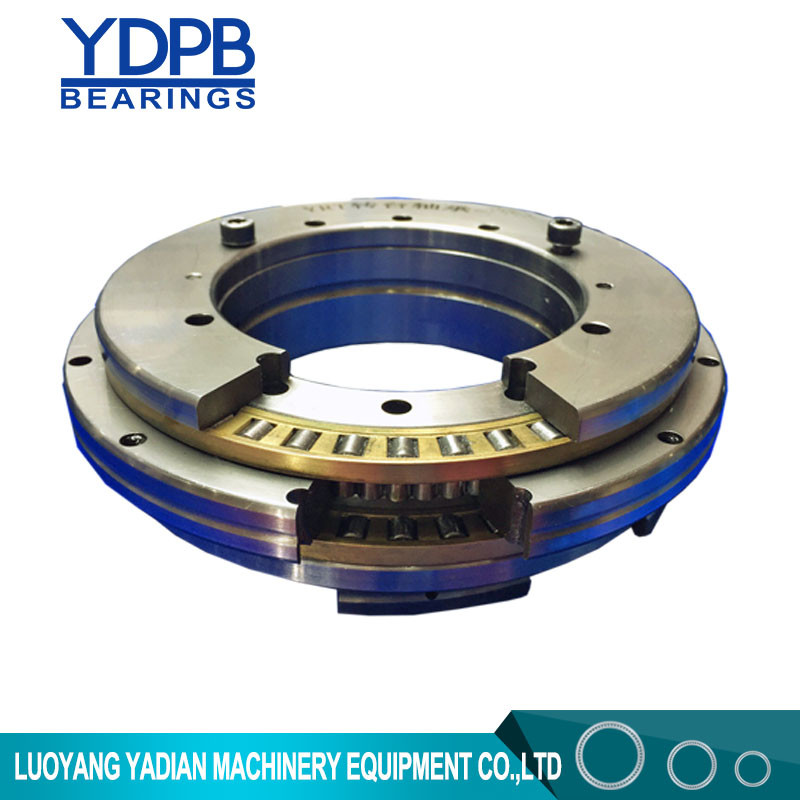

YDRT325 CNC rotary Axis Tilting Rotary Tables Bearings Size325x450x60mm Brass cage 1

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Transportation available

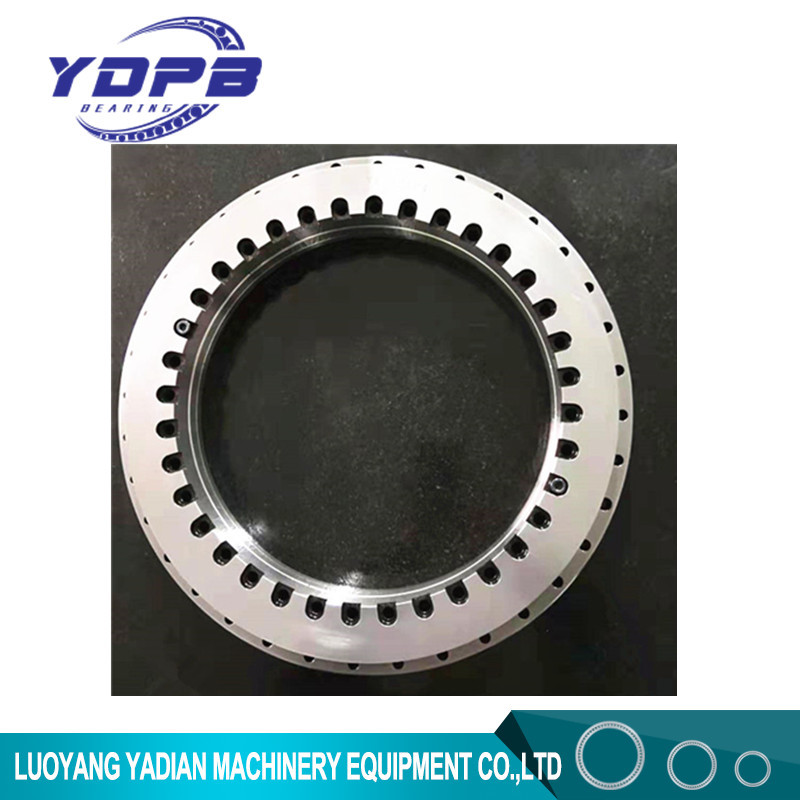

YDRT325 CNC rotary Axis Tilting Rotary Tables Bearings Size325x450x60mm Brass cage 2
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
