YDPB YRT45 YRT rotary table bearings factory customized yrt rotary bearing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Gcr15 | Dimension | Custom Made |
---|---|---|---|
Load | Axial Radial Combined Load | Model | YRT45 |
Application | CNC Machine Tool | Cage | Brass Cage |
Precision Level | P4,P2 |
YDPB YRT45 custom made bearing China yrt rotary bearing supplier
Main Models
YRT50 Bearings,YRT80 bearings,YRT100 bearings,YRT120 bearings,YRT150 bearings,YRT200 bearings,YRT260 bearings,YRT325 bearings,YRT395 bearings,YRT460 bearings,YRT580 bearings,YRT650 bearings,YRT850 bearings,YRT950 bearings,YRT1030 bearings,YRT1200 bearings.
Main parameters
Bearing Model number |
Boundary dimensions | Basic load rating(KN) |
Limiting Speed (Grease) |
Bearing frictional torque (Nm) |
Weight (kg) |
Axial/Radial Runout (μm) |
||||||||||
Axial load | Radial load | |||||||||||||||
d | D | H | H1 | C | D1 | J | J1 | dynamic | static | dynamic | static | |||||
unit: mm | Ca | Coa | Cr | Cor | r/min | |||||||||||
YRT50 | 50 | 126 | 30 | 20 | 10 | 105 | 63 | 116 | 38 | 158 | 28.5 | 49.5 | 440 | 2.5 | 1.6 | 2 |
YRT80 | 80 | 146 | 35 | 23.35 | 12 | 130 | 92 | 138 | 56 | 255 | 42.5 | 100 | 530 | 3 | 2.4 | 3 |
YRT100 | 100 | 185 | 38 | 25 | 12 | 160 | 112 | 170 | 76.5 | 415 | 47.5 | 120 | 430 | 3 | 4.0 | 3 |
YRT120 | 120 | 210 | 40 | 26 | 12 | 184 | 135 | 195 | 102 | 540 | 52 | 143 | 340 | 7 | 5.3 | 3 |
YRT150 | 150 | 240 | 40 | 26 | 12 | 214 | 165 | 225 | 112 | 630 | 56 | 170 | 320 | 10 | 6.2 | 3 |
YRT180 | 180 | 280 | 43 | 29 | 15 | 244 | 194 | 260 | 118 | 710 | 69.5 | 200 | 280 | 12 | 7.7 | 4 |
YRT200 | 200 | 300 | 45 | 30 | 15 | 274 | 215 | 285 | 120 | 765 | 81.5 | 220 | 260 | 14 | 9.7 | 4 |
YRT260 | 260 | 385 | 55 | 36.5 | 18 | 345 | 280 | 365 | 160 | 1060 | 93 | 290 | 200 | 20 | 18.3 | 6 |
YRT325 | 325 | 450 | 60 | 40 | 20 | 415 | 342 | 430 | 275 | 1930 | 120 | 345 | 170 | 40 | 25 | 6 |
YRT395 | 395 | 525 | 65 | 42.5 | 20 | 486 | 415 | 505 | 300 | 2280 | 186 | 655 | 140 | 55 | 33 | 6 |
YRT460 | 460 | 600 | 70 | 46 | 22 | 560 | 482 | 580 | 355 | 2800 | 200 | 765 | 120 | 70 | 45 | 6 |
YRT580 | 580 | 750 | 90 | 60 | 30 | 700 | 610 | 720 | 490 | 4250 | 228 | 965 | 80 | 140 | 89 | 10 |
YRT650 | 650 | 870 | 122 | 78 | 34 | 800 | 680 | 830 | 1040 | 8000 | 490 | 1800 | 65 | 200 | 170 | 10 |
YRT850 | 850 | 1095 | 124 | 80.5 | 37 | 1018 | 890 | 1055 | 1000 | 8650 | 455 | 1730 | 50 | 300 | 253 | 12 |
YRT950 | 950 | 1200 | 132 | 86 | 40 | 1130 | 990 | 1160 | 1290 | 11400 | 530 | 2040 | 40 | 600 | 312 | 12 |
YRT1030 | 1030 | 1300 | 145 | 92.5 | 40 | 1215 | 1075 | 1255 | 1380 | 12000 | 620 | 2650 | 39 | 800 | 375 | 15 |

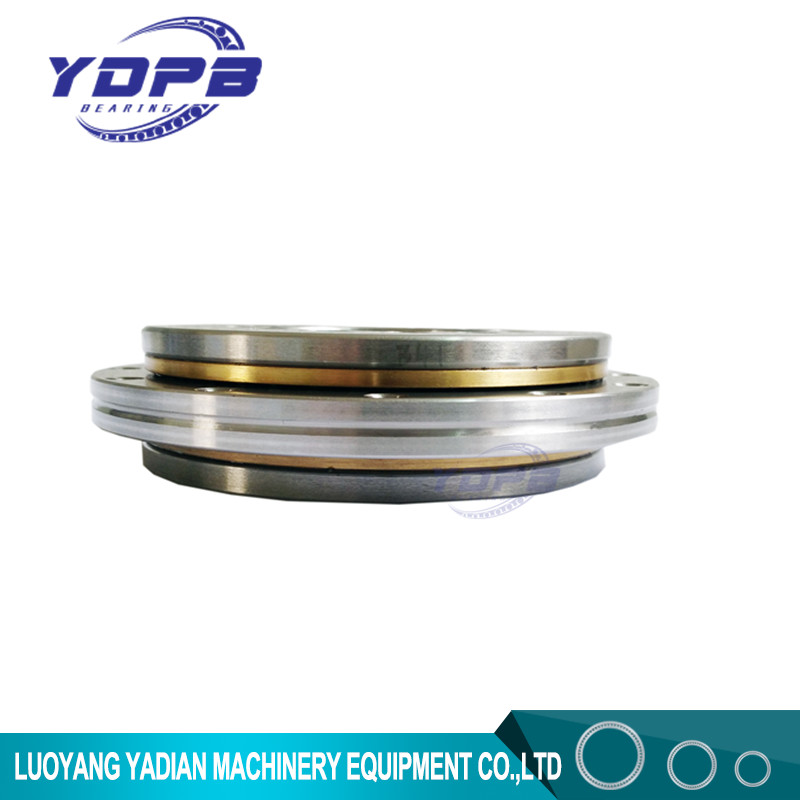

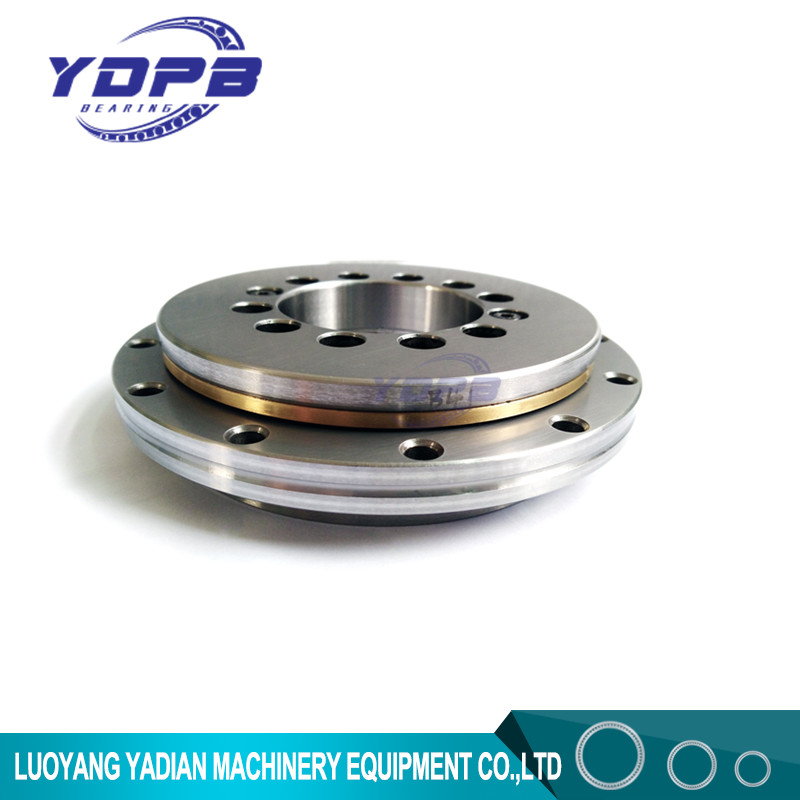

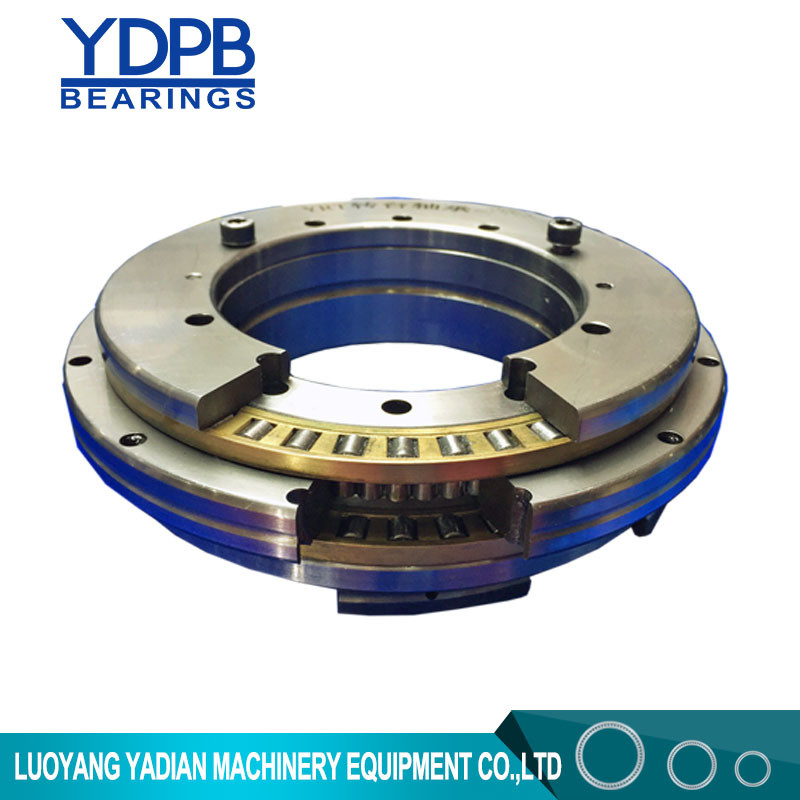

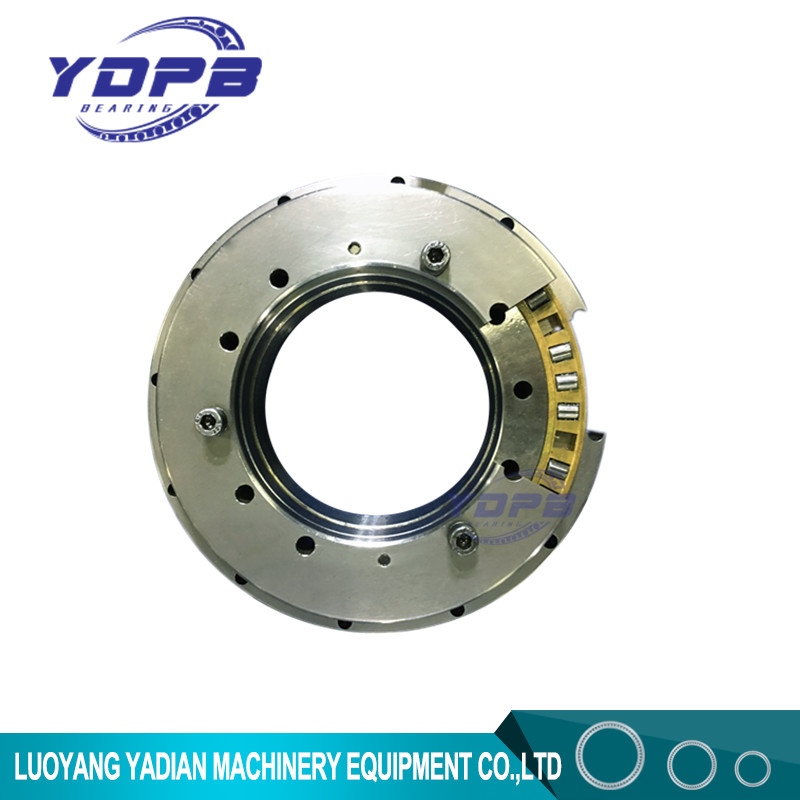

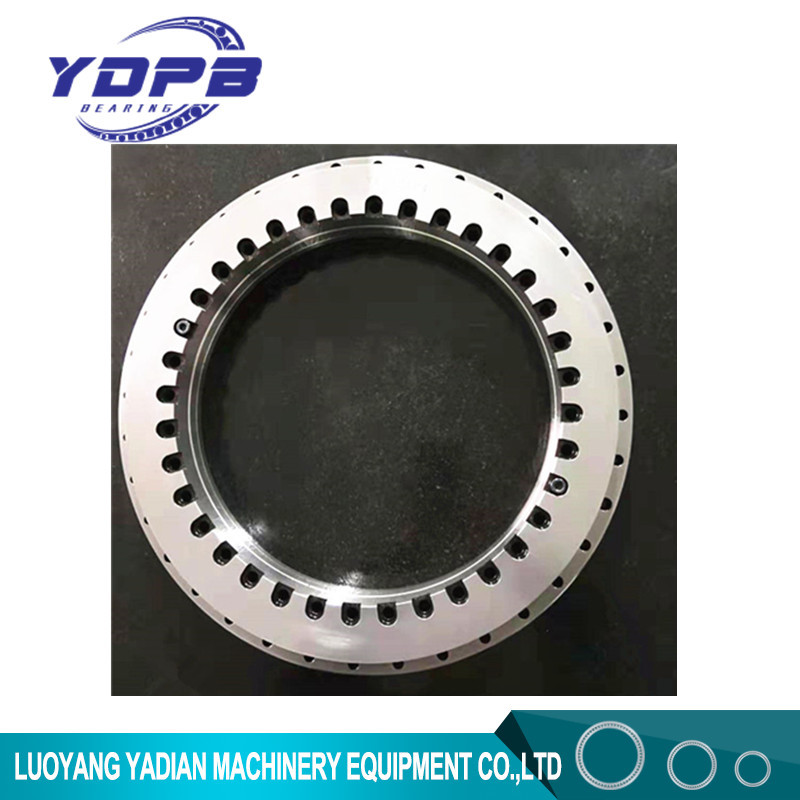

Related pictures
Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Transportation available
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
